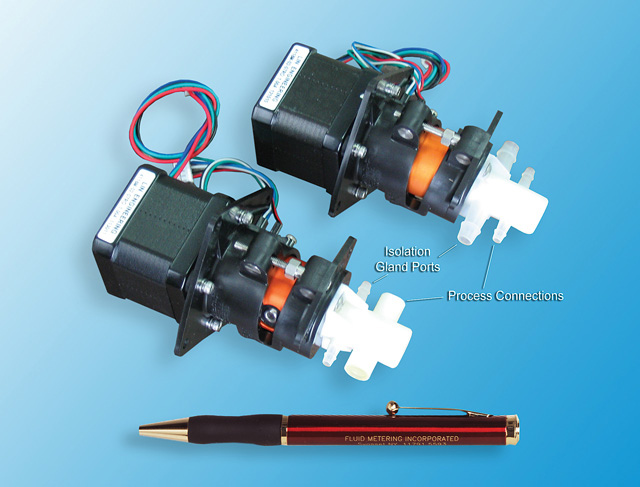

Fluid Metering valveless pump
The low volume, valveless metering pump from Fluid Metering Inc. is made for the precise dispensing of air sensitive, crystal forming fluids. The H Series pump heads are available with an isolation gland to provide a fluid barrier between the pumped process fluid and atmosphere. 800/223-3388; www.fmipump.com.

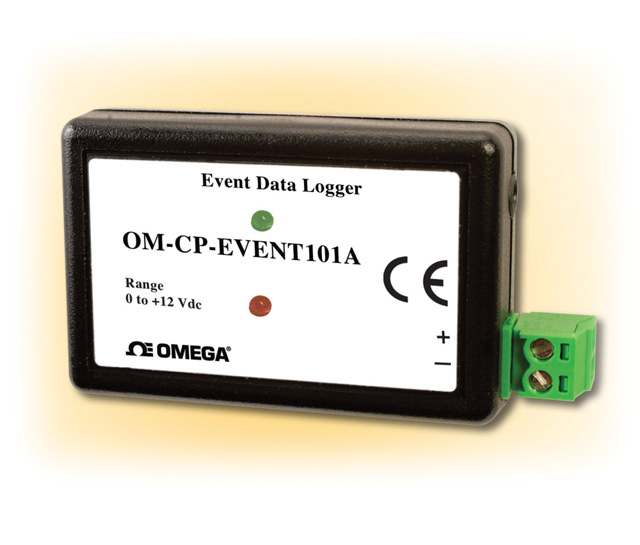

Omega event data logger
The OM-CP-Event101A event data logger from Omega interfaces to tipping bucket rain gauges and other devices with TTL pulse or contact closure output. Features include 10-year battery, 4 Hz reading rate, multiple start/stop function, high-speed download, 406,323 reading storage capacity, optional memory wrap, battery life indicator and optional password protection. 800/826-6342; www.omega.com.

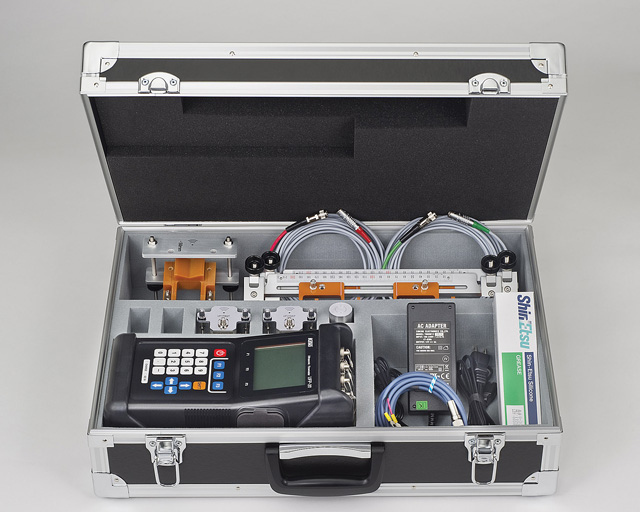

Scantek clamp-on ultrasonic flowmeters
Keiki UFP-20 clamp-on ultrasonic flowmeters from Scantek Inc. feature two pairs of transducers on the outside of pipes. The meter can measure heat energy at two different systems or two different circuits in a system at the same time. By using three different types of transducers (small, medium, large), the meter can measure pipe diameters from 13 mm to 5,000 mm. The main unit’s inner memory can provide long-term storage of instantaneous flow rates and totalized data in digital form, which can be transferred to a PC through USM memory under CSV format and modified for statistical analysis. 410/290-7726; www.scantekinc.com.

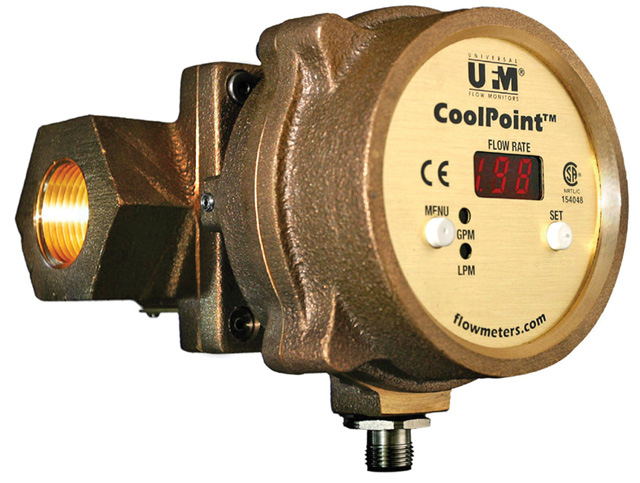

Universal Flow Monitors vortex shedding flowmeters
Coolpoint vortex shedding flowmeters from Universal Flow Monitors Inc. have no moving parts, eliminating the potential for clogging and feature Intrinsic Safety on 1/4-, 3/8-, 1/2-, 3/4-, 1-, 1 1/2- and 2-inch meters. The 4-20 mA three-wire transmitter features brass body with Viton seals and PVDF sensors. Available in pipe sizes from 1/4 to 4 inches, the meters have a 10:1 turndown ratio and three-digit LED readout, selectable alarm state (N.O. or N.C.) set point or pulse output and choice of gpm or lpm. 248/542-9635; www.flowmeters.com.
RIDGID manual hydraulic benders
Manual hydraulic benders from RIDGID are designed for precise cold bending of standard gas pipe (DIN 2440), black steel Schedule 40 (ASTM A53) and stainless steel Schedule 40 pipe. Bending shows in real time the angle the pipe is bent, reducing the number of starts, stops and pipe removals to take measurements. Durable piston seals prevent premature leaks and maximize uptime. User fatigue is minimized due to handle design, which minimizes the number of strokes to advance the piston. Benders are available in two models: 3/8- to 2-inch capacity (Model HB382) and 3/8- to 3-inch capacity (Model HB383). 800/769-7743; www.ridgid.com.

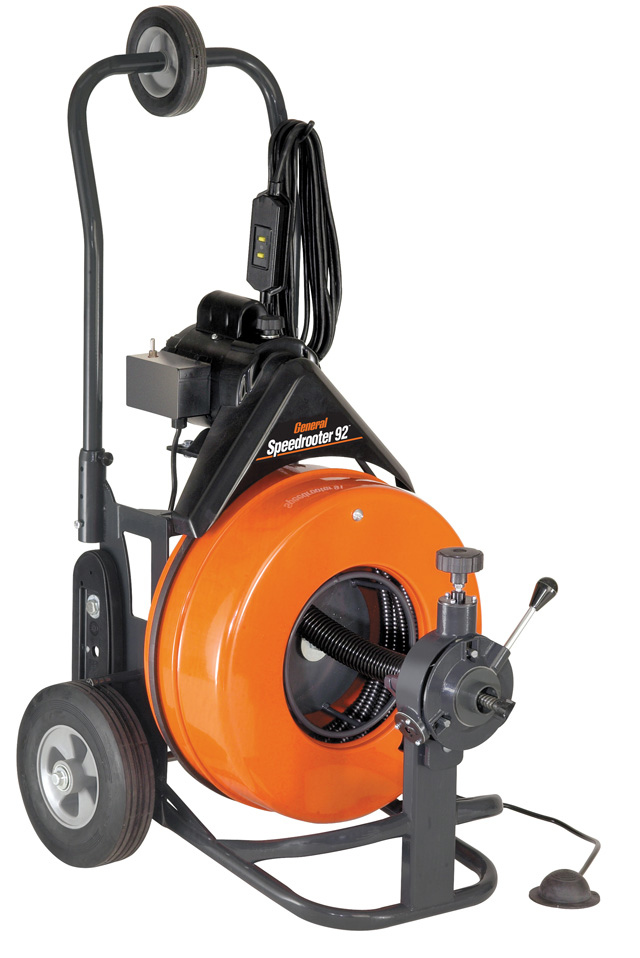

General Speedrooter 92 drain cleaner
The Speedrooter 92 drain cleaning machine from General Pipe Cleaners features the Flexitube spring distributor tube that allows cable to feed and retract more smoothly for enhanced machine durability, even if the frame has been damaged. A cord and foot pedal wrap on the handle makes it easier to store. Made to feed and retract 3/4-, 5/8- and 1/2-inch cable, both large and small drums have a see-through inner cage to determine how much cable remains. Other features include a braced frame, heavy-duty 1/2 hp motor and Flexicore cable. 800/245-6200; www.drainbrain.com.

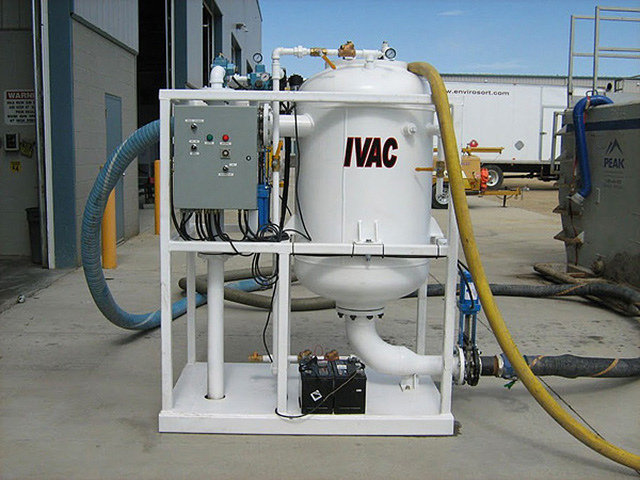

Subsurface Supply industrial vacuum system
The IVAC PV500 sand, sump, rock, slurry and water handling industrial vacuum system from Subsurface Supply Inc. is capable of moving materials in industrial and environmental cleanups. The skid-mounted unit weighs 1,800 pounds, is 72 inches long, 36 inches wide and 74 inches high. The system delivers up to 100 psi, 500 cfm and 25 inches Hg. Discharge pressure is fully adjustable (1-100 psi). It has a vertical vacuum lift up to 150 feet, vertical discharge up to 500 feet and horizontal vacuum of 500 feet, horizontal discharge up to 10,000 feet. The control panel can be powered by a 12-volt DC or an intrinsically SAFE option is available for hazardous environments. 605/838-8384; www.subsurfacesupply.com.

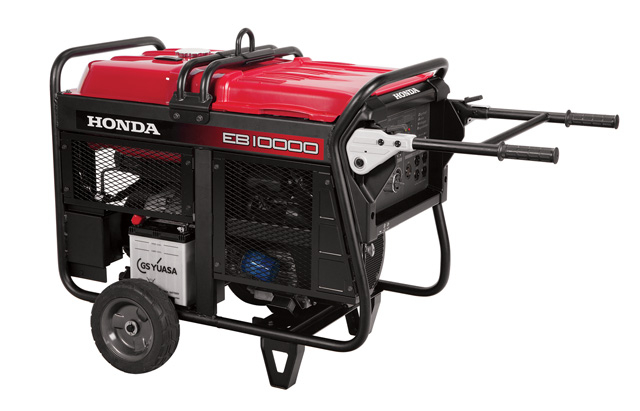

Honda industrial series generator
The EB1000 industrial series generator from Honda has a maximum output of 10,000 watts, narrow-shaped design and centralized exhaust. The generator operates at 72 decibels at 23 feet. The digital auto voltage regulator (DAVR) holds voltage stable within 1 percent during standard operation. The i-Monitor digital operation system offers at a glance total used hours, generating voltage (when error detected), battery condition, Oil Alert and AVR (auto voltage regulator) error code. 678/339-2600; www.powerequipment.honda.com.
Subscribe: Sign up for the MSW E-Newsletter!

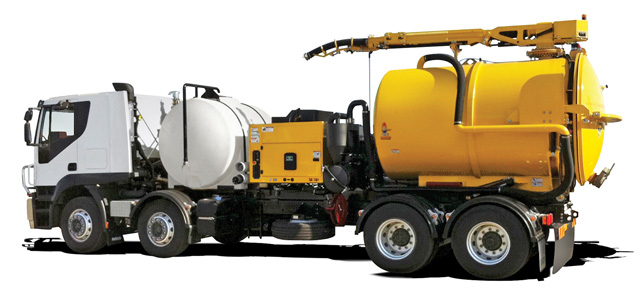

McLaughlin truck-mounted Mega Vac
Mega Vac truck-mounted vacuum excavation systems from the McLaughlin Group feature tank capacities from 1,600 to 3,000 gallons. Power options include a 67 hp Kubota diesel engine with 1,025 cfm blower or 99 hp Kubota engine with 1,200 cfm. Both options produce 15 inches of mercury. A deep vacuum power plant with 99 hp engine, 1,200 cfm and 24 inches of mercury is available. The three-stage filtration system allows for both wet and dry excavation. 800/435-9340; www.mightymole.com.
JWC Environmental vertical screening system
Auger Monster model AGV from JWC Environmental is a vertical screening system that fits inside pump stations to provide protection against rags and debris. The system mounts to the wall of the pump station next to the inlet pipeline, capturing rags, wipes, plastics and trash. The custom built system can screen up to 1 million gpd. It also can be installed as a headworks screen for a package treatment plant or lagoon system. 800/331-2277; www.jwce.com.
