  Sewer Bypass/Dewatering Pump

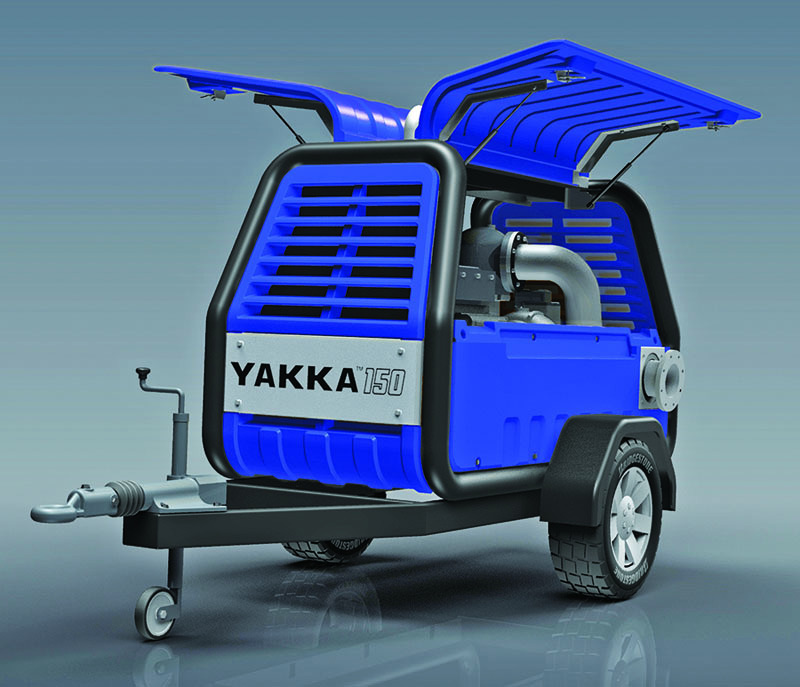

The Yakka150i from AllightPrimax is designed with replaceable wearplates and impellers in stainless steel materials, as well as the capability to pass 3-inch solids, making it suitable for a range of applications, including sewer bypass, permanent backup and dewatering. It operates quietly, emitting only 65 dBA at 23 feet. The body is impact-resistant and requires little or no maintenance due to its poly outer shell. The strong tubular frame design provides side and end protection, and lockable gull wing doors wrap over the body for added security and easy access. All controls are situated inside the lockable module. 877/477-4629; www.allightprimax.com.

  UV Disinfection System

The InLine+ series of UV disinfection systems from Aquionics use medium-pressure lamps, allowing for a small footprint and minimal maintenance requirements. The system is ideal for tight-fitting spaces without the need for expensive building construction or large modifications to existing structures. It covers a wide range of flows and water qualities, from the smaller facilities needing disinfection on a few gpm, to the larger facilities with several hundred mgd of flow. It comes standard with highly efficient medium-pressure lamps, DVGW sensors, automatic wiping system (chemical option available) and variable power ballasts, which ensure only the power required for disinfection is consumed. 859/341-0710; www.aquionics.com.

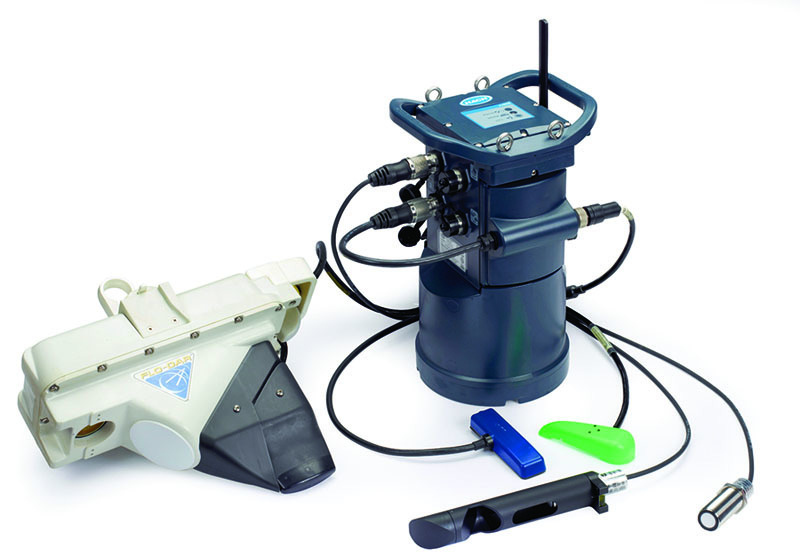

  Plug-and-Play Ultrasonic Flowmeter

The FL900 Series flowmeter from Hach Flow Meter Products & Services offers level-only alarming and redundant-level functionality. In addition to the ultrasonic level sensor technology, radar, electromagnetic and acoustic Doppler velocity technologies are also available. The plug-and-play design allows for up to four sensor connections with auto-detection of sensor type, allowing users maximum flexibility for their flowmeter inventories. It is available with the company’s Data Delivery Services Program, which uses wireless loggers and sensors and provides real-time unedited flow data through FSDATA Web-based software. 800/368-2723; www.hachflow.com.

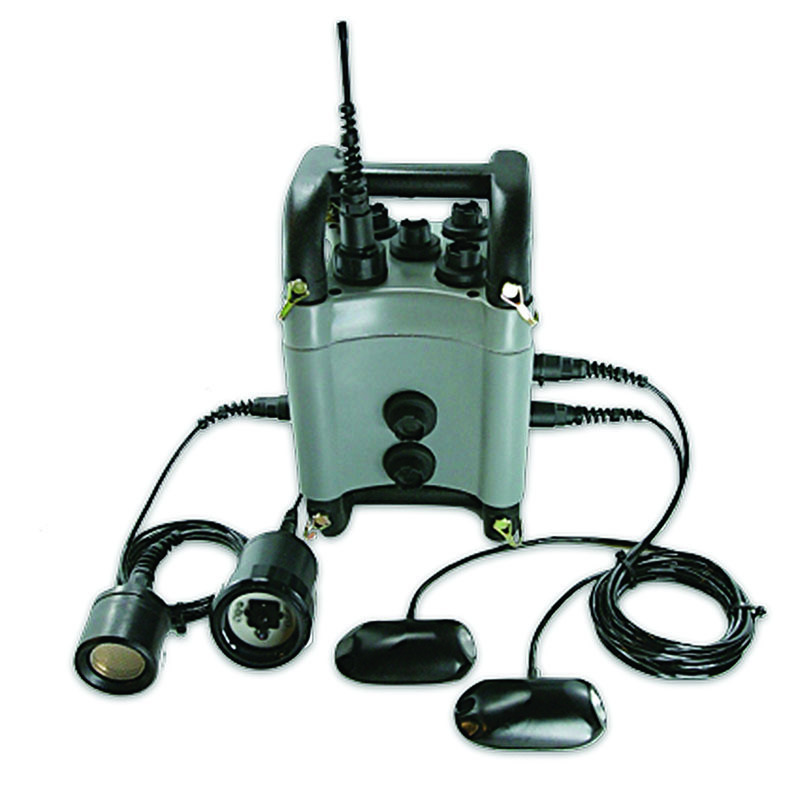

  Open-Channel Flow Monitor

The FlowSiren from Blue-Siren is a wireless, low-power, multi-sensor open-channel flow monitor with vision sensor that allows technicians to measure and view any flow conditions using contact and/or non-contact sensors. Advanced power management keeps it collecting and transmitting data for over a year using only four D-size lithium batteries. Designed using IP68 connectors, the FlowSiren is fully submersible and waterproof. Completely encapsulated and manufactured using impact-proof plastics, the FlowSiren can handle harsh environments. Data is automatically uploaded to a server of choice, or using the Blue Live hosting platform powered by Earth Monitoring DataBase. 321/242-0300; www.blue-siren.com.

  Pump and Flow Management

Symphony - Harmonious Pump & Flow Management from Data Flow Systems utilizes SCADA to coordinate the system-wide operation of sewer lift stations to reduce force main pressures and equalize flow into a wastewater treatment plant or master. The result is a significant reduction in energy costs and a solution to daily peak flow and pressure spikes. It addresses the random operation of each lift station operating on a common force main, and synchronizes the pumping activity on a minute-by-minute basis. Head pressures are reduced and pumps begin to operate more effectively and efficiently. It also tackles peak flow issues and levels the flow into a wastewater treatment plant by systematically managing the force main’s diurnal curve over a 24-hour period. 321/259-5009; www.dataflowsys.com.

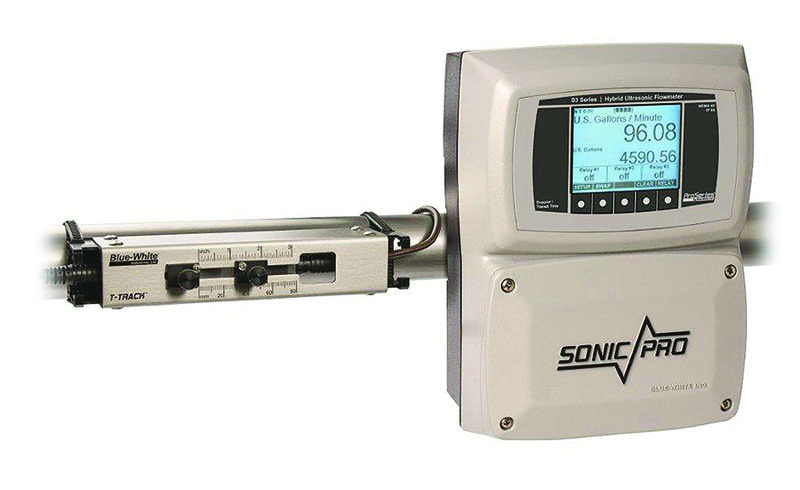

  Flowmeter with Tracked Mount

The Sonic-Pro hybrid ultrasonic flowmeter from Blue-White Industries is available with a T-Track Mounting system. The new small pipe capability is down to 0.5 inches, while the new large pipe capacity is up to 100 inches. Installation is fast and simple. The system features NEMA 4X quick disconnects. The flowmeter uses either Doppler or Transit Time methods, and works with both clean and dirty fluids. Features include custom metric algorithms and DSP technology, easy-reading display with backlit LCD, data logged to standard SD card format supplied with unit, fully configurable isolated 4-20 mA output and 0-1000 Hz Pulse Output, and a computer connection for functional control. 714/893-8529; www.blue-white.com.

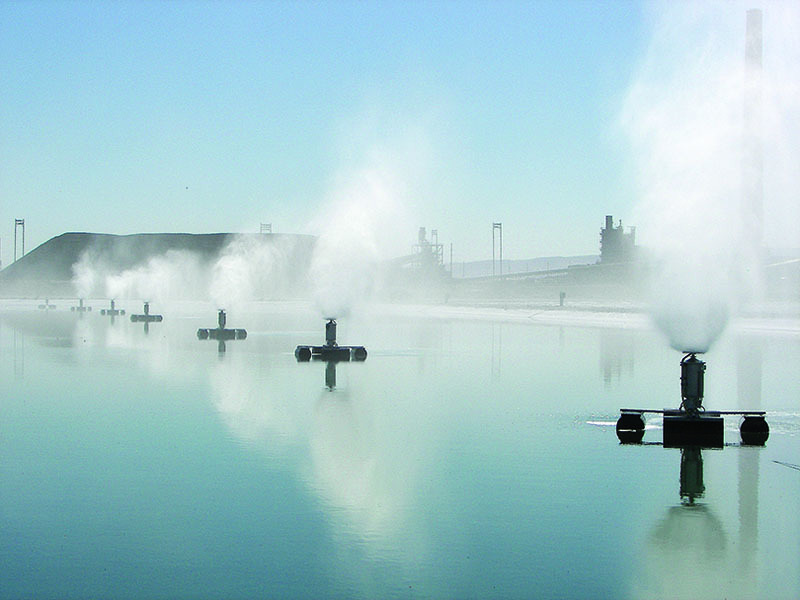

  Wastewater Evaporator

The DriBoss DBE-750 Evaporator from Dust Control Technology is driven by a powerful 25 hp industrial-grade motor. The high-speed head features stainless steel fan blades for optimal droplet distribution, yet the low plume height helps ensure short drift distances. The design helps eliminate wastewater quickly and cost-efficiently, even without large evaporation ponds. Its 7.5 hp submersible pump is attached to a frame that floats on polyethylene pontoons, which are filled with closed-cell urethane foam, so even if a pontoon is accidentally punctured, it retains its buoyancy. 309/693-8600; www.driboss.com.

  Optical Absorption Sensor

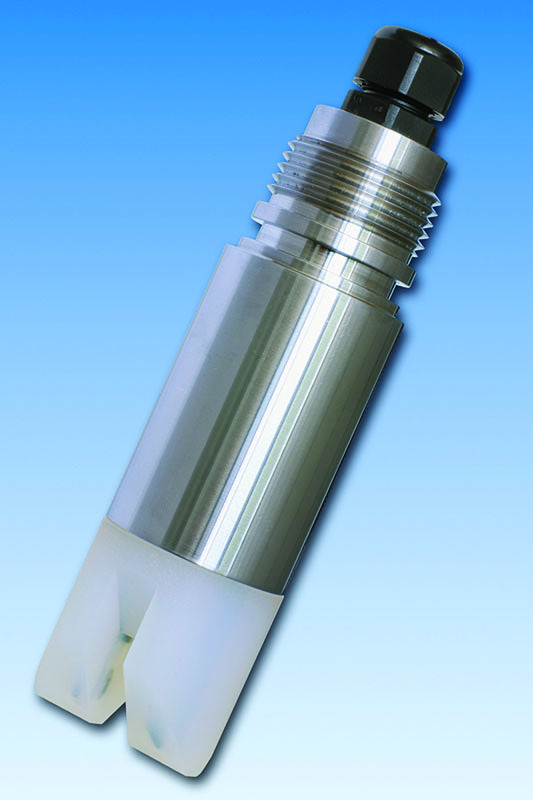

The OUSAF11 sensor from Endress+Hauser is designed to measure optical absorbance by a process fluid. Using visible and near-infrared wavelengths of light, it is ideal for product loss detection, interface detection, and suspended solids and turbidity measurements. The sensor emits light in both the visible and near-infrared regions, and absorption by the process fluid is determined using an optical sensor mounted in the sensor head. The sensor is available in an immersion model for use in open tanks and basins, or in an insertion model with Tri-Clamp or Varivent connections that meet 3A sanitary standards. 888/363-7377; www.us.endress.com.

  Thermal Mass Flowmeter

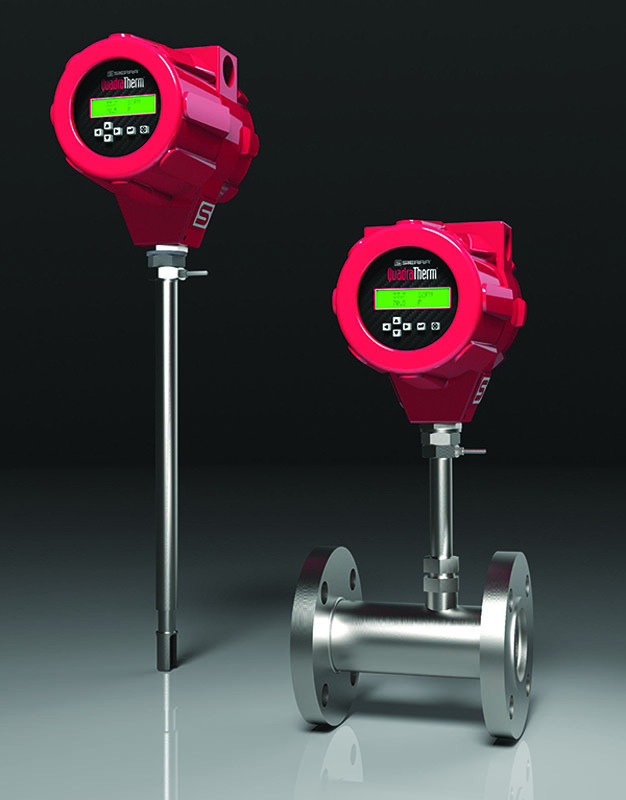

The QuadraTherm 640i/780i thermal mass flowmeter series from Sierra Instruments achieves gas mass flow rate measurement accuracy of ± 0.5 percent of reading above 50 percent of the full scale (Air). Its QuadraTherm system introduces four sensors — three precision platinum temperature sensors and one patented no-drift DrySense mass velocity sensor, which uses a manufacturing process to greatly improve accuracy and long-term stability. Features include a no-drift sensor with lifetime warranty and multivariable output: mass flow, temperature, pressure (optional). It measures all inert and all non-condensing clean and flammable gases. 800/866-0200; www.sierrainstruments.com.

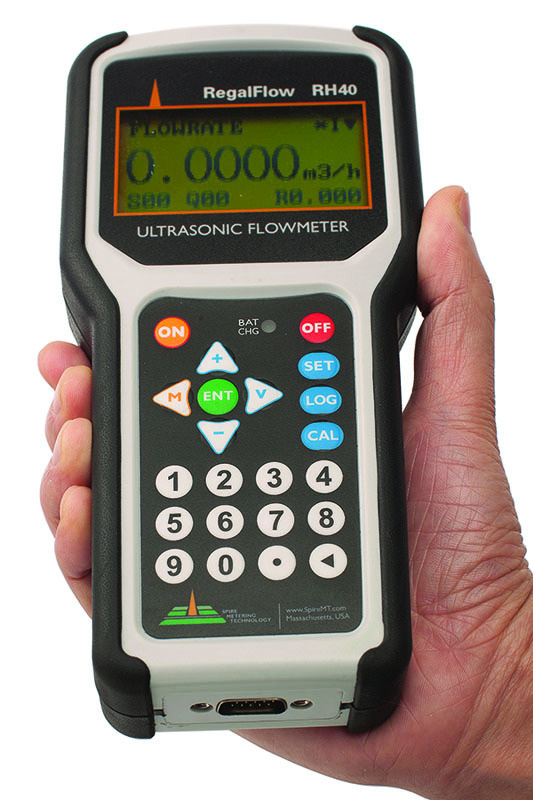

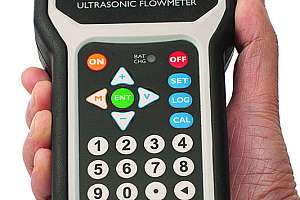

  Portable Ultrasonic Flowmeter

The Regal Series RH40 ultrasonic flowmeter from Spire Metering Technology is engineered to deliver fast, non-intrusive flow and BTU measurement across a broad array of pipe sizes and applications. It is completely portable and relies on clamp-on sensors to perform non-intrusive measurements on flow, temperature and heat energy/BTU consumption on pipes ranging from 0.5 to 120 inches in diameter. It weighs 1 pound, but provides large data logging storage, analog input/output options and on-site diagnostic features, as well as seamless connectivity to a smartphone or PC for fast data downloading and analysis. 888/738-0188; www.spiremt.com.

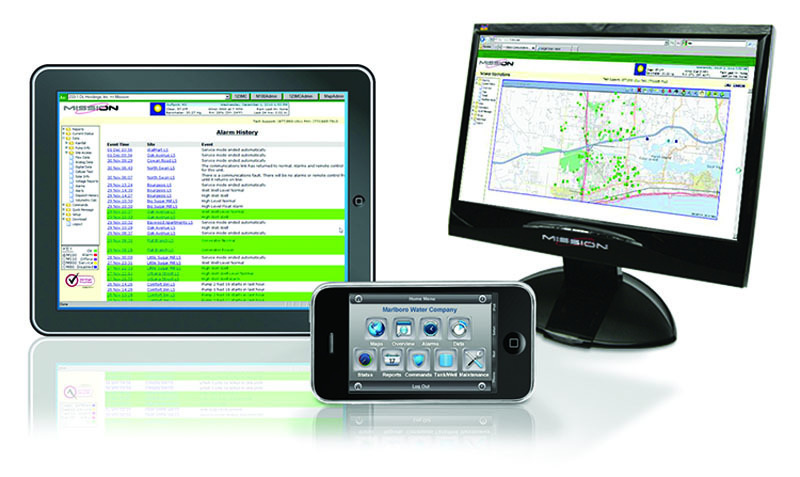

  Managed SCADA System

The managed SCADA system from Mission Communications is a complete monitoring and controls system which allows municipalities to better manage, operate and maintain collection and distribution systems. Real-time alarms are delivered by any combination of voice phone calls, text messages, emails, faxes and pagers, and each alarm is logged on the Web portal. Because the system is Web-based, enhancements and new features are immediately available at no extra cost. Users can compare pump station flow with local rainfall, analyze pump runtimes for anomalies, or track site access. The Web portal can be accessed anytime, anywhere from any Web-enabled device. 877/993-1911; www.123mc.com.

  Level-Sensing Probe

The DuoProbe from Multitrode combines a 10-sensor level-sensing probe with a high-resolution submersible pressure transducer. Its primary and backup level sensors cut the risk of spills and minimize the need for site visits. It requires virtually no maintenance, replaces troublesome floats and bubblers, and eliminates the need for a vent or breather tube. It can measure the water level in the entire well, and can be installed without entering the pit. Its high-resolution level reading is useful where monitoring small changes in level is desirable, providing greater energy savings. It offers the ability to monitor the liquid level after it has exceeded the top of the probe, which is significant in emergency conditions. 561/994-8090; www.multitrode.com.

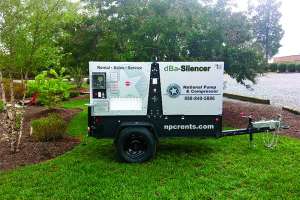

  Silent Pump Package

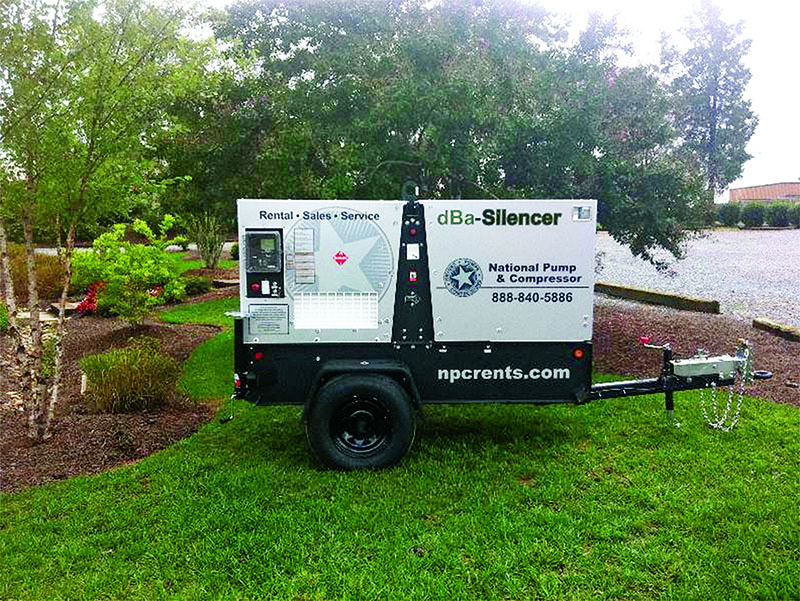

National Pump & Compressor’s dBa Silencer Pump packages are quiet, compact and efficient. This tough and versatile diaphragm-primed package features an ergonomic design for easy operation, service and repair. They are available in 4- to 18-inch sizes, have flow capabilities of up to 1,700 gpm, are capable of achieving 155 feet TDH, and can pump up to 3-inch solids. They feature a sleek, compact design and quiet nature, with the canopy rating only 70 dBAs at 23 feet. They are available skid- or trailer-mounted, with emissions-certified engines available. 888/840-5886; www.npcrents.com.

  Bagging System

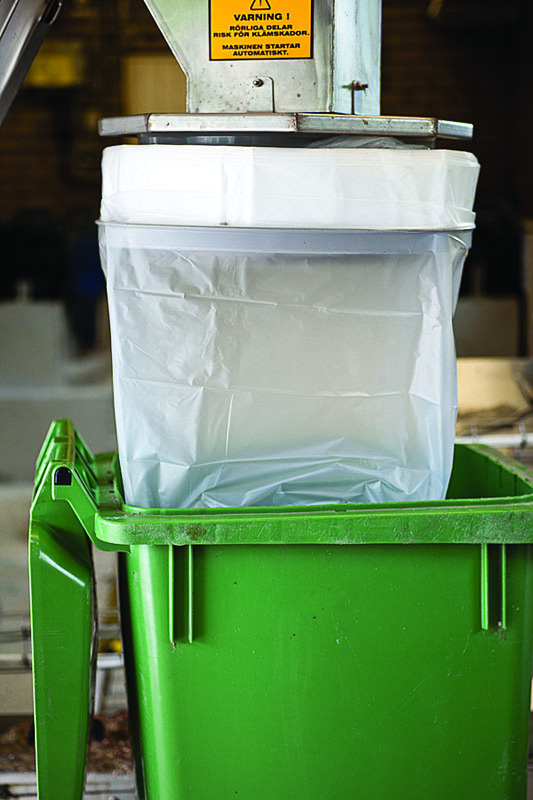

Longofill from Paxxo consists of a closed continuous bag system, which can be connected to the discharge point of machines used in the moving, dewatering or compaction of screenings and grit. Screenings and grit are deposited into the continuous bag, which helps to provide odor containment and controls spillage associated with the collection. The cassette is easy to seal, and the odors and materials are trapped inside, reducing environmental and health issues and cutting down on the development of bacteria and fungus spores in the working environment. 770/502-0055; www.paxxo.com.

  Fluorimeter

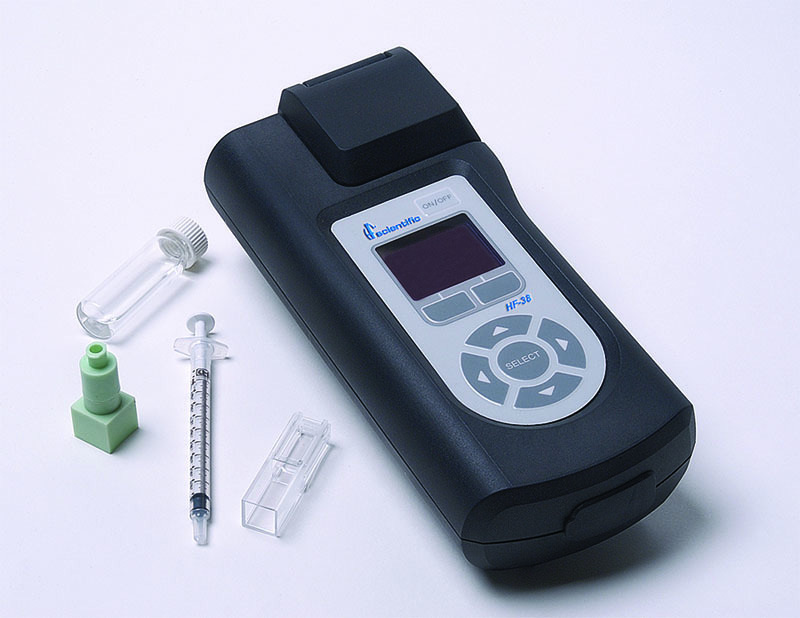

The HF scientific HF-38 Fluorimeter from Watts Water Technologies is an extremely sensitive, hand-held, ruggedized instrument designed for field-testing of toxic heavy metal contaminates in water supplies. It requires no special skill or knowledge of chemistry to operate, and is designed for use with HF heavy metal sensors. Through the use of DNA sensors, a reaction that fluoresces in the presence of a target contaminate substance, such as lead, is measured to determine the concentration of the target heavy metal and is reported in parts per billion. 978/688-1811; www.watts.com.

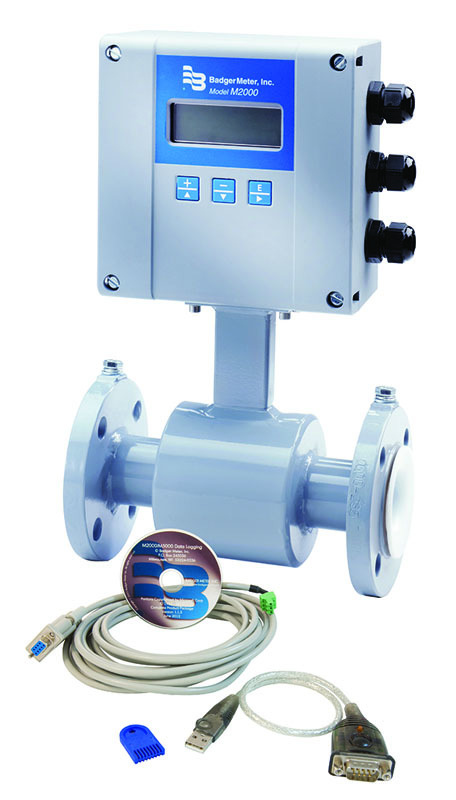

  Electromagnetic Flowmeter

The M2000 electromagnetic flowmeter from Badger Meter achieves an accuracy of ±0.25 percent. Built without moving parts to impede the flow stream, the open tube design virtually eliminates pressure loss. Communications protocols include HART, Modbus RTU and PROFIBUS DP. Kits include data logging, store/restore and firmware upgrade. It allows users to record totalizer and error, startup and configuration events to a memory token, and gives users the flexibility to easily switch between meter configurations. 800/876-3837; www.badgermeter.com.

  Diesel Trash Pump

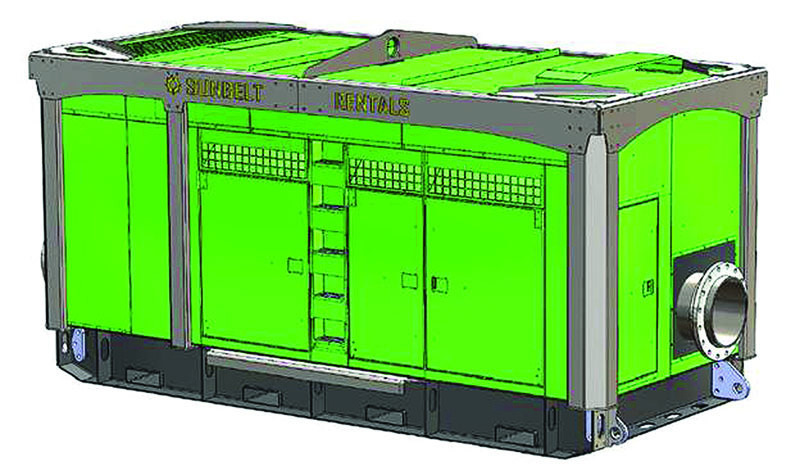

The 18-inch Quiet Flow sound-attenuated diesel trash pump from Sunbelt Rentals joins the company’s fleet of 4-, 6-, 10- and 12-inch models that all boast exceptional sound attenuation and environmental containment. It features a self-contained environmental skid, providing complete fluid containment and ensuring the capture of any possible engine oil, fuel or coolant leaks. It offers flows up to 12,500 gpm, and a shut-off head exceeding 175 feet. 803/578-6571; www.sunbeltrentals.com.

  Recording Telemetry Unit

The Ru-33 Recording Telemetry Unit (RTU) from Telog Instruments provides real-time monitoring and alarming of instruments and sensors. With a submersible enclosure, it can be installed in sewers or other underground applications. An optional burial antenna can be embedded in the street pavement, producing a complete underground wireless monitoring system. It directly monitors open-channel wastewater flowmeters, as well as pressure level sensors, ultrasonic level sensors, water quality sensors and Sondes. It then forwards the data wirelessly. It is powered by a single 6-volt alkaline lantern battery with up to two years of life. 585/742-3000; www.telog.com.

  Gas Detection Wall-Mount Controller

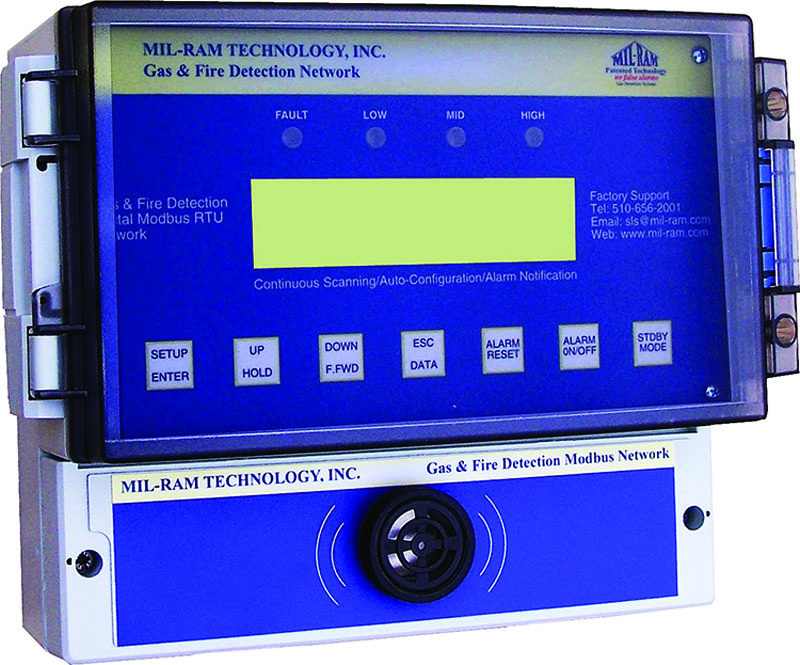

The TA-2016MB-WM gas detection wall-mount controller from Mil-Ram Technology features a 16-channel system (8-channel available) utilizing the RS-485 Modbus RTU Multi-drop Network. It features four relays, LED alarm indicators, a local buzzer, and backlit LCD auto-scrolls for channel data/fault conditions. The Auto-Configuration Wizard makes channel configuration simple and automatic. Several network modules are available to achieve desired functionality in a cost-effective manner. Options include remote relay modules, including a remote digital output module that provides RS-485 Modbus RTU interface to a centralized system. 510/656-2001; www.mil-ram.com.

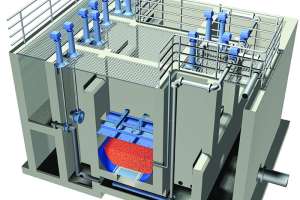

  Gravity Filter

The WWETCO FlexFilter from WesTech Engineering uses a synthetic compressible media to capture solids in a high-rate filtration process. Rising influent applies hydrostatic force to the outside of tapered flexible bladders, causing the media within the bladders to compress loosely at the top of the filter. This tapered compression provides for a filtration bed that is more open at the top of the filter, graduating to more densely packed synthetic media in the deeper portions of the filtration bed. As the liquid flows over the top of the bladders, larger particles are trapped in the upper portions of the filter. As the liquid works its way down, smaller particles are captured. The backwash system involves an air scour coupled with a high-energy wash cycle and specialized backwash troughs to minimize the volume of backwash needed. 801/265-1000; www.westech-inc.com.
