Product Focus: Pumps, Lift Stations and Conveyance

Interested in Infrastructure?

Get Infrastructure articles, news and videos right in your inbox! Sign up now.

Infrastructure + Get Alerts

Control Panels

1. Gorman-Rupp Integrinex

The Integrinex line of lift station controls from Gorman-Rupp is designed to ensure system performance through precise matching of controls to pumps and motors. Customers have four choices in liquid level controls when they select a Gorman-Rupp ReliaSource solids-handling pump package. Basic offers simple, reliable plug-and-play performance and is designed for accurate start/stop operation in a duplex alternation pump system. Standard includes duplex and triplex alternation, level sensors, pump delay and alarms. Advanced control systems include soft starters and VFDs to manage electric inrush, hydraulic shock, and matching starting and stopping torque-based management and monitoring. Remote View includes all the functionality of the advanced system with remote tablet-based management and monitoring. 419-755-1011; www.grpumps.com.

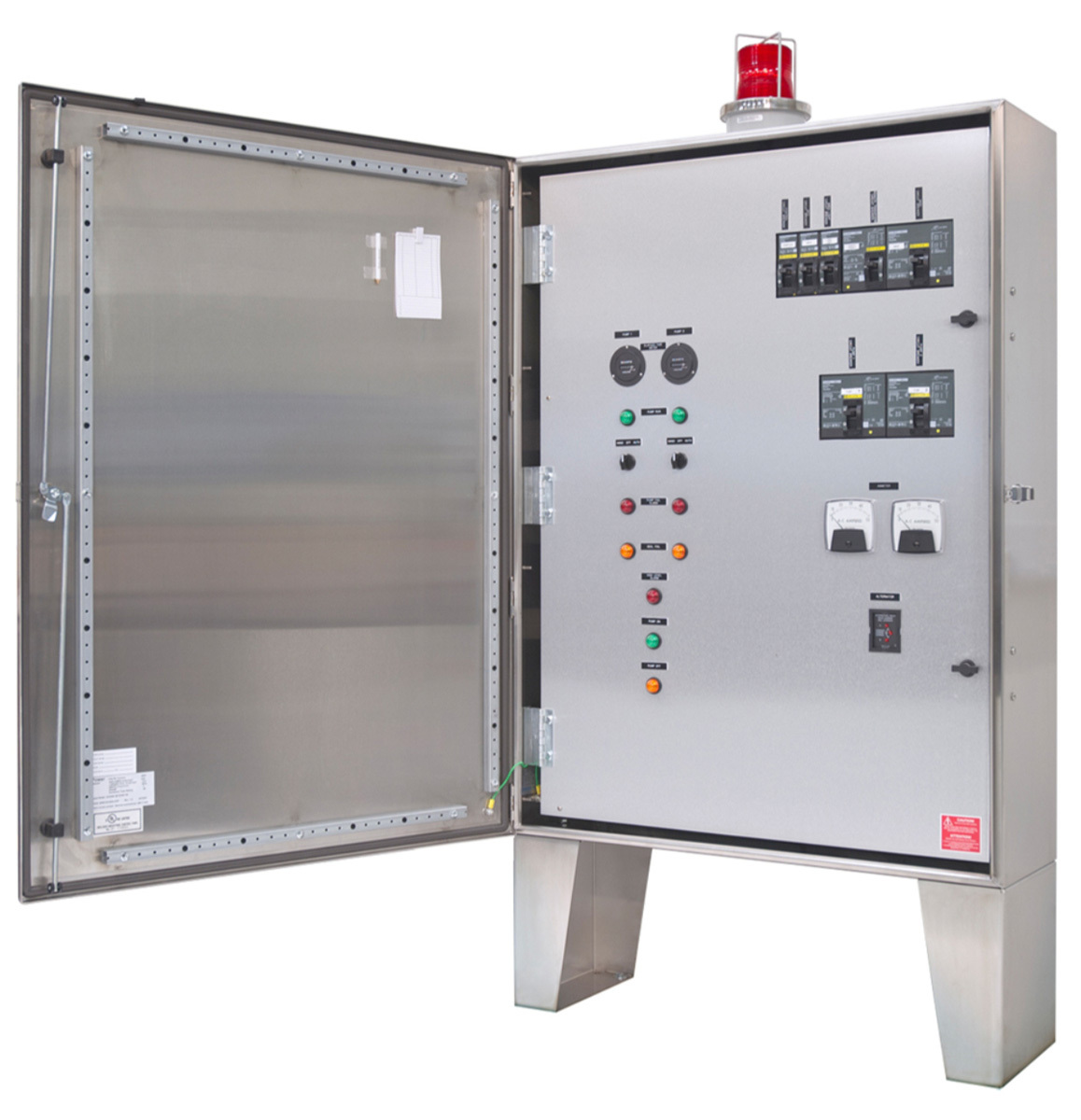

2. Orenco Controls OLS Control Panels

OLS Control Panels from Orenco Controls come with the choice of either integrated starters or variable-frequency drives that optimize system operation. These panels are suitable for a variety of pumping applications, such as lift stations, stormwater pump stations, water boosting, dewatering or sludge pumping. They can also be used as a SCADA patch, connecting peripheral equipment to future or existing SCADA systems. Parameters can be configured via a human-machine interface and include a user-friendly startup wizard. Engineers can preprogram user interfaces to the site-specific needs of an installation, making the panel virtually plug-and-play. Maintenance staff can easily adjust settings and monitor the system remotely. These weatherproof control panels are UL 508A listed and include service-rated circuit protection, phase and voltage protection, and level controls. 877-257-8712; www.orenco.com.

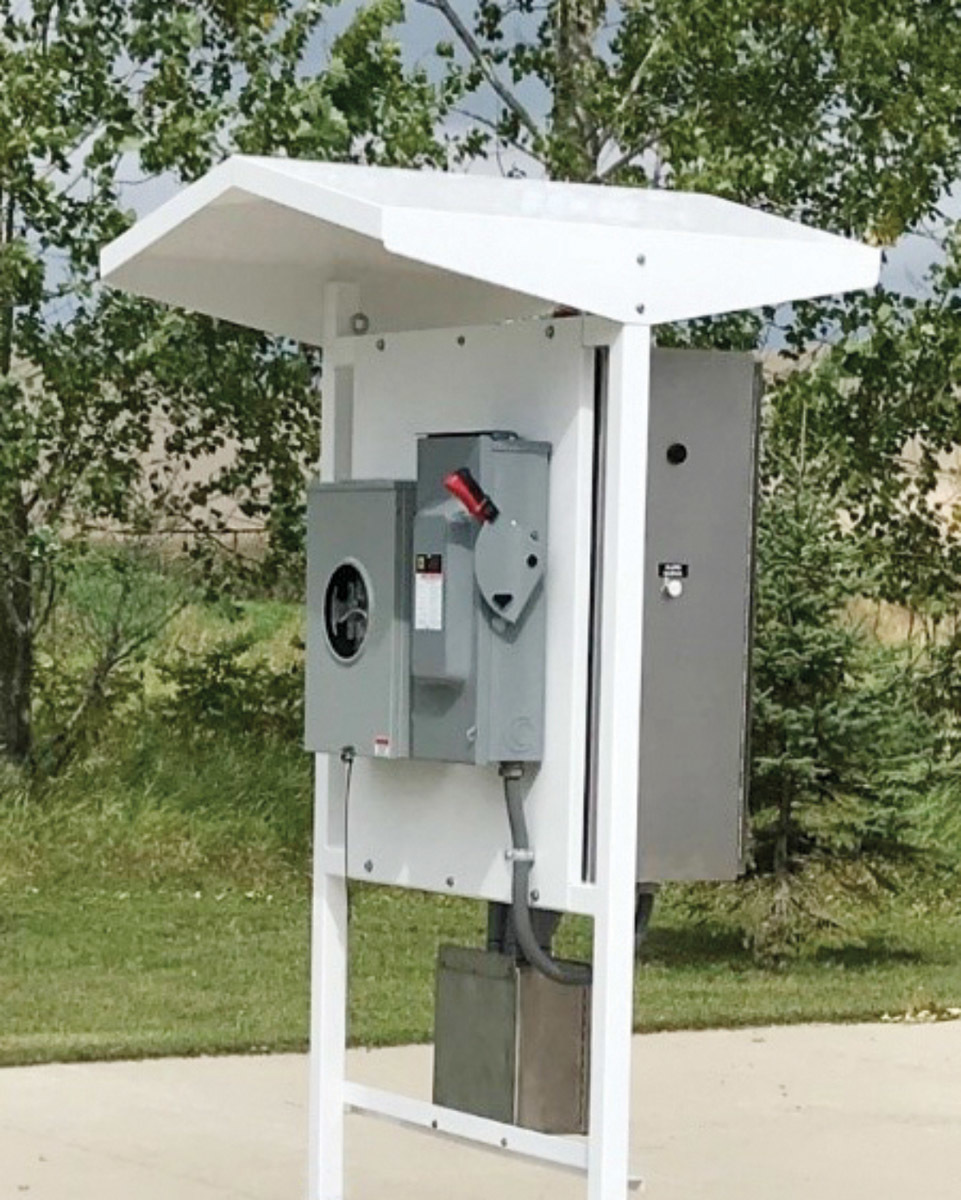

3. PRIMEX Rapid Set Mounting System

The Rapid Set Mounting System from PRIMEX is a complete lift station control package that comes ready to install, eliminating the need to custom manufacture mounting fixtures on site. It has a welded stainless steel frame, powder-coated white, to provide a durable yet aesthetically pleasing control package. The sloped top acts as a sunshield and provides protection from weather. An additional mounting plate, opposite of the control panel, provides space for installation of other electrical components. It reduces on-site installation time, provides a consistent appearance to installation, a compact footprint, includes a control panel that is factory installed, and has a standard 122 mph wind rating with option for upgrade to 200 mph. 844-477-4639; www.primexcontrols.com.


Lift Stations/Components

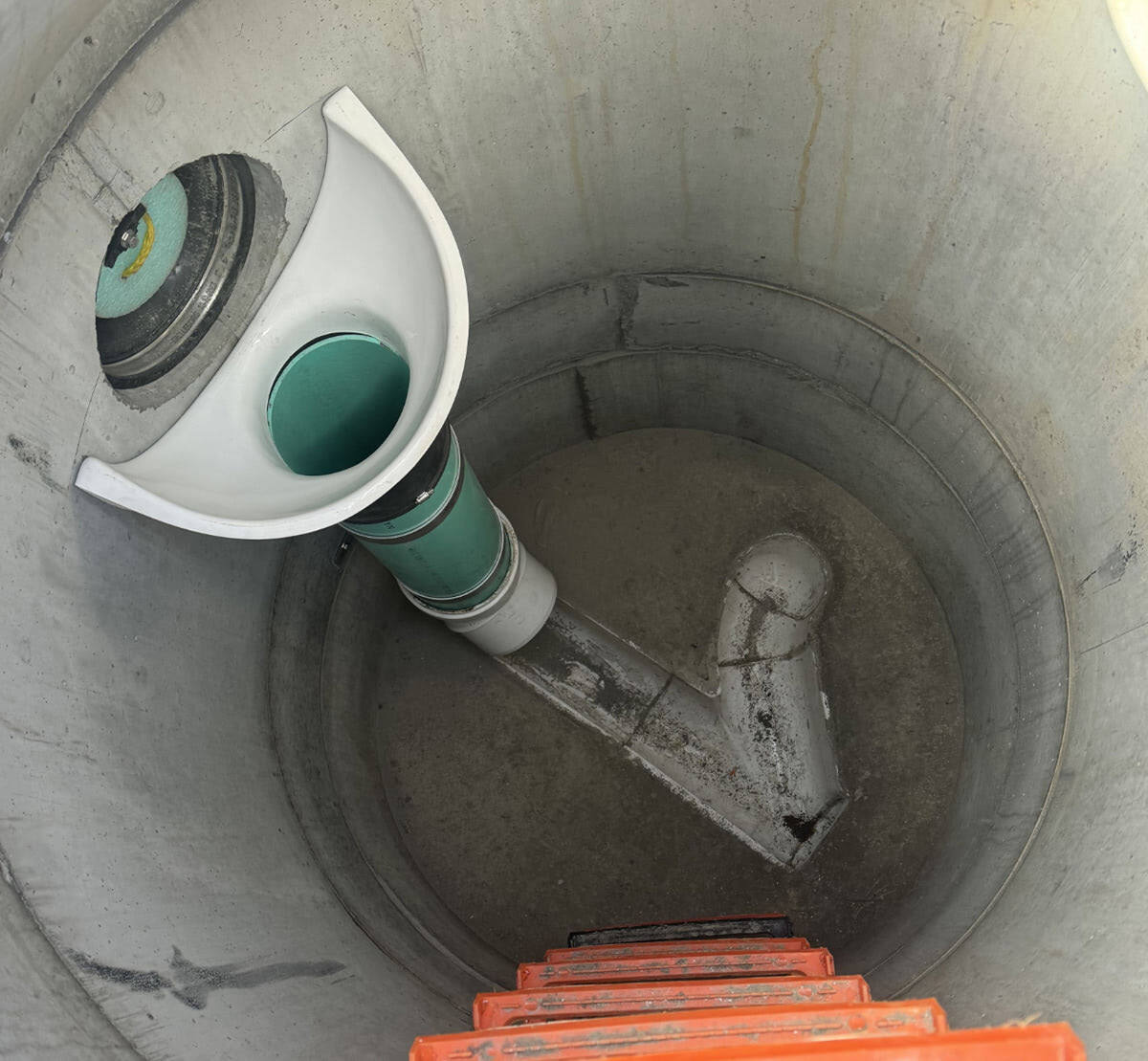

4. RELINER/Duran Inside Drop Bowls

Eliminate troublesome outside drops and clean up failed inside drops. RELINER/Duran Inside Drop Bowls and stainless steel pipe support brackets simply bolt to the manhole wall and can be cleaned and inspected from above. The compact, low-profile bowls are available in dozens of sizes to fit any application, including service laterals, mainline sewers and wet well drops. Stainless brackets are easily installed adjustable clamping pipe brackets available in noncorrosive 11-gauge 304 or 316 stainless steel and they are AIS certifiable. They securely attach pipes to structure walls with no protruding hardware and are fully adjustable to fit irregular surfaces. Modular Manhole Invert Channels improve manhole hydraulics, reducing maintenance, turbulence and odor. 800-508-6001; www.reliner.com.

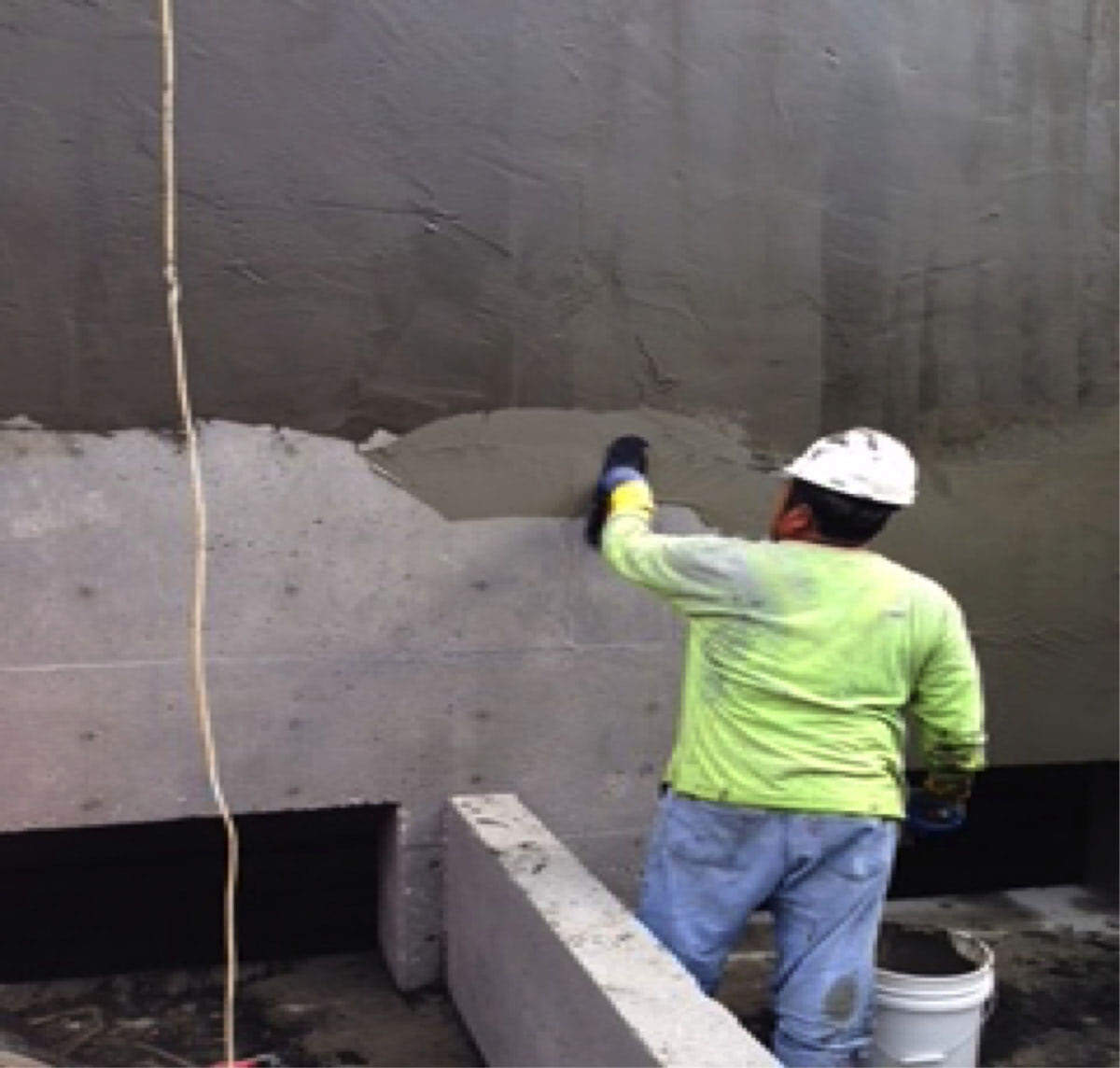

5. Sauereisen RestoKrete No. 208

RestoKrete No. 208 epoxy modified cement mortar is a substrate repair material and water-resistant barrier for the prevention of inflow and infiltration in concrete or brick substrates including pump stations and manholes. It is designed to fill voids, irregularities, and air pockets in concrete. It is pumpable and sprayable, is easily applied by spin-cast or straight shot method, is trowel-able up to 1/2-inch thickness, is moisture tolerant, and is compatible with all SewerGard and ConoFlex systems. When mixed at the proper ratio of powder, liquid and hardener, a regular unit will yield 449 cubic inches per unit at 1/8-inch thickness. 412-963-0303; www.sauereisen.com.

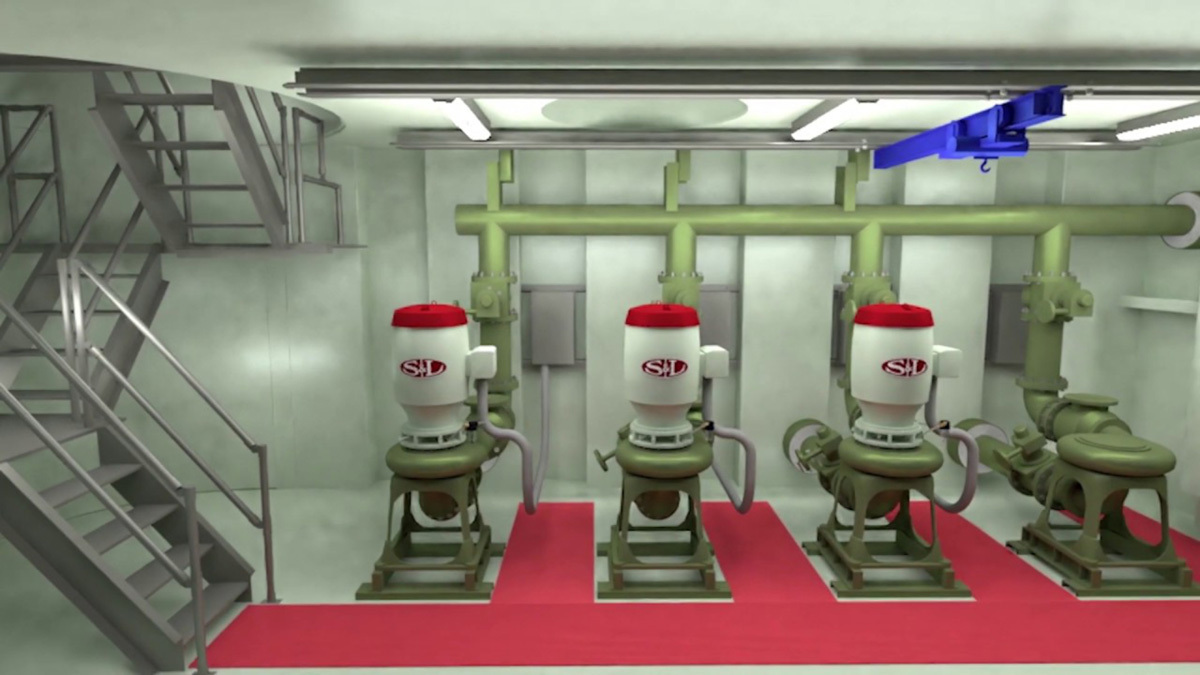

6. Smith & Loveless CAPSULAR Underground Pump Station

CAPSULAR Underground Pump Stations with Safe-Stair entry from Smith & Loveless provide end-users with efficient and long-lasting high-capacity pumping performance and superior operator safety and operations and maintenance costs. Designed for continuous human occupancy, the pumping system features reliable flooded suction pumps that deliver up to 29 mgd of wastewater conveyance. Accessible via the Safe-Stair entry module, entering the system is not considered confined-space entry. The system offers future adaptability through its multi-pump design and ability to adjust rotating assemblies and/or controls. The entire system is prefabricated and shipped directly to the job site. Excavation and installation services are also available. 800-898-9122; www.smithandloveless.com.


Meter

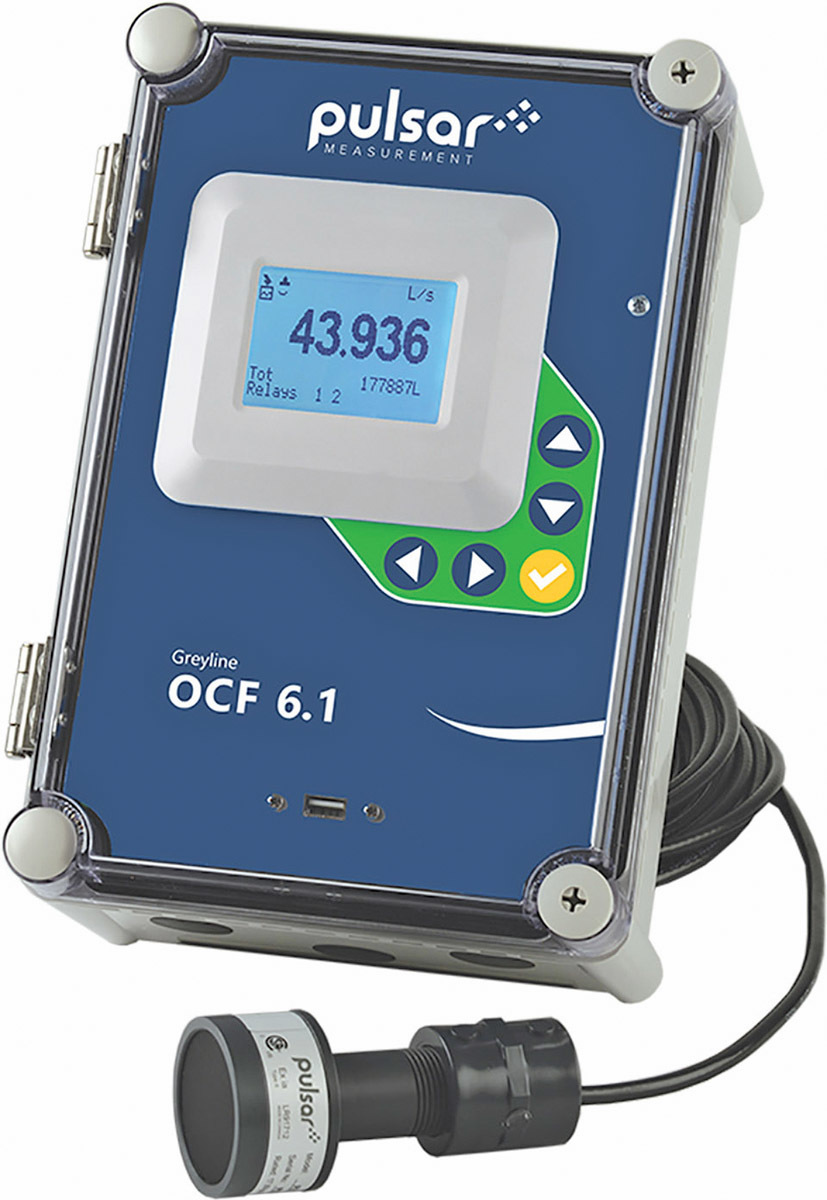

7. Pulsar Measurement OCF 6.1

The OCF 6.1 open-channel flow and tank level meter from Pulsar Measurement allows the user to continuously monitor, display, totalize and data log flow through any flume or weir, or measure the level or range of fluids in tanks or vessels. Use the isolated 4-20mA to transmit flow to remote chart recorders or displays, and the control relays are programmable for level/flow alarm and flow proportionate pulse for samplers, chlorinators or remote totalizers. New features include a built-in 26-million-point data logger with software for easy reporting, expanded flume and weir selections, CE approvals, and optional Modbus RTU communications. 888-473-9546; www.pulsarmeasurement.com.


Pumps

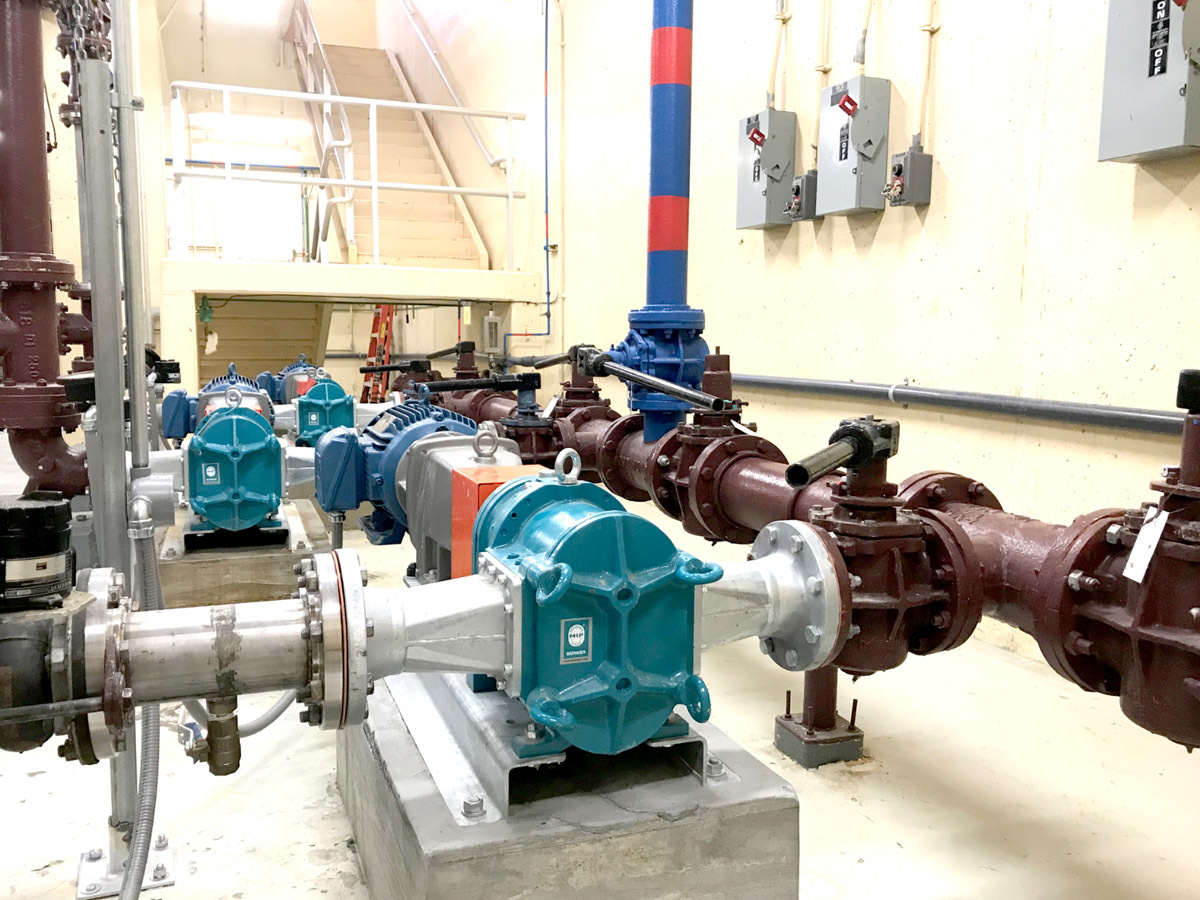

8. Boerger BLUEline

The BLUEline rotary lobe pump from Boerger is a self-priming, valveless, positive-displacement pump used to convey viscous and abrasive materials. There are 21 pump models in six series with pulsation-free operation, fully reversible rotation, dry-run capabilities and flow rates up to 7,500 gpm. The pumps are stable and wear resistant with a maintenance-in-place design that allows for all wetted parts to be easily replaced through the front cover without removing the pipe or drive systems. 612-435-7300; www.boerger.com.

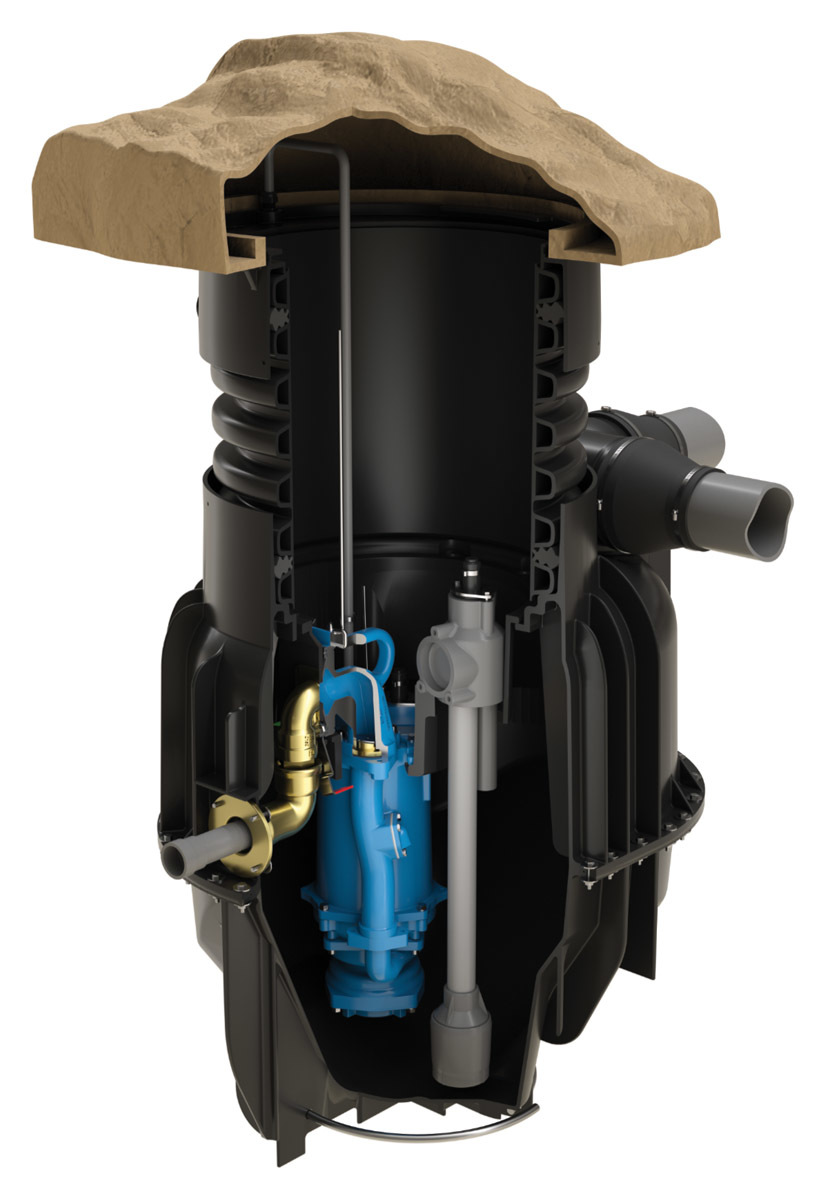

9. Crane Pumps & Systems Barnes Pressure Sewer EcoTRAN

The Barnes Pressure Sewer EcoTRAN from Crane Pumps & Systems provides a practical and environmentally safe alternative to traditional gravity sewers. Even in locations with difficult terrain, it reduces sewage infrastructure costs by allowing smaller-diameter piping to be used in place of large complex septic sewage systems, making it a suitable sewer choice. It collects and grinds sewage in an underground basin, then transports it to a remote private or municipal wastewater treatment plant. 937-778-8947; www.cranepumps.com.

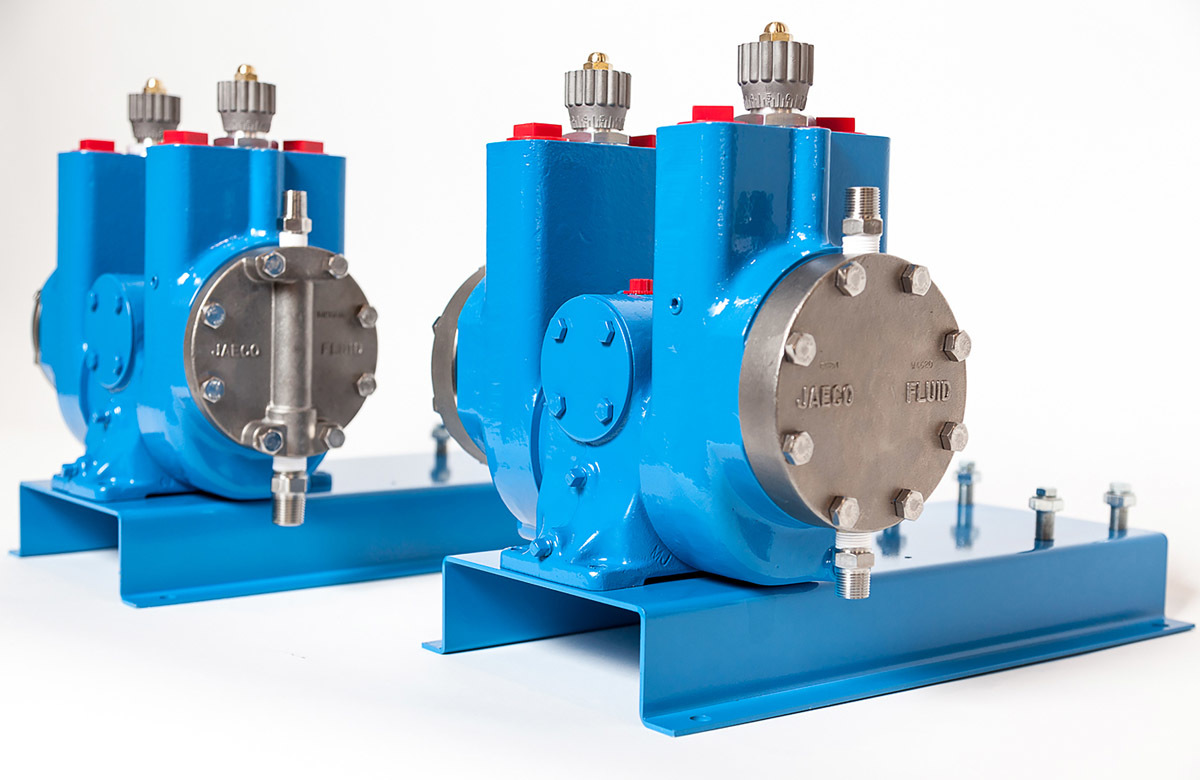

10. JAECO Fluid Systems FRAM

FRAM diaphragm metering pumps from JAECO Fluid Systems are hydraulically actuated and designed for accurate, completely leak-proof metering of difficult-to-handle liquids. They are available in both simplex and duplex configurations, with pump capacities ranging from 0.86 to 56 gph at operating pressures up to 1,200 psi, with an accuracy of ± 0.5%. They are durable cast iron with a choice of 316 stainless steel, PVC or Alloy 20 liquid ends with single or double ball or poppet spring-loaded check valves. Separate chambers for hydraulic fluid and gear lubricant make possible the use of the best medium for hydraulic diaphragm pulsing and the best medium for gear lubrication. The results are better performance and longer pump life. 877-778-3456; www.jaecofs.com.


11. SEEPEX SCT

SEEPEX’s SCT pump provides customers with lower maintenance times, reduced costs and operating efficiencies. The design offers easy access to the split stator and rotor, which means quick maintenance, short downtimes, energy efficiency, and overall lower life cycle costs. The pumps convey media for virtually all industries and handle conveying capacities up to 500 gpm and pressures up to 120 psi. It is a drop-in solution for the replacement of all older or obsolete pumps. The design also allows for the stator to be adjusted and tightened as wear progresses. The pump’s stators last on average twice as long as traditional stators, saving time and money on parts and maintenance, and improving performance efficiency. 937-864-7150; www.seepex.com.

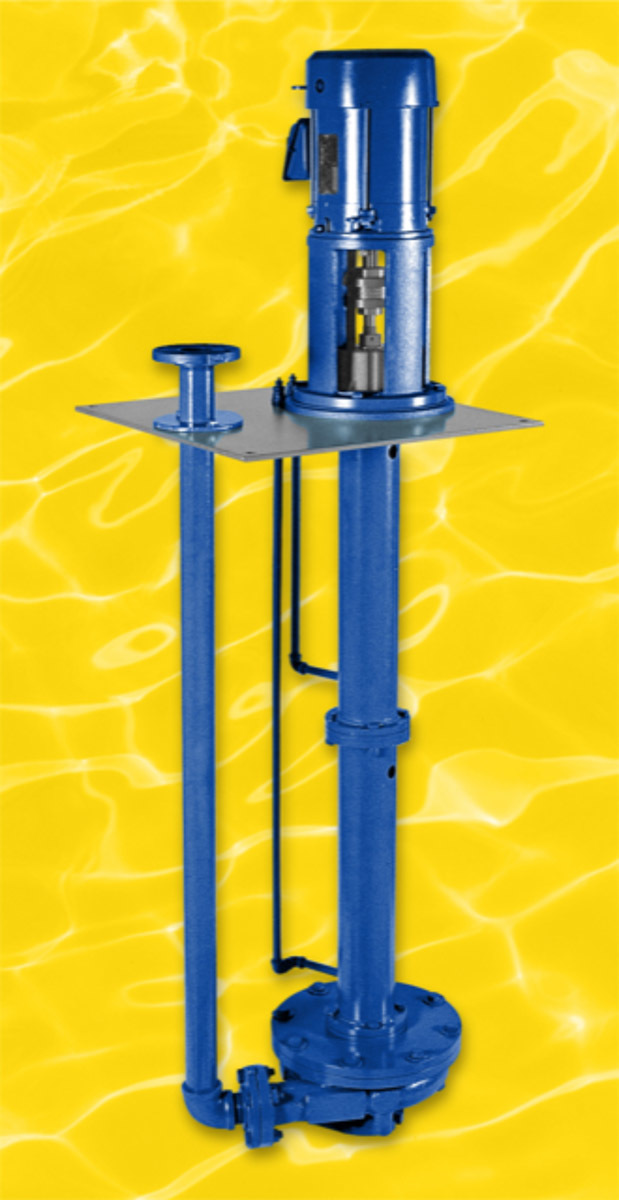

12. Vertiflo Pump Series 900

The Series 900 industrial vertical immersion vortex sump pump from Vertiflo Pump provides an unrestricted flow, since the impeller is not normally in contact with the solids being pumped. Applications include chemical slurries, fragile food-processing solids, paper and pulpy solids, petroleum and oils, sewage, wastewater treatment and textiles. It handles solids up to 4 inches in diameter. It is designed for long life in severe services with heads to 170 feet, temperatures to 350 degrees F, and pit depths up to 26 feet with flows to 1,600 gpm. Construction options include cast iron, 316 stainless steel fitted, all 316 stainless steel, Alloy 20 and CD4MC. 513-530-0888; www.vertiflopump.com.


Valve

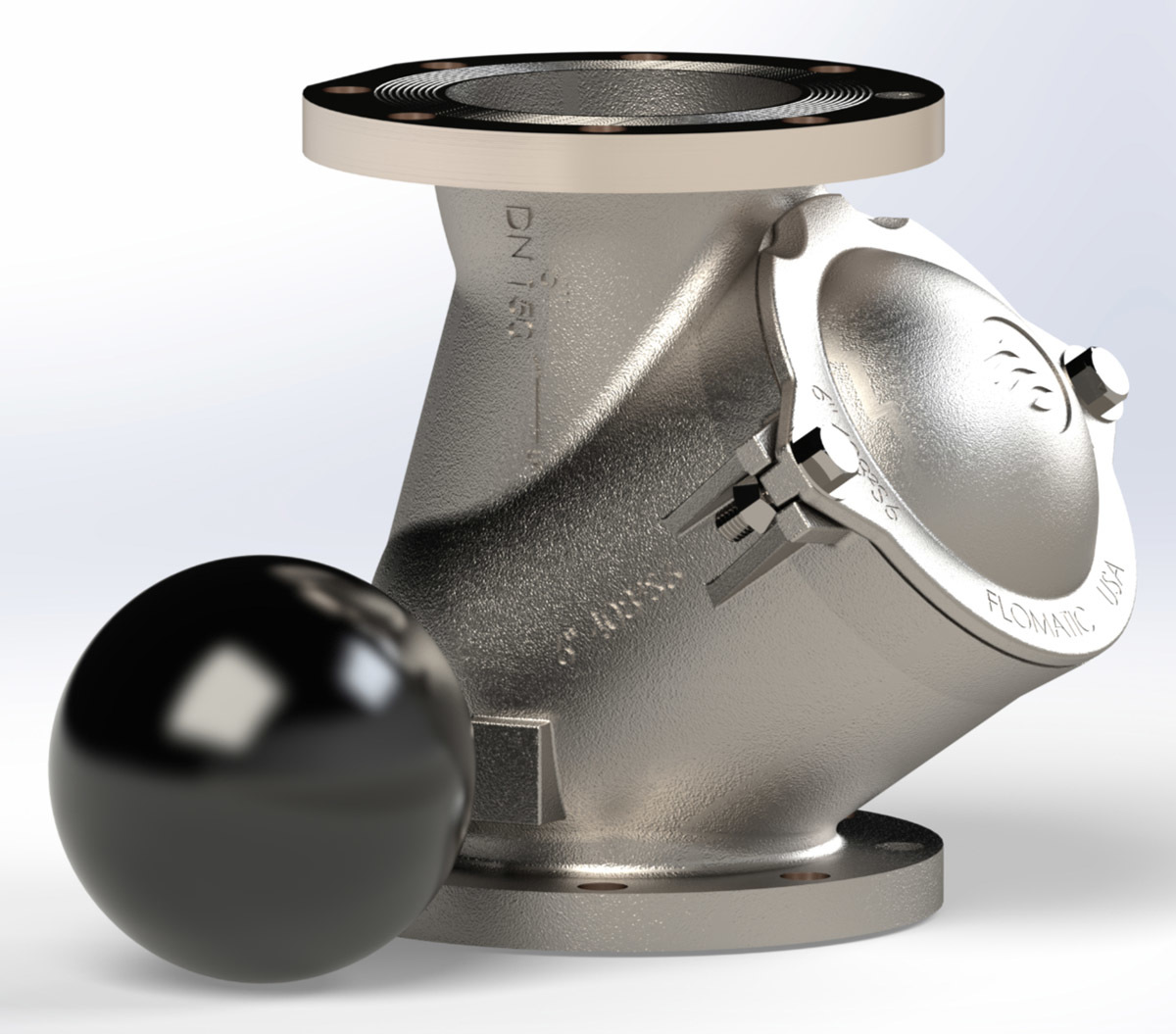

13. Flomatic Model 4082S6 Ball Check Valve

Designed for use with sewage pumps and applications involving viscous liquids or slurries, Flomatic’s Model 4082S6 Ball Check Valve design is simple yet efficient. The AIS-compliant valve is constructed in 316 stainless steel with an access port, flanged class 150 connection, a Nitrile (Buna-N) covered metal sinking ball, and stainless steel fasteners. Additional components such as a proximity sensor are available. They are designed with no moving parts except for the ball, which automatically moves out of the flow path, minimizing headloss and maximizing efficiencies. 800-833-2040; www.flomatic.com.


SCADA System

14. Flowrox Malibu

The Flowrox Malibu portal is a combined IIoT online process monitoring, maintenance and analysis tool. The data is collected from sensors on a device, sent to a cloud, processed and shown in the Malibu portal. It is easy for anyone to view and use, because data is presented through a 3D model of the actual pump station, filtration process, thickener or other devices. This IIoT online process-monitoring portal enables maintenance and analysis. It collects data from smart products in operation and converts it into an easily accessible and visual format. It also functions as an analytics tool. Together Malibu and smart products create Flowrox Digital Services. 410-636-2250; www.flowrox.com.
