Flow Control + Get AlertsData Logger and Management
1. Hermann Sewerin GmbH SePem 155
SePem 155 data loggers from Hermann Sewerin GmbH are suitable for mobile use and can also be used for the stationary monitoring of water supply networks. The SePem 01 Master, with its simple and intuitive menu navigation, provides fast and reliable results and can also be reliably operated by less experienced users. The measuring times and periods of radio activity are freely programmable. In a pipe network, water loss caused by a number of smaller leaks added together is likely to be considerably higher than the loss caused by a few spectacular pipe bursts visible on the surface. Noise loggers are capable of reliably detecting both types of leak site — slowly growing and spontaneously occurring. 888-592-9916; www.sewerin.com
Flow Control/Monitoring Equipment

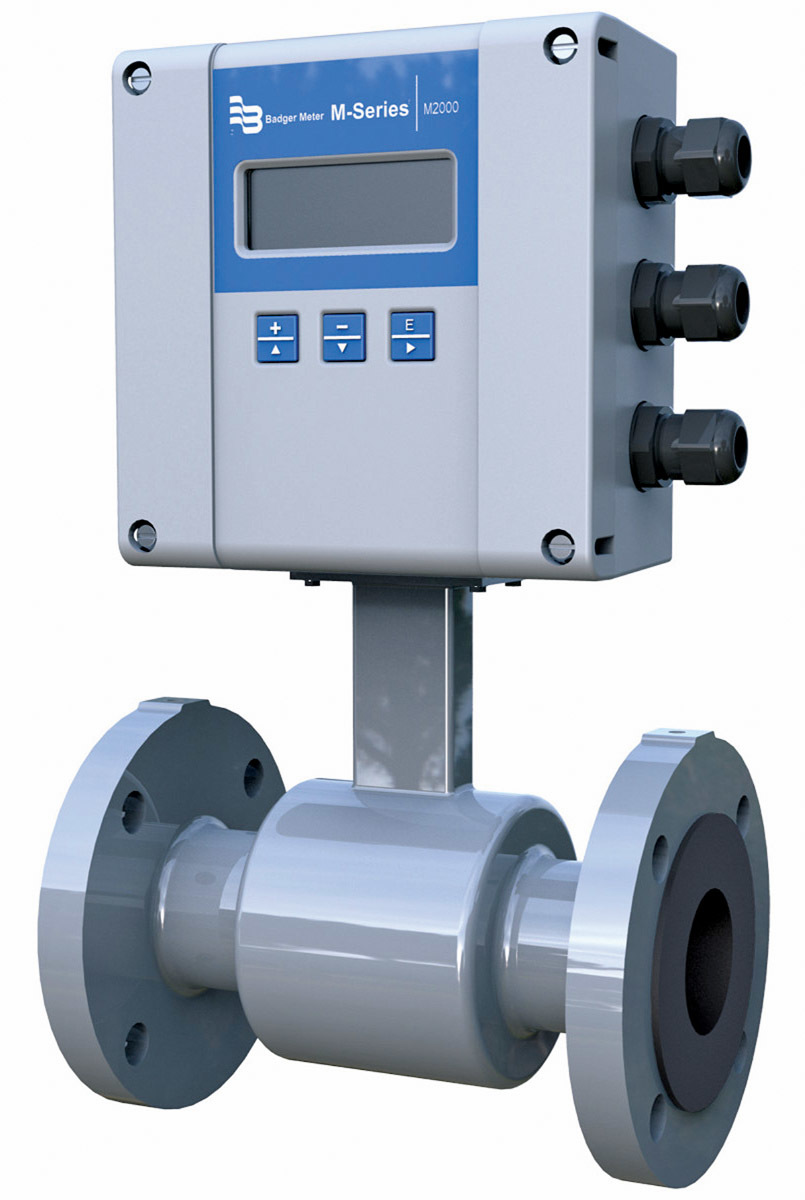

2. Badger Meter ModMAG M2000
Water treatment and distribution applications can be complex and result in limited pipe runs to install flowmeters. When space runs out, the ModMAG M2000 electromagnetic flowmeter from Badger Meter is a solution, delivering accuracies of ±1% with zero straight run required or ±0.2% with appropriate straight run. It effectively measures water, wastewater, water-based fluids and other liquids that meet minimum electrical conductivity. It has a full-bore design, which means there is no size reduction resulting in undesirable pressure drops. 877-243-1010; www.badgermeter.com

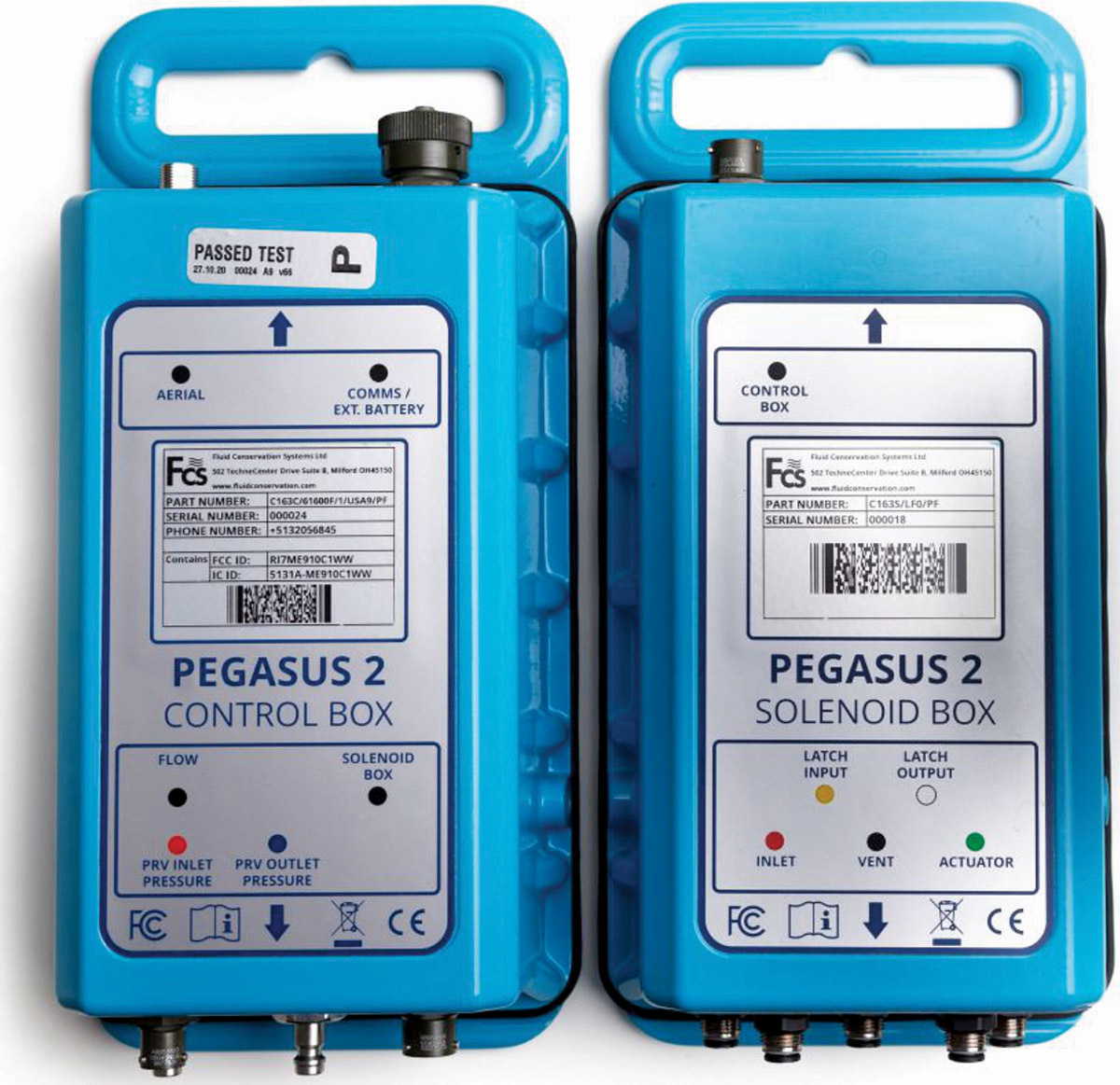

3. Fluid Conservation Systems Pegasus 2
The Pegasus 2 pressure control system from Fluid Conservation Systems utilizes a modem capable of connecting via LTE-M and NBIoT for reliable and low-powered two-way communication. With the capability to set target pressure by time, flow or a combination of both (with different table settings per day), it is easy to set up locally via tablet or PC app and remotely via the PressView Cloud Server. It delivers a sophisticated level of targeted control, even on a time basis. It provides the flexibility to modulate pressure according to demand throughout the day with changes being made remotely, and it features a secondary channel for fast logging down to 25 Hz. This is invaluable for investigating system transient events. 800-531-5465; www.fluidconservation.com

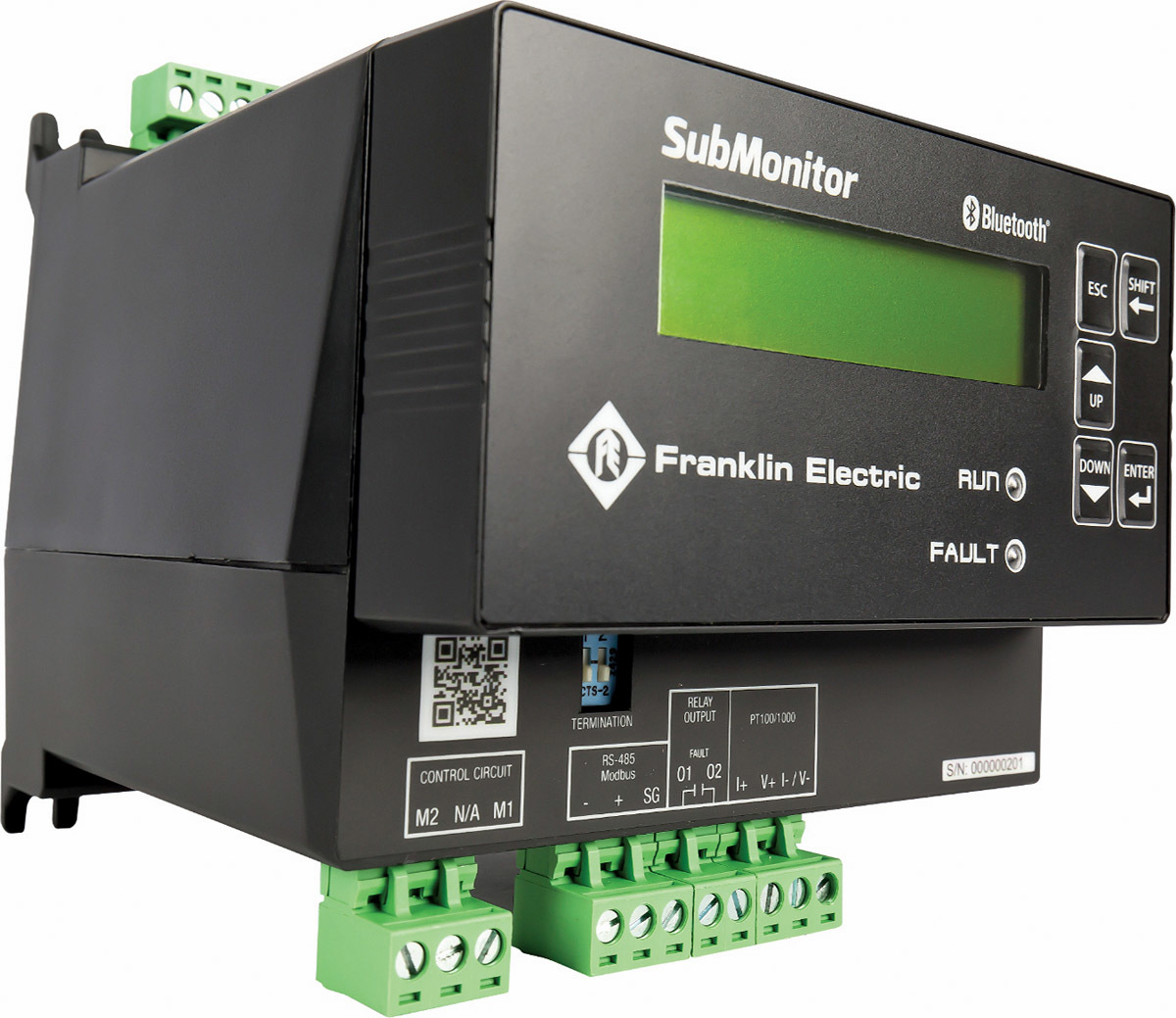

4. Franklin Electric SubMonitor Connect
Franklin Electric’s SubMonitor Connect provides enhanced real-time and time-stamped system monitoring capabilities to improve troubleshooting while protecting three-phase motor and pump systems ranging from 1 to 700 hp, or up to 1,000 amps. It protects against damage due to adverse conditions, such as low flow wells, clogging, bound pumps and poor or unreliable power. The unit’s Basic Setup feature, initiated through the FE Connect mobile app or directly programmed on the unit’s outward-facing NEMA 4X display, enables quick setup while ensuring motor protection. Additionally, the app empowers contractors to monitor system status easily, save commonly used setups for later use and view/send fault history through the convenience of Bluetooth connectivity. The unit also protects against arc flash while offering 1% power metering that eliminates the need for an additional meter while providing communication with building management systems to track energy costs and motor status. 866-271-2859; www.franklinengineered.com

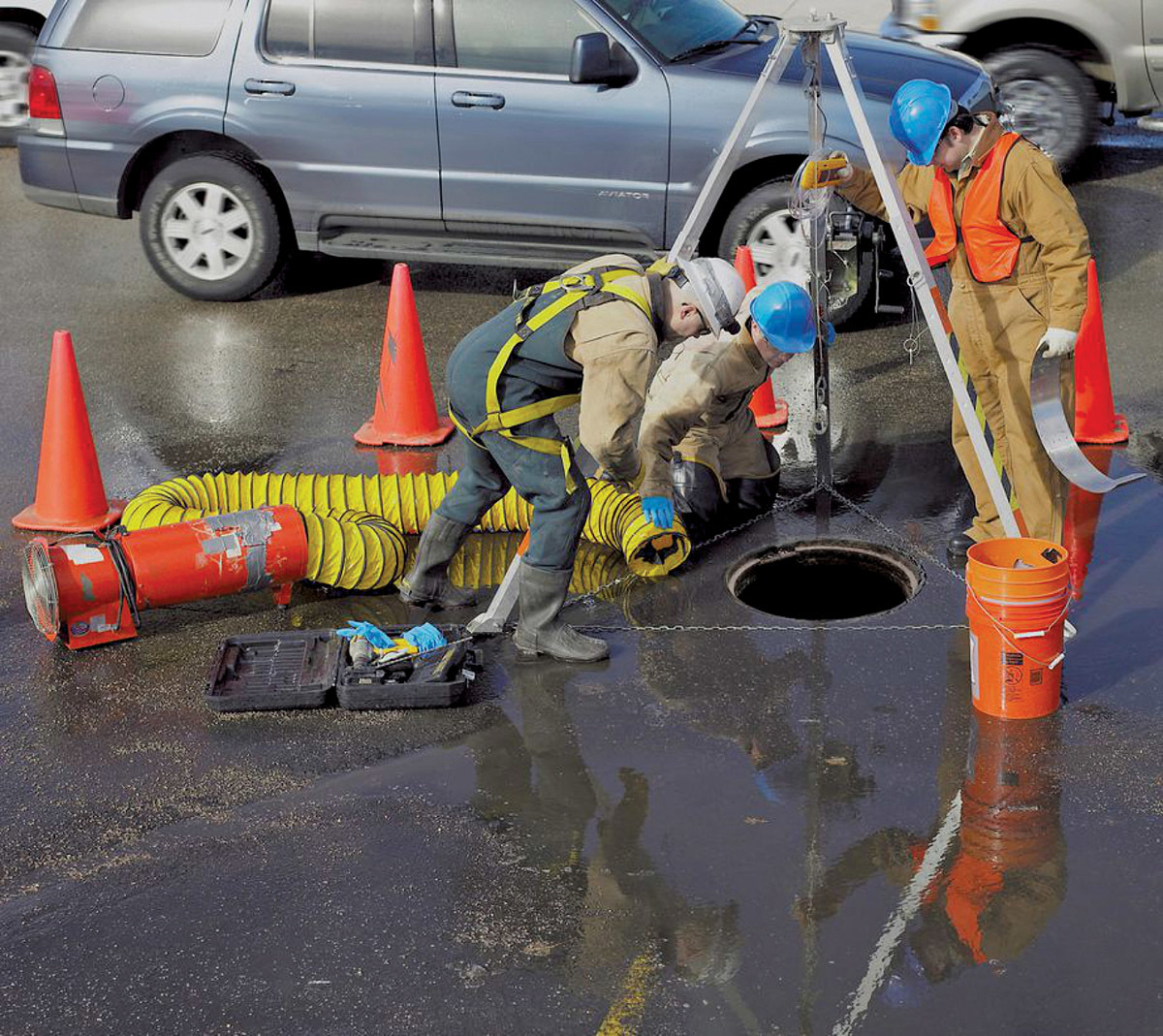

5. Hach Data Delivery System
The Data Delivery System (DDS) from Hach is an efficient flow monitoring service tailored to deliver relevant data when needed. For a fixed monthly fee, it provides all of the equipment, data transmission and technical support needed to acquire flow data — delivered in real time for immediate analysis. It allows operators to know their flow status anytime, anywhere, for either long- or short-term applications. 800-368-2723; www.hach.com

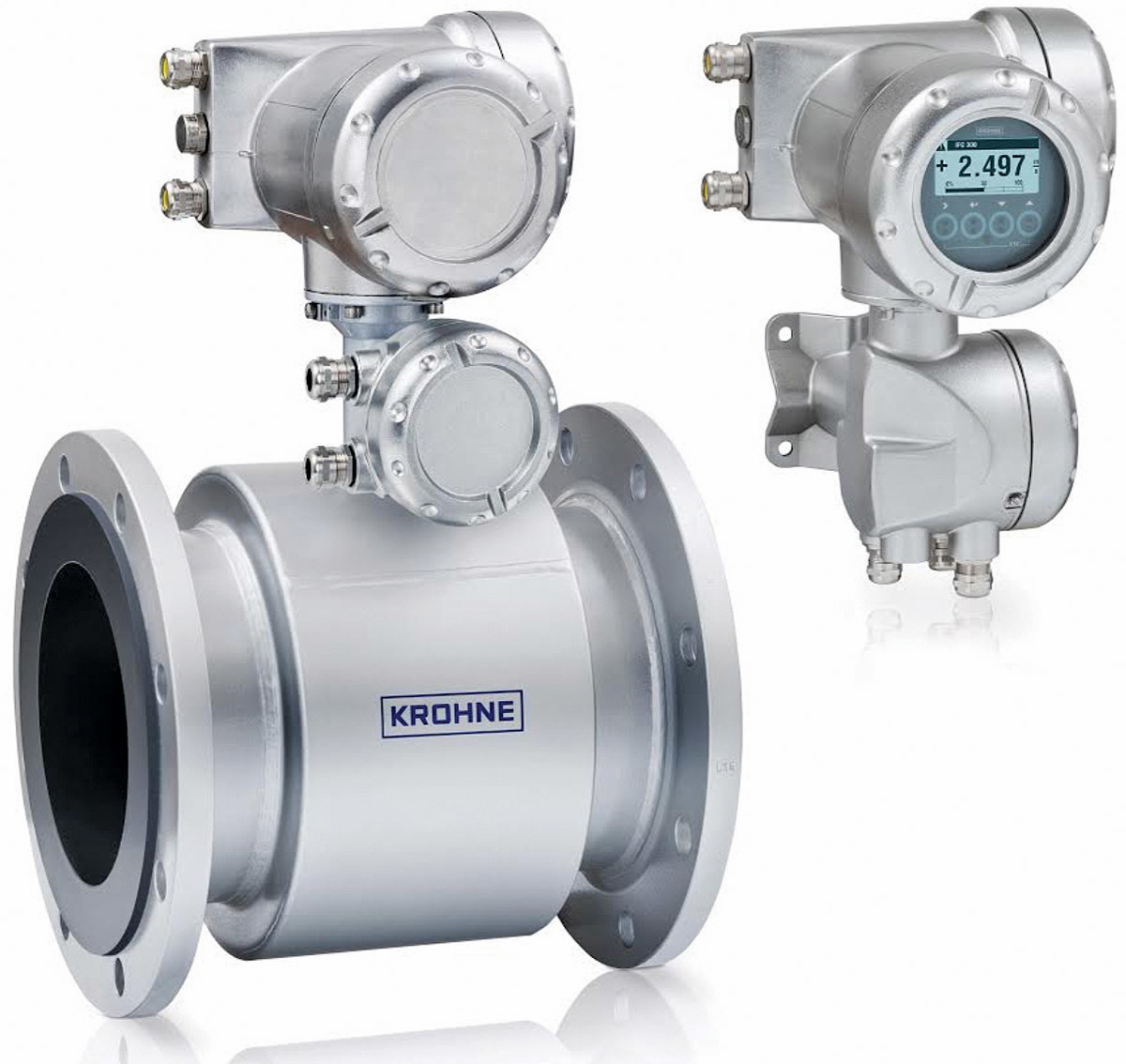

6. KROHNE TIDALFLUX 2300 F
The TIDALFLUX 2300 F electromagnetic flow meter from KROHNE provides reliable flow measurement in pipes between 10 and 100% full. It offers a non-contact sensor that is unaffected by oils and fats floating on the surface. Available in diameters to fit pipes up to 64 inches, it has high chemical and abrasion resistance to provide exceptional durability. The electromagnetic flowmeter offers integrated, non-contact capacitive level measurement and an approval for ATEX zone 1 for use in hazardous environments. It is a suitable choice for municipal or industrial wastewater transport application and can also be used for measurement of effluent brine from dredging, mining or sea/well water injection applications. Wet-calibrated at the factory using a direct volume comparison, it does not require on-site calibration. The meter’s accuracy in partially filled pipes is less than 1% of full scale, and the accuracy in full pipes is less than 1% of the measured value. 800-356-9464; www.us.krohne.com

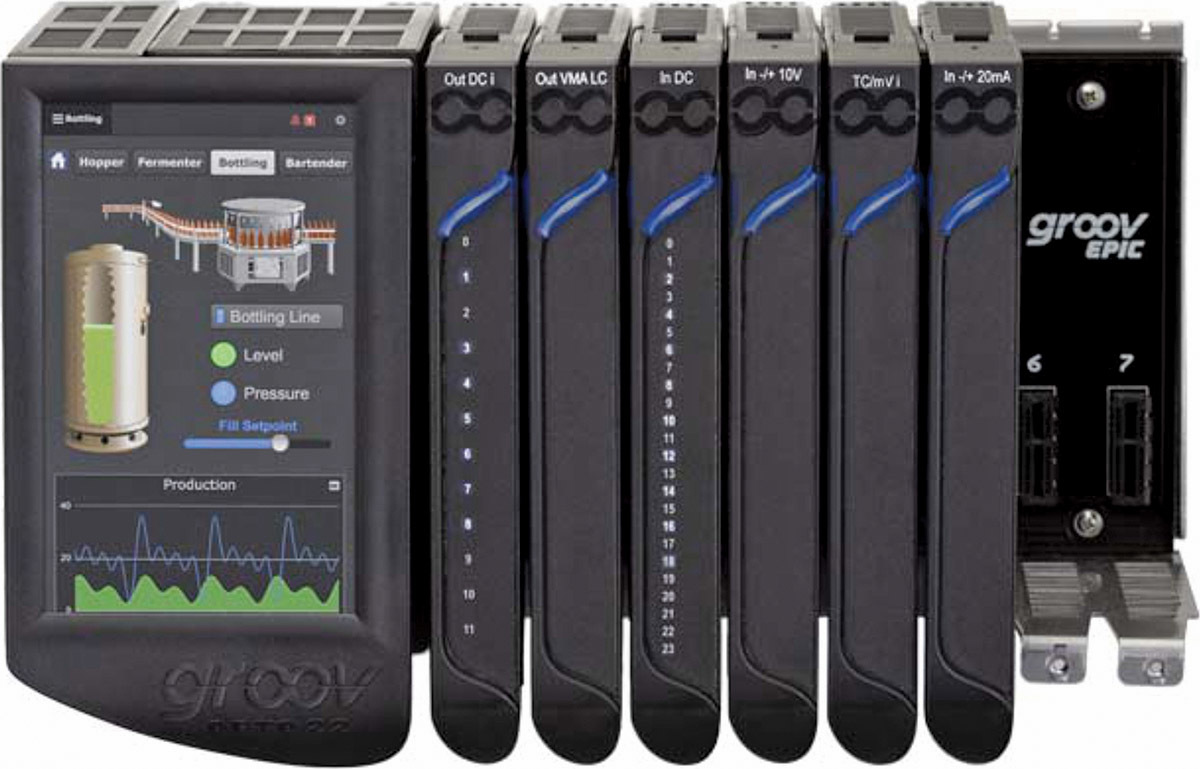

7. Opto 22 GRV-EPIC-PR1 Edge Programmable Industrial Controller
The GRV-EPIC-PR1 Edge Programmable Industrial Controller from Opto 22 is an embedded Linux real-time controller with gateway functions. This groov EPIC processor provides control, connectivity, data handling and visualization at the edge of a network and is suitable for industrial internet of things applications or any automation application. Its modern design offers a condensed and sturdy unit that features a resistive-touch, high-resolution LCD display and network configuration, troubleshooting and system HMI. The LCD display lifts to provide easy access to the power button, power supply connectors, network interfaces, ports and status LEDs. A dual, independent gigabit ethernet network interfaces securely segment trusted networks (like a control network) from untrusted networks (like the internet). Dual USB ports connect to serial interfaces, Wi-Fi adapters, and keyboard, mouse and touchscreen controls. An HDMI port connects to an external monitor for displaying configuration and groov View HMI on an external large screen, useful for local process visualization and OEM applications. 800-321-6786; www.opto22.com

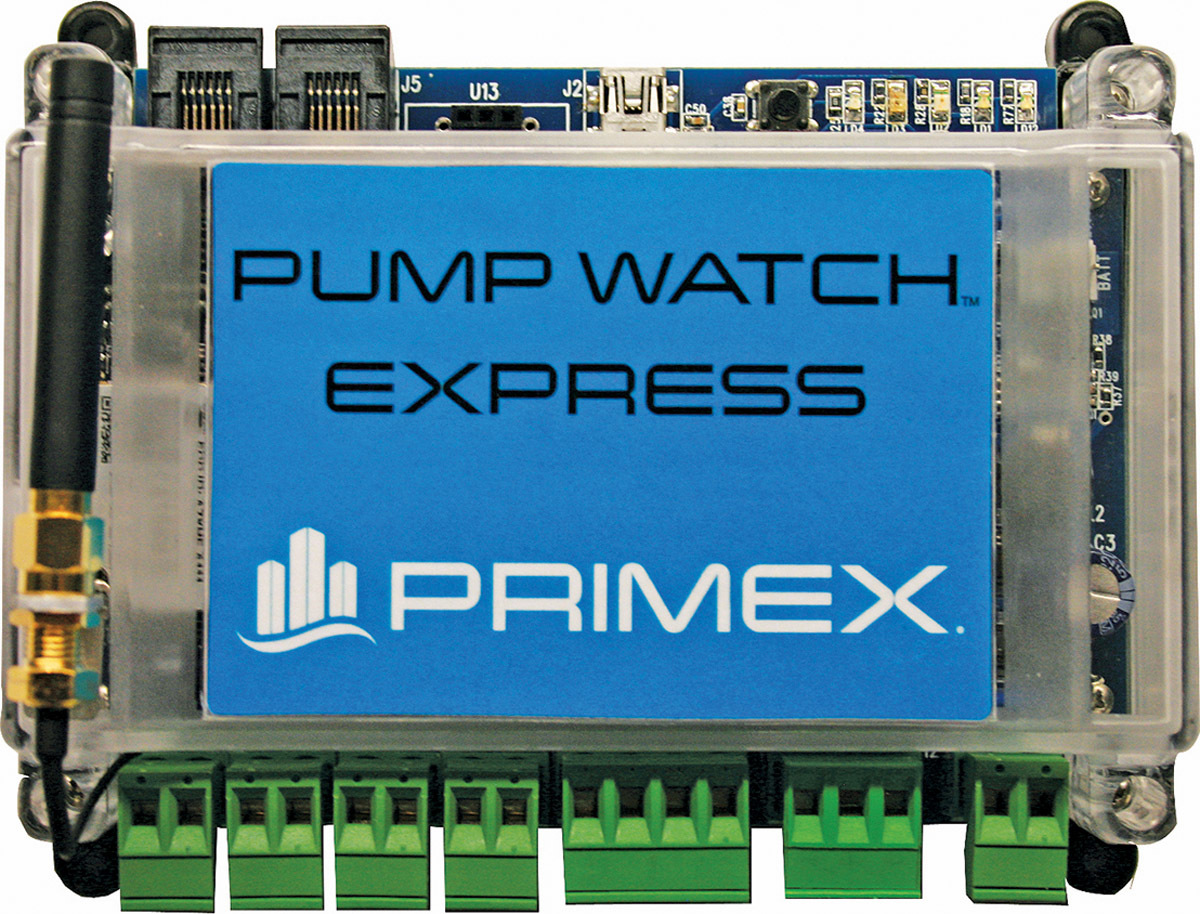

8. PRIMEX Pump Watch Express
Pump Watch Express from PRIMEX is a comprehensive family of compact cellular RTUs and Gateway used for monitoring pumping systems. It offers a simple, effective tool for management of multiple sites, including alarm notification, data logging and graphic system visualization. It includes a lithium-ion backup battery for power loss detection and notification, SMS/email/web portal alarm notifications, graphic HMI with simple and clear station status display, interactive pumping station map, data logging and historical trending, first year of service included, and optional web portal customization. NEMA 4X control panels come in three versions: lite, premium and gateway. 844-477-4639; www.primexcontrols.com
Software

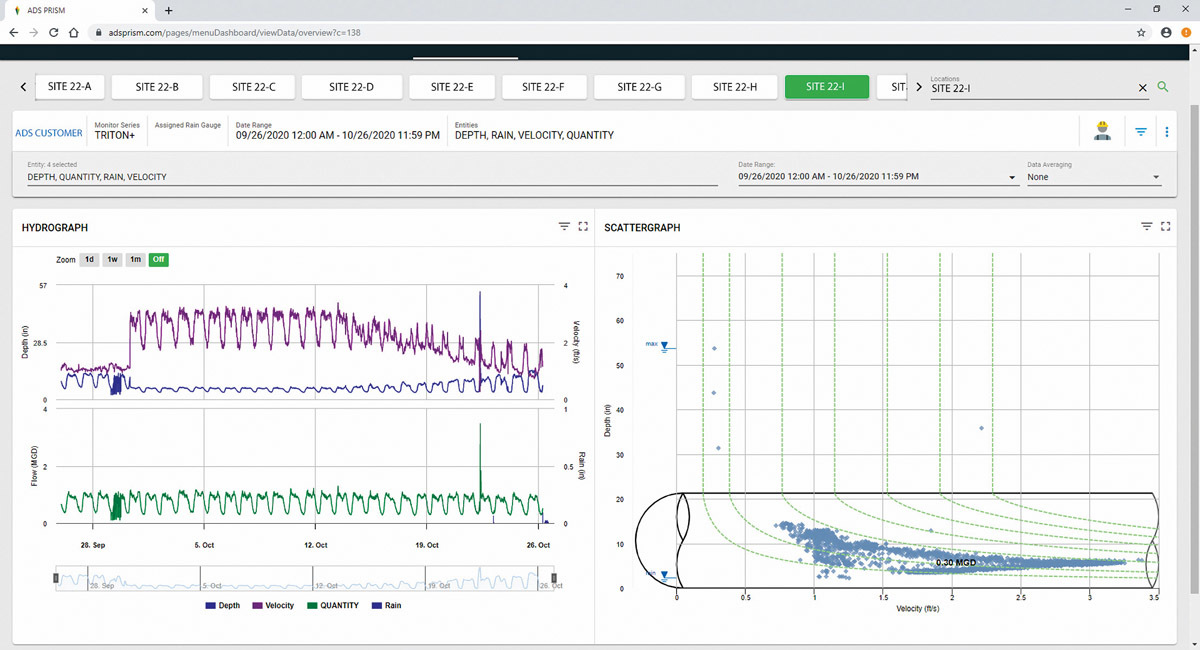

9. ADS Environmental Services PRISM 2.0
The PRISM 2.0 solution platform from ADS Environmental Services provides the tools to capture, cleanse, analyze, store, report and visualize actionable answers to the industry’s most critical wastewater collections system problems — prioritizing sewer cleaning and preventing SSOs, assessing your RDII, and measuring and managing your CSOs. The cloud-based platform’s home page provides immediate system insight including a map view reflecting flow, level and rainfall monitors with location and condition details, leaderboard tiles with system status and quick access to the data vault, as well as specialized reports. Users can configure alarms for advance notice of developing problems, while data, reports and related files can be shared among cross-functional groups. 800-633-7246; www.adsenv.com

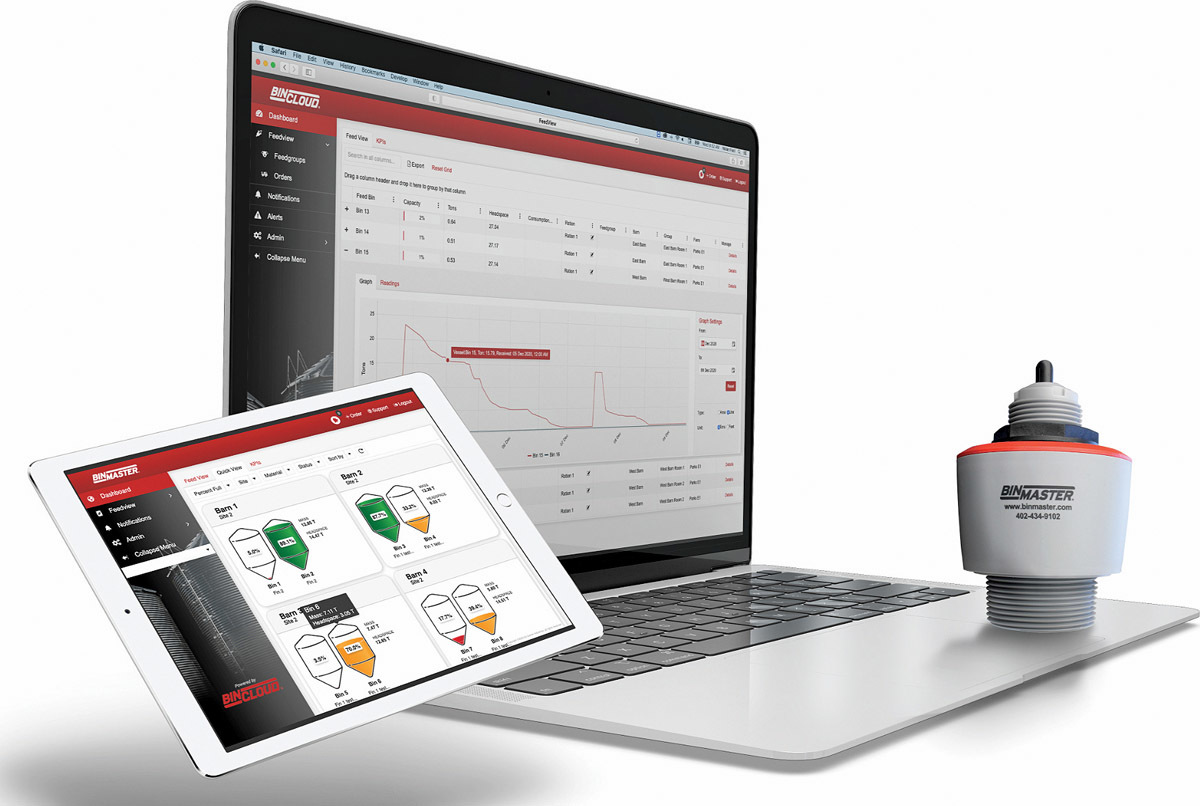

10. BinMaster Level Controls BinCloud
The BinCloud platform from BinMaster Level Controls is an integrated cloud foundation for data monitoring of levels of municipal water or at wastewater treatment plants, pumping stations and overflow basins. It allows onsite and remote workers to securely access level data stored in the cloud from a phone, tablet or PC via the internet. It includes real-time monitoring, automated alerts via text or email and historical reporting. It is compatible with non-contact radar, SmartBob, 3DLevelScanners, guided wave radar, ultrasonic, or laser level sensors with a 4-20 mA, Modbus or HART output, and can be combined with gateways and other wireless networking devices to connect sensors to the system with minimal wiring. It is suitable for residential drinking water and waste treatment, as well as environmental control for flood, dam and river level monitoring, or preventing sewer overflows. 800-478-4241; www.binmaster.com

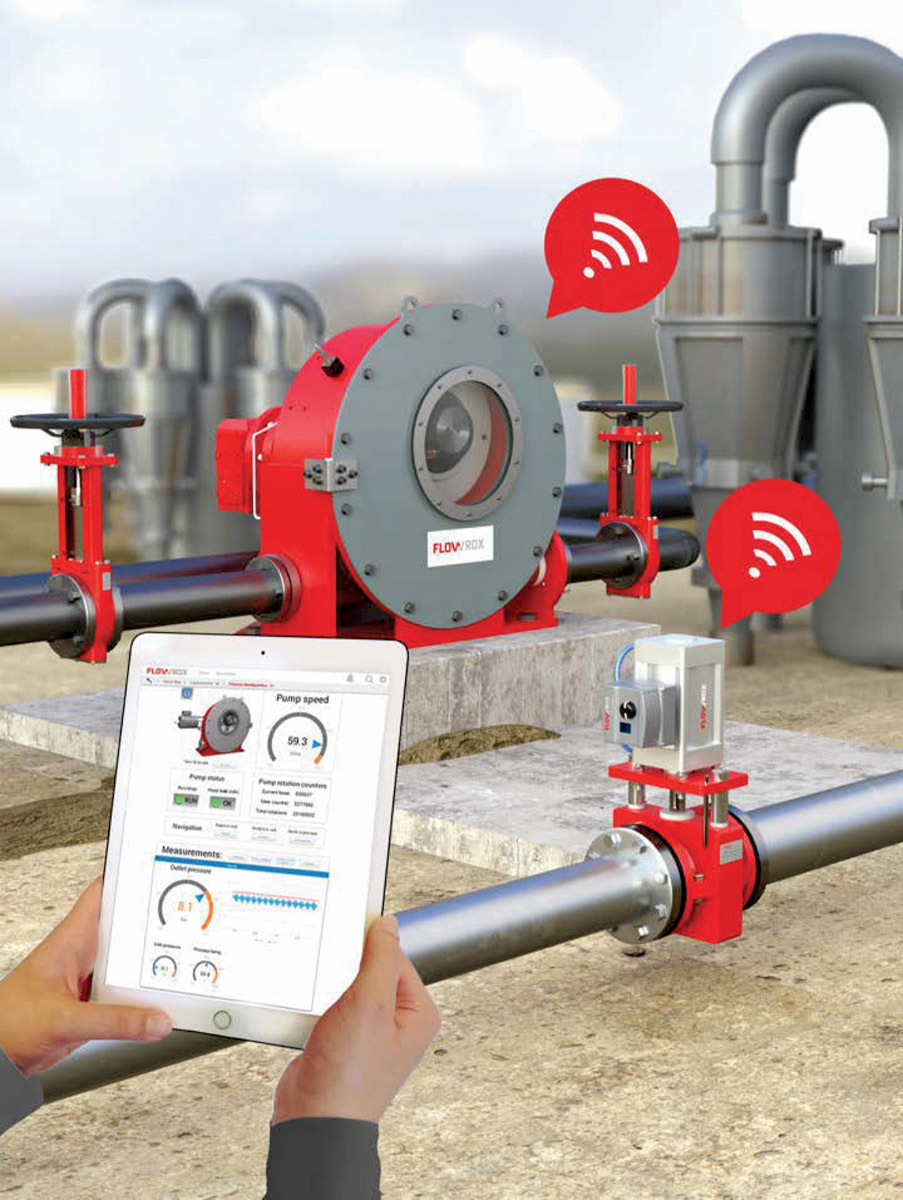

11. Flowrox Malibu
The Flowrox Malibu portal is a combined industrial internet of things online process monitoring, maintenance and analysis tool. The data is collected from sensors on a device, sent to a cloud, processed and shown in the Malibu portal. It is easy for anyone to view and use because data is presented through a 3D model of the actual pump station, filtration process, thickener or other devices. In other words, it is a customized user interface tailor-made for the particular application. This Industrial Internet of Things online process monitoring portal enables maintenance and analysis of the process. It collects data from smart products in operation and converts it into an easily accessible and visual format. The portal also functions as an analytics tool. 410-636-2250; www.flowrox.com
