Understanding your options in today’s combination sewer cleaner market can be a daunting task, let alone considering the possibility of a water recycling sewer cleaner. In the past few years, the market has seen an upward trend in the purchasing and utilization of water recyclers in place of traditional combination trucks. There are many reasons contractors and municipalities may choose a recycler. Most notable is the ability to work a full day utilizing one tank of water, eliminating time lost associated with debris dumping and refilling of water tanks throughout the day. This largely improves productivity and, in many cases, increases profit.

There are two options to consider when purchasing a water recycler: add a recycling component to a traditional combination truck or purchase a purpose-built water recycler. It is very important to understand what you are getting and to set your expectations accordingly.

Option A: Bolt-On Water Recycler System

The bolt-on or add-on to a traditional combination sewer cleaner is like the addition of aftermarket accessories in the automotive industry. These accessories allow a product to do additional functions or perform outside of the intentional design of the vehicle.

The concept is great: trying to provide the customer with additional features by adding a filter or series of filters to a traditional combination truck. The cost to the manufacturer is very low and the cost to the customer is lower than that of a purpose-built recycling truck. However, there are definite drawbacks to this option. In the field, users comment that bolt-on recyclers are not effective in the removal of grease or fine silts, as the filters they use become bound and easily clogged with material. Time spent in the field has proven that most sewer systems contain lines with grease and/or silt.

Let us consider this option, ignoring the issue regarding the filtration of grease. If no grease is present, what is the smallest solid that can be filtered by a bolt-on recycling component? What is the level (parts per million) of solids in the system that remain after the filtration process is complete?

Most bolt-on systems try to filter down to 100 microns — the consistency of fine beach sand. Not bad, right? Fine grains of sand are pretty small, yes. However, given the large volume of water being recycled, you have to consider the ppm of material going through the system. Even a moderate quantity of sand-size material can be very detrimental to parts and components that are downstream of the filtration system, such as high-pressure pumps, plumbing, hoses and nozzles. Most standard combination vac trucks aren’t designed to handle the number of solids that can make their way past the filtration system with add-on recycling attachments. Users in the field have had new nozzles destroyed within days of use on a truck with a bolt-on recycler, but were originally proud touting their trucks’ ability to filter down to 100 microns.

Overall, the consensus on most bolt-on recycling attachments is that, while it’s cheaper than buying a purpose-built unit, the cost of constantly replacing filters and the wear and tear these systems put on their machines leads to a higher upkeep cost than most customers might realize. That said, some bolt-on options can produce higher quality recycled water than some lower-end purpose-built machines. Again, it is important to be informed and understand what you are getting and what to expect.

Option B: Purpose-Built Water Recyclers

It is true — purpose-built water recyclers usually come with a higher purchase price. This is largely due to the added development costs and quality components used in the manufacturing process. On the upside, you get what you pay for: the components are more reliable, resistant to corrosion and decomposition, and specifically chosen for their ability to be used long-term with recycled water.

Additionally, purpose-built recycling units recycle water more efficiently than their bolt-on counterparts. These units are engineered with the capability to recycle at a quicker rate with a lower solid size, as well as lower ppm. This means less wear on the machine and longer service life than a traditional combination sewer cleaner truck with an add-on filtration system.

There are two different schools of thought when it comes to purpose-built water recycler units: active and passive. Active filtration involves using replaceable filters to actively separate fats, oils, grease and other solids from the water. Passive separation uses primarily gravity (like settling tanks) or centrifugal forces (commonly seen in filtration cyclones) to filter the water in place of replaceable filters. In a well-engineered machine, both active and passive filtration are equally effective, and many recycler systems utilize both filtration and separation in their design. However, like mentioned previously, any system utilizing mesh filters will generally have issues with grease and silt which adds to upkeep and maintenance costs.

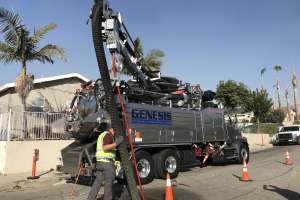

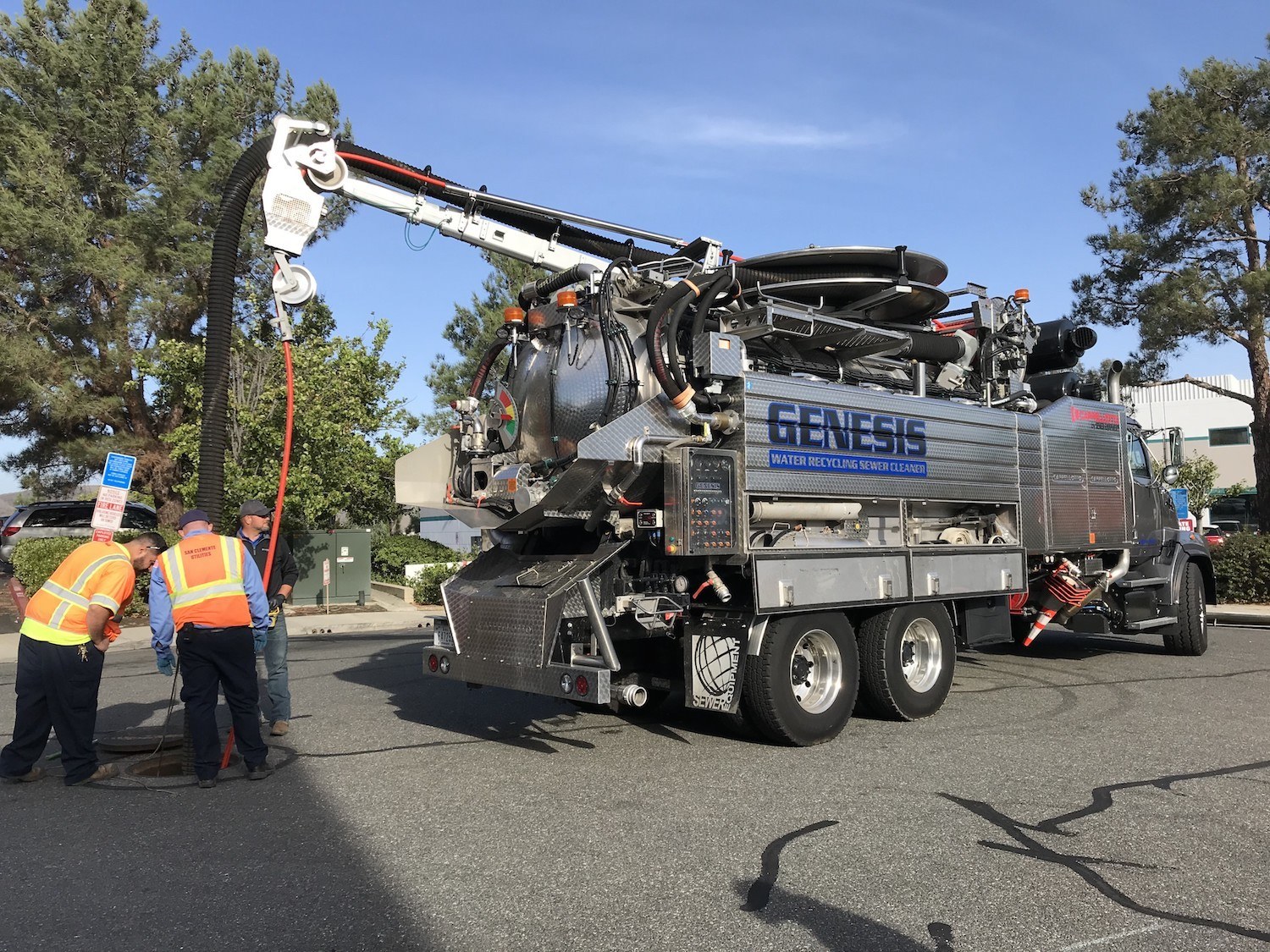

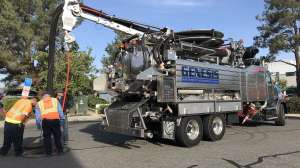

The GENESIS Recycler from Cappellotto by Sewer Equipment separates solids down to sub-50 micron size while recycling water at a rate of up to 300 gallons per minute. Fifty microns is the consistency of flour, is finer than human hair, and barely larger than pollen. The recycled material from a purpose-built unit is not abrasive, unlike beach sand, and largely decreases the possibility of causing damage to downstream components. The GENESIS uses a passive separation approach, which slows the water and allows for natural separation of solids to occur. This unique and effective separation process, combined with centrifugal cyclones, makes it possible for purpose-built recyclers to break down solids to such a small consistency.

There are purpose-built recyclers on the market today that only filter or separate down to 100, 300 and 500 microns, as some manufacturers have opted to lower their separation capabilities to increase recycling capabilities. The GENESIS has kept its focus on consistent improvement and innovation to maintain the quality of water and quantity of water, not willing to sacrifice either.

If you are in the market for a combination sewer cleaner and considering a water recycler to increase efficiencies and significantly decrease time spent on dumping and filling, be sure you understand what option is best for your business. Ask the hard questions of your salesperson and make sure you know what you are getting and what to expect from your unit in the future.

For pre-owned and rental information on the Genesis or other combination trucks, please visit Rock Rental to see available stock.
