Canadian Municipality Finds Answer to Complex Pipe Inspection in Challenging Environment

A case study from a Canadian municipality shows how a ZIPCAM 360 from Can-Ex Technologies allowed for a crucial and comprehensive pipe assessment

Canadian Municipality Finds Answer to Complex Pipe Inspection in Challenging Environment

Interested in Stormwater?

Get Stormwater articles, news and videos right in your inbox! Sign up now.

Stormwater + Get Alerts

Problem: A Canadian municipality needed to inspect a 223-foot stormwater pipe suspected of collapsing. The pipe discharges into a river at an angle of 45 degrees, maintaining a water level of about 25% with a strong continuous flow. The city had initially requested an inspection by a subcontractor, who was only able to complete 66 feet due to the challenging conditions for a crawler. Then they turned to Can-Explore, which attempted an inspection using a crawler held back by a manual winch. However, the water current interfered with the robot’s stability, causing it to lose control and repeatedly collide with the pipe walls. The high risk of damage or even the total loss of the expensive crawler, which could be swept away by the current and fall into the river, was too significant to press on with further attempts.

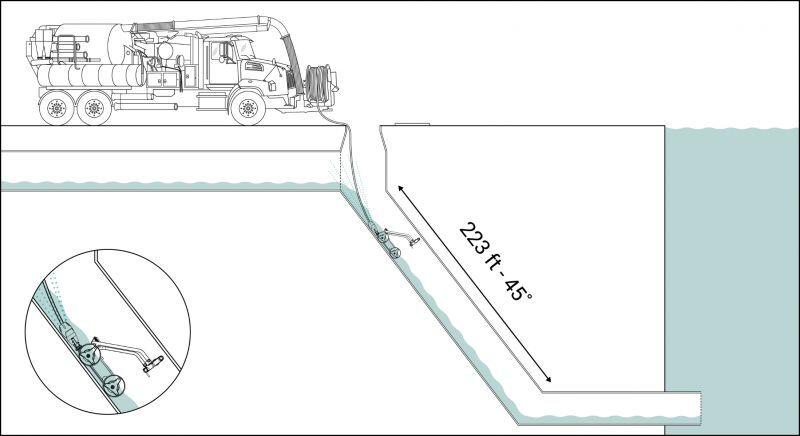

Solution: A ZIPCAM 360 from Can-Ex Technologies was fastened to a cleaning nozzle on the hose of a vacuum truck, which possesses a lift force far superior to what a crawler system could provide. An operator held onto the hose securely as the camera was allowed to descend, buoyed by the current.

Result: The inspection was successfully completed along the entire length of the pipe, without any equipment damage. Given the strong water current within the pipe, water drops are noticeable in the inspection footage. Fortunately, video capture was conducted during both the descent and the ascent, compensating to provide a complete view of the pipe. Ultimately, the 360-degree camera covered all angles, offering a comprehensive assessment and enabling the municipality to acquire the necessary information to address the collapsing issue.
