Product Focus: Manhole Equipment and Rehabilitation

Product Focus: Manhole Equipment and Rehabilitation

Interested in Manholes?

Get Manholes articles, news and videos right in your inbox! Sign up now.

Manholes + Get Alerts

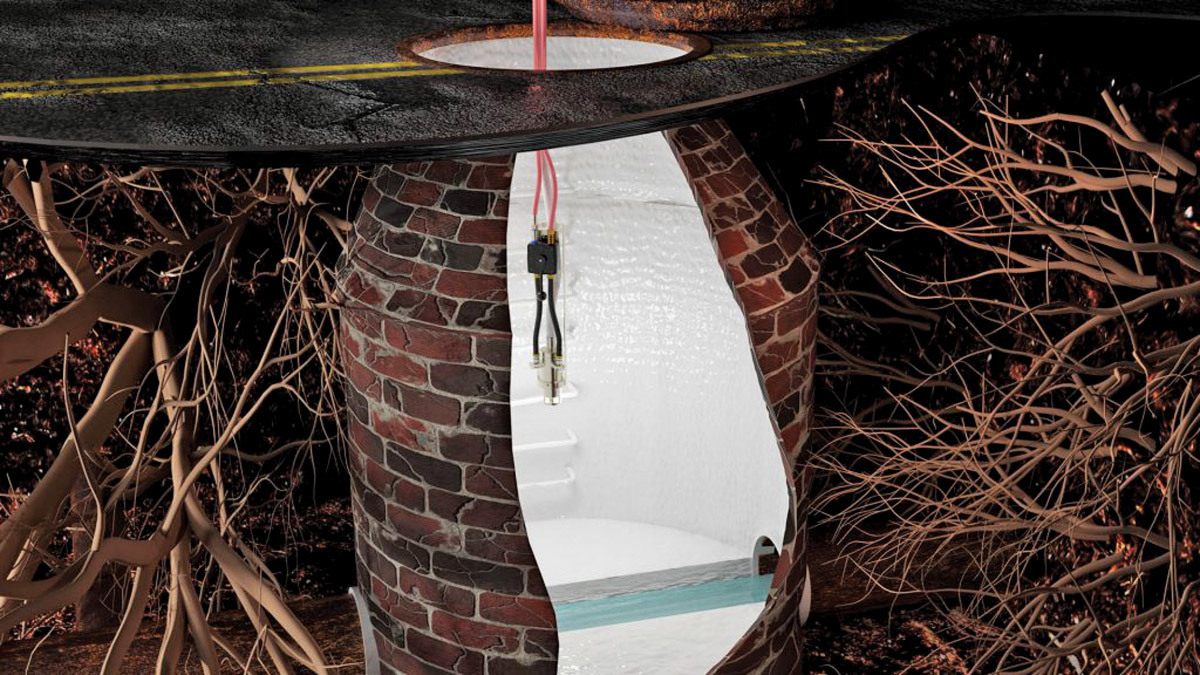

APM SpinCaster

For cities with sufficient manpower, the City Self-Install Program for sanitary and storm manholes and catch basins is a dollar-saving choice. Factory training and the bidirectional SpinCaster from APM enable a three-person city crew to reinforce, seal and protect four to eight structures per day. Supervisors schedule crews as they are available on a day-to-day basis, and cities typically save $250,000 or more by doing 100 to 500 structures during the season. The system includes a pneumatic, spark-free, explosion-proof motor. The bidirectional rotation ensures and even application even with the rotation of 3,500 rpm to maximize radial impingement of mortar to the substrate. The high rpm speed keeps the unit centered in the structure and applies material at the best design thickness calculated for the diameter, depth and conditions of the existing pipe. 515-276-9610;

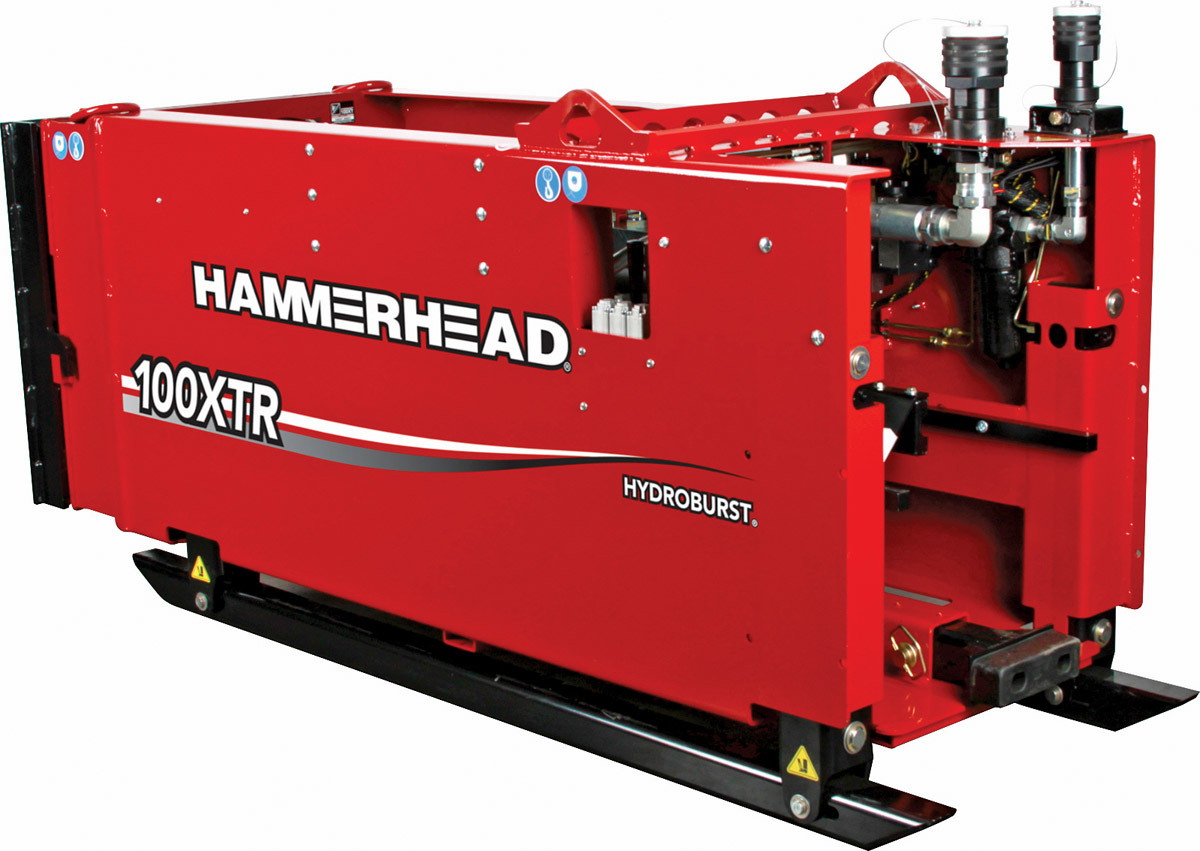

HammerHead Trenchless HydroBurst 100XTR

The HydroBurst 100XTR from HammerHead Trenchless gives operators the ability to take on a wide range of sewer, water and gas line replacement jobs with just one machine. The unit’s 100-ton capability is rated for up to 16 inches in diameter, yet it is compact enough for use on pipe down to 4 inches. It comes with an easy-to-learn, easy-to-use radio remote control. Freeing operators from the pit allows them to position themselves for the best view of a bursting operation and increases workspace in the pit for rod handlers. Its lightweight, heat-treated alloy rods feature an API-style joint that resists buckling under the greater thrust loads required by longer burst runs, sweeping bends and encrusted and collapsed lines. Used in combination with specialized tooling, operators can burst the toughest steel and ductile steel pipes. 800-331-6653;

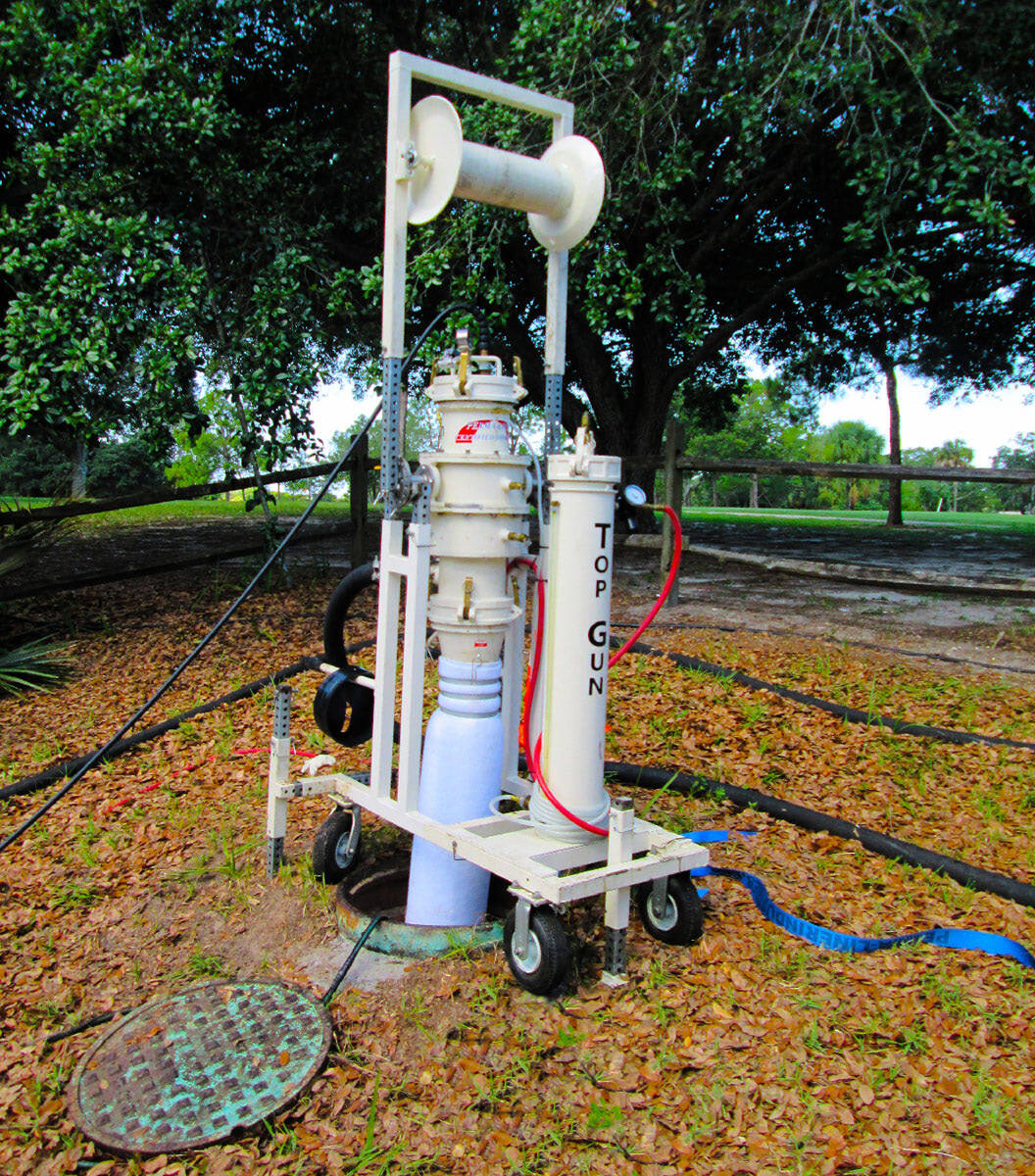

Perma-Liner Industries Perma-Main Top Gun

The Perma-Main Top Gun from Perma-Liner Industries is a manhole-to-manhole, continuous inversion lining system. It is specifically designed to rehabilitate 8- to 24-inch-diameter pipelines in only a few hours with no excavation or disruption in substrate. The liner is air-inverted through existing manholes and steam cured in as little as 90 minutes using compact 750,000 Btu dry steam generators. This minimizes repair time, road closures and reconstruction, and allows for safe reactivation of the repaired pipeline in just hours. Because the system can be continuously fed, there is no limit to the length of material it can invert. Depending on the infrastructure, the installation lengths for liners typically average 300 to more than 600 feet. Prep time is minimal because all liner materials are premeasured and delivered to the repair location pre-saturated. 866-336-2568;

Chemical Grout

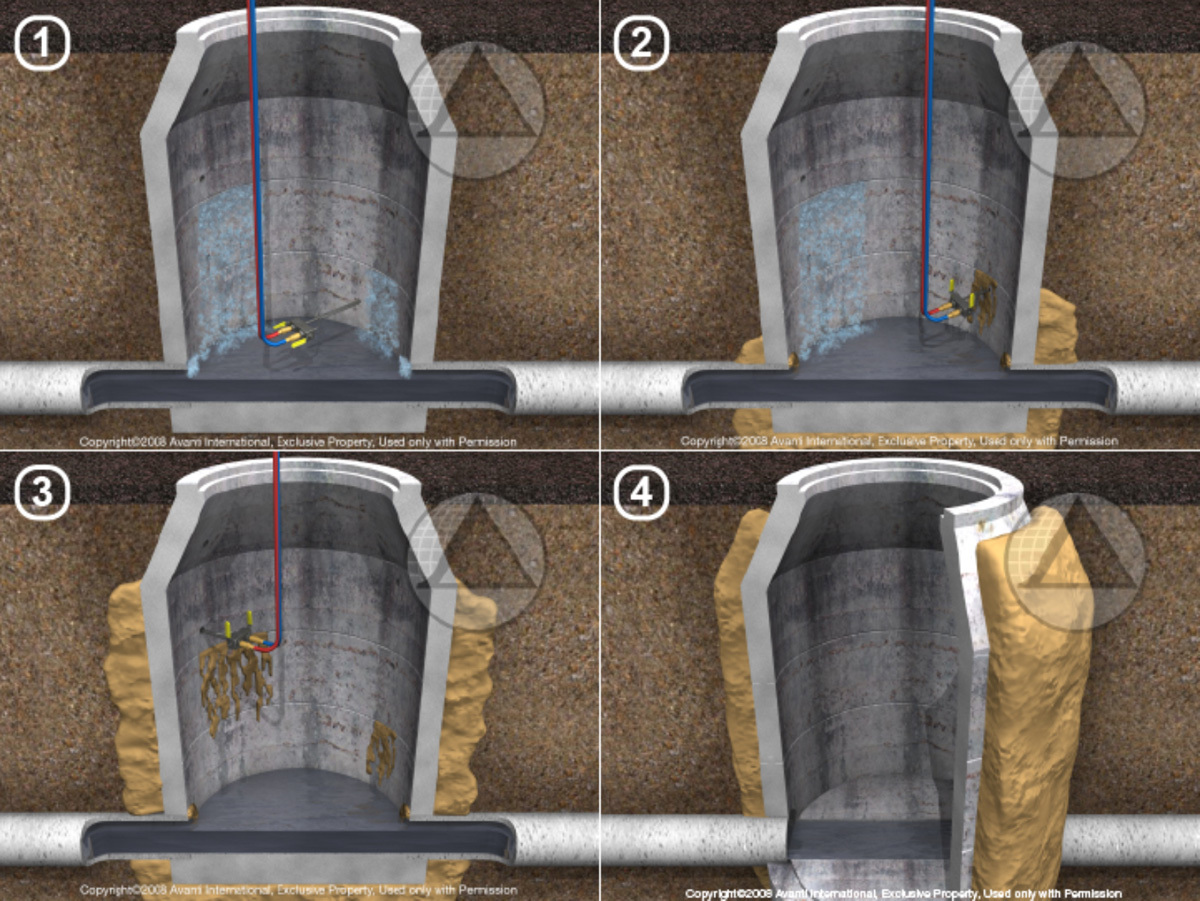

Avanti International injection grouts

Infiltration enters underground systems every day through defects or faulty joints in manholes, causing system capacity issues, overload at treatment plants and possible injury to the community. Avanti International injection grouts have historically proven to be an economic and long-term solution to combatting infiltration entering all areas of a collections system, including manholes. Injection grouts are engineered to stop leaks, stabilize soil and control groundwater, and be used in precast barrel joints, brick and concrete masonry units, pipe penetrations, vertical or horizontal cracks, void fill and pinholes. Each technique enables the technician to stop several leaks at once and helps to extend the life of the structure. 800-877-2570;

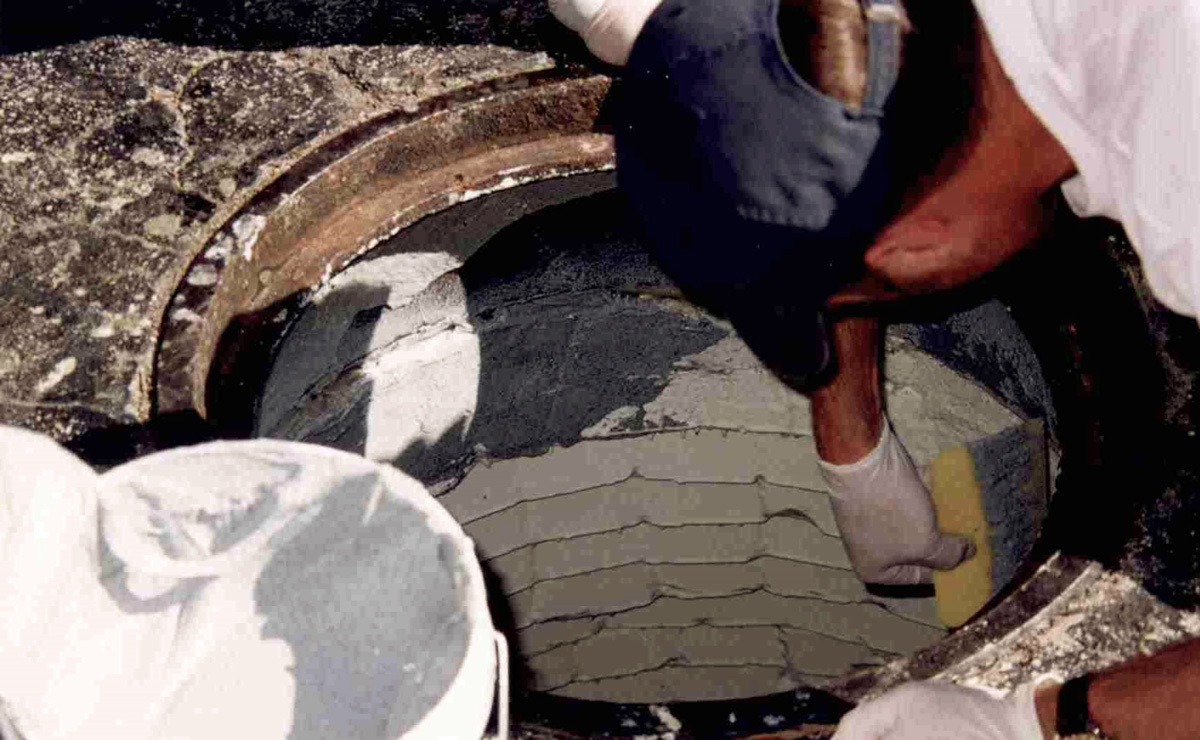

Infrastructure Repair Systems Infragard

Infragard concrete and manhole rehabilitation products from Infrastructure Repair Systems include Top Coat and Chim-Coat, which are nonhazardous ambient-cure epoxy systems for a small patch, entire manhole or retaining wall. This cost-effective solution requires no expensive equipment as it has an easy trowel-on application. They are corrosion resistant and high strength, with an impermeable structural bond to the substrate or to almost any concrete or metal surface. Chim-Coat is engineered with a flexible feature that maintains adhesion while expanding or contracting with changing temperatures and traffic loads. 877-327-4216;

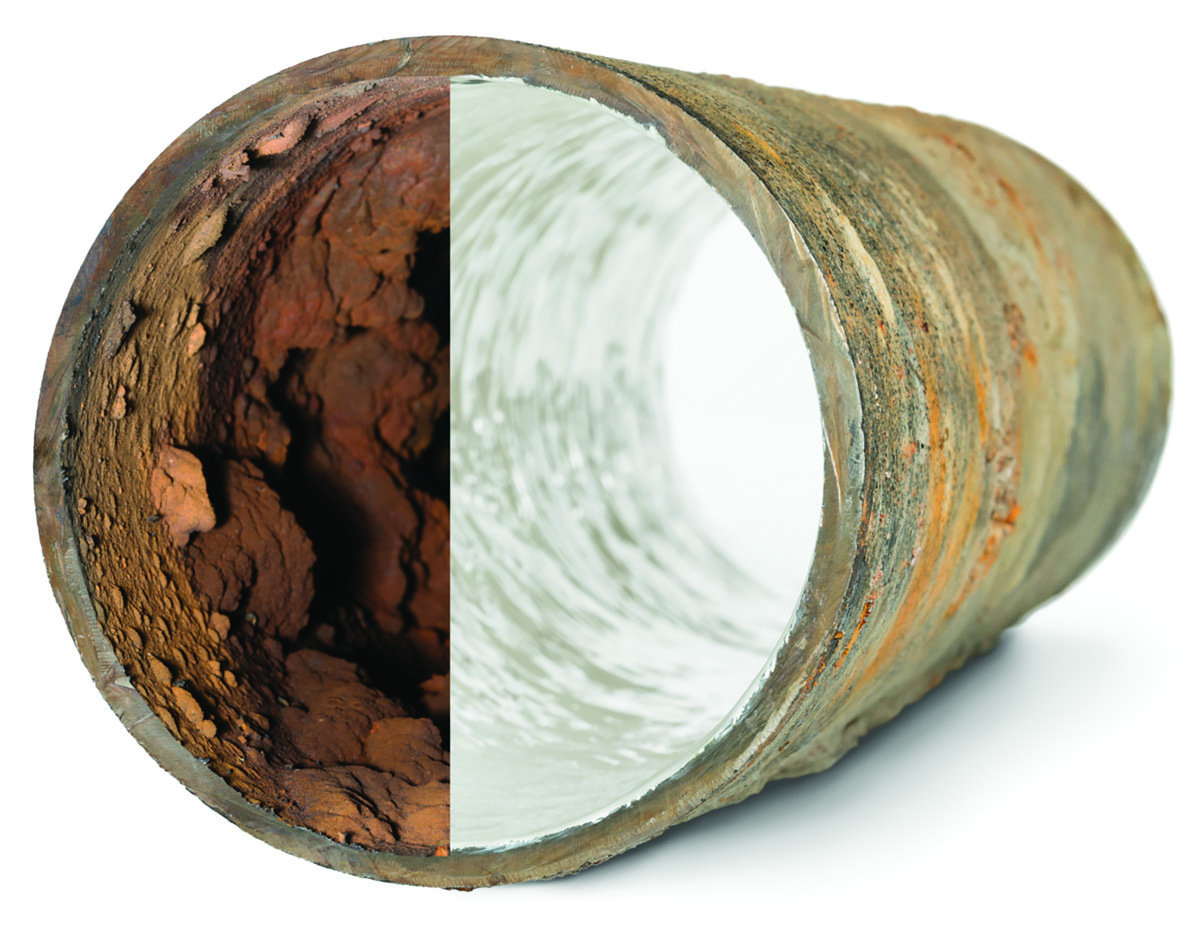

Picote Solutions Dual-Color Epoxy Brush Coating System

The Dual-Color Epoxy Brush Coating System from Picote Solutions allows technicians to rehabilitate pipes from 1.25 to 12 inches for drains, sewers, water pipes, electrical conduits and heat and air-conditioning ducts by brush-casting a coating. The coating resin forms a pipe inside the original pipe that is tested, safe and environmentally friendly. The new pipe is damp-proof, corrosion-resistant and wear-resistant. It is ASTM and NSF certified (NSF/ANSI 61-5). It is a 100% solids epoxy, and the method allows for clear visual verification during the application process. Apply to small areas or all drains in multistory buildings. The system is practical and easily fits in tight places. 219-440-1404;

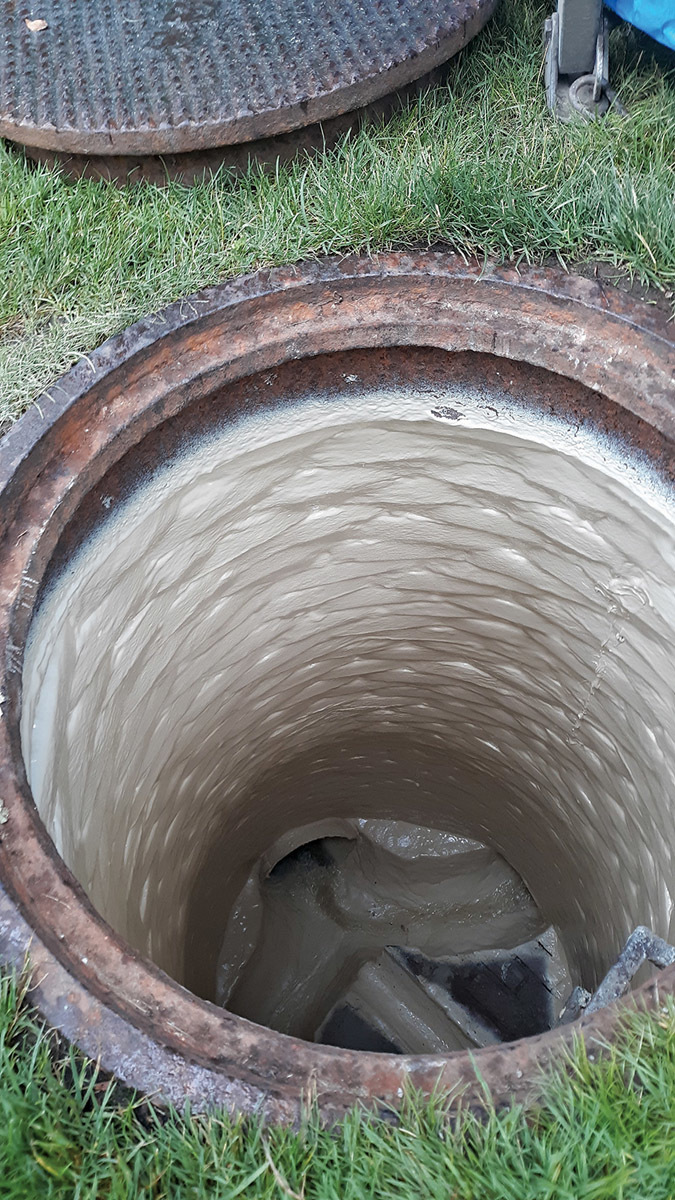

Sauereisen SewerGard 210XHB

SewerGard 210XHB from Sauereisen is an epoxy protective lining specifically formulated for municipal wastewater environments. It provides a chemical-resistant barrier for concrete, masonry, brick and steel substrates. As a 100% solids epoxy polymer, it sets fast and provides a quicker return to service. The high-strength lining enables high-build capabilities from 10 up to 300 mils in a single coat, reducing need for a second coat. It is moisture-tolerant to accommodate damp substrates and may be applied to SSD substrates, reducing time spent waiting for the substrate to dry out. It is available in 15-gallon Large Units and 200-gallon Bulk Units. 412-963-0303;

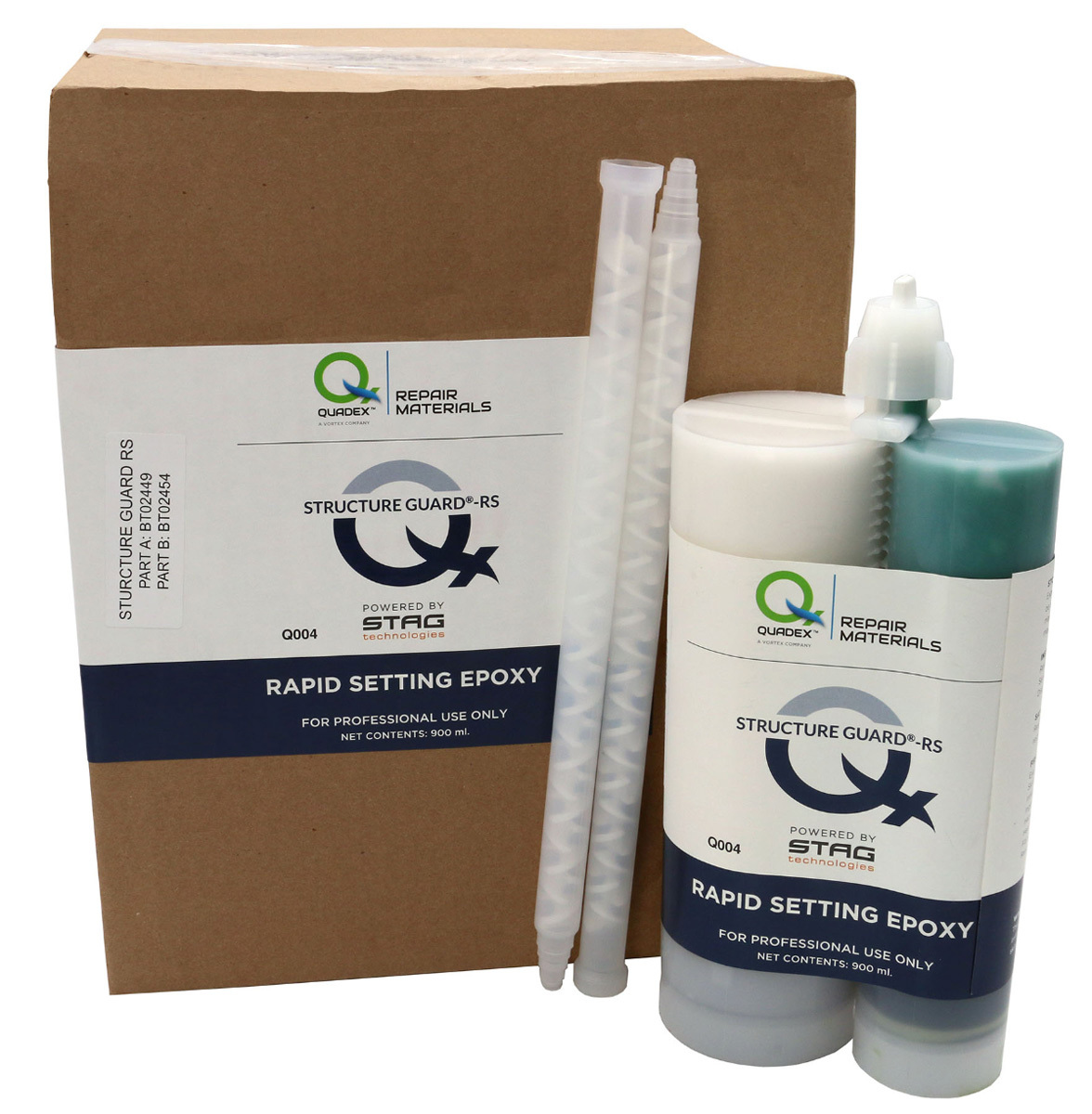

Source One Environmental Quadex Structure Guard Epoxy

Quadex Structure Guard, distributed by Source One Environmental, is a high-build epoxy coating formulated to provide long-term corrosion protection and structural enhancement for manholes, pump stations, treatment plants or any wastewater infrastructure subject to high levels of corrosion and/or abrasion to include both municipal and industrial applications. It is also suitable for invert repairs. It can be trowel and/or spray applied, and is a 100% solids material with no VOCs and a fast set time. 877-450-3701;

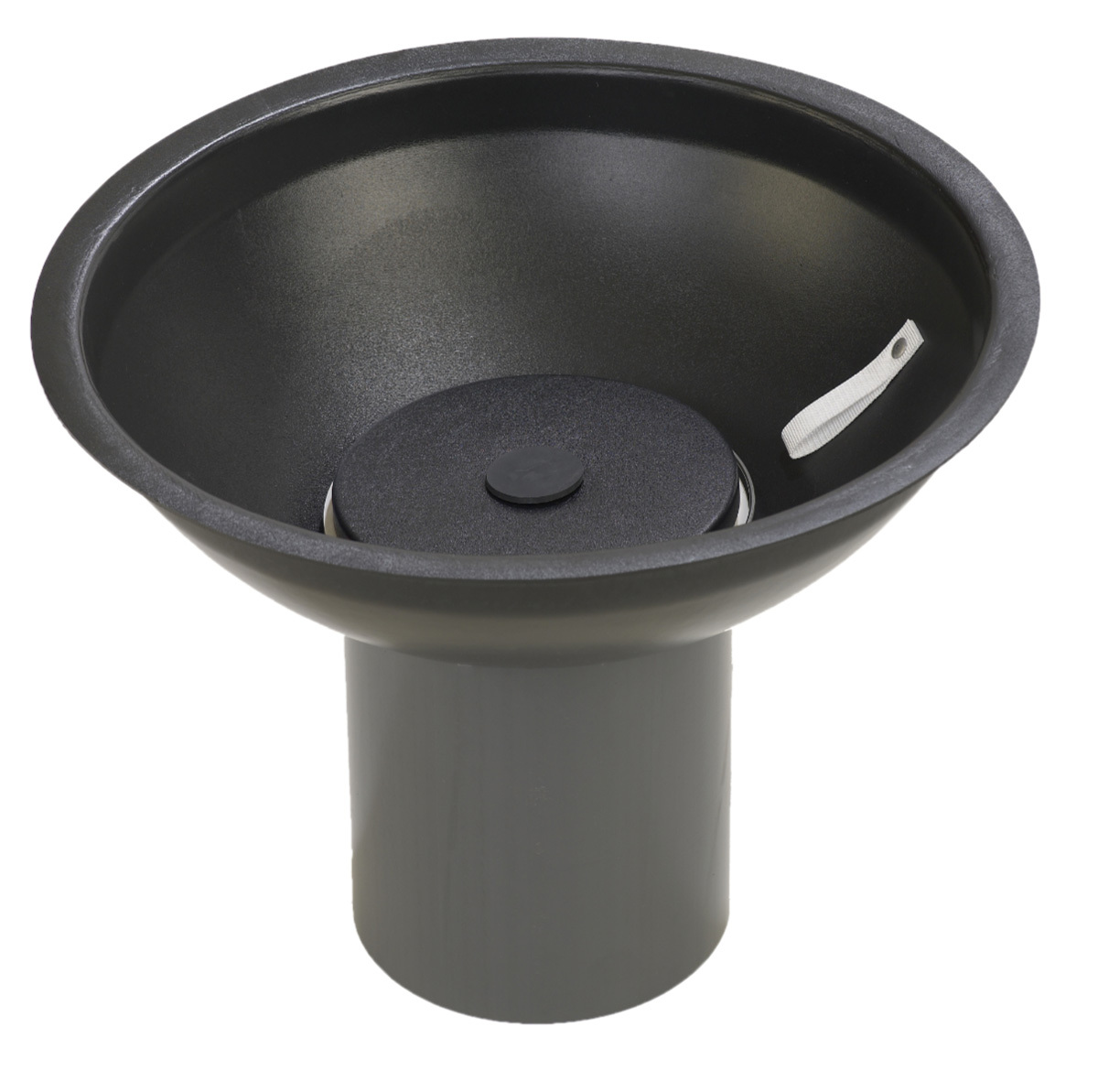

Simple Solutions Distributing Wolverine Brand Manhole Odor Filter Insert

Hydrogen sulfide-based sewer odors emanating from manhole covers are an extreme nuisance for residential homeowners or users of nearby public facilities. Simple Solutions Distributing offers the Wolverine Brand Manhole Odor Filter Insert to combat the issue. Made with durable and corrosion-free high-density polyethylene copolymer, each odor insert is made to order based on specific manhole measurements. The insert sits flush on the rim so it won’t interfere with the installation or removal of the manhole cover. They install easily with no tools necessary. Each insert comes with the initial 20 pounds of Norit Darco’s H2S Sulforsorb activated carbon, and its H2S breakthrough indicator to let the user know when maintenance is required. The insert requires no routine maintenance other than occasional replacement of the carbon, which is easily replaced and does not require removal of the insert from the manhole. 866-667-8465;

Manhole Liners

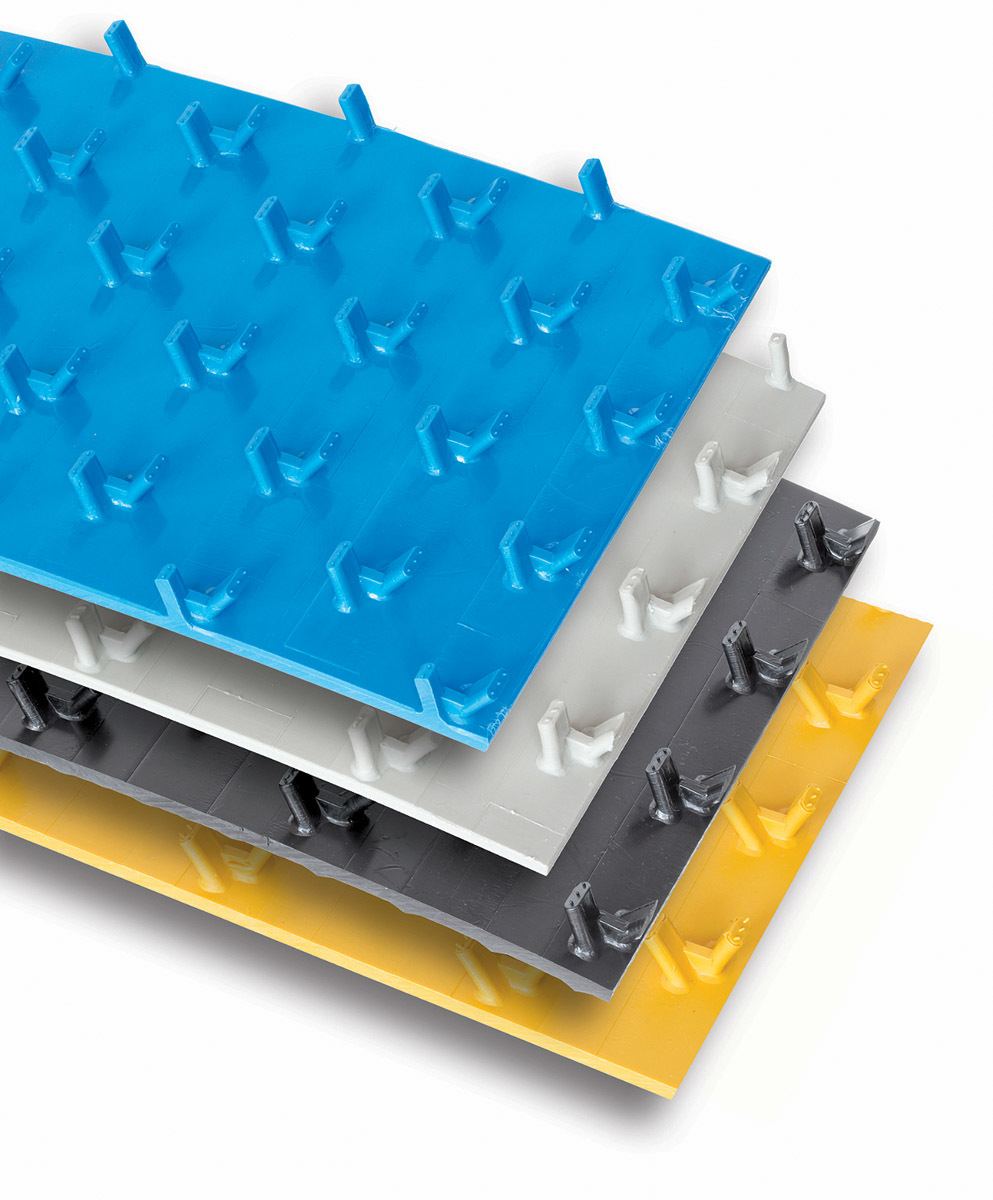

AGRU America Monoform PLUS

Monoform PLUS from AGRU America is a manhole and wet well rehabilitation solution that combines HK Solution’s Monoform technology with AGRU-ULTRA GRIP. The technology comprises a concrete forming system installed within existing manhole structures. Inner forms wrapped with ULTRA GRIP pair with the existing structure, which serves as the outer form. Concrete is then poured between the two forms to create a new structure. The concrete cures around the anchors, making the liner mechanically bonded permanently into the structural frame. The solid construction meets the Cooper E-80 locomotive load testing criteria. It offers equal performance and design life compared with a typical replacement job, with the benefit of minimal traffic disruption, cost-effectiveness, faster installation, no required external bypass pumps, and no compaction issues. Finish most sites in two days without being taken out of service. 843-546-0600,

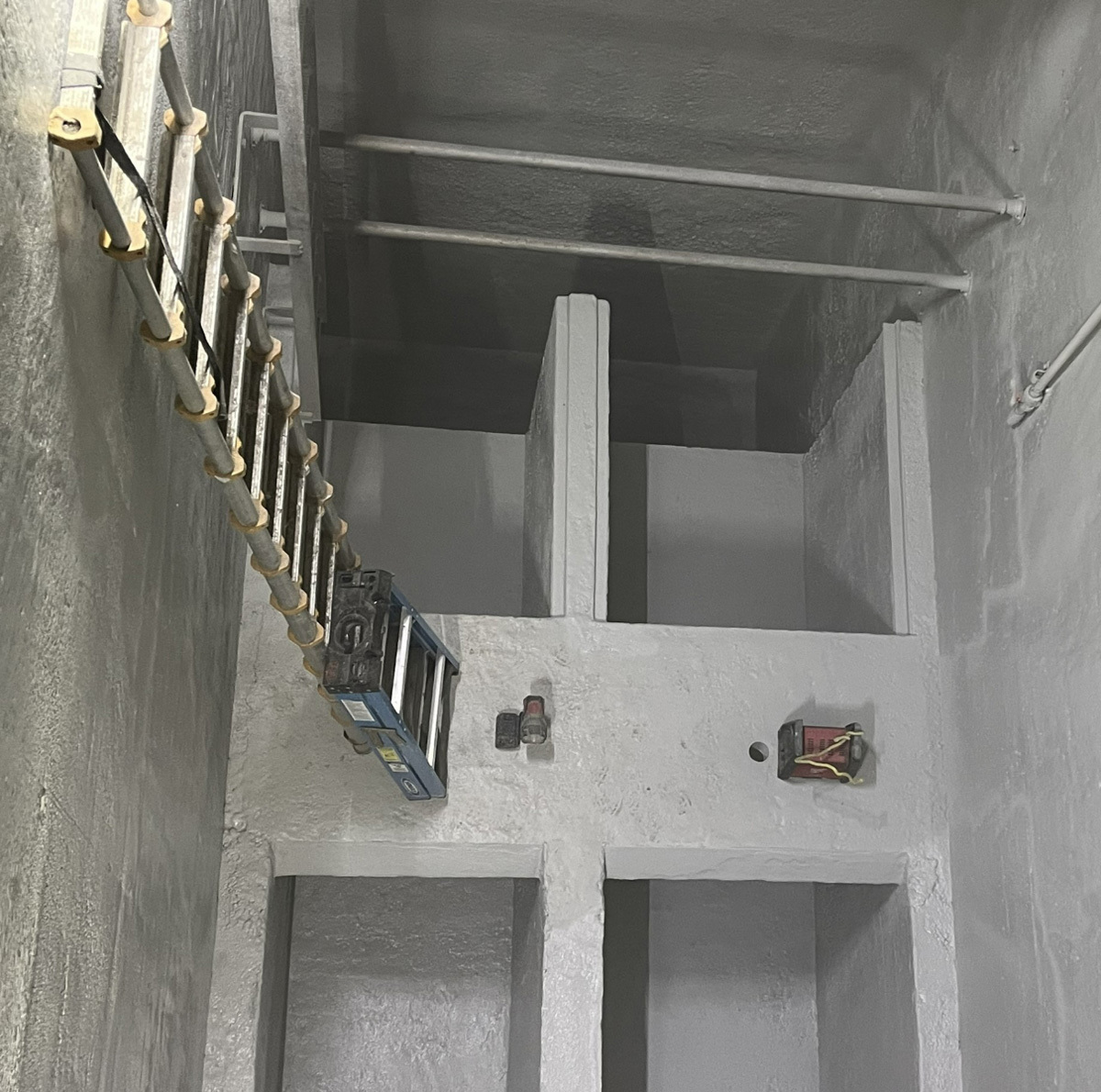

Epoxytec CPP Sprayliner MH

CPP Sprayliner MH from Epoxytec is designed to rehabilitate sanitary sewer collections system assets and other underground, cylindrical and/or small box structures in contact with hydrogen sulfide and in need of I&I mitigation with sealed lining. It performs in areas subject to chemical attack and, as a seal preventing oxidation while holding back water migration, I&I and hydrostatic pressure. The material can be sprayed ultra-high-build, up to 1/4 inch per pass. Blended with reinforcing agents and various fibers, the material when cured creates reinforcement lining as a fiber-reinforced polymer, with high-strength and flexural properties for partially or fully deteriorated structures. 877-463-7699;

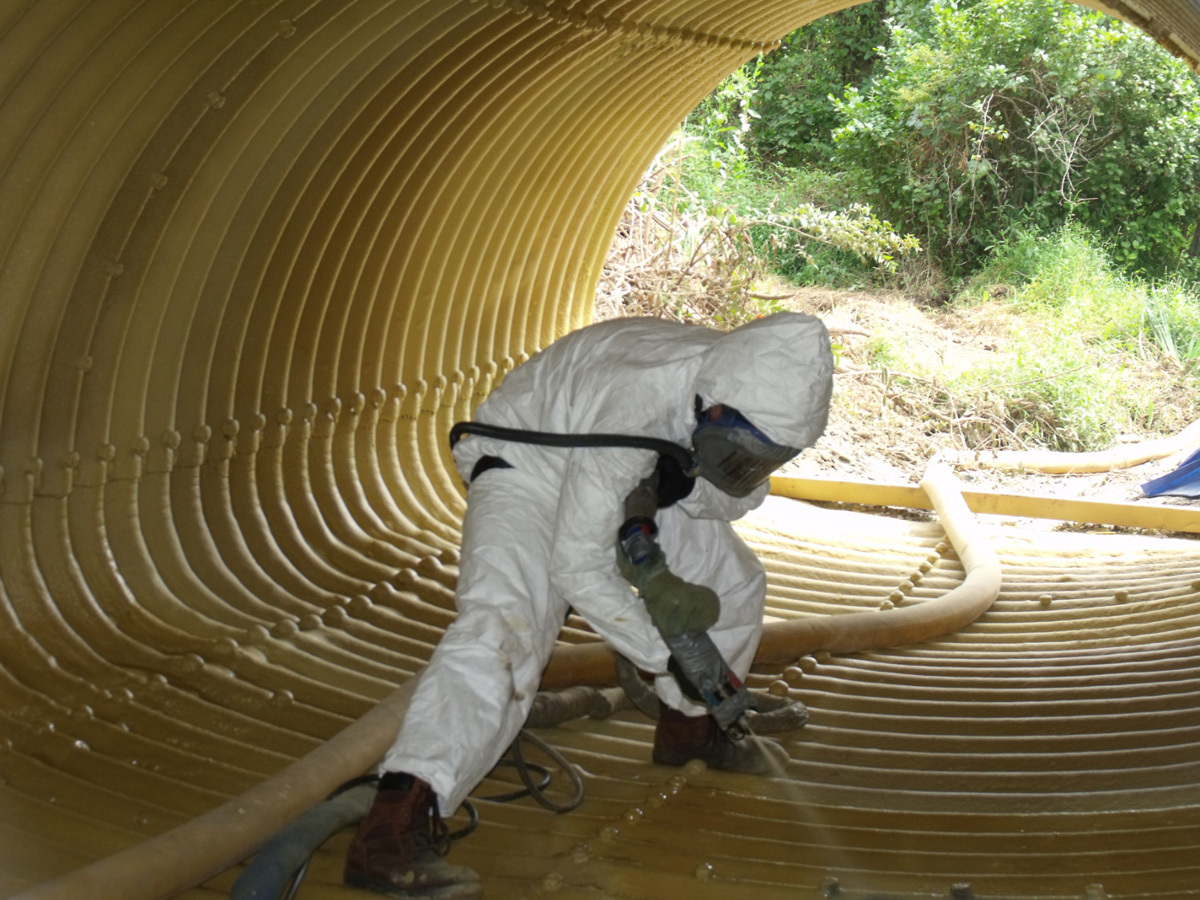

Sprayroq SprayWall

SprayWall from Sprayroq is a rigid polyurethane material that provides structural integrity and infiltration control to underground infrastructure assets. It is a 2-1-ratio product that is applied via a heated, plural component spray system. It begins to gel in about eight seconds and is tack-free after two minutes. Within 30 to 60 minutes, the initial cure is complete and the structure is capable of accepting flow. The benefits include its structural capacity, which provides for protection against multiple load components within an underground asset including water, soil and traffic loads. In addition, it allows an asset owner to return a structure to service quickly, creating a huge savings on bypass cost, as well as decreasing the overall downtime for a given structure. It is also third-party tested and most recently has undergone significant successful evaluations through AASHTO. 205-957-0020;

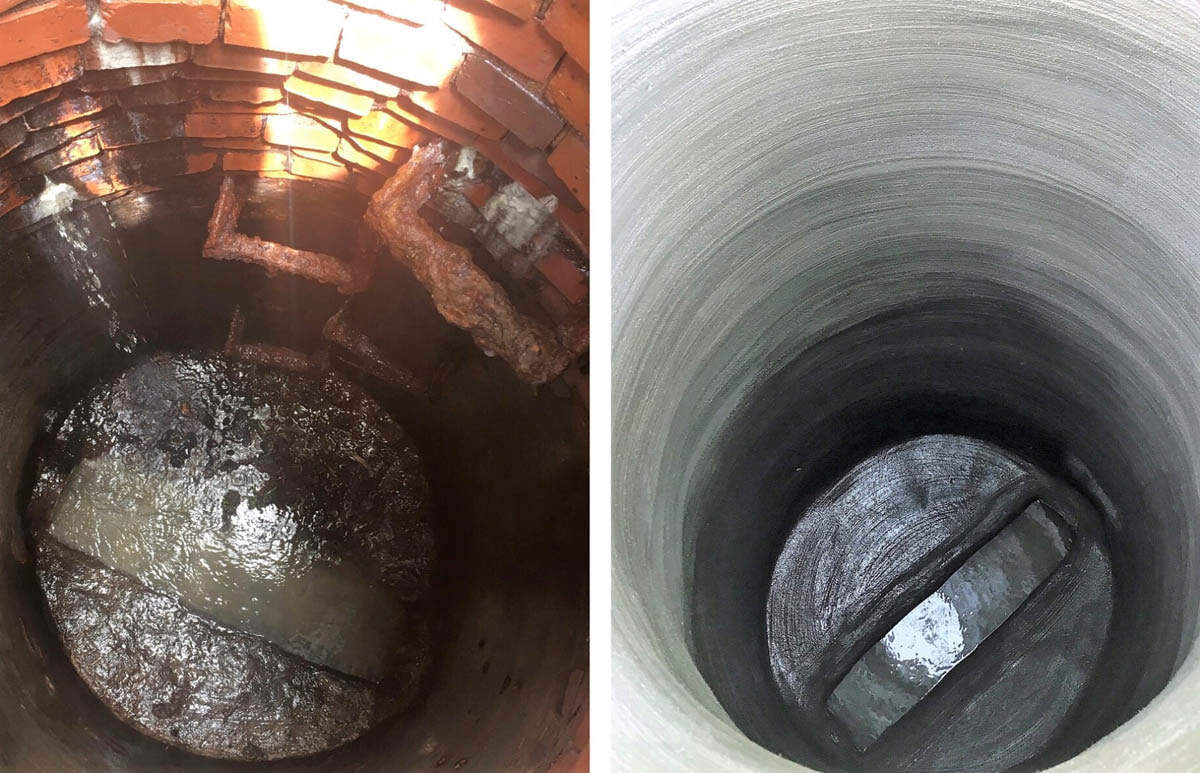

The Strong Company Strong-Seal System

Strong-Seal MS-2A and MS-2C from The Strong Company are designed to rehabilitate municipal concrete and masonry structures, and effectively stop inflow, infiltration and exfiltration. When spray-applied to a minimum of a 1/2-inch thickness, the cementitious mortars are impervious monolithic liners with compressive and flexural strengths exceeding that of the original structure. Made with Portland cement, MS-2A is the most cost-effective solution for stopping infiltration and restoring structural integrity. MS-2C provides high early strengths and added corrosion protection in mild sulfide environments. High Performance Mix is a pure-fused calcium aluminate mortar that stops infiltration, restores structural integrity and protects against microbiologically induced corrosion in sanitary sewer systems with harsh sulfide conditions. 800-982-8009;

Manhole Parts and Components

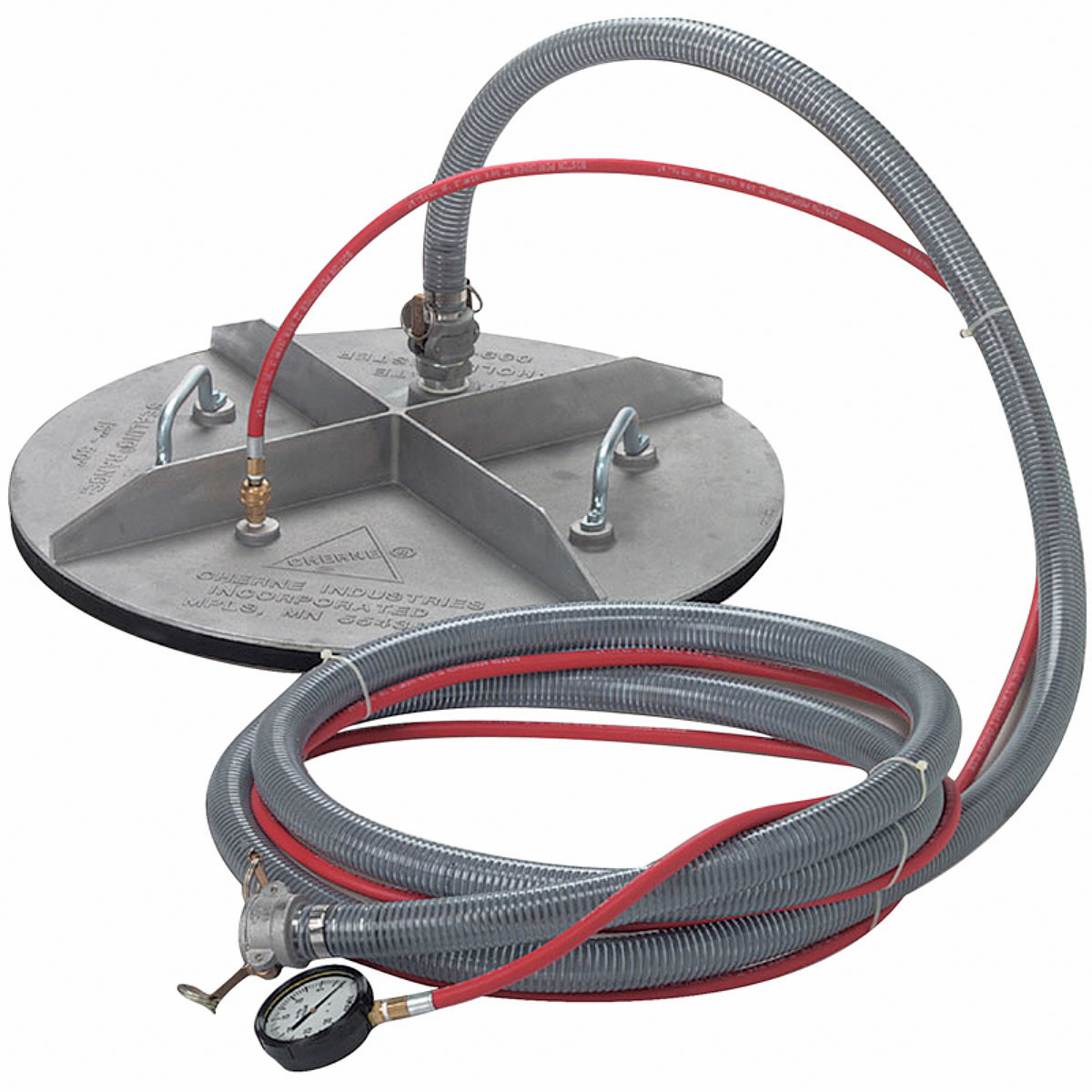

Cherne Plate Style Manhole Testers

Cherne Plate Style Manhole Testers are an efficient, accurate, cost-effective method of testing new, existing and rehabilitated manholes. Their remote-inflation and monitoring system keeps users away from the danger zone. This product is designed to seal manhole cone surfaces and a wide range of manhole diameters. Included is a Neoprene gasket for a leak-free seal and a 20-inch hose with a gauge. Units are available in six size variations and replacement kits. 800-843-7584;

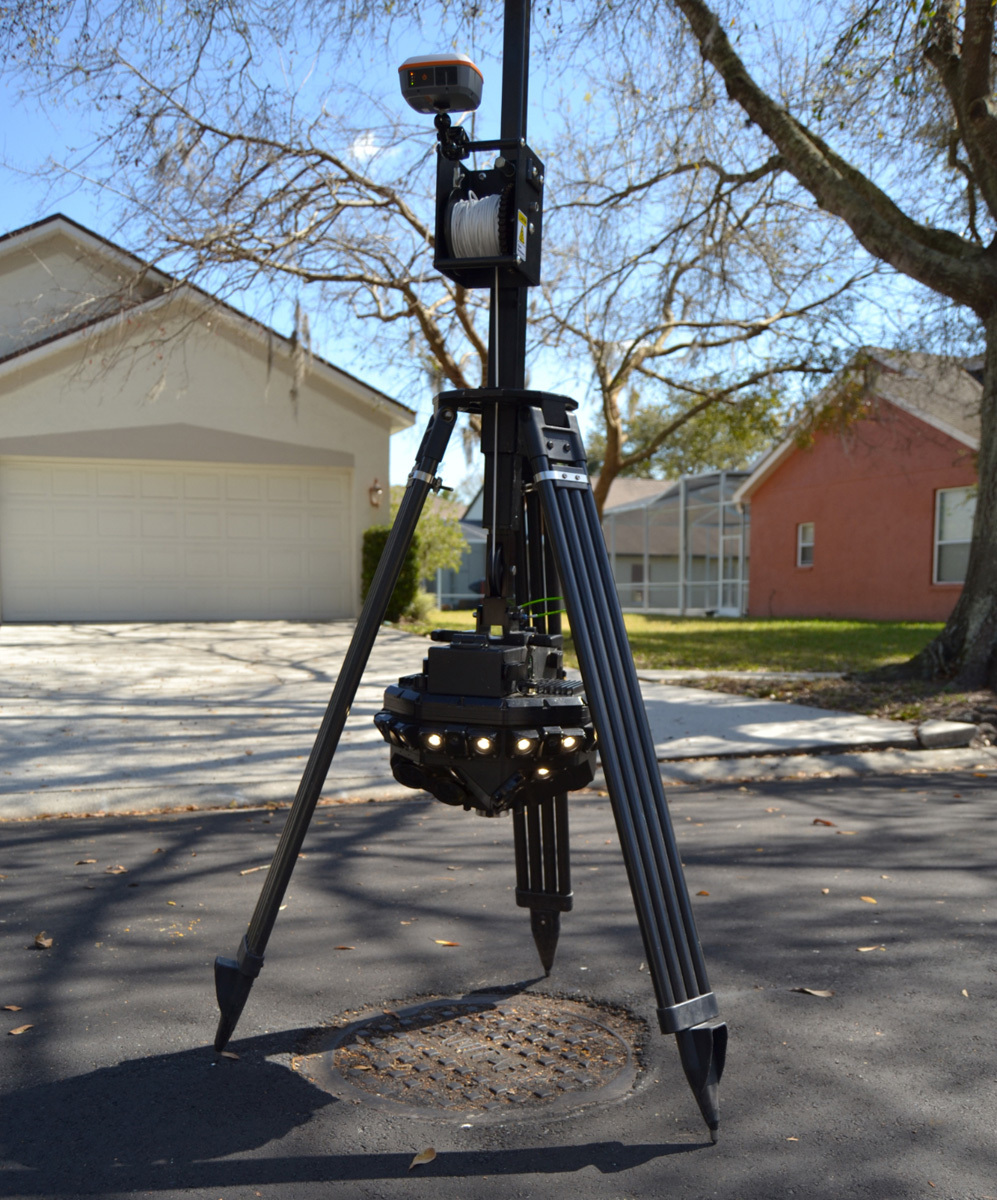

The SPiDER scanner from CUES is wireless, color manhole inspection technology in a lightweight and compact form. It is operated with a tablet computer that controls the scanners and lights. It does not require a truck or data/power cable for operational use. Scanning data is recorded on the unit. It collects millions of 3D points during each manhole scan, providing engineering and survey-quality information about manhole geometry and condition. Information gathered can be used for structural assessment, pre- and post-rehabilitation analysis, hydrological surveys and general condition assessment. It provides a 190-degree field-of-view live video stream, an ideal tool for I&I studies which depend on live video to detect moving water. 800-327-7791;

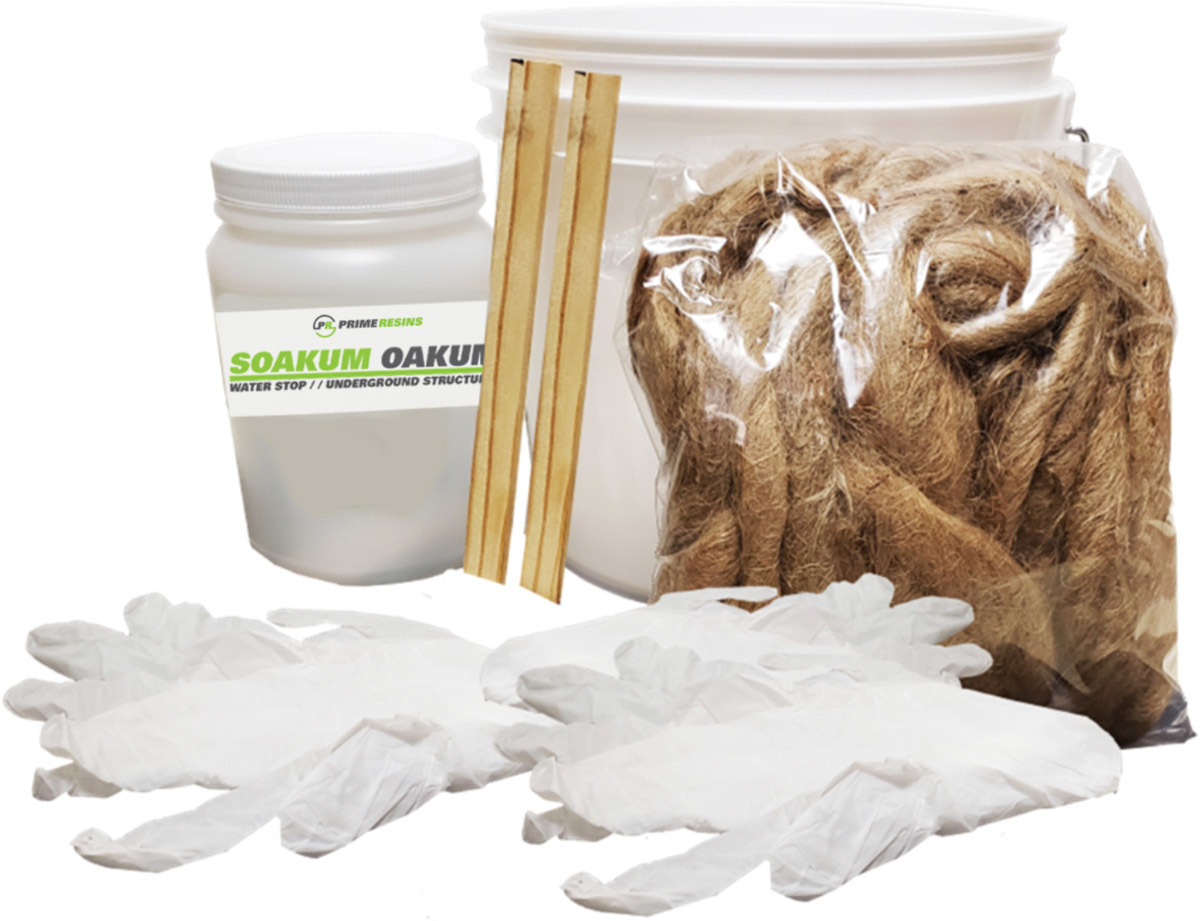

Prime Resins Soakum Oakum Kit

The Soakum Oakum Kit from Prime Resins is composed of a dry oakum soaked in a hydrophilic polymer solution. When wet and either packed or worked into a joint or crack, the resin will foam to form a flexible and tight joint to stop groundwater infiltration. It reacts with water and becomes a watertight rubber-like composite. The oakum cord gives strength and density to the composite, and makes the application of the resin easier, especially when gushers are present. 800-321-7212;

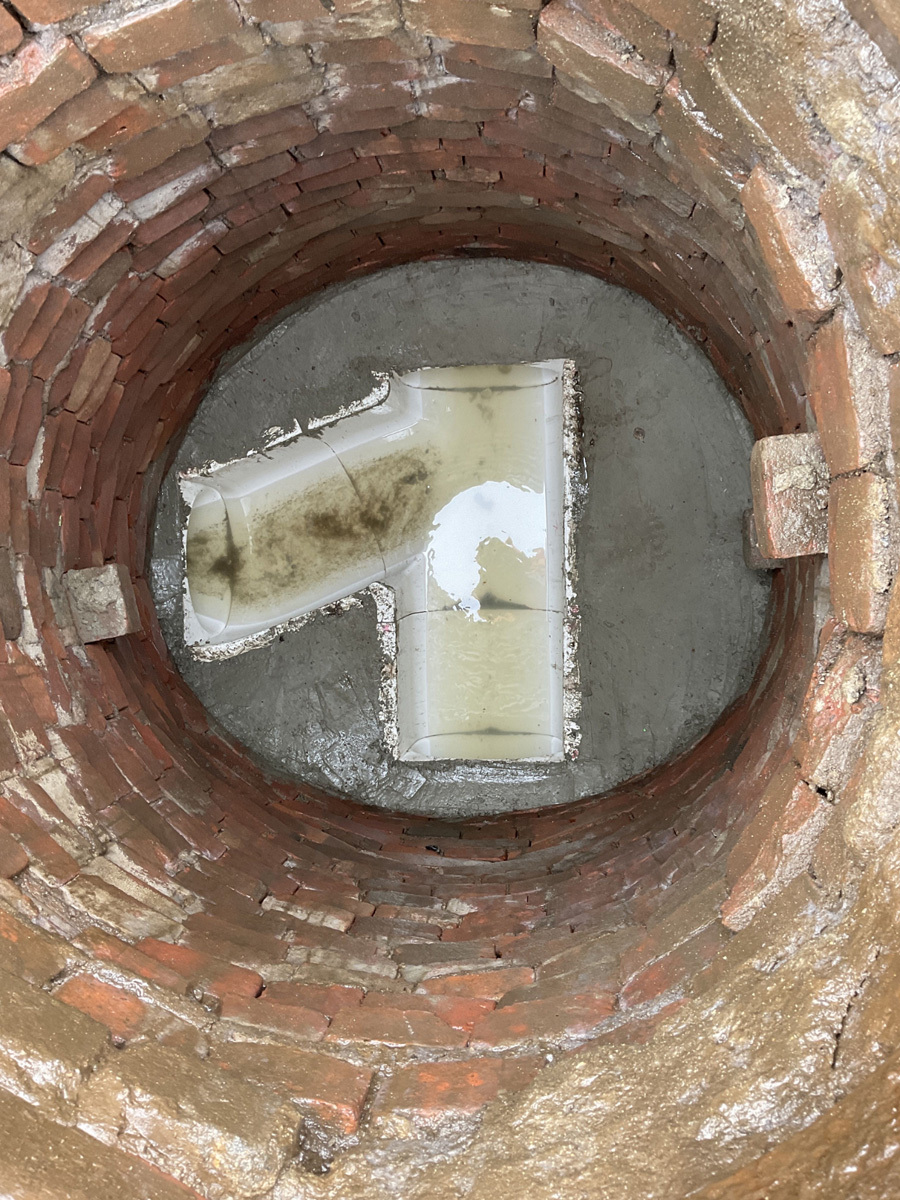

RELINER/Duran Manhole Invert Channel

Improve manhole hydraulics with RELINER/Duran Modular Manhole Invert Channels. Molded fiberglass flumes with smooth sewer pipe interfaces are used to rehabilitate inverts without flow interruption and can be used for new construction. The field-installed modular components bolt together inside the manhole and serve as the form for a new concrete bench. The channels eliminate the inconsistencies associated with field-formed concrete channels. The full-depth lined channels are high flow and easy to clean and maintain. Standard 8- and 12-inch-depth channel sections fit through a 24-inch manhole frame and will accommodate 6- through 12-inch pipes. Larger sizes are available. 800-508-6001;

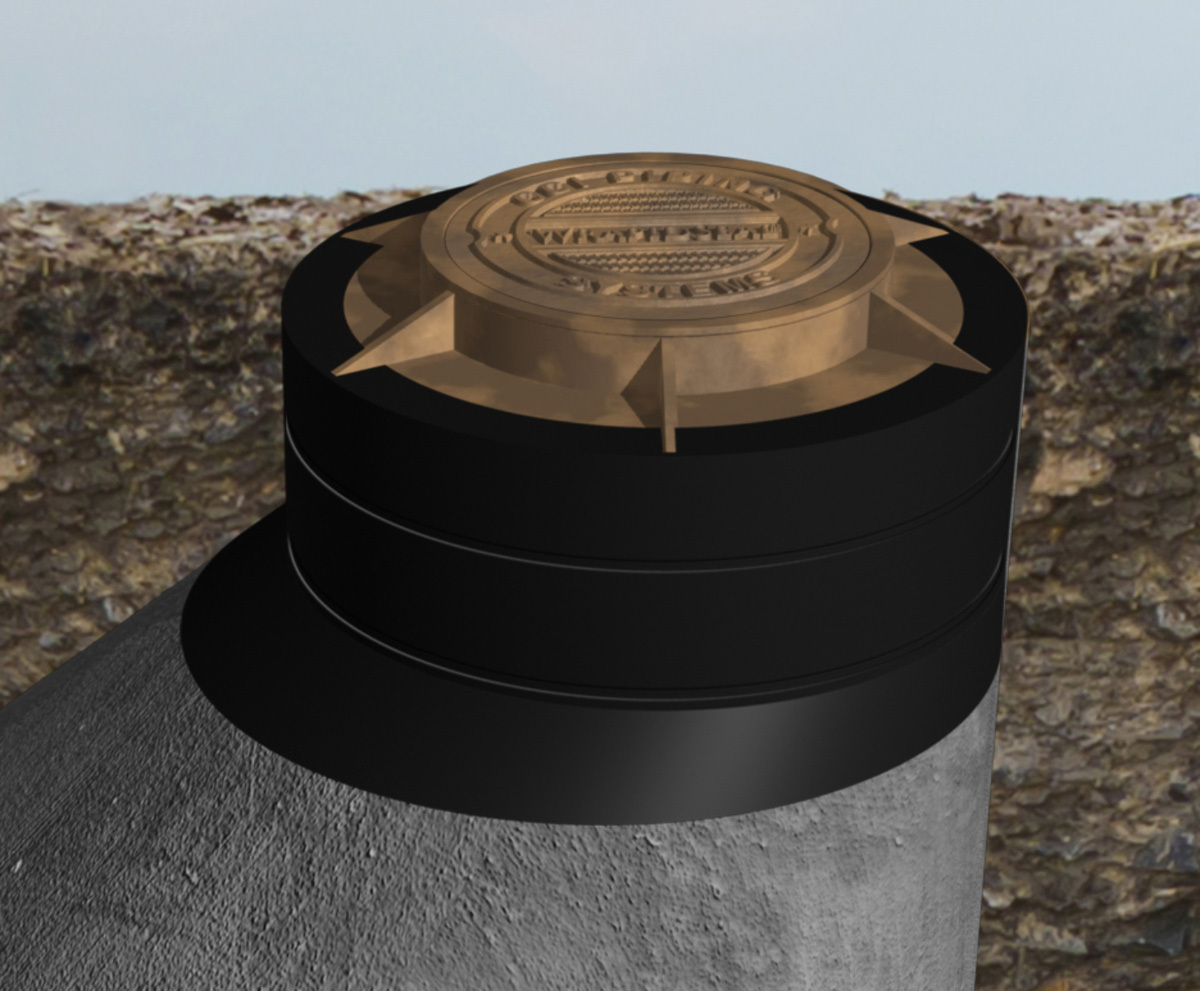

CCI Piping Systems WrapidSeal Manhole  Encapsulation System

The WrapidSeal Manhole Encapsulation System from CCI Piping Systems consists of an engineered primer and a wraparound, heat-shrinkable sleeve designed to seal joints and prevent groundwater from entering a collections system. This material has a high-shrink membrane (70% stretch and 40% recovery) designed to shrink around any manhole profile. In addition, the high-tensile strength accommodates structural movement, while the tough backing resists soil stress and provides suitable abrasion resistance. It can be used for new construction or for the rehabilitation of existing manholes to control infiltration through joints and prevent deterioration, thus eliminating costly maintenance repairs and the added expense of treating groundwater. 800-867-2772;

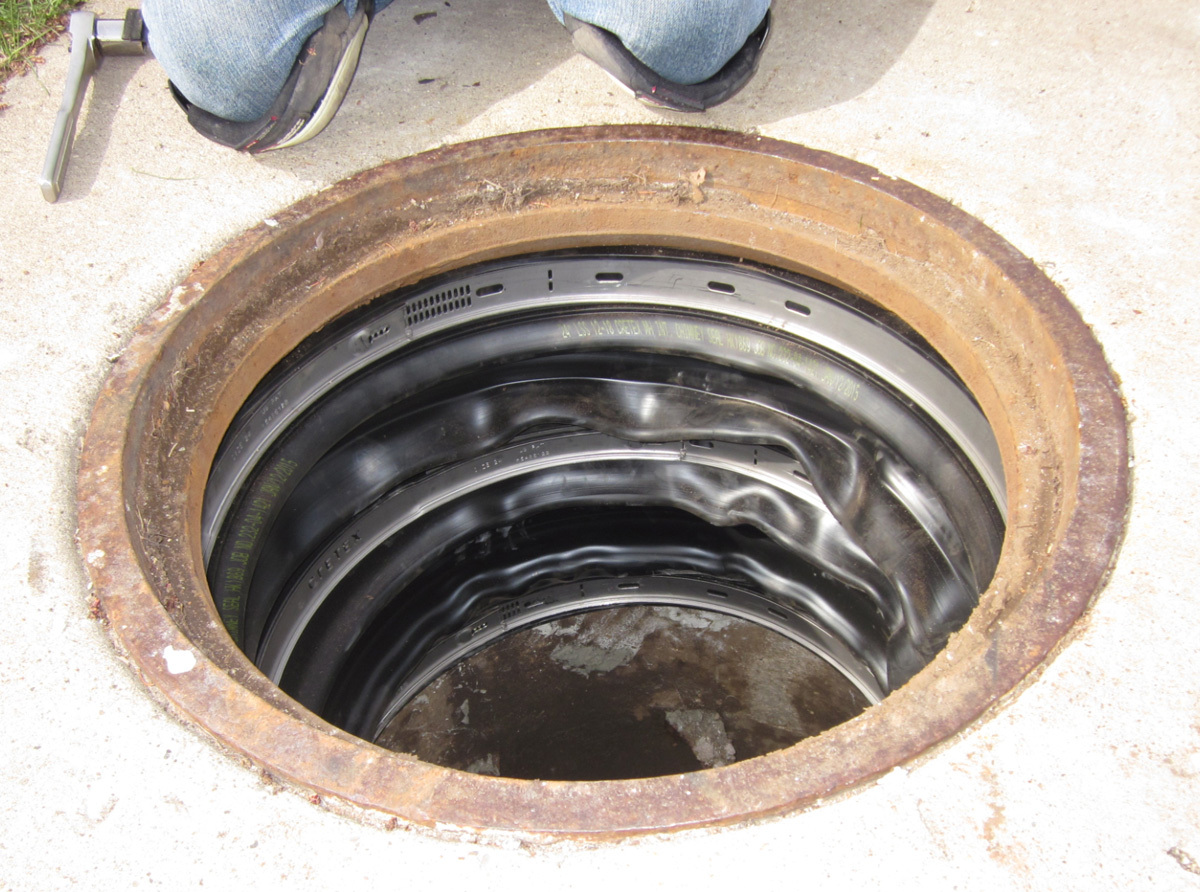

Cretex Specialty Products Internal Chimney Seal

Cretex Specialty Products Internal Chimney Seals are mechanical, so there is no need to worry about surface adhesion or stopping active leaks prior to installation. The seals eliminate and prevent manhole chimney inflow. During wet weather, clear water enters the manhole through deteriorated and broken chimney joints, which may burden the collections system. The chimney seal has a 50-year design life and is available in four widths, allowing complete chimney coverage up to 24 vertical inches with a single seal. 800-345-3764;

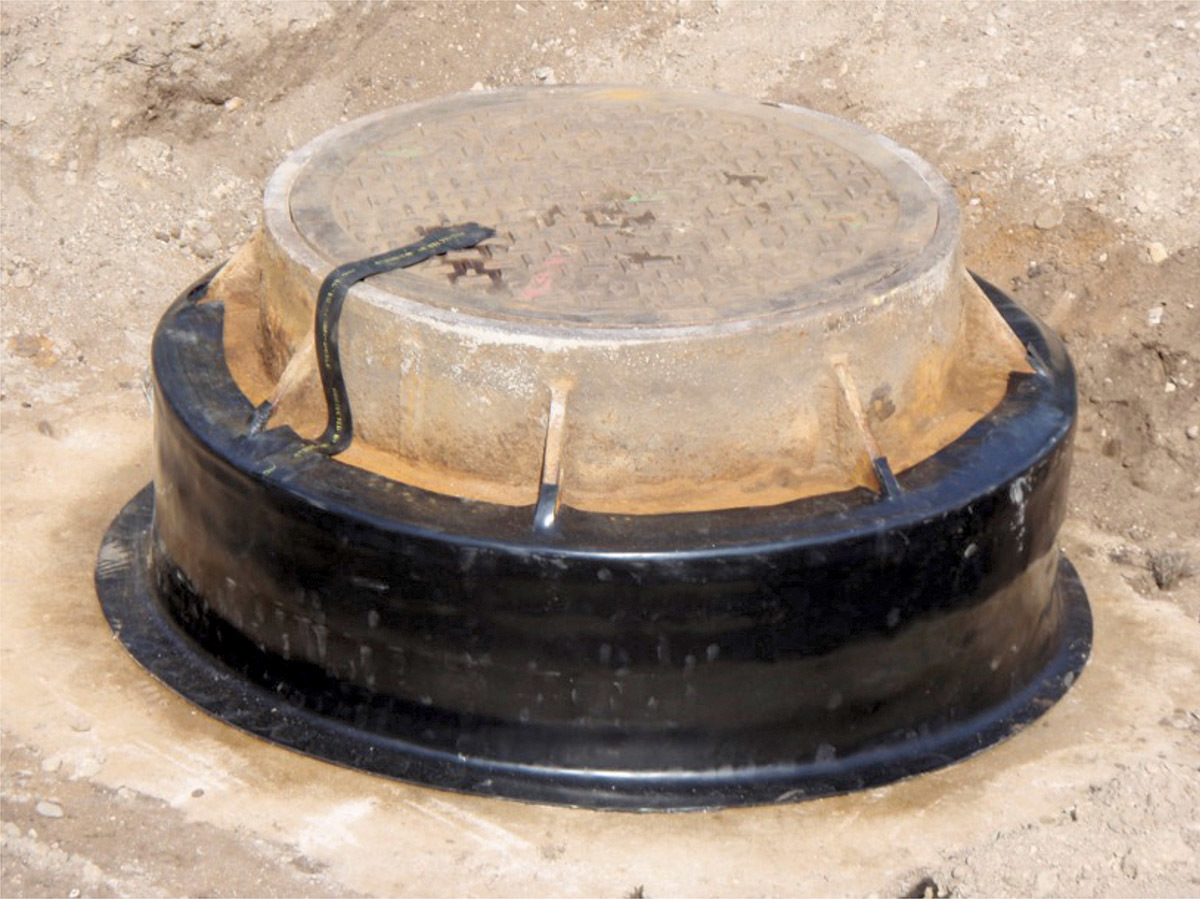

Sealing Systems Infi-Shield

The Infi-Shield external seal from Sealing Systems prevents erosion and infiltration in manholes or catch basins. The one-piece molded seal is made from EPDM rubber, has a minimum of 460% elongation and has a reinforced preformed L-shaped corner. It can be combined with the Sealing Systems manhole insert to help stop unwanted inflow of rainwater through the manhole cover. The inserts are custom-sized to provide an enhanced fit and seal and are manufactured from ultra-high-density polyethylene. Both products are inexpensive and simple to install with in-house personnel. 800-478-2054;
