Water and Wastewater Product News: Nov. 16, 2016

Browse the latest products exclusively for the municipal sewer and water industry.
Water and Wastewater Product News: Nov. 16, 2016
The HammerHead HydroGuide HG1200 winch is designed to be more efficient and easy to use during pipe bursting, sliplining and slitting.

Interested in Rehab/Relining?

Get Rehab/Relining articles, news and videos right in your inbox! Sign up now.

Rehab/Relining + Get Alerts

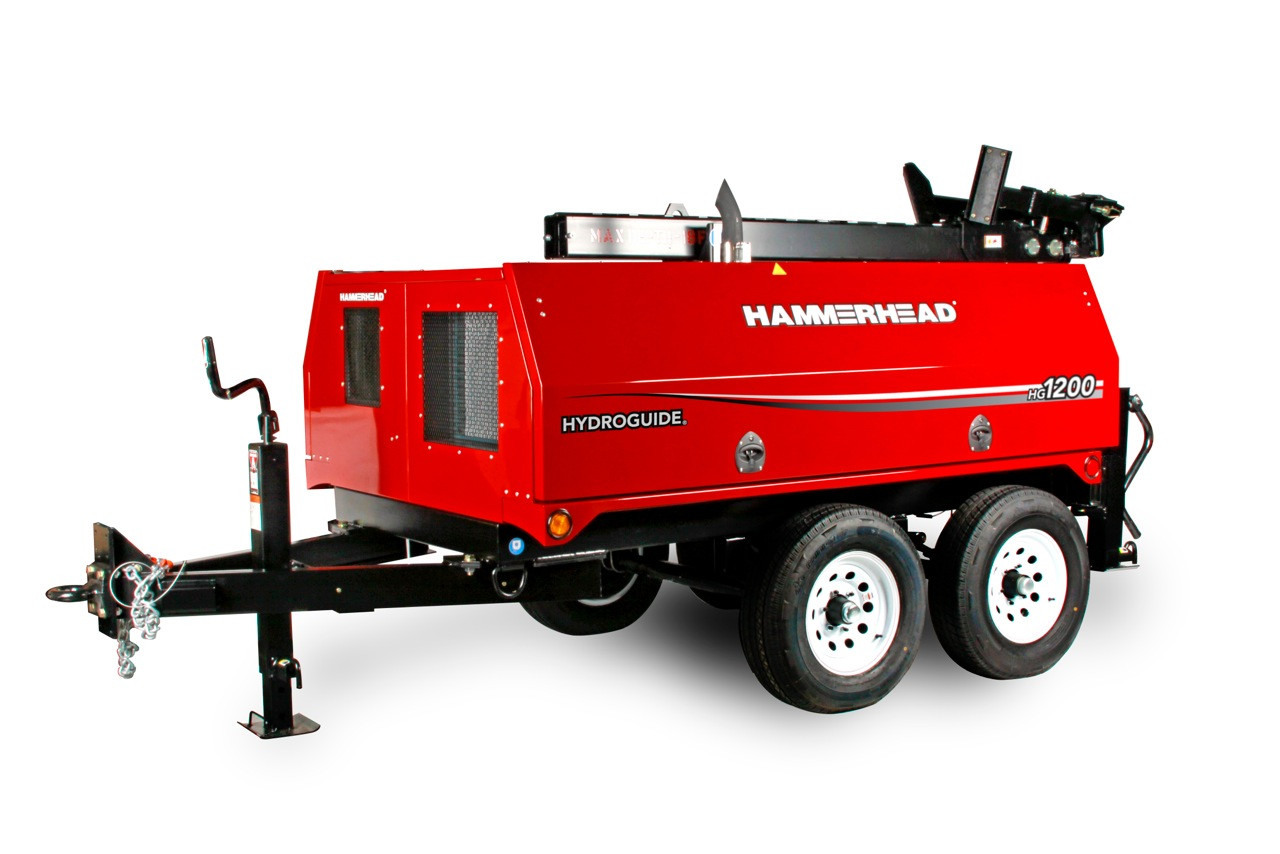

HammerHead Trenchless winch
The HammerHead HydroGuide HG1200 winch is designed to be more efficient and easy to use during pipe bursting, sliplining and slitting. The unit has a hydraulic downrigger that automatically deploys the boom down hole and can fine-tune the depth up to 18 feet. It also has precision controls for line speed, from 0 to 111 feet per minute, and pressure from 0.5 to 12 tons. A Tier 4 Kubota D1105 four-cycle diesel engine provides power, and a radial piston motor provides consistent pulling power. 800/331-6653; www.hammerheadtrenchless.com.

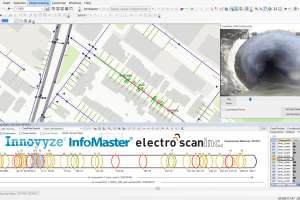

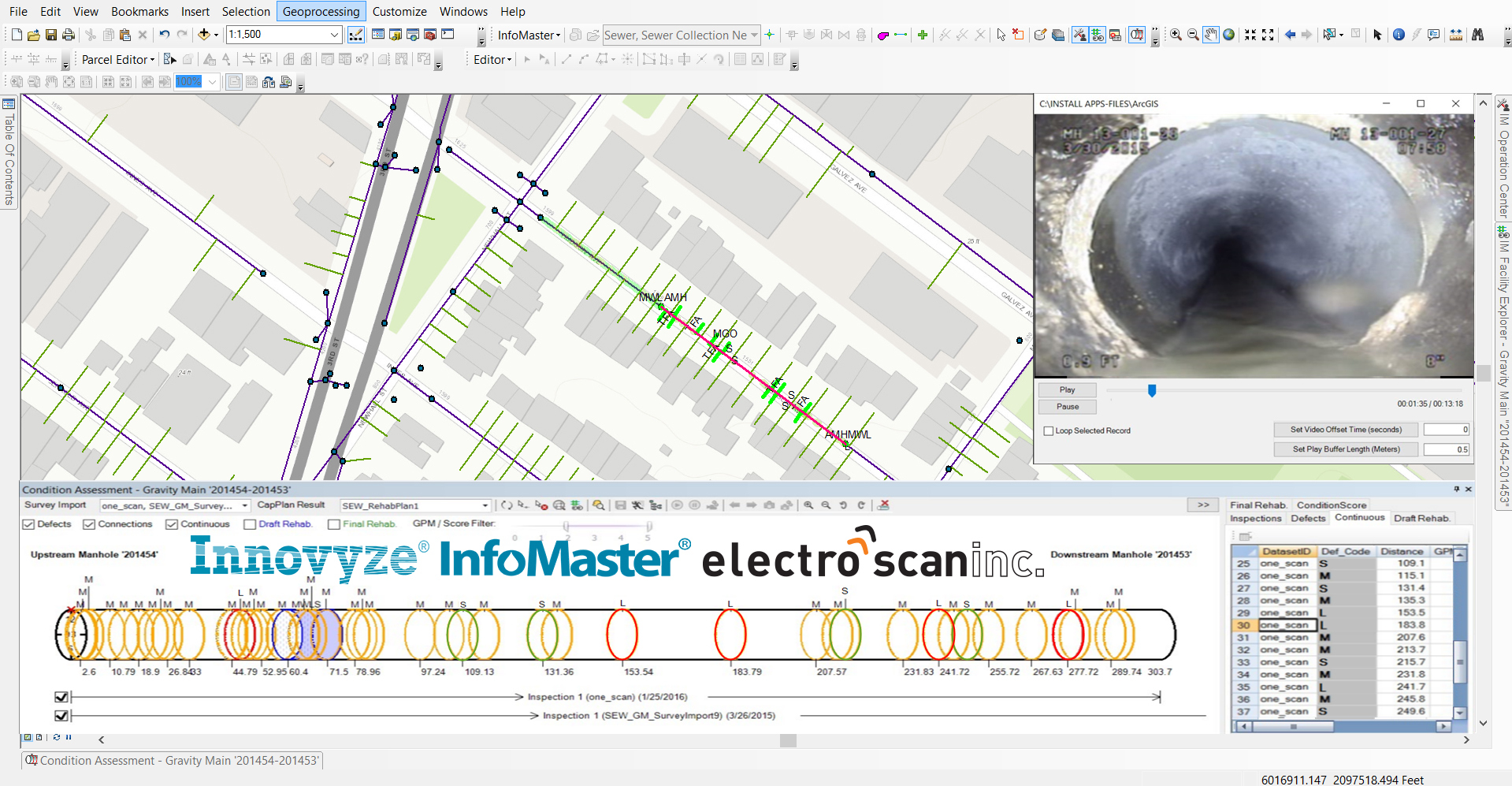

Electro Scan completes integration with Innovyze InfoMaster
Electro Scan has completed data integration between its sewer condition assessment solution and Innovyze InfoMaster. Electro Scan’s technology is able to evaluate 360 degrees of pipe wall and measure defects in gallons per minute or liters per second. Data is wirelessly transmitted to the company’s app and defect flows are reported in minutes and incorporated into Innovyze InfoMaster for display and analysis. 800/975-6149; www.electroscan.com.

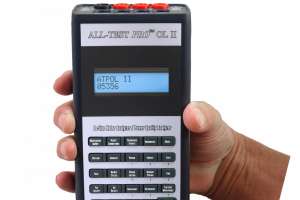

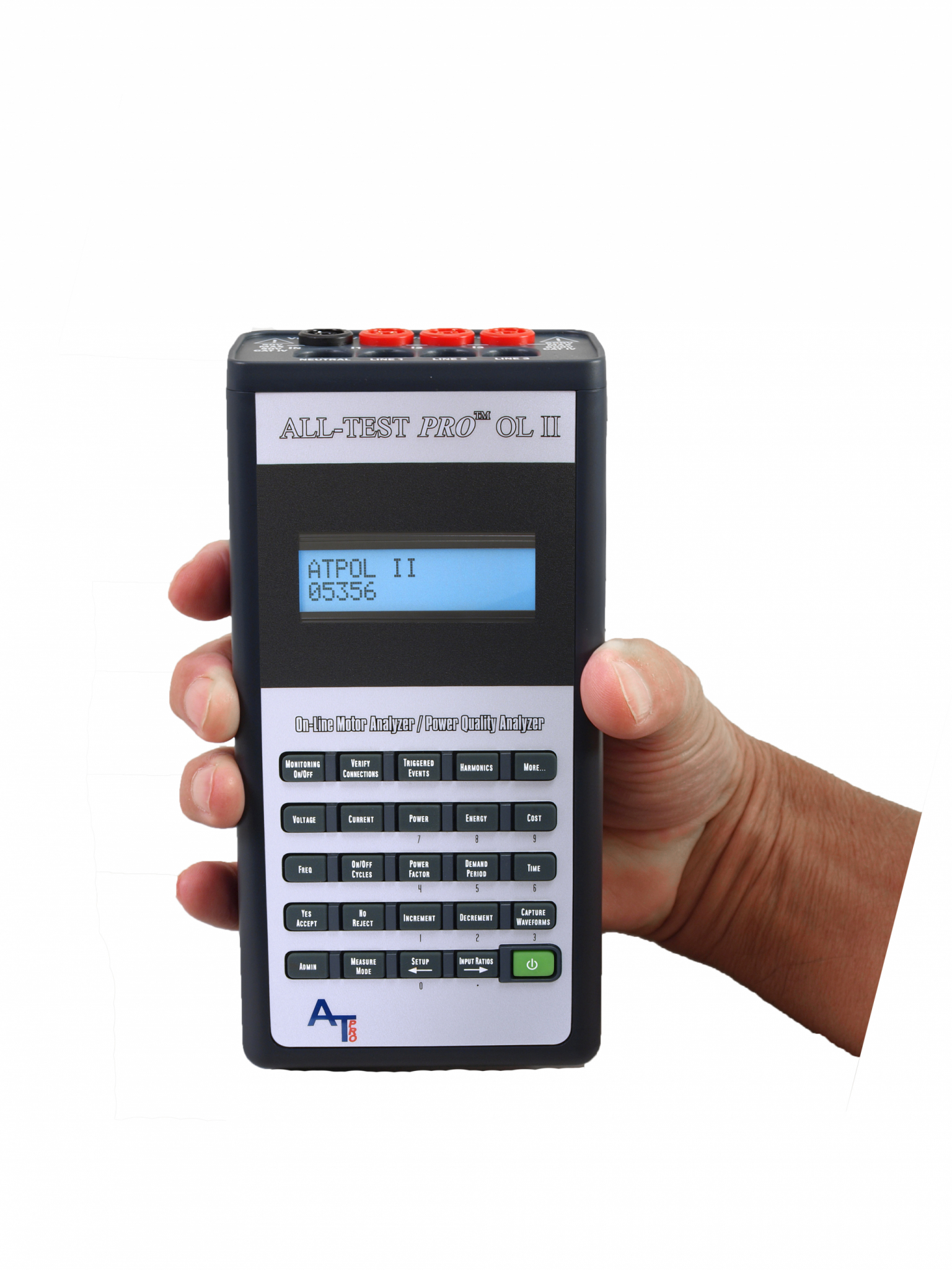

All-Test Pro hand-held analyzer
The ATPOL II hand-held analyzer from All-Test Pro comes in a new smaller size and features Bluetooth capabilities. The unit acts as both a complete motor analyzer (ESA) and a complete power quality analyzer (PQ) for AC induction, DC and other types of electric motors. Bluetooth technology allows the device to be operated up to 30 feet from energized equipment. 800/952-8776; www.alltestpro.com.

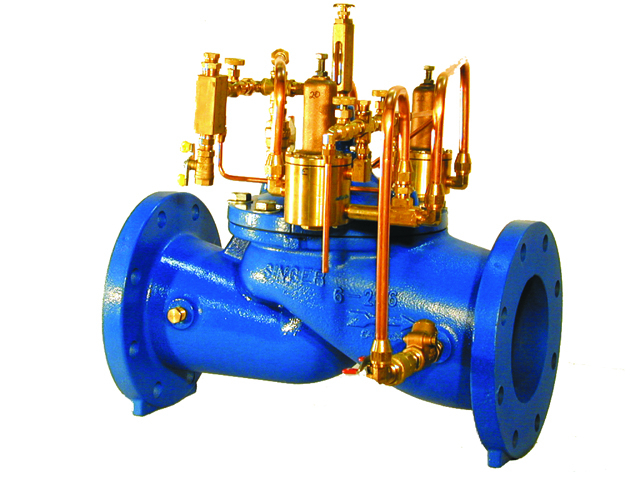

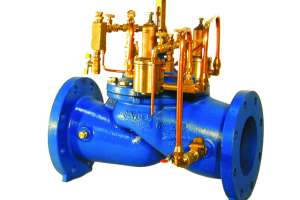

Singer Valve level controller
The LCP-TP single-process level controller from Singer Valve is designed to complement Singer’s single solenoid-operated/override control valves and sensor. This combination package is ideal for filling any kind of tank with water that requires filling to a level setpoint and then drawing down the level of the tank to a secondary setpoint before activating the fill cycle again, which ensures tank turn over. The controller is programmed with customized level control algorithms and offers both local control via interactive display or remote control via 4-20mA or Serial Modbus SCADA communication. It has AC or DC external power options and contains 24 volts DC internal power supply for PLC and field sensor power. It has an IP67 enclosure rating and is UL certified, built with surge protection as well as over circuit protection, which ensure protection of the main PLC during voltage spikes and surges. It is capable of on/off level control using input from either level switches or 4-20mA level transmitters. 888/764-7858; www.singervalve.com.
