Mainline CCTV camera systems for the municipal sewer and water industry are essential for detailed pipe inspections, allowing operators to assess the condition of underground pipelines. These systems typically offer high-definition video, advanced camera controls and various cable lengths to accommodate different pipe sizes and conditions. Some models feature self-leveling cameras, touchscreen displays and options for remote access or wireless streaming, improving the efficiency of inspections. Rugged designs, portability and additional tools like distance counters and geolocation data enhance accuracy and ease of use for sewer and water professionals. Take a look at some product options below.

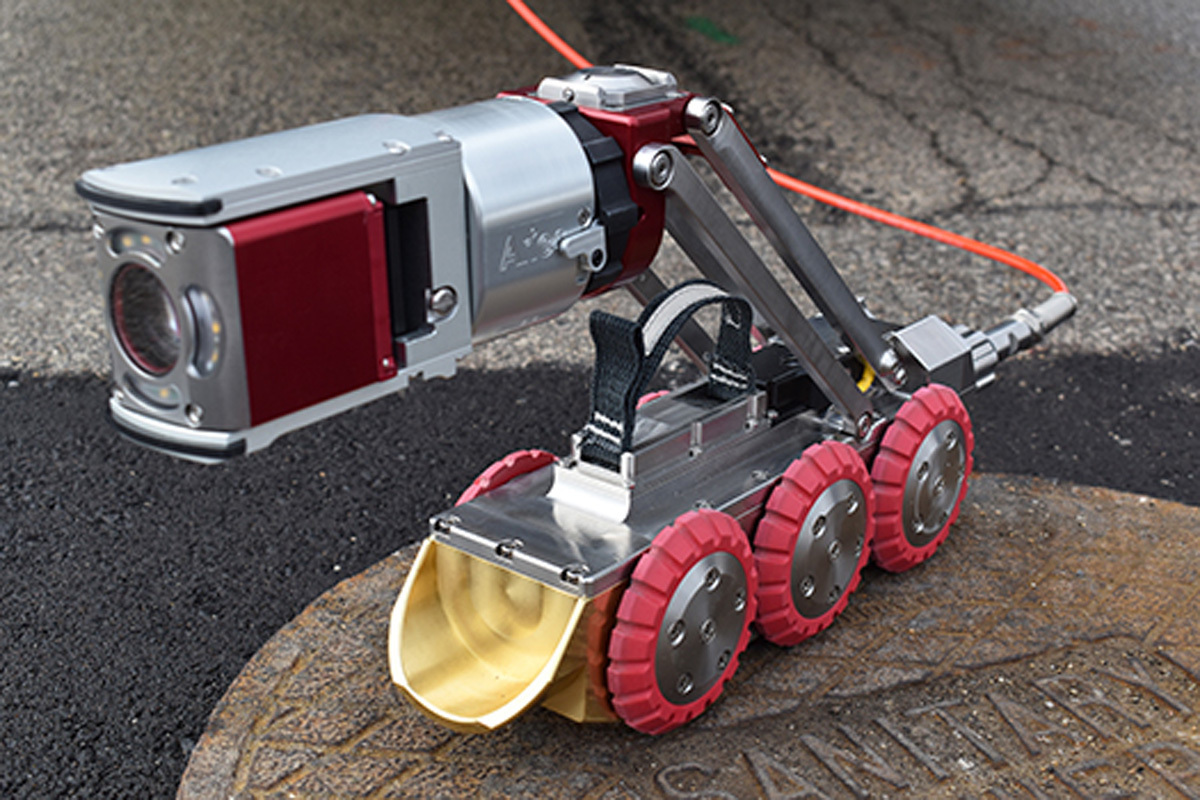

Aries Voyager
Aries has added flexibility and efficiency to its Voyager mainline inspection system with the introduction of a completely mobile version. The unit easily navigates pipe conditions to capture detailed, high-definition video of relined mainlines 6 to 48 inches and up. The compact, portable system, equipped with an 800-foot cable, can easily be carried in a pickup truck (fits under a tonneau cover) or mounted in a truck, van, trailer or Aries TrailBlazer. The Mobile Voyager HD System is digital CANbus enabled for instantaneous camera and tractor response. Inspections are viewed on a 15-inch daylight-readable touchscreen with thumbstick controls. An in-the-pipe WiperCam lens cleaning system maximizes inspection time versus downtime. A compact, full-HD 1080p pan and tilt video camera, with 120x zoom, captures every pipe detail around the crawler. Optional dual camera lasers are available to precisely measure cracks.
800-234-7205; www.ariesindustries.com

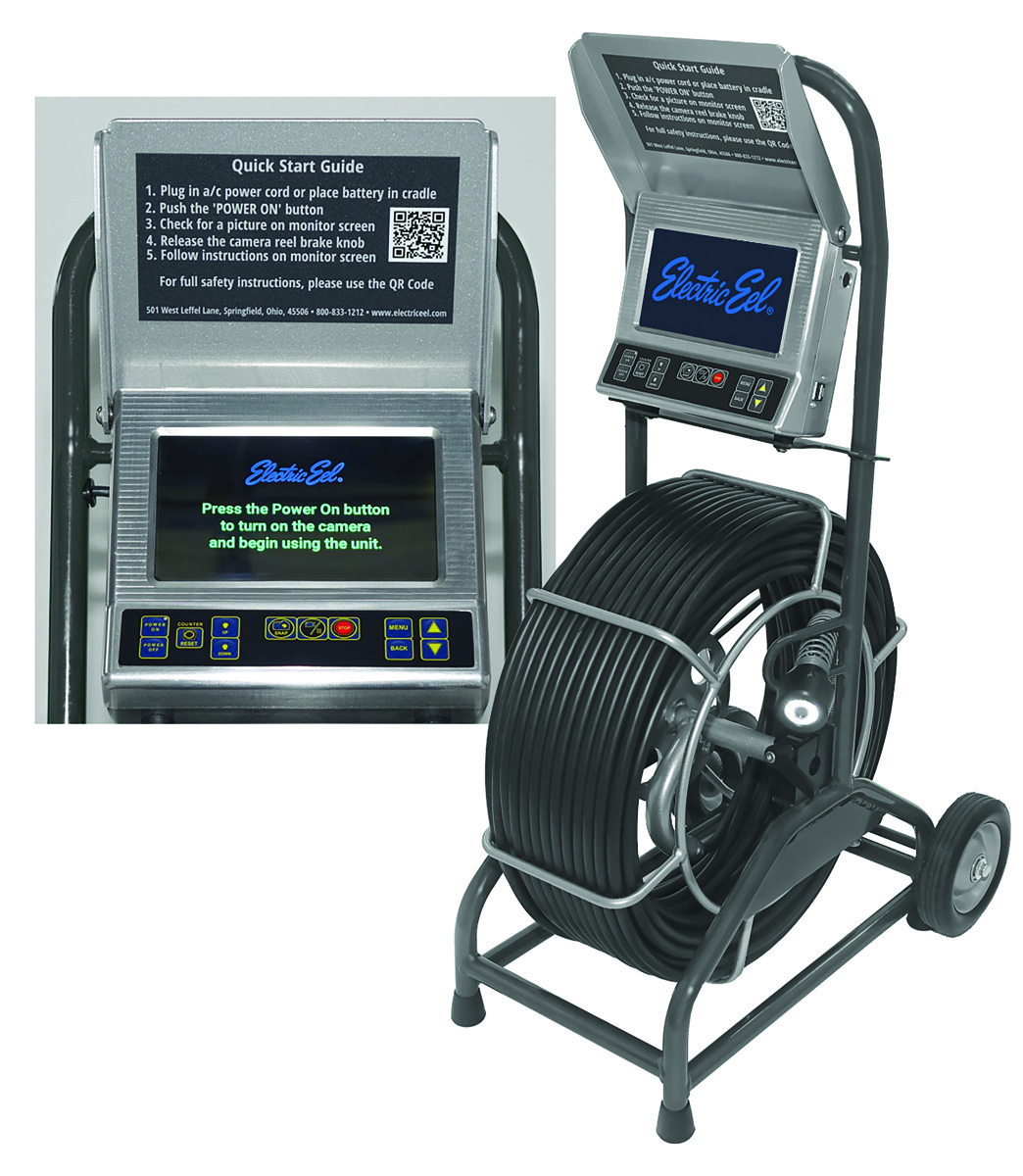

Electric Eel EELvision Elite
The EELvision Elite inspection camera from Electric Eel is ideal for inspecting 3- to 10-inch-diameter lines. It has a 1.30-inch self-leveling color camera with vivid adjustable LED lights and a large 7-inch monitor for easy viewing. A sunshield allows for outdoor viewing and protects the monitor in transport. It comes standard with 200 feet of 1/2-inch-diameter premium pushrod, an on-screen footage counter, continuous-display odometer, one-touch recording to a USB and screenshot capability, an extended ergonomic handle to facilitate maneuverability and transport, a heavy-duty metal frame and wheels, a user-friendly control panel, quick start guide tutorial prompts, QR code for manual and support accessibility, a built-in always-on sonde, dual power sources (AC and battery) and a Makita battery port (it also accepts both Milwaukee and DeWalt batteries with a provided adapter).
800-833-1212; www.electriceel.com

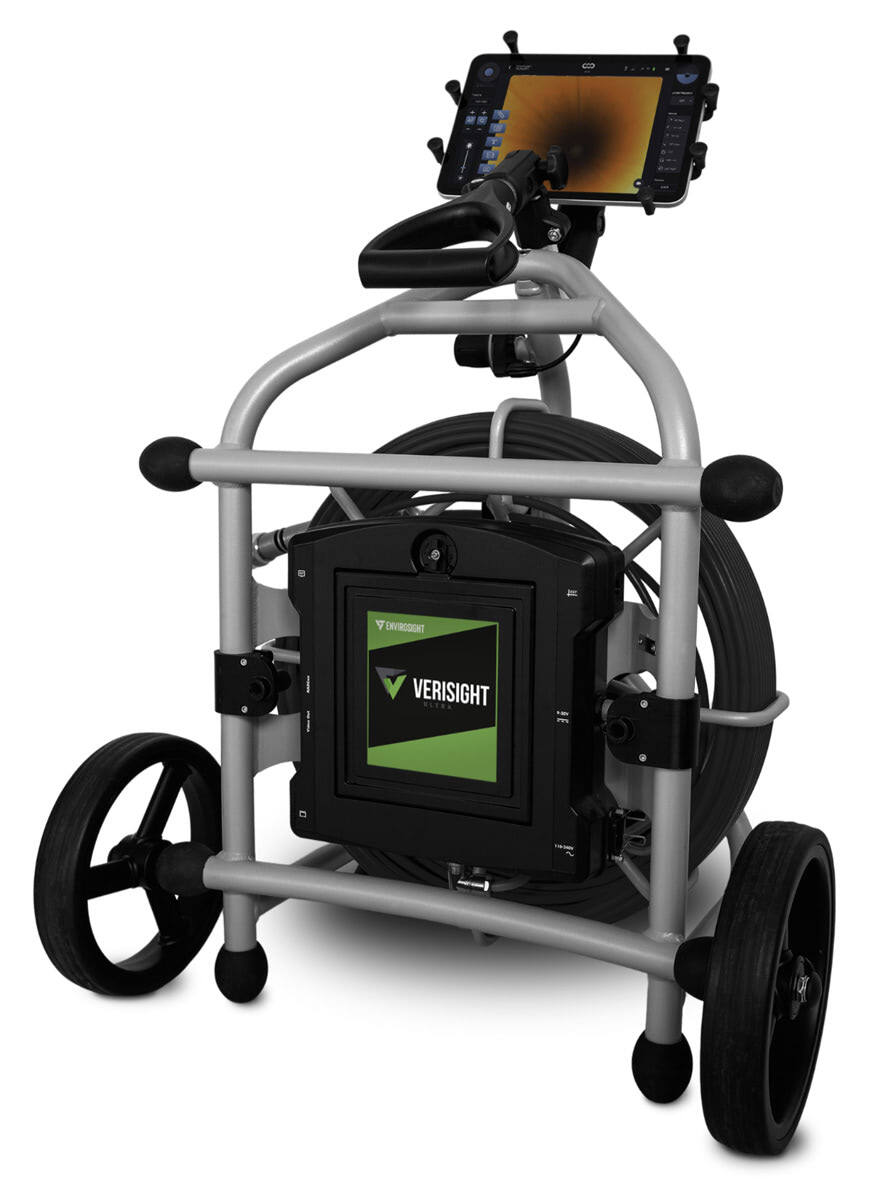

Envirosight Verisight Ultra
The Verisight Ultra from Envirosight simplifies workflows while delivering exceptional image quality. It includes a 1080p full HD touchscreen monitor, which records hi-def video and photos to enable quick and accurate identification of blockages, defects and other issues that may compromise the functionality and safety of underground pipelines. Self-leveling pan-and-tilt advanced camera control options are available. It also has a compact and lightweight design for easy maneuverability through tight spaces and uneven terrain. The system offers the ability to perform inspections standing up or on its side for added versatility on uneven ground. It offers the choice of 200 or 330 feet of “built for distance” cables.
866-936-8476; www.envirosight.com

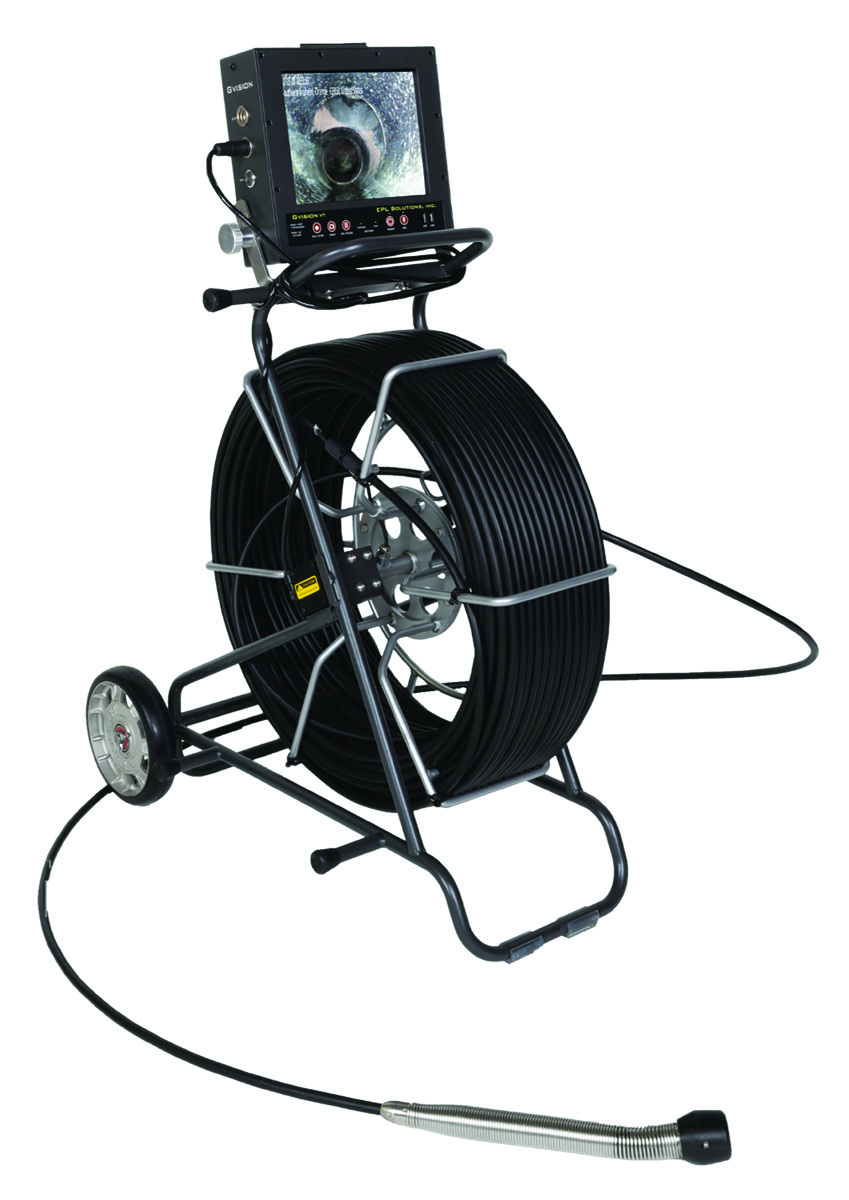

EPL Solutions Gvision V7
The Gvision V7 from EPL Solutions is a ruggedized elite camera system that can be purchased for mainline use with 200, 300 or 400 feet of stiff yet flexible pushrod or a 150-foot mini-camera. Instantly capture video recordings and snapshots with the press of a button and access them anytime within the internal storage. The technician will never have to wonder where a video was taken as geolocation information is automatically attached and displayed on recordings. Add text overlay using the camera reel or a USB keyboard. Copy recordings and snapshots on two USB flash drives at once, or share them using the Gvision app. The app allows the user to remotely control, preview and download video inspections for easy sharing. Users can capture every detail with the color camera head clearly displayed on a 10.4-inch TruView LCD screen. Add an internal battery for up to six hours of runtime.
714-453-9760; www.epls-usa.com

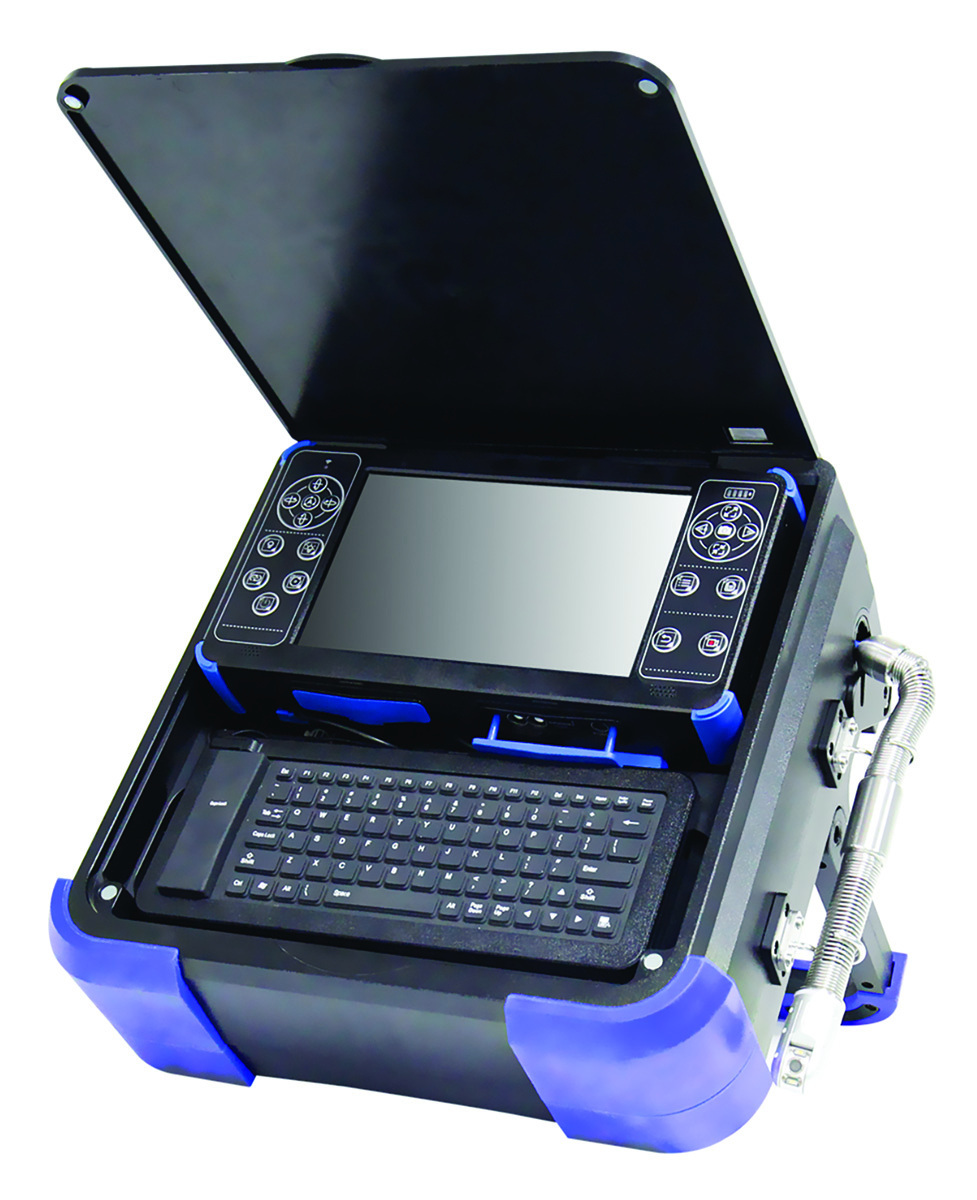

Fiberscope.net by MEDIT VIPER PT
The VIPER PT pipe camera from Fiberscope.net by MEDIT offers a fully portable, all-in-one design making it easy to transport and set up, allowing users to get to work quickly and without any hassle. The miniature pan-and-tilt camera head measures only 1.1 inch in diameter, providing a comprehensive view of the interior of the pipe. The camera features an HD video sensor, which delivers crystal-clear footage. The system comes with a 98-foot insertion push cable with a pre-attached 512 Hz sonde, making it easy to locate and track the camera head as it moves through the pipe. The control unit features a high-resolution, daylight-readable display. Captured data allows users to refer back to the footage at a later time. Adding text notes also makes it easy to keep track of important details and observations during the inspection.
877-613-2210; www.fiberscope.net

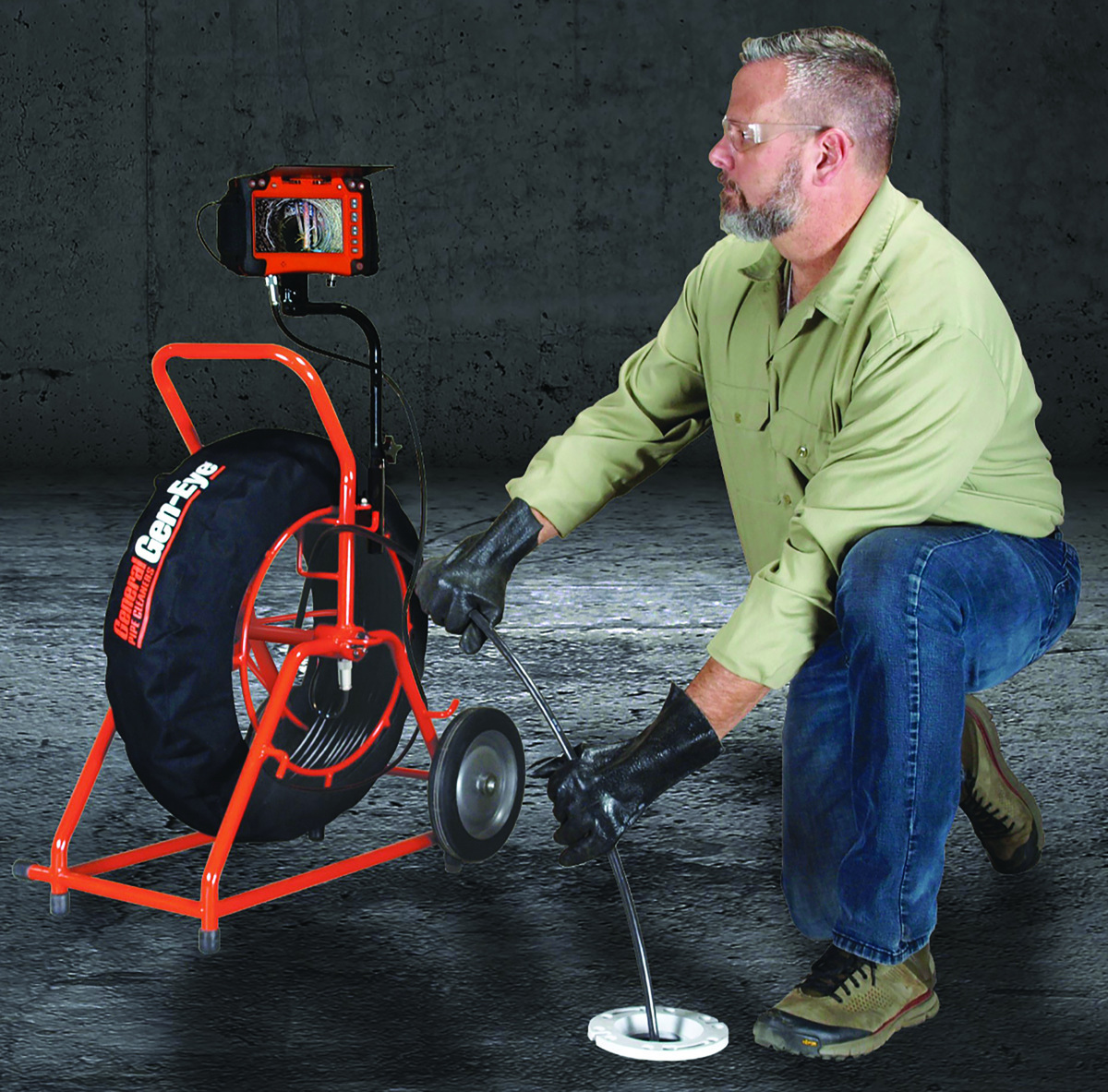

General Pipe Cleaners Gen-Eye X-POD Plus
The Gen-Eye X-POD Plus sewer camera system from General Pipe Cleaners includes the Gen-Pack battery adapter, Wi-Fi transmitter and an on-screen distance counter as standard equipment. The battery adapter lets you operate the camera system for up to 12 hours in remote locations with limited access to power. Fuse-protected to safeguard your equipment investment, the battery adapter is also available separately. A battery and charger are not included. The built-in Wi-Fi transmitter lets you view and record inspections on a cellphone. Using the system’s USB port, you can also archive activity on handy flash drives. The on-screen distance counter shows how far the camera has traveled down a line in feet or meters. Settings can be adjusted for full-size or mini-reel configurations.
800-245-6200; www.drainbrain.com

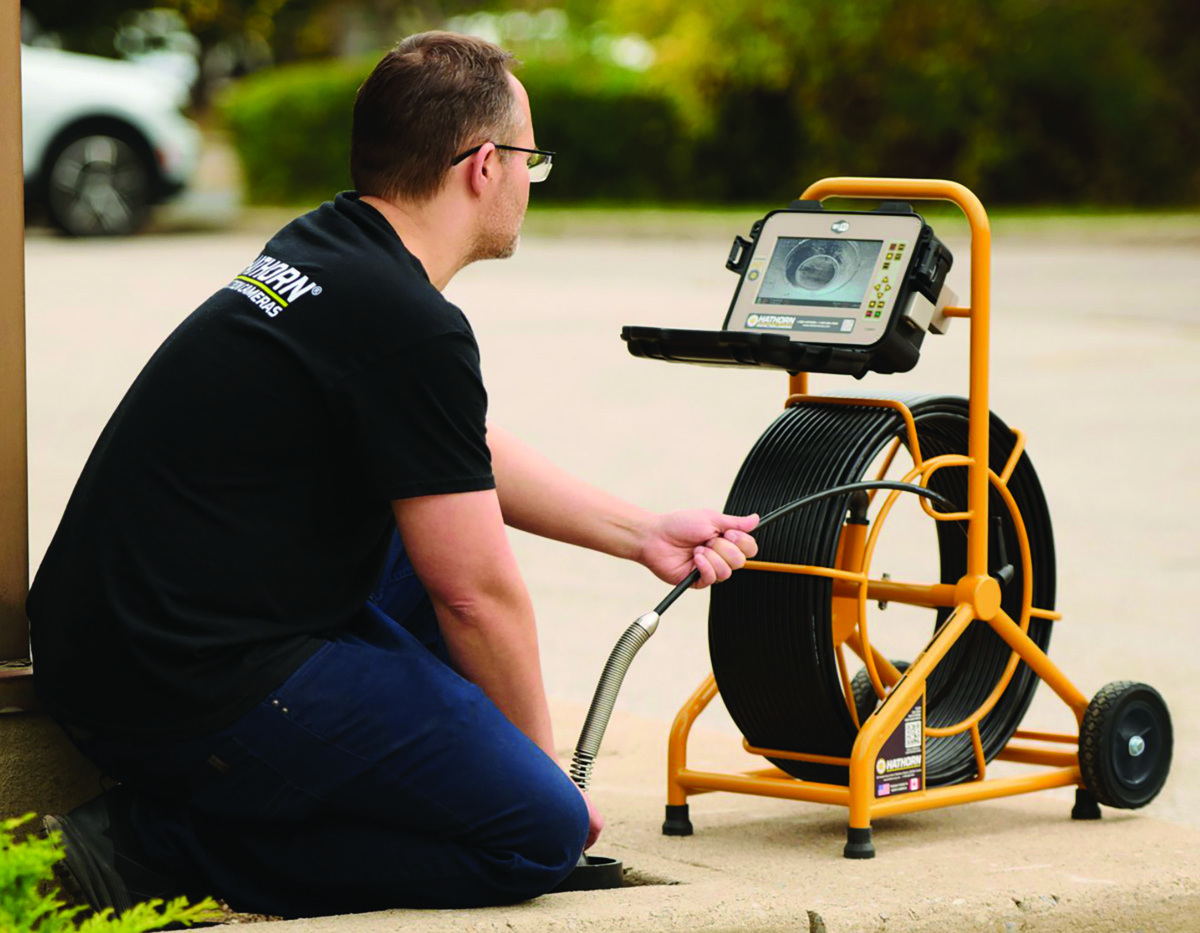

Hathorn H7
The Hathorn H7 system comes standard with a 7-inch daylight-readable, shatter-resistant LCD monitor with 1,000 cd/m2 of brightness. It also has an on-board hard drive with 64 Gb (upgradable to 128 Gb) capacity and USB recording allowing the user to record MPEG4 video and JPEG screenshots. These systems are compatible with 18-volt Milwaukee (or equivalent) batteries for ultimate portability and over 5 hours of runtime on a single charge. All units come equipped with 200 feet of premium cable and a choice of self-leveling camera heads. Optional Wi-Fi video streaming technology is available.
866-428-4676; www.hathorncorp.com

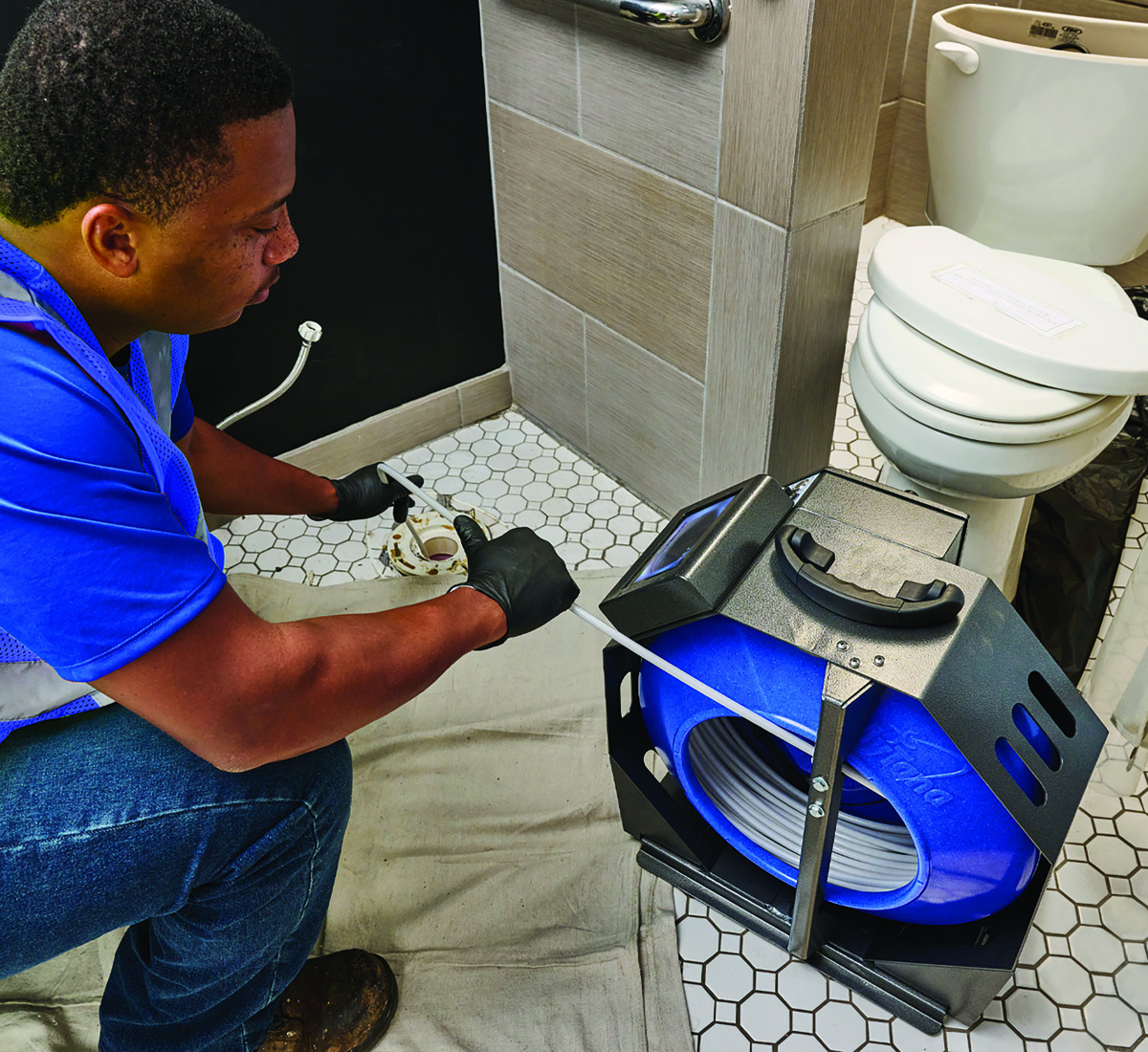

MyTana MS11-NG2
MyTana’s versatile MS11-NG2 inspection system inspects 3- to 6-inch lines with a self-leveling camera head. Swap in a smaller head included with the optional MS11+ Combo Kit to inspect 1.5- to 2-inch lines. Each head has a 512 Hz transmitter built in. A high-clarity 6.4-inch daylight-readable monitor and all the controls are integrated on the sturdy reel frame for grab-and-go convenience; helpful when access points are scattered or hard to reach. Save footage to internal or removable drives, or stream video wirelessly to a mobile device and add voiceover using the built-in microphone. The durable pushrod is available in 150- or 200-foot lengths and can be replaced in your facility.
800-328-8170; www.mytana.com

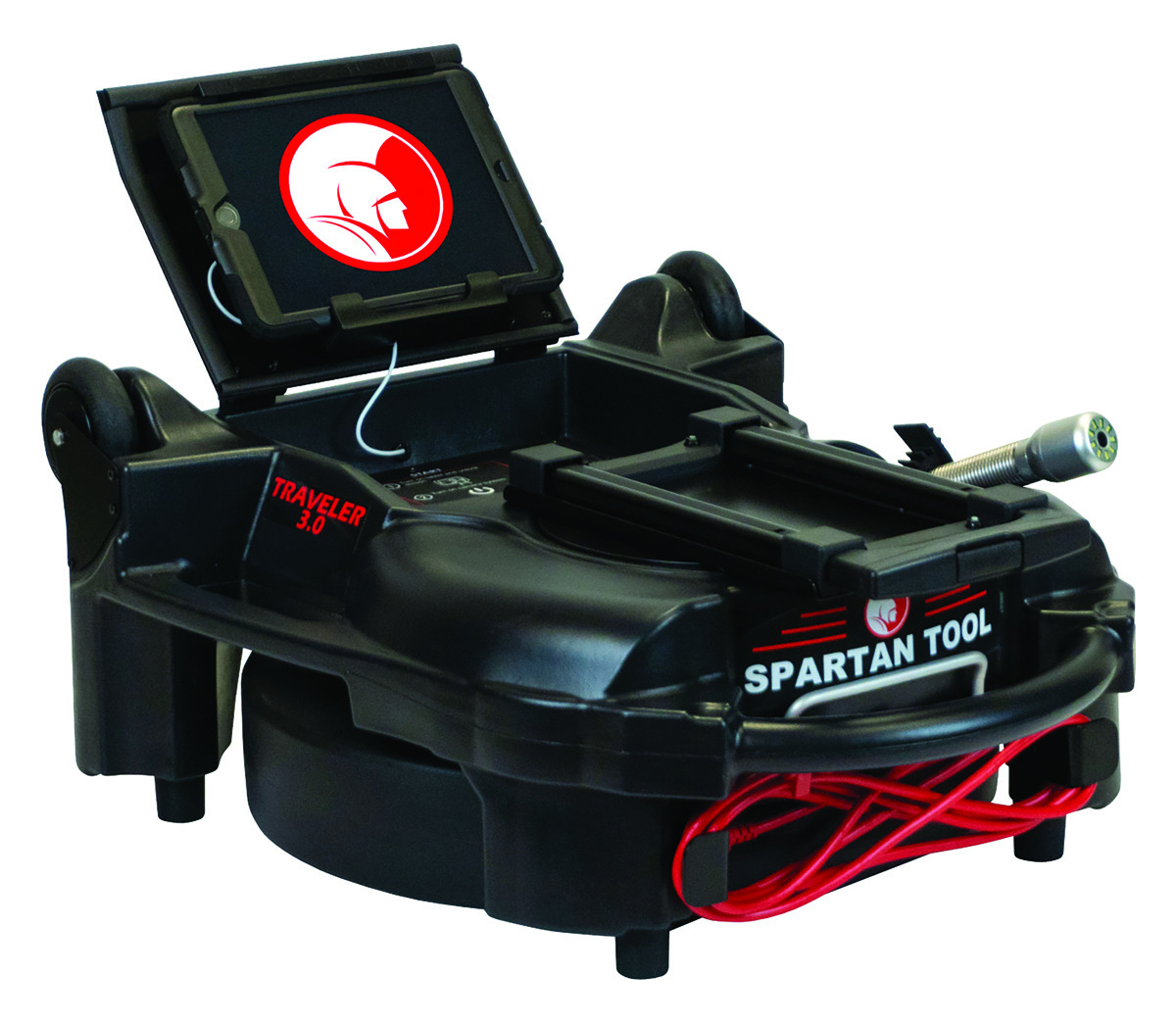

Spartan Tool Traveler 3.0
The Traveler 3.0 is the next generation of Spartan Tool’s all-in-one sewer inspection system, upgraded for tough customers. It is the same compact, portable size as before but includes completely rebuilt and upgraded interior components. It offers a stronger, more durable pushrod with a removable reel, allowing you to swap reels in the field quickly and easily. An upgraded camera head with high-intensity LEDs comes standard, but a line of easily interchangeable, customizable camera heads is offered for flexibility. The upgraded interior electronic components are built to withstand harsh environments and deliver better resolution and accuracy.
800-435-3866; www.spartantool.com
Subsite Electronics Push Camera
When a transporter isn’t an option because of pipe size or limited access, the Subsite Electronics Push Camera allows operators to complete inspections in the most challenging conditions. Ideal for pipes from 1.5 to 12 inches, it features single conductor technology with a rigid 1/4-inch fiber pushrod covered with a durable Hytrel jacketing that allows operators to inspect up to 500 feet down the line. Additionally, the 1/4-inch-diameter single conductor cable provides added strength without weight concerns, allowing operators to complete significantly longer inspections without the cable getting twisted or warped. The 1545 camera with an in-line 512 Hz beacon allows the operator to easily locate damage and blockage in the pipe. The camera is controlled by a 1575 controller, which features a rugged, durable and reliable enclosure.
800-846-2713; www.subsite.com

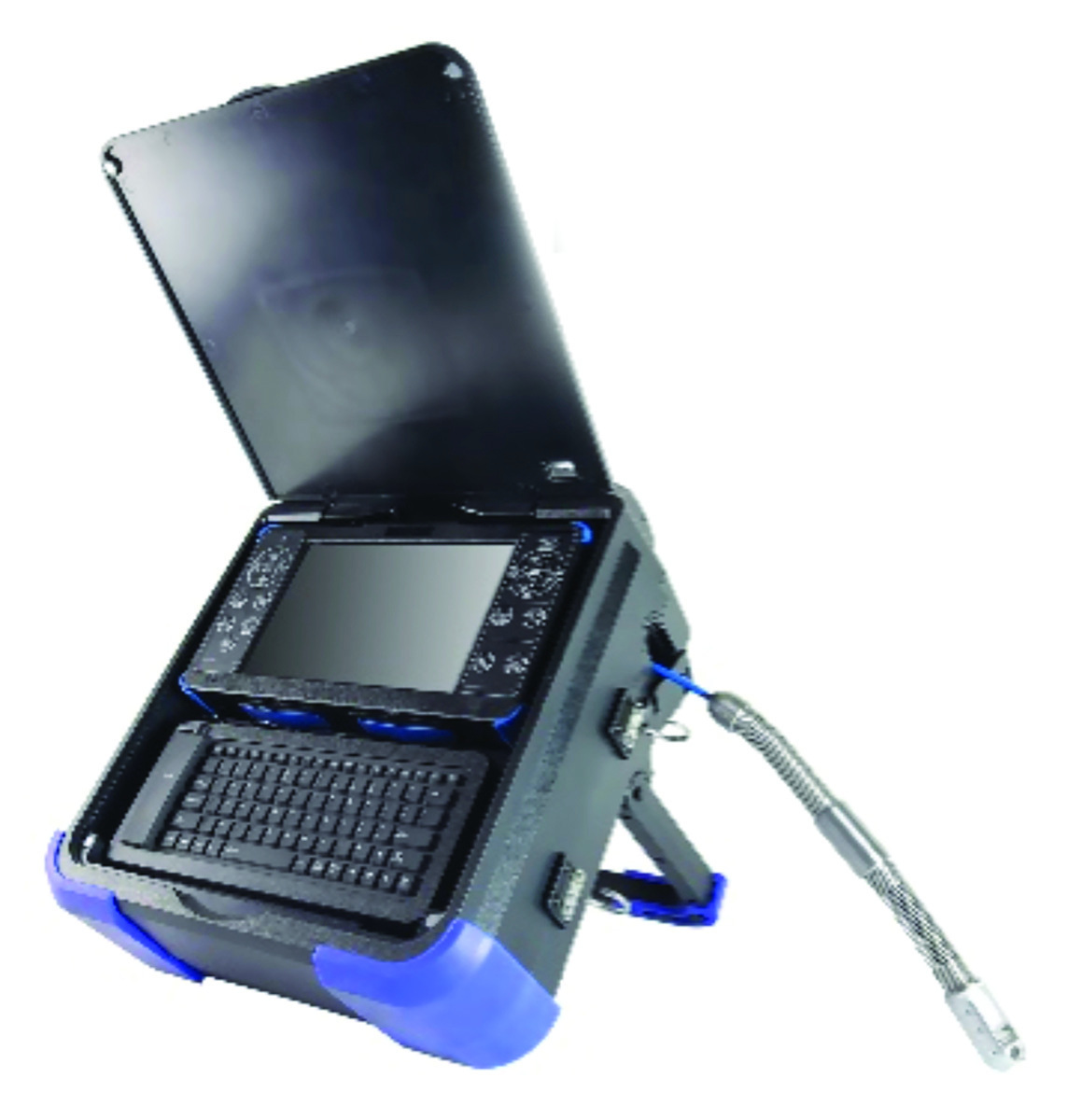

Trojan Worldwide VIS-130HDPT
The VIS-130HDPT all-in-one camera system from Trojan Worldwide includes a small pan-and-tilt 1080P high-definition camera head measuring 1 inch in diameter. The unit is encased with a 10.1-inch LCD screen, DVR recorder, controls for the camera head and a keyboard for text writing. With the included Wi-Fi capability, the user will have the ability to record audio and video directly to any Android phone or tablet, making this a versatile, compact camera.
800-392-4902; www.trojanworldwide.com
