Manhole renewal

PERMAFORM from AP/M PERMAFORM is an engineered mortar liner system for manholes. Specially formulated for ultrahigh strength mortar, it is centrifugally cast from a robotic applicator. The mortar provides a dense and uniform liner and whatever thickness is suited for the condition, depth, diameter, traffic loading and groundwater pressure. Application does not require workers inside cramped and hazardous conditions. The high-strength formulation is quick setting and corrosion resistant. 800/662-6465; www.perma form.net.



Manhole rail

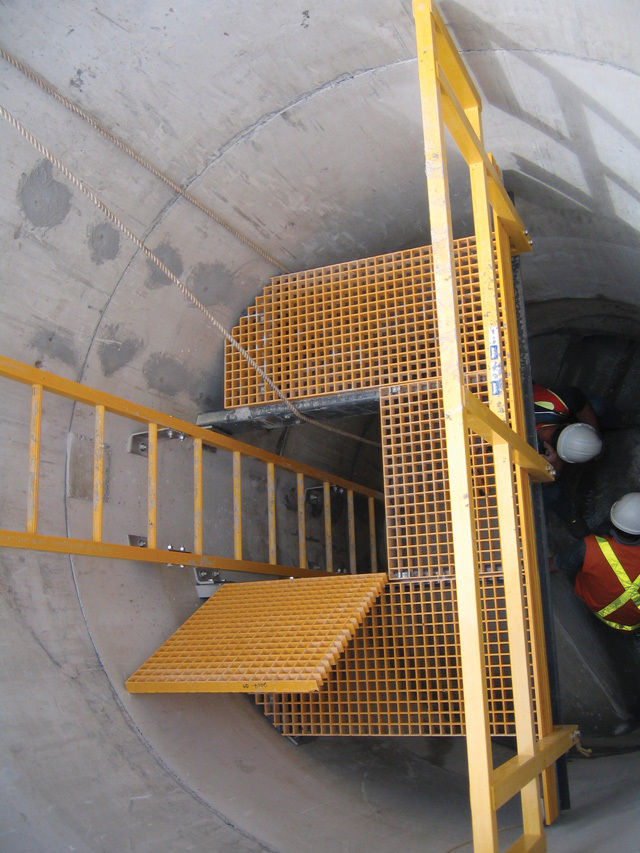

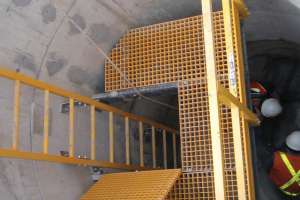

Dynarail handrail and ladder systems from Fibergrate combine corrosion resistance with long life and low maintenance. Lightweight components make installation easy. The handrail line includes everything to install OSHA- and IBC-compliant horizontal and inclined handrail systems with two or three rails. Specialty picketed handrail systems are also available.

The ladder line includes ladders, standard walk-thrus and safety cages. The retractable walk-thru is available for manholes, pits or indoor roof access points where covers are used. 972/ 250-1633; www.fibergrate.com.



Manhole ventilation

The Ripcord ventilator/stringer from Hurco Technologies ventilates sewer manholes and makes it easy to get ropes and cables through pipe for testing procedures. It comes in two sizes: the standard Ripcord at 4,200 cfm and the Super Ripcord at 8,000 cfm. The ventilator uses a spark-proof, solid-cast aluminum impeller to ensure high airflow and high static pressures. The impeller is precision balanced for smooth performance. The unit comes with a standard 30-inch ring and fits on most manhole configurations. It can be modified for special applications. The ventilator can be used to pull deflection testing gauges through pipelines. 800/888-1436; www.gethurco.com.



Chemical grout

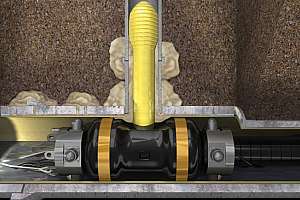

AV-100 chemical grout from Avanti International is an ultra-low viscosity chemically activated gel for long-term control of groundwater and infiltration. With the same viscosity as water, it can quickly permeate substrate and cure to form a matrix with the soil and porous rock. The grout helps stop infiltration without chasing the water from crack to crack by forming an impermeable grout curtain outside underground structures. 800/877-2570; www.avantigrout.com.



Manhole seals

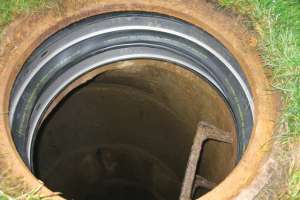

Manhole chimney seals from Cretex Specialty Products stop water inflow between the manhole frame and chimney. The seals consist of a rubber sleeve and stainless steel bands. The bands are designed to compress the rubber sealing fins against the frame and the chimney or cone section to create a watertight seal. The rubber sleeves are designed to allow for up to two inches of movement between the frame and the chimney so frost heave, soil movement, traffic loading or thermal expansion will not compromise the seal. The rubber can withstand pressures of 1,500 psi and meets ASTM C-923. The seals are available as internal or external. 800/345-3764; www.cretexseals.com.



Grout rehabilitation

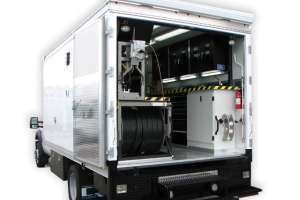

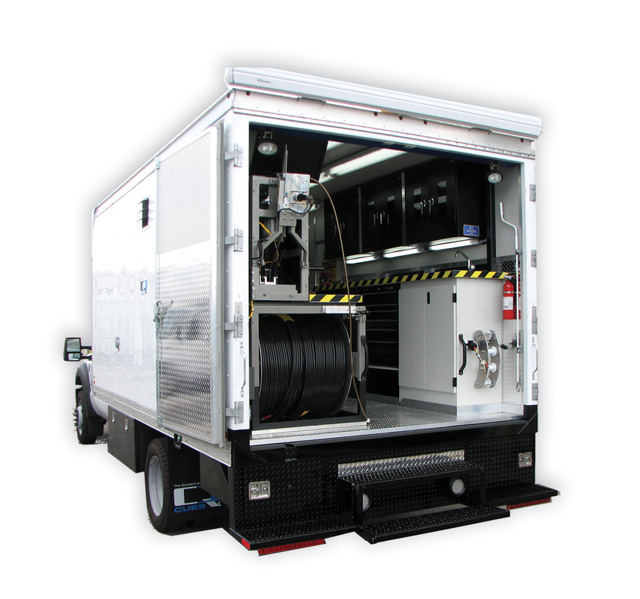

Portable, truck, and trailer-mounted grout rehabilitation systems from CUES for mainline, manhole, and lateral joint sealing include the equipment and decision support software for television inspection. Condition assessment and rehabilitation are accomplished with one system. Sealing packers are available for mainline and lateral assets. Units can be configured to run urethane, acrylimide and acrylate based grouts. Systems can be mounted in a dry freight box for export. 800/327-7791; www.cuesinc.com.



Magnetic manhole lifter

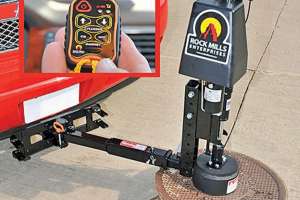

The magnetic lifter from Rock Mills Enterprises Inc. safely and efficiently removes and replaces heavy manhole covers with the push of a button. The Lifter is powered by a 12-volt system and mounts to the front or rear of a vehicle with standard 2-inch hitch receiver. The electromagnet delivers 5,000 pounds of lifting force. The wireless remote control, weatherproof camera and monitor system enable remote operation from the cab. An optional swing arm attachment allows the user to swing the lifter and manhole cover away from the opening and return it for easy replacement. A grate attachment is also available to remove and replace heavy drainage grates. 712/451-6550; www.rock millsent.com.



Epoxy coating

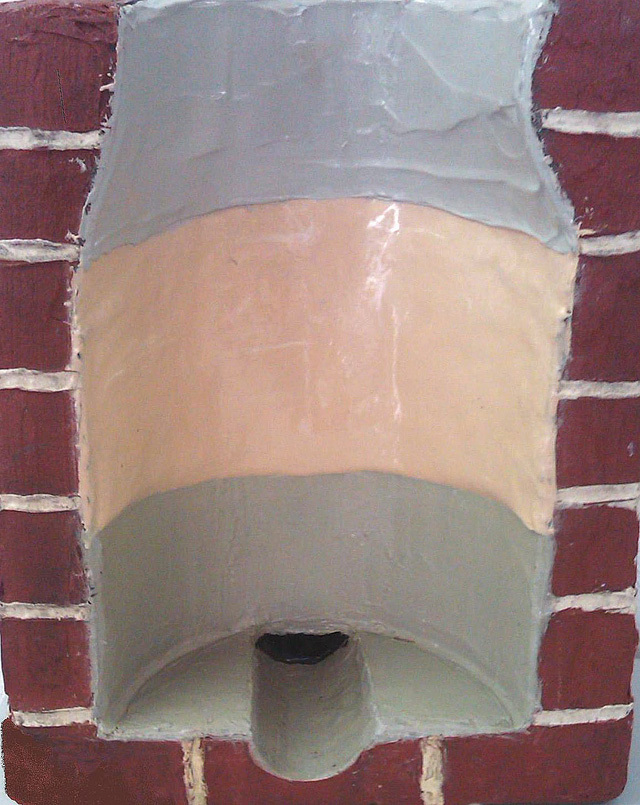

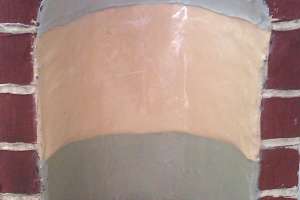

Infraguard topcoat and chim coat from Infrastructure Repair Systems are two-component, non-hazardous ambient cure, trowel or brush-on epoxy systems for small concrete patches, manholes and retaining walls. Chim coat’s flexible feature maintains adhesion while expanding and contracting with changing temperatures. Both products are easy to apply, corrosion resistant, and have superior adhesion to most surfaces. 877/327-4216; www.irsi.net.



Multisize test heads

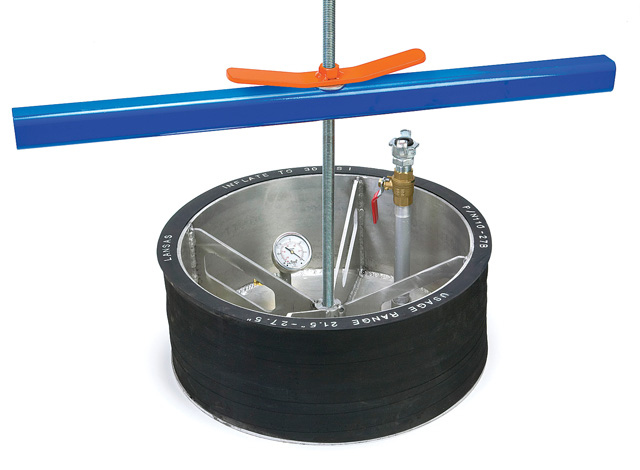

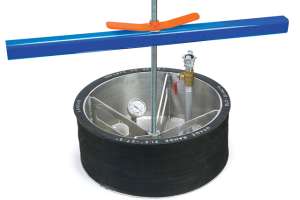

Lansas multisize vacuum bladder test heads use the company’s wide bladder technology, giving the units a 6-inch sealing range. Three sizes cover manhole openings from 21.5 to 36 inches. The size ranges are 21.5-27.5 inches, 27-33 inches, and 30-36 inches. Made of lightweight aluminum, the test heads include built-in handles for easy lifting and lowering the units in and out of manhole openings. A super wingnut makes it easy to adjust the height of the bladder. 800/452-4902; www.lansas.com.



Manhole liner

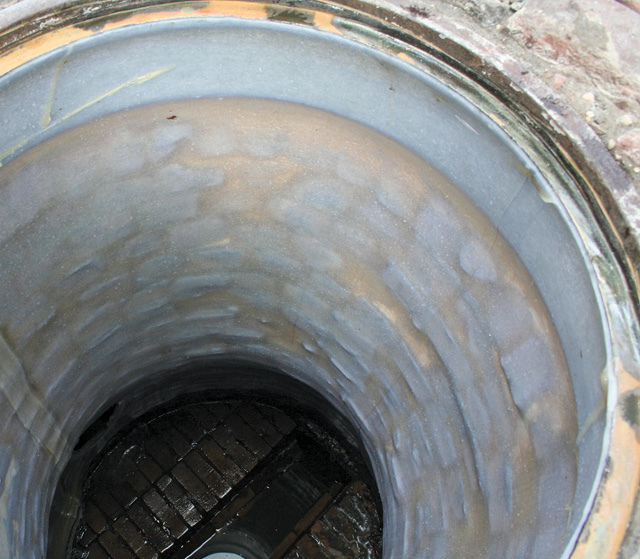

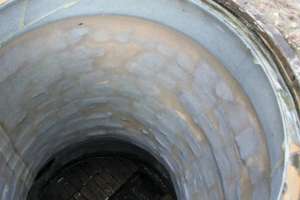

CIPMH (cured-in-place manhole) liners for chimney or full-depth manhole lining from LMK Technologies eliminate infiltration and inflow through manhole walls. The universal-sized manhole liners resist freeze-thaw cycles and create a watertight, corrosion-resistant structural lining. The liners fit all manholes, including barrel sections, eccentric and concentric cones constructed of brick and mortar, precast, or block.

Site preparation and installation can occur in the same day. Once the liner has been vacuum-impregnated and manually inverted, the liner cures under ambient temperatures in one to two hours. 815/433-1275; www.performanceliner.com.



Cleaning nozzle

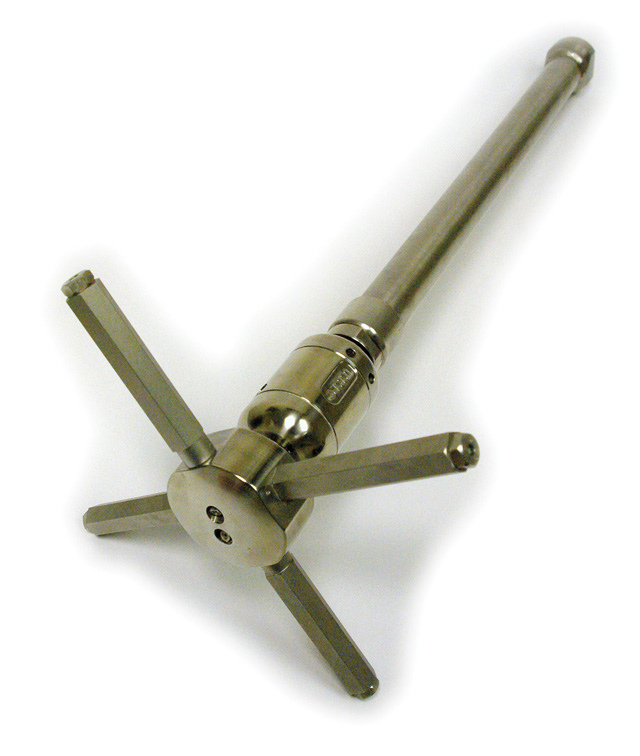

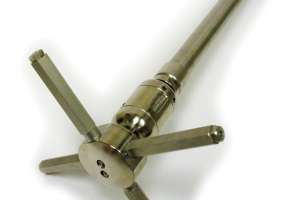

The Alphajet nozzle from USB-Sewer Equipment Corporation is designed to clean grease, sludge and crusts from lift stations and manholes prior to rehabilitations. The nozzle is actuated by water from the pressurized hose of a jetter truck. Four driving nozzles cause 360-degree controlled rotation in a horizontal plane, which eliminates the need to cover the manhole. The horizontal rotation allows for observation of the cleaning progress. The body requires no lubrication or replacement of internal mechanical parts within the first 12 months of operation. Driving nozzles can be extended to accommodate various sizes of manholes/lift stations. 866/408-2814; www.usbsec.com.



Drop bowls

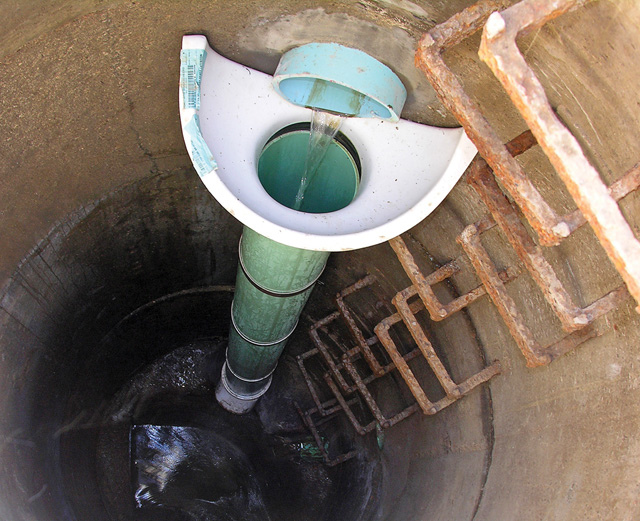

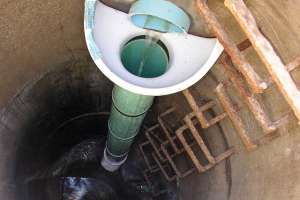

Inside Drop Bowls from RELINER/Duran eliminate outside drops in manholes and clean up failed inside drops. When used in wet wells to eliminate uncontrolled drops, they prevent pump cavitation, prevent aerated influent from being drawn into the pumps and increase pump life. Made of marine-grade fiberglass, the bowls are simple to attach to the manhole wall with stainless steel expansion bolts.

By providing easy cleaning and inspection from grade level, maintenance time and cost are reduced and their compact, low profile provides full access to areas below. The units are available for outlets ranging from 4 to 24 inches for box and round structures in most diameters. High-quality, laser cut, stainless pipe supports for the drop pipe are available. 800/508-6001; www.reliner.com.



Manhole protection

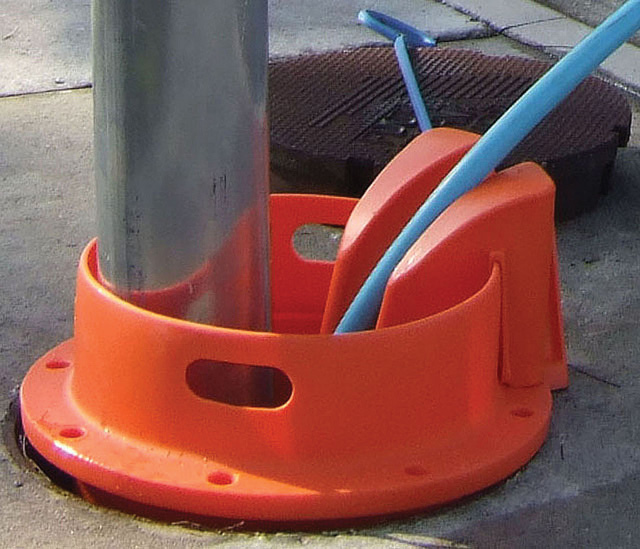

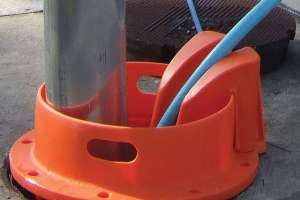

Manhole Guard from Southern Sewer Equipment Sales enhances open manhole safety. The durable, lightweight plastic cylinder reduces the chances for slips and falls by workers and pedestrians into open manholes. Injury time loss and replacement tool cost are decreased by the 6-inch rise above the manhole surface. The unit is available in round models, fitting most manhole and storm drain applications. The optional hose guide reduces wear on sewer hoses. The roller guide option reduces wear on camera cables and grout lines. Other accessories include a lid, LED kit and bypass kit. 800/782-4134; www.manholeguard.com.



Polymer cover

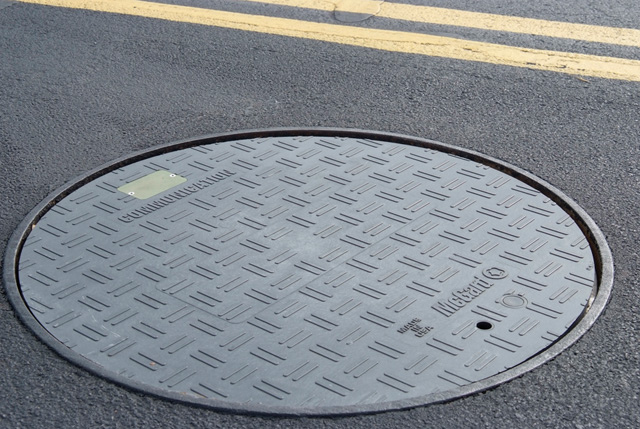

FiberShield from McGard is a polymer cover that weighs 80 percent less than cast iron, while maintaining an H2O and EN124 rating. The system is easy to handle and transport, and installs and removes in seconds without bending over. The integrated locking system prevents removal and requires a registered key to operate. 888/888-9192; www.mcgard.com/security.



Fixed-point gas monitor

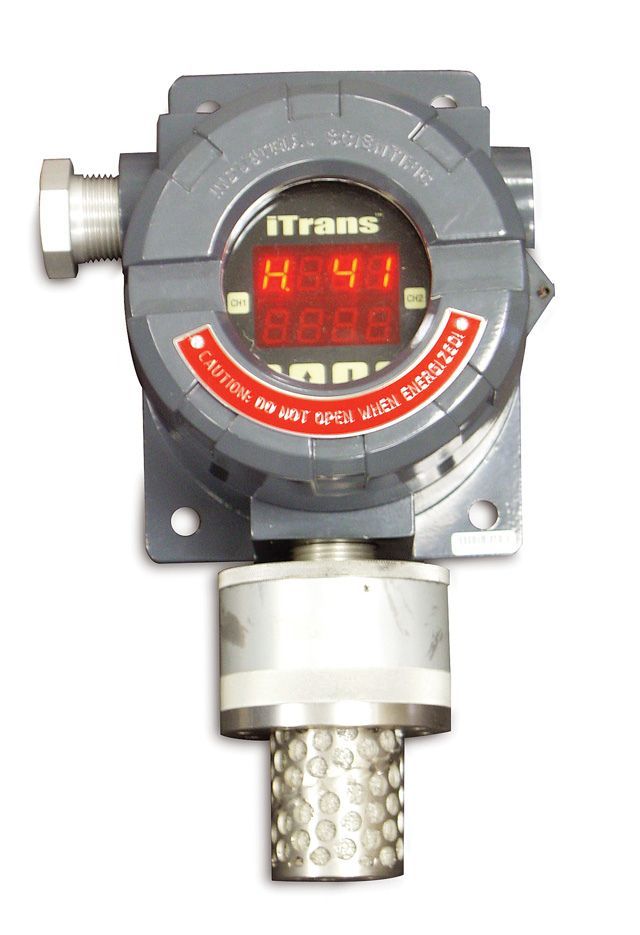

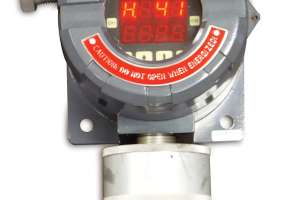

The iTrans fixed-point gas monitor from Oldham employs an intelligent electronics platform to provide one or two points of detection from a single head for maximum flexibility, high performance and low installation costs. The unit uses smart sensor technology and safety features including automatic sensor recognition, access code security, and zero and cal fault protection. The monitor is all enclosed within an explosion-proof aluminum or stainless steel housing. The microprocessor-controlled transmitters are capable of independent operations, allowing for remote sensors or multipoint system configuration. 800/338-3287; www.oldhamgas.com.



Flow diversion

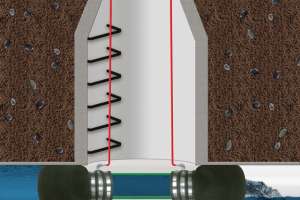

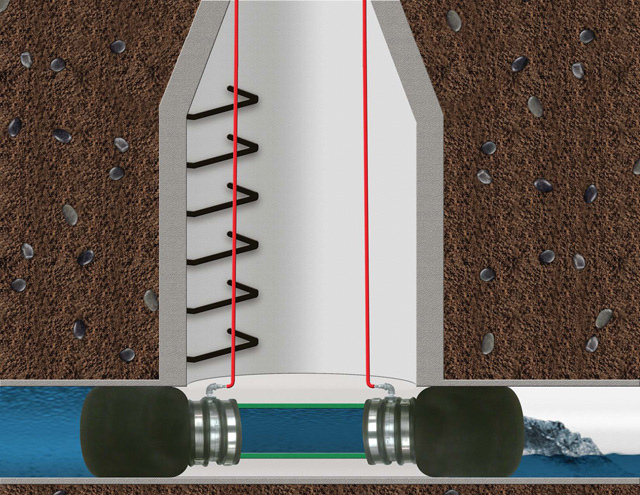

Large flow-thru pipe plugs from Logiball divert flows during work on manhole structures. The double-action bladders offer optimum flow capabilities and save on costs in bypass pumping charges. Many configurations are available. 800/246-5988; www.logiball.com.



Manhole cutting teeth

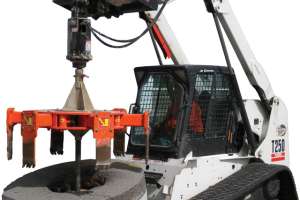

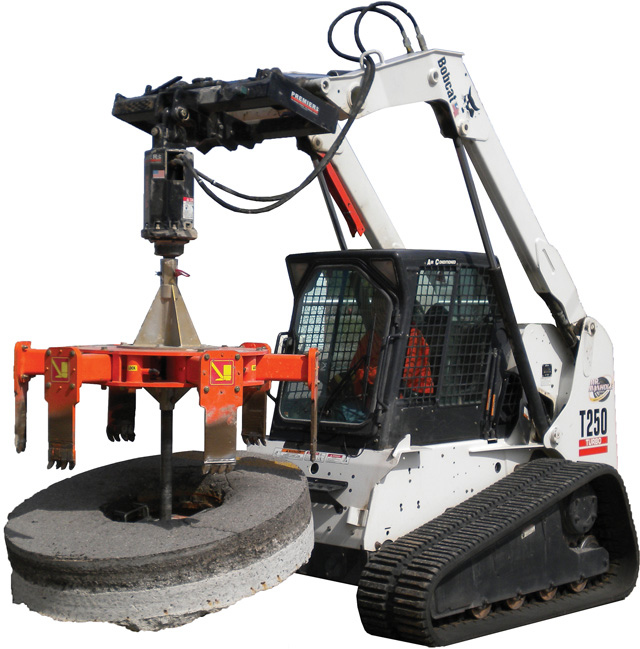

Plug-in teeth for the Six Shooter manhole cutter from Mr. Manhole can be replaced or rearranged, even on the job site. The teeth are made of hard carbide, providing long cutting life. The shape and reduced size allow for high performance when cutting in hard concrete. All teeth are the same, so they can be rearranged if the front teeth become dull. 419/229-3015; www.mrmanhole.com.



Polymer concrete

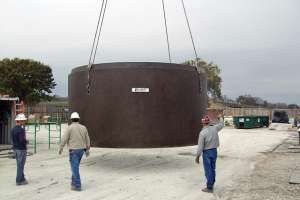

Steel-reinforced precast polymer concrete from U.S. Composite Pipe resists H2S gas corrosion and is comprised of resin, acid insoluble aggregates and invert filler. It does not require any coatings or linings to protect it from corrosion. Once a polymer concrete structure is installed, there is no need to come back and apply a protective barrier and test it because the structure itself is the protection. The structures are capable of handling substantial live loading and deep installations with compression strengths above 9,000 psi. Manholes are available in standard ASTM C-478 4- to 16-foot diameters and the watertight connections are achieved with rubber gaskets and flexible pipe-to-manhole connectors. 817/783-3444; www.uscompositepipe.com.



Cement mortar

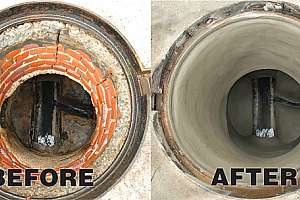

SewerCrete from GML Coatings is a 100 percent fused calcium aluminate cement based mortar. The material contains aggregate and polypropylene fibers, which are resistant to hydrogen sulfide attack. The product components also fight against microbial growth, which can lead to early deterioration of concrete from sulfuric acid. The one-component, polymer-modified, cementitious mortar can be applied overhead, vertically, and horizontally, demonstrating high bonding properties. Application thickness ranges from 1/2 inch to 3 inches.

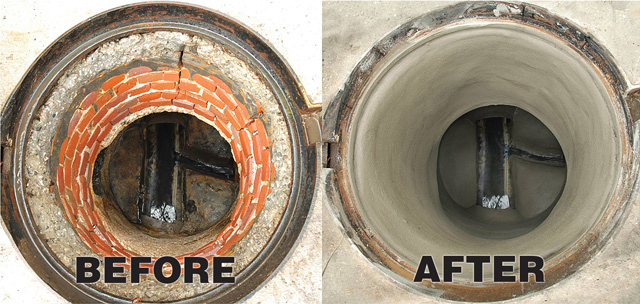

Contractors or municipal employees can easily use the product to rehabilitate or patch brick manholes and a variety of precast concrete structures. The mortar offers easy shaping and molding, and can be trowel or spray applied and given a brushed finish. Complementary products include SewerCrete Leak Stop, an injection grout, and SewerCrete Hydraulic Cement for preparation before application of the mortar. 941/755-2176; www.sewercrete.com.
