Water and Wastewater Product News: Nov. 1, 2017

Browse the latest products exclusively for the municipal sewer and water industry
Water and Wastewater Product News: Nov. 1, 2017
Stormwater and wetland management grates and guards from Haala Industries provide a solution for pipe, manhole, culvert and other drainage cover applications.

Interested in Rehab/Relining?

Get Rehab/Relining articles, news and videos right in your inbox! Sign up now.

Rehab/Relining + Get Alerts

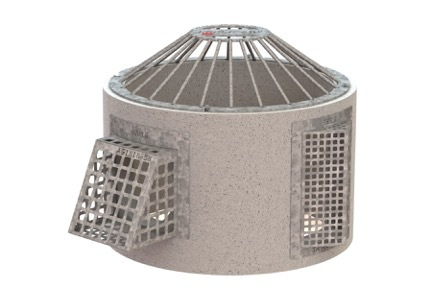

Haala Industries stormwater grates and guards
Stormwater and wetland management grates and guards from Haala Industries provide a solution for pipe, manhole, culvert and other drainage cover applications. Gates and guards are DOT approved in multiple states and produced to existing standards, allowing them to be incorporated into construction design plans, eliminating the need for contractor fabrication. Custom fabrication is also available. They can be made from domestic materials including galvanized steel, stainless steel or aluminum. 888/454-2252; www.haala.com.

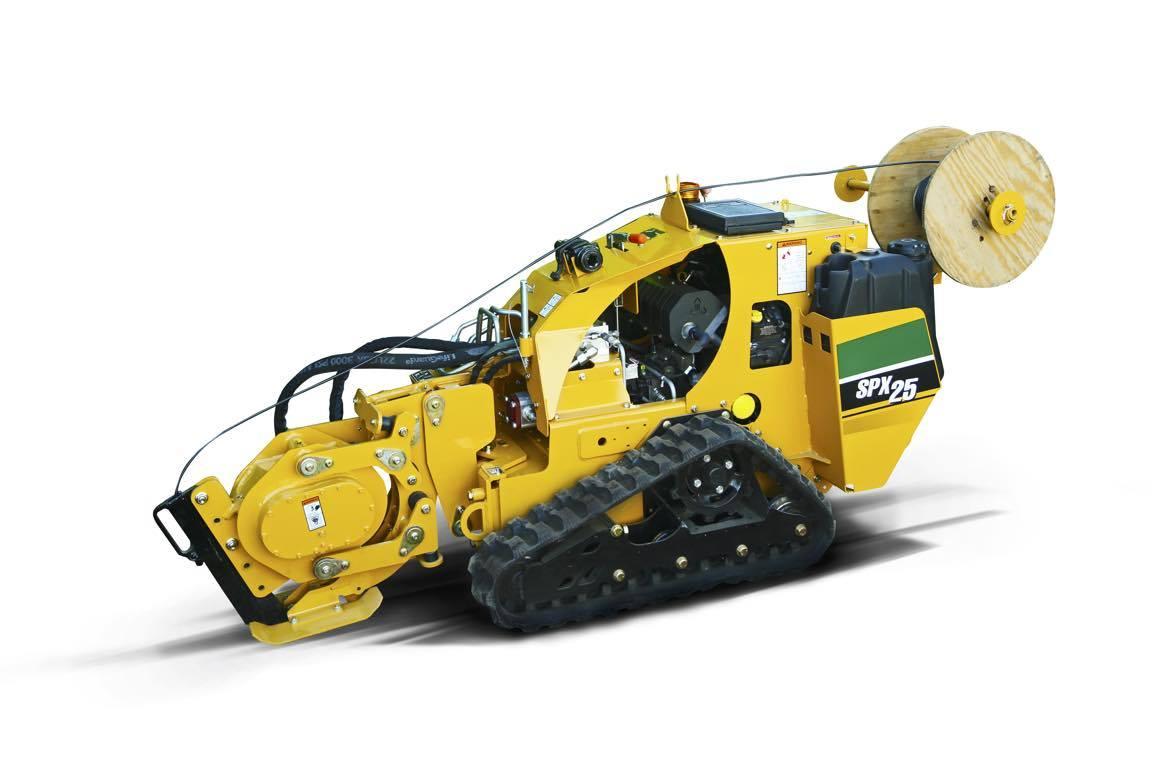

Vermeer SPX25 vibratory plow
The Vermeer SPX25 vibratory plow features a full-function remote control that provides a 360-degree view of the job site. It can install small pipes and cables at depths up to 12 inches and can bore underneath driveways and sidewalks using the optional Porta Bore attachment. The dual rubber tracks with a ground pressure of 3.7 psi deliver floatation in soft conditions and help reduce job site restoration after an install. Powered by a 25 hp Kohler gas engine, the lightweight plow offers a transport speed of 3.7 mph. The unit is equipped with a pivot-mounted plow with a 55-degree swing angle that automatically adjusts when turning. 641/628-3141; www.vermeer.com.

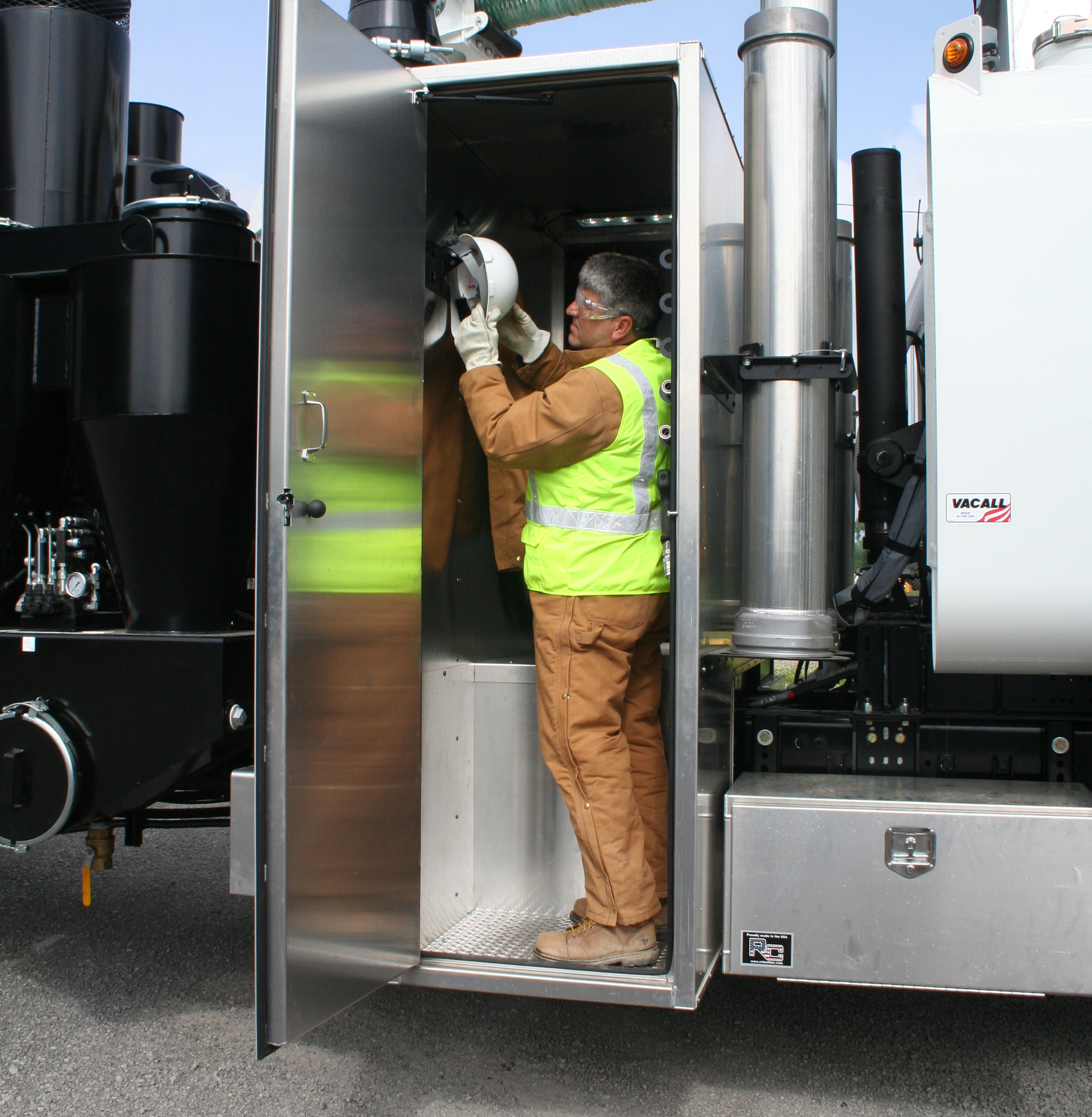

Vacall - Gradall Industries step-in compartment for AllExcavate hydroexcavators
The roomy new step-in compartment from Vacall - Gradall Industries for its AllExcavate hydroexcavators provides warmth and protection from inclement weather. The standard heater compartment provides floor drainage and racks to hang dry clothing and store the high-pressure hand gun and extensions. There are larger compartments with extra room, among other options. Along with LED lighting, the cold-weather package includes extra insulation, heated cabinets for the hose reel and water pumps, and boilers that can heat water for more effective hydroexcavation in frozen ground. 800/382-8302; www.vacall.com.

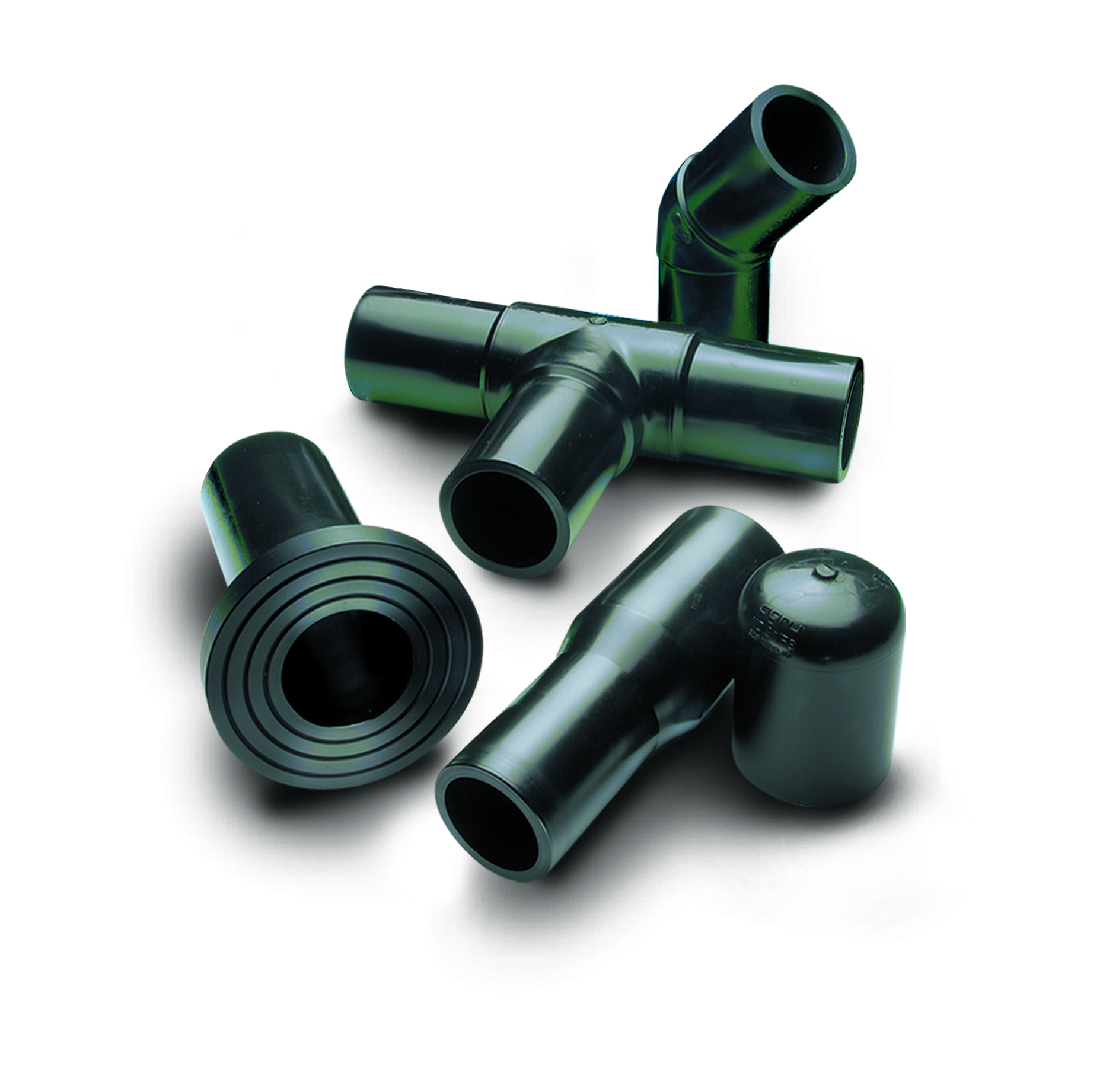

Agru America polyethylene pipes and fittings
Agru America’s pipes and fittings are made from polyethylene 100/4710 for durability and corrosion/abrasion resistance. The products available include large-diameter pipe, HDPE pipe fittings, Mine-Line pipes, electrofusion fittings and equipment, ball valves, metric solutions and semi-finished products. 800/373-2478; www.agruamerica.com.

McLaughlin EC075 and VX75 vacuum excavators
EC075 and VX75 mid-range vacuum excavators from McLaughlin answer the demand from the underground utility market for a compact vacuum excavation system with a 5-inch boom option that focuses on performance and fuel efficiency. A 74 hp Deutz Final Tier 4 diesel engine powers a 1,200 cfm vacuum blower and the 8 gpm water pump is capable of 3,000 psi operating pressure. The larger boom pulls more material and reduces clogging to enhance job site production. The ECO75-500 can be mounted on a single-axle 26,000 GVW truck without the need for a commercial driver’s license. The trailer-mounted VX75 features a twin-axle, heavy-duty I-beam construction that is compact and can be pulled by a 1-ton truck. 800/435-9340; www.mclaughlinunderground.com.

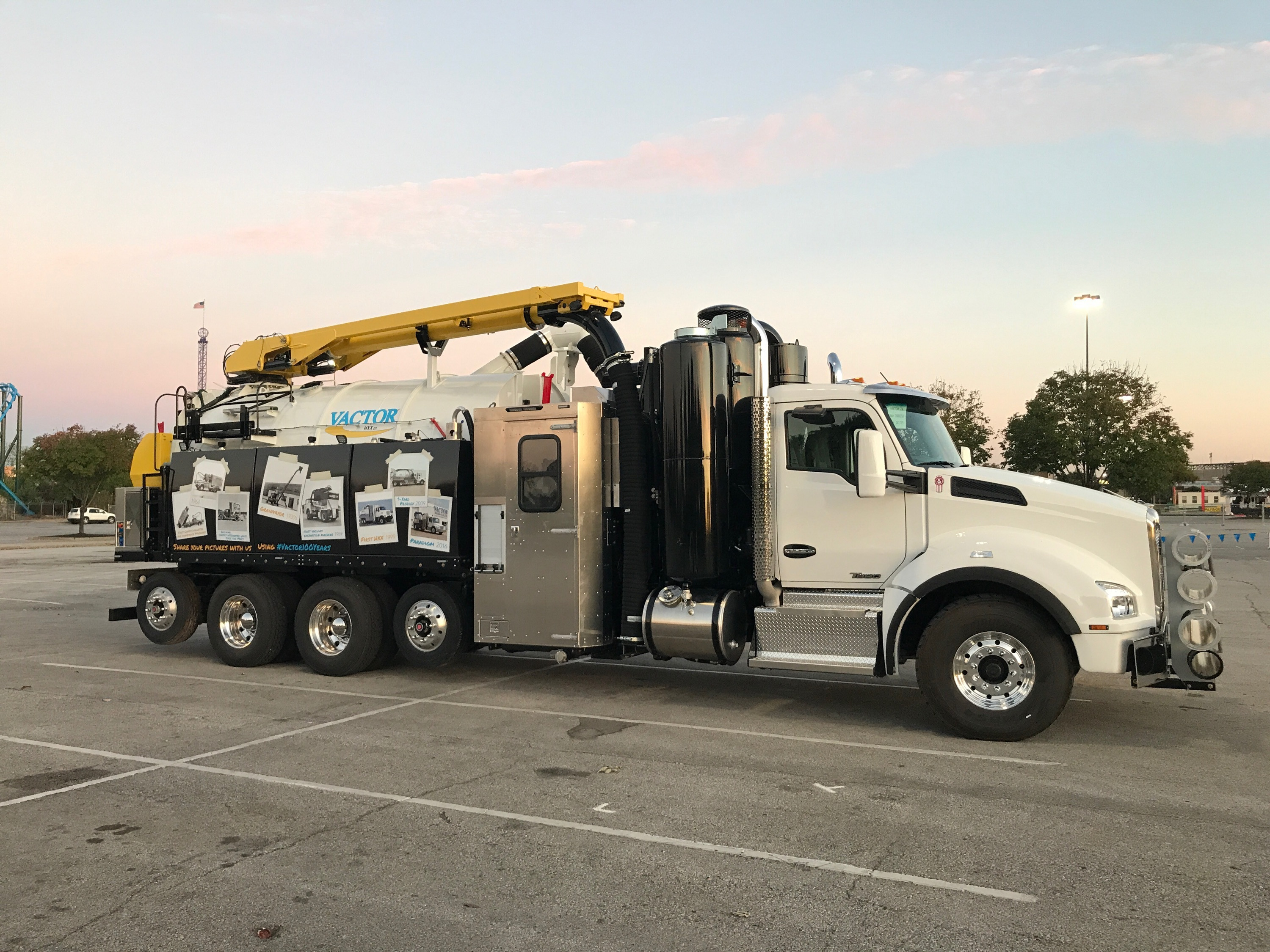

Vactor next-generation HXX vacuum excavator
Vactor’s new HXX vacuum excavator maximizes legal payload and improves operational efficiency. The placement of the debris body and water tank on the chassis ensures equal distribution of the payload on the axles, regardless of how much water is in the tanks. A new PrecisionFlow water pump system features a single-piston design that is capable of higher flow and pressures than a triplex water pump system for production and reliability. The vacuum system is rated at 6,200 cfm and 28 inches Hg, and the water pump system is rated at 30 gpm and 3,000 psig. Water tank capacity is 1,200 gallons and the debris tank has a 16-cubic-yard capacity. 800/627-3171; www.vactor.com.

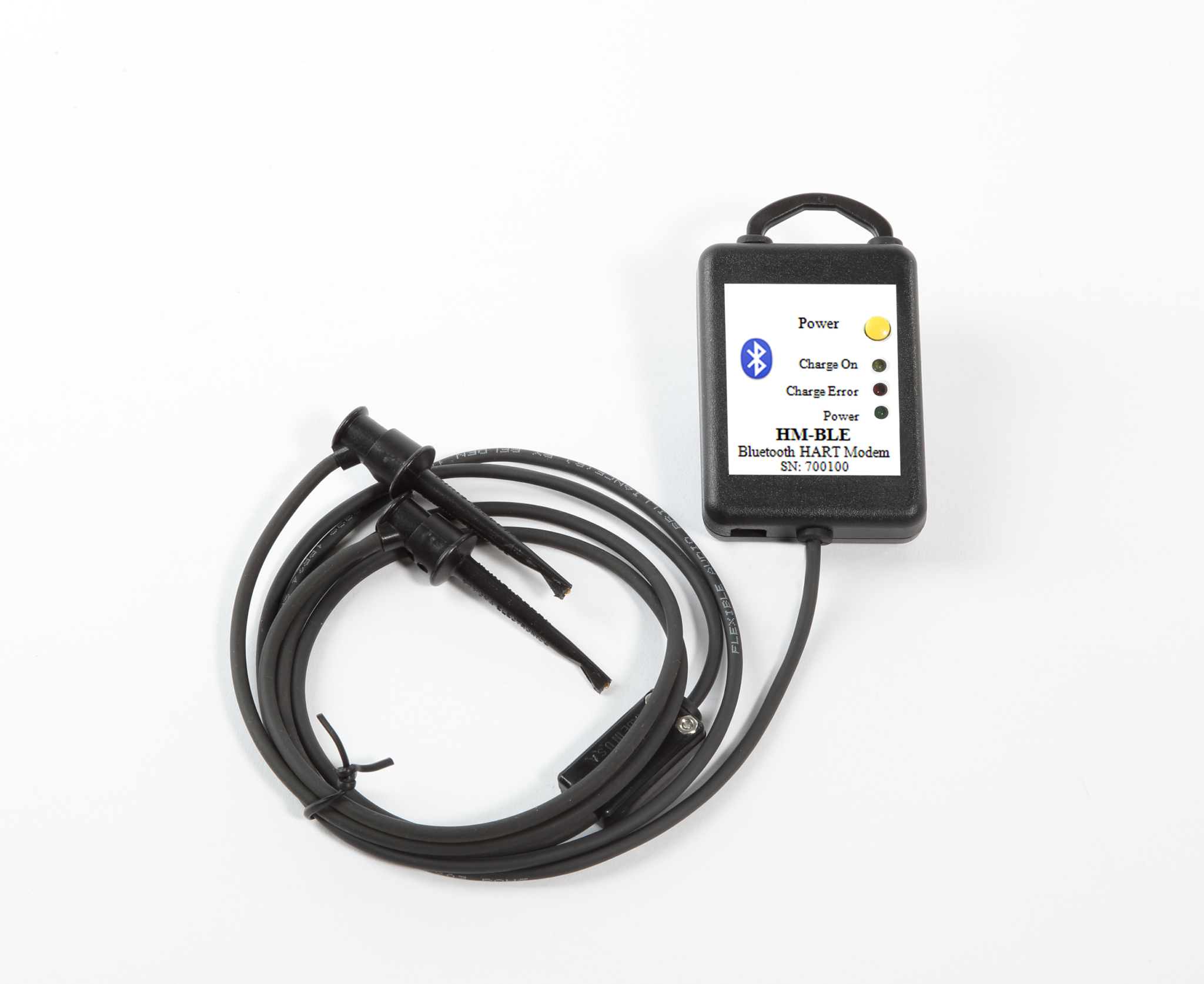

ProComSol HM-BLE HART modem
The HM-BLE HART modem from ProComSol contains a rechargeable Li-ion battery that lasts for days on a single charge. The low-energy features of the Bluetooth 4.0 standard also allow longer device life between charges. The connection between the modem and the handheld device is wireless, so there are no wires to trip over, and can be used to configure hard-to-reach HART devices safely from the ground. 216/221-1550; www.procomsol.com.

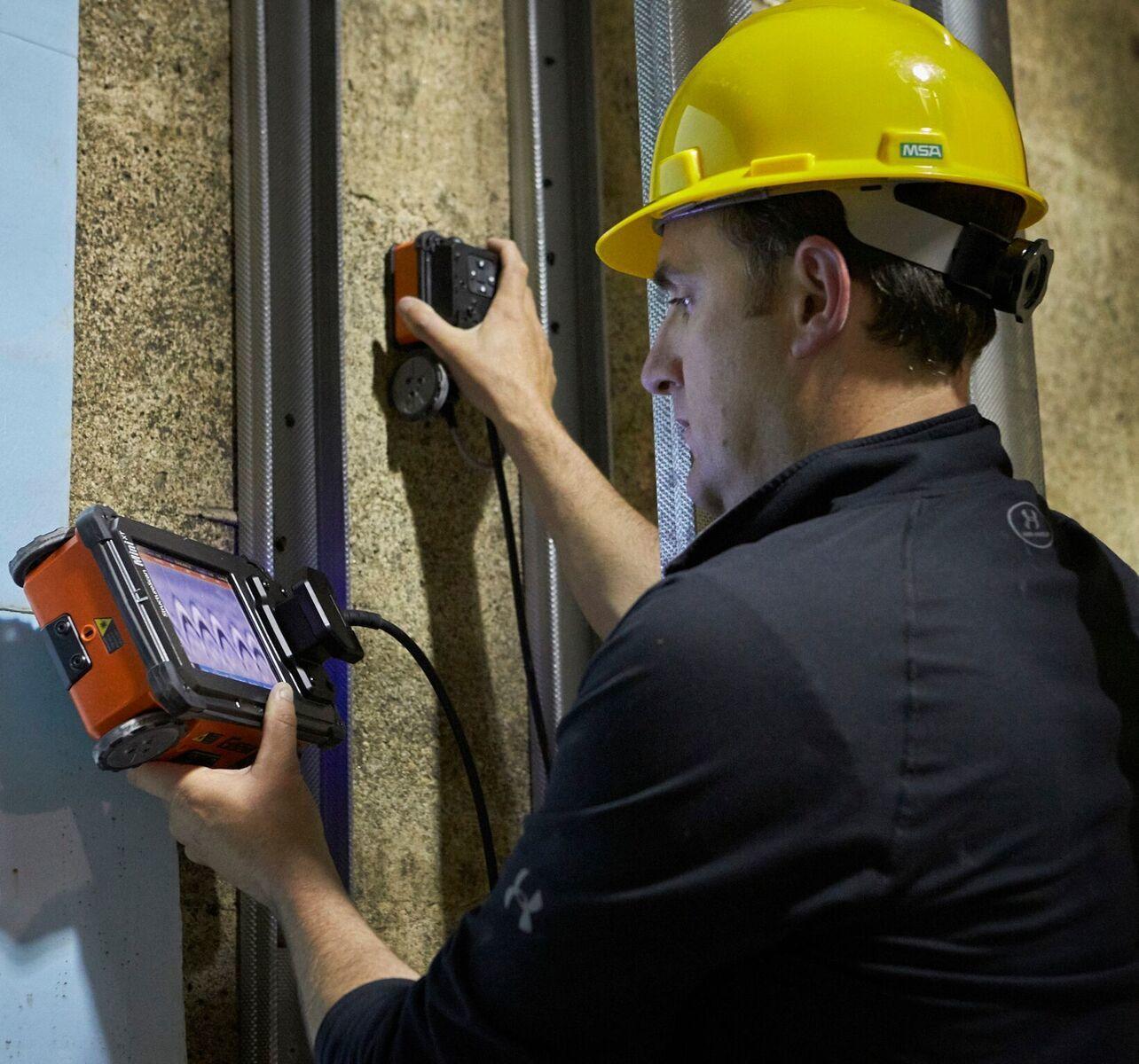

Geophysical Survey Systems Inc. (GSSI) Palm XT antenna for GPR concrete inspection systems
GSSI’s new accessory for the StructureScan Mini XT is the Palm XT antenna. It is a miniaturized, handheld ground-penetrating radar antenna that is designed to enhance the capabilities of the inspection system by providing access in tightly spaced areas and enabling overhead scanning. It features full keypad control via the top that allows for remote control of the user interface and has three data collection modes: standard, cross polarization and side car. The Mini XT can help identify structural elements, including pan deck and concrete cover, and can also provide real-time determination of concrete slab thickness. 800/524-3011; www.geophysical.com.

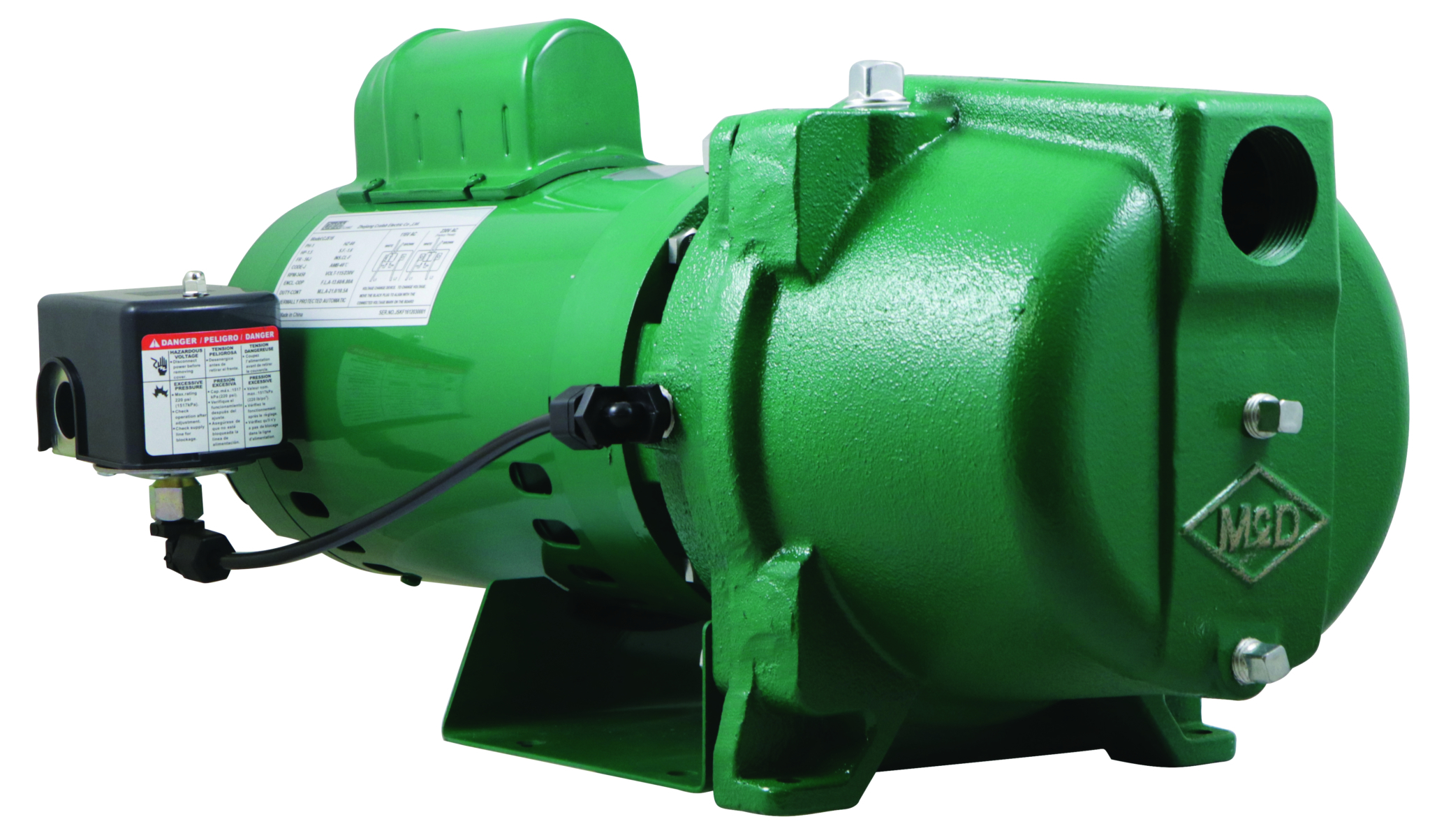

A.Y. McDonald 8300 E-Series Jet Pump
The all-iron 8300 E-Series Jet Pump from A.Y. McDonald is offered in 1/2 through 1 1/2 hp, with flows up to 32 gpm. It has a 1-inch outlet and 1 1/4-inch inlet and contains an easy switch between 115 and 230 V and a 304 stainless steel insert on the impeller. 800/292-2737; www.aymcdonald.com.

Honeywell’s Miller Falcon Edge self-retracting lifeline system
Honeywell’s Miller Falcon Edge WRL Series is designed to protect workers who are tying off at foot level or working near sharp edges by ensuring the lifeline remains intact if a fall were to occur over an edge. Available in 20-, 30- and 50-foot cable lengths, it is effective for at-height work situations with the capacity to support user weights up to 420 pounds in all connections at foot level and above, including horizontal, vertical and overhead mounting. The system includes a galvanized steel cable lifeline with carabiner, tagline and integrated shock absorber. 312/545-3524; www.millerfallprotection.com.
