Forget ripping up streets and digging ditches. Underground infrastructure can be renovated without ever breaking the surface. From expandable barriers shielding drinking water to spot repairs done in a flash, trenchless pipe rehab technologies are keeping vital infrastructure flowing smoothly, one repair at a time. Take a look at some product options below.

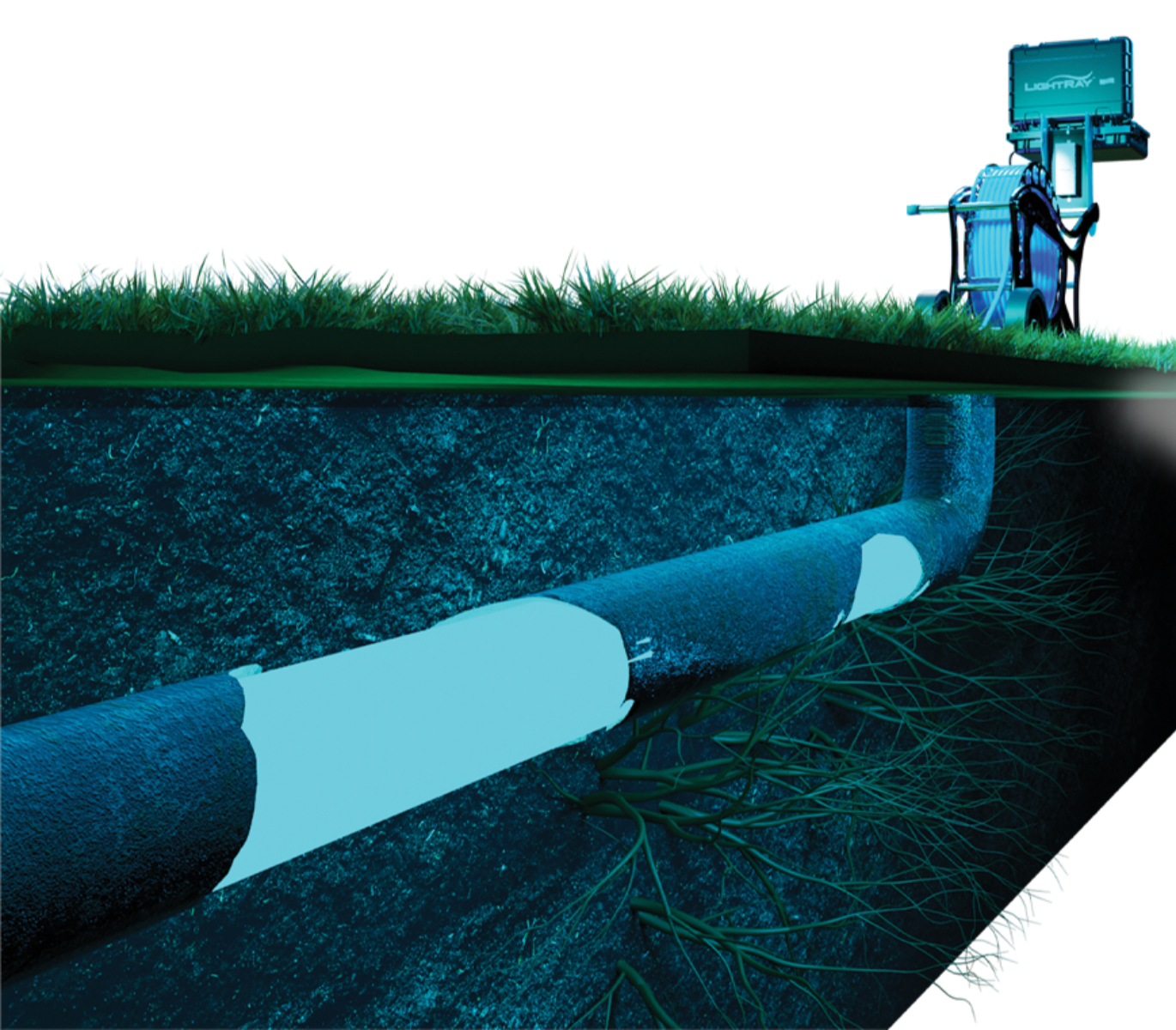

Waterline Renewal Technologies LightRay LR3 LED UV
The LightRay LR3 LED UV system from Waterline Renewal Technologies is an advanced UV cast-in-place pipe technology allowing complete operator control of the casting process. It is both a push- and pull-in-place spot repair system, providing the flexibility to perform both operations by only changing the cold LED repair packer. The non-VOC resin is pre-impregnated into the high-performance fiberglass liner and shipped ready to install for no-dig pipe infrastructure repairs. Once the install site is prepped, casting times in under 10 minutes can be achieved, eliminating the risk of premature or prolonged casting times due to temperature variations. It repairs pipe diameters of 3 to 12 inches, including transitions. 847-457-1810; www.waterlinerenewal.com

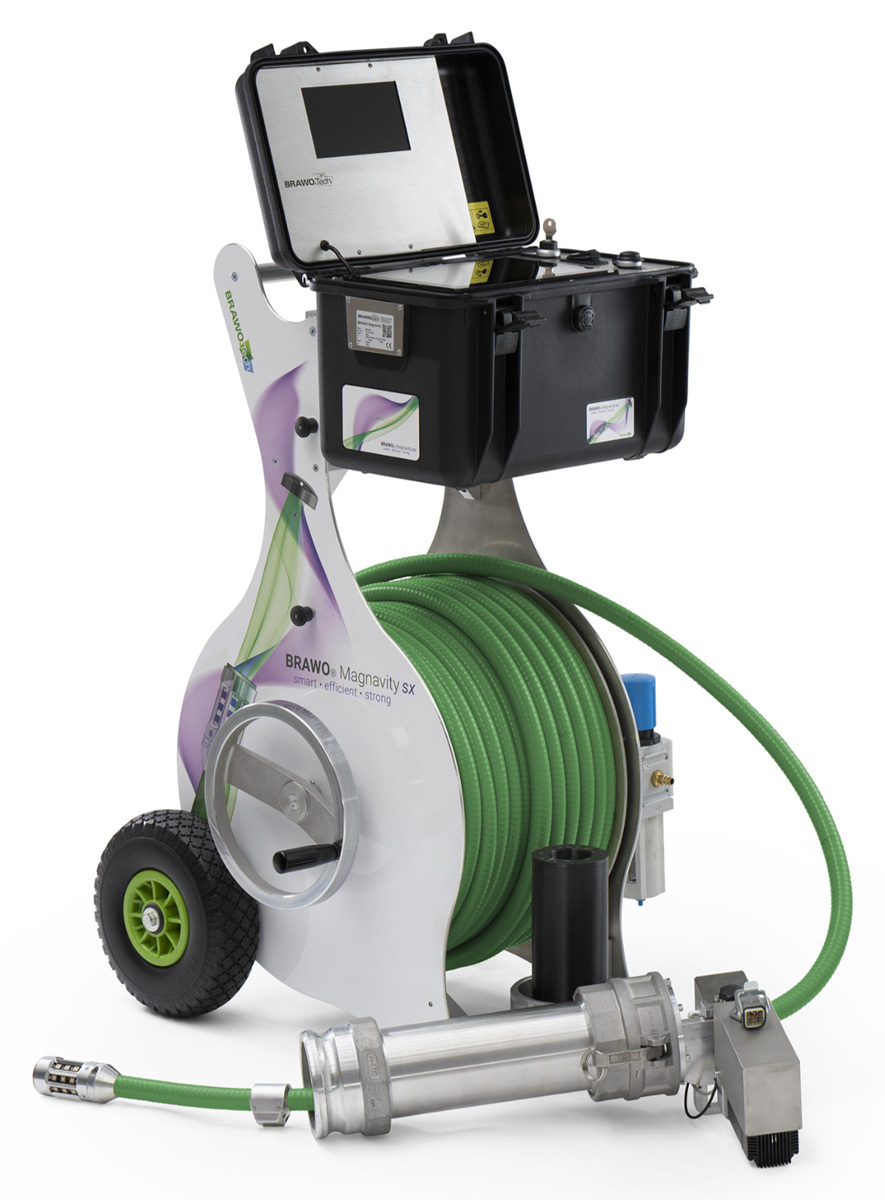

BRAWO SYSTEMS MAGNAVITY SX for BRAWOLINER
Magnavity SX from BRAWO SYSTEMS offers safe light curing with NRTL certificate for the US market. The compact system has a range of 197 feet. The two LED heads — Nano and Mega — enable the rehabilitation of diameters from DN 100 to DN 300 using BRAWOLINER and the vinyl ester resin BRAWO LR. The curing process is automated and the entire rehabilitation process is documented. It can rehabilitate longer pipes with bends with only one access point. www.brawosystems-usa.com

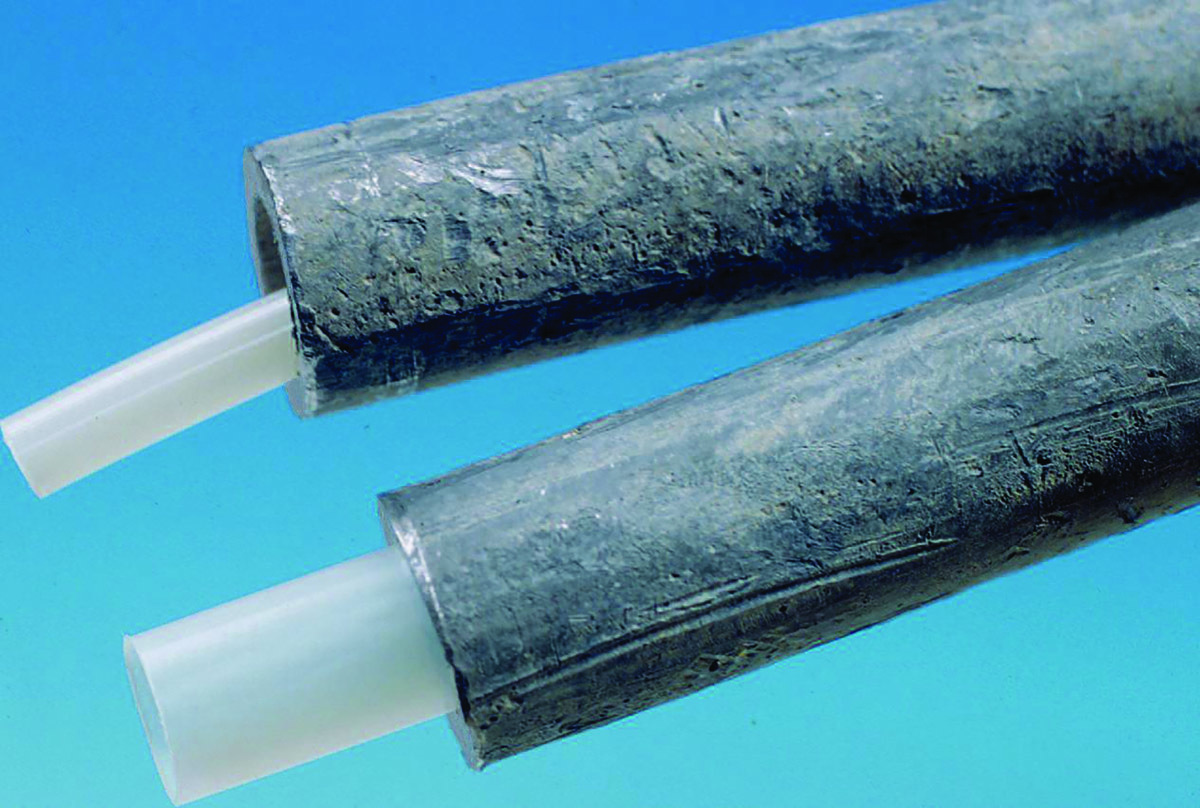

Flow-Liner Systems Neofit+Plus Expandable Pressure Pipe
Neofit+Plus Expandable Pressure Pipe from Flow-Liner Systems is a trenchless technology that creates an impenetrable barrier between drinking water and the existing host pipe. Host pipes (like lead and copper) can leach dangerous levels of toxic materials in your drinking water. The Neofit+Plus EPP structural material has been scientifically proven by examining extensive hydrolysis testing, indicating it will last well over 100 years. It often only requires a single small access pit, saving yards, trees, sidewalks and floors from demolition. The speedy process allows for many installations a day and immediate return to service. 800-348-0020; www.flow-liner.com
