Replacing aging or damaged underground pipes without extensive excavation is a crucial aspect of modern municipal infrastructure maintenance. Pipe bursting technology offers a trenchless solution, utilizing hydraulic force to fracture existing pipes and simultaneously pull in new ones. These systems range from compact, portable units designed for residential applications to larger, more powerful machines capable of handling mainlines. Key features include robust pulling force, modular designs for adaptability in confined spaces, and user-friendly controls. Take a look at some product options below.

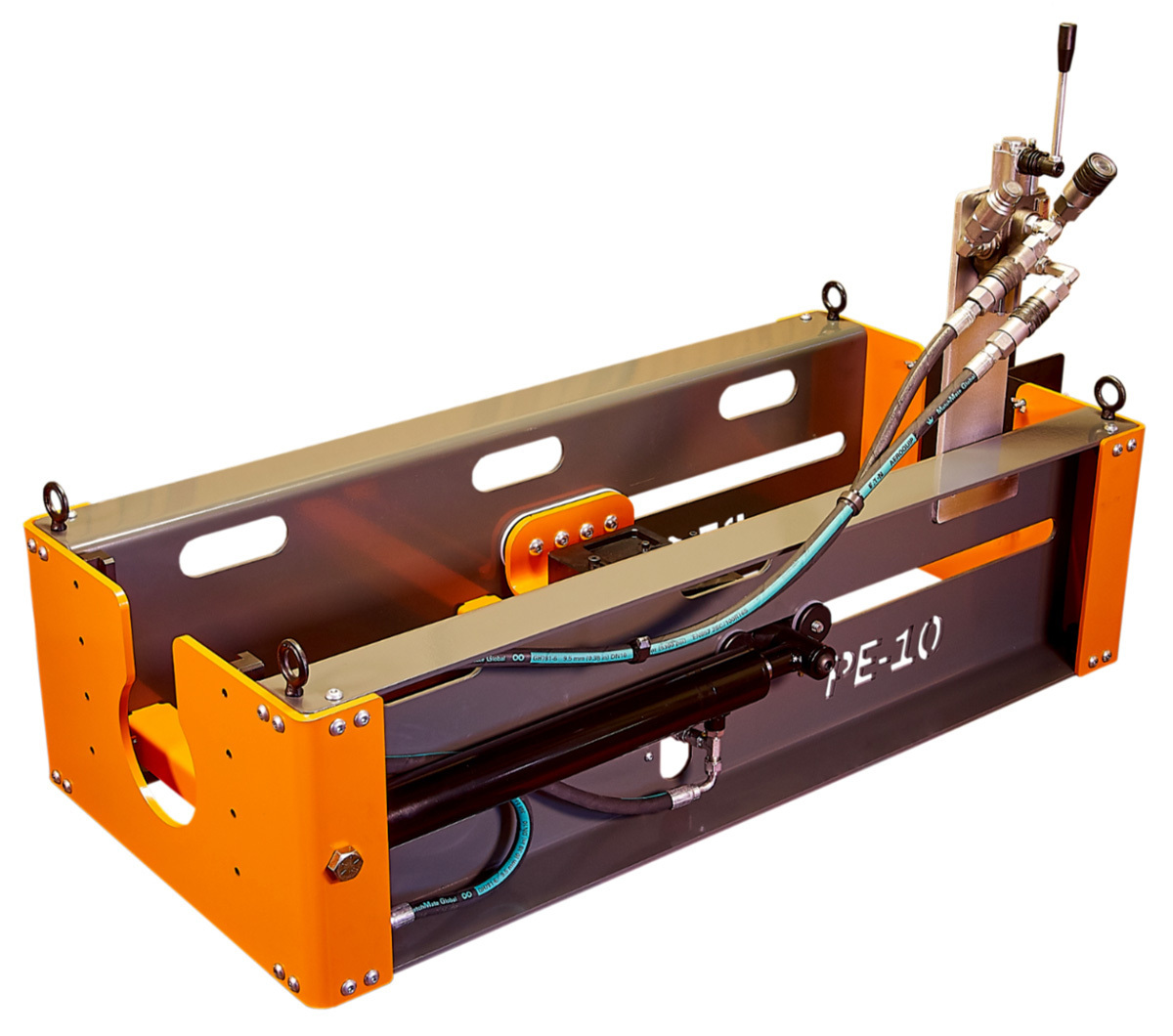

PE Equipment PE-10
The PE-10 from PE Equipment is a multi-function trenchless machine, primarily built for water and lead line replacement, utilizing a single chassis with interchangeable modules and a no-weld structural design. The modular chassis allows it to perform the functions of multiple machines, providing speed and flexibility when on job sites with difficult situations typically requiring multiple machines. The no-weld structural design allows for the replacement of any part by the user. It has the ability to change functions from a pipe-bursting to rod-pushing module in 10 minutes. It has a small footprint under 4 by 2 feet, along with a lightweight chassis that can be carried by two people. It has a fast push/pull speed, capable of up to 13 feet per minute depending on conditions. 406-499-8136; www.pe-equipment.com

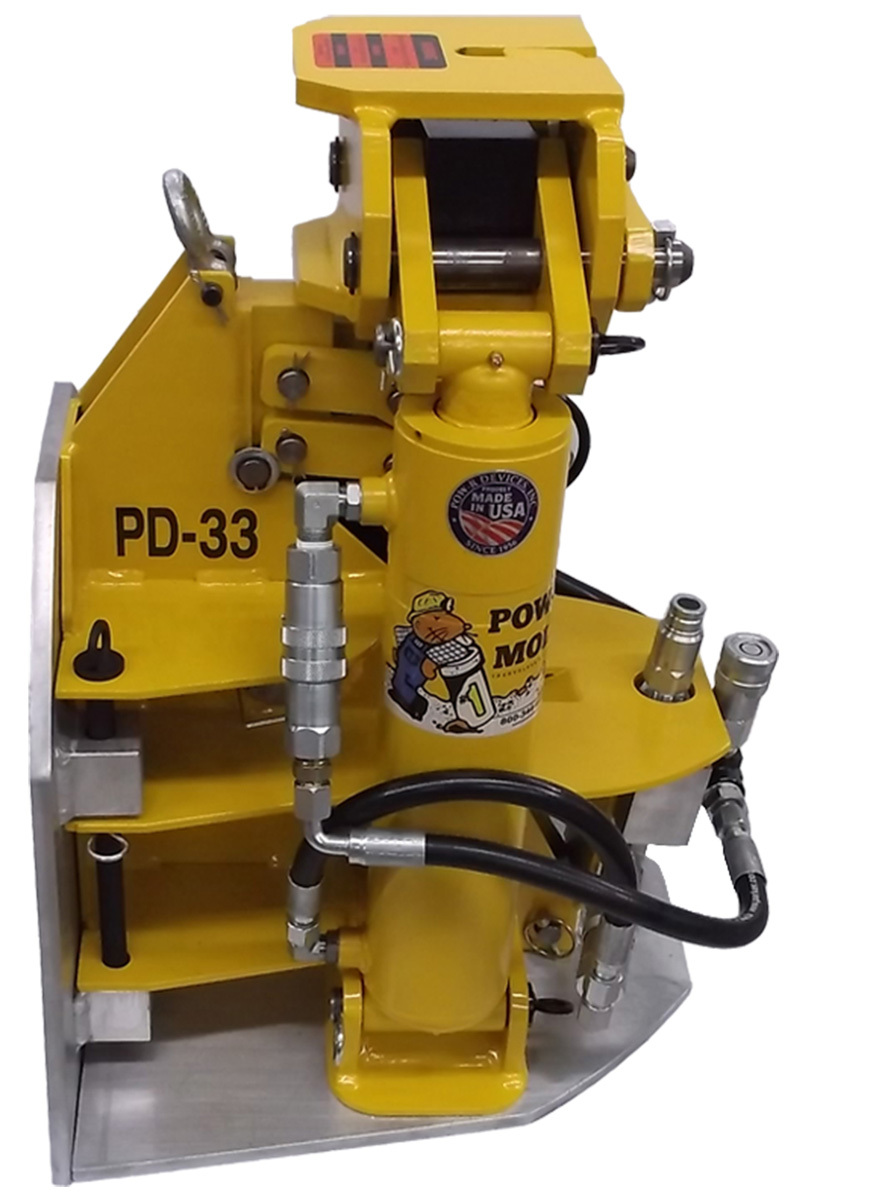

Pow-R Mole Trenchless Solutions PD-33M
The PD-33M pipe-bursting machine from Pow-R Mole Trenchless Solutions is designed to replace existing underground pipes 2 to 6 inches in diameter. Its nonslip, cylinder-activated jaws prevent cable damage while providing 60,000 pounds of pulling force. It offers a cost-effective alternative to opencut excavation, reducing customer disruption and increasing company profits. The process replaces the existing pipe with a fused HDPE pipe, which eliminates all joints and allows the operator to pull through bends such as 45-degree fittings. This system is modular and can be easily disassembled and reassembled for manhole and basement applications. With a compact design and very small footprint of only 20 by 20 inches, this unit can be used in tight locations. 800-344-6653; www.powrmole.com

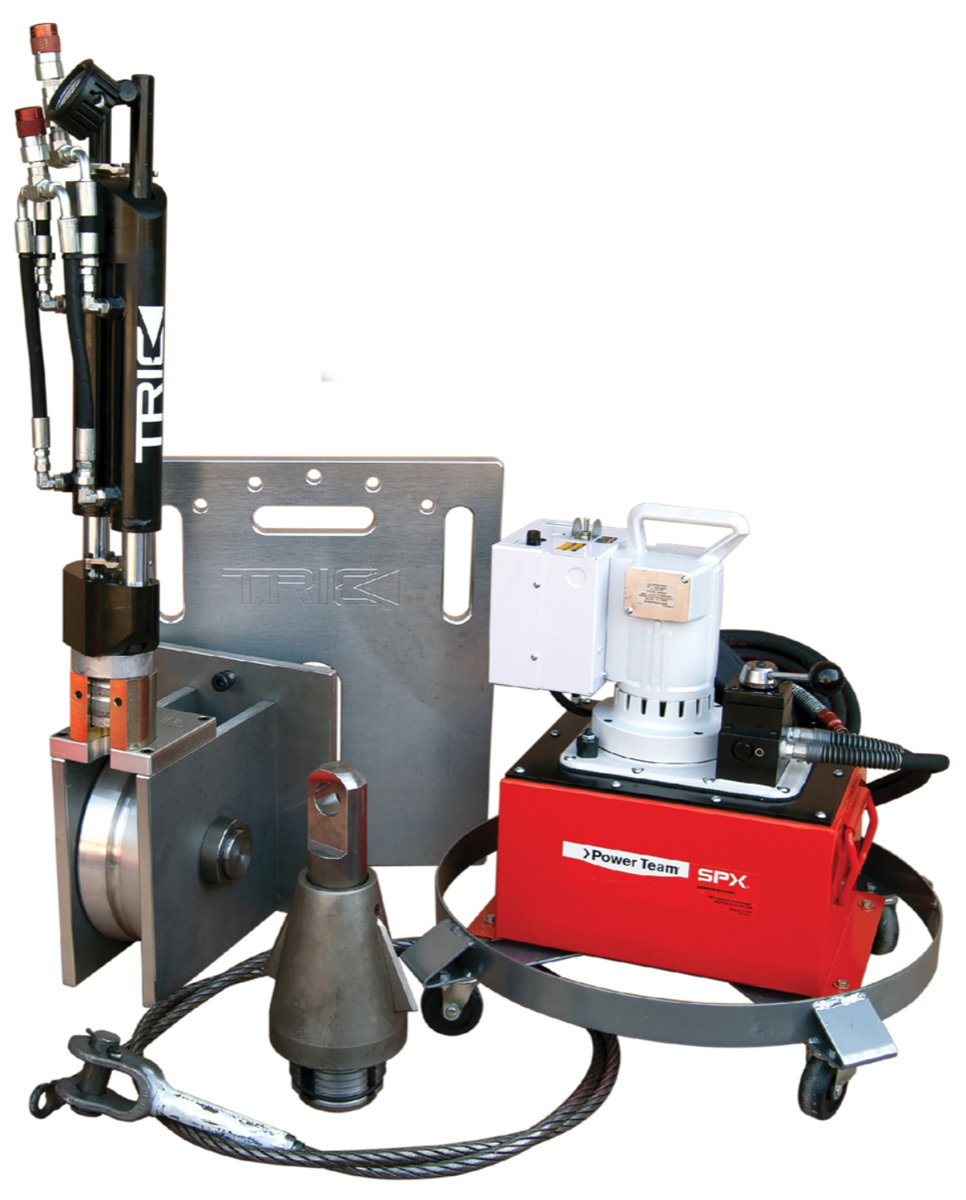

TRIC Tools E24
The E24 revisits the essential TRIC Tools 4-inch lateral bursting package that created the industry of trenchless home sewer replacement decades ago. Redesigned with economy and practicality in mind, it is geared primarily toward residential bursting jobs up to 4 inches in diameter. The standard system includes a portable and reliable 10,000 psi electric pump plus lightweight 5/8-inch compact swaged cable. It is suitable for indoor use, difficult backyard easements and very tight spaces with limited access. 888-883-8742; www.trictools.com
