Water and Wastewater Product News: Feb. 5, 2018

Browse the latest products exclusively for the municipal sewer and water industry

Water and Wastewater Product News: Feb. 5, 2018

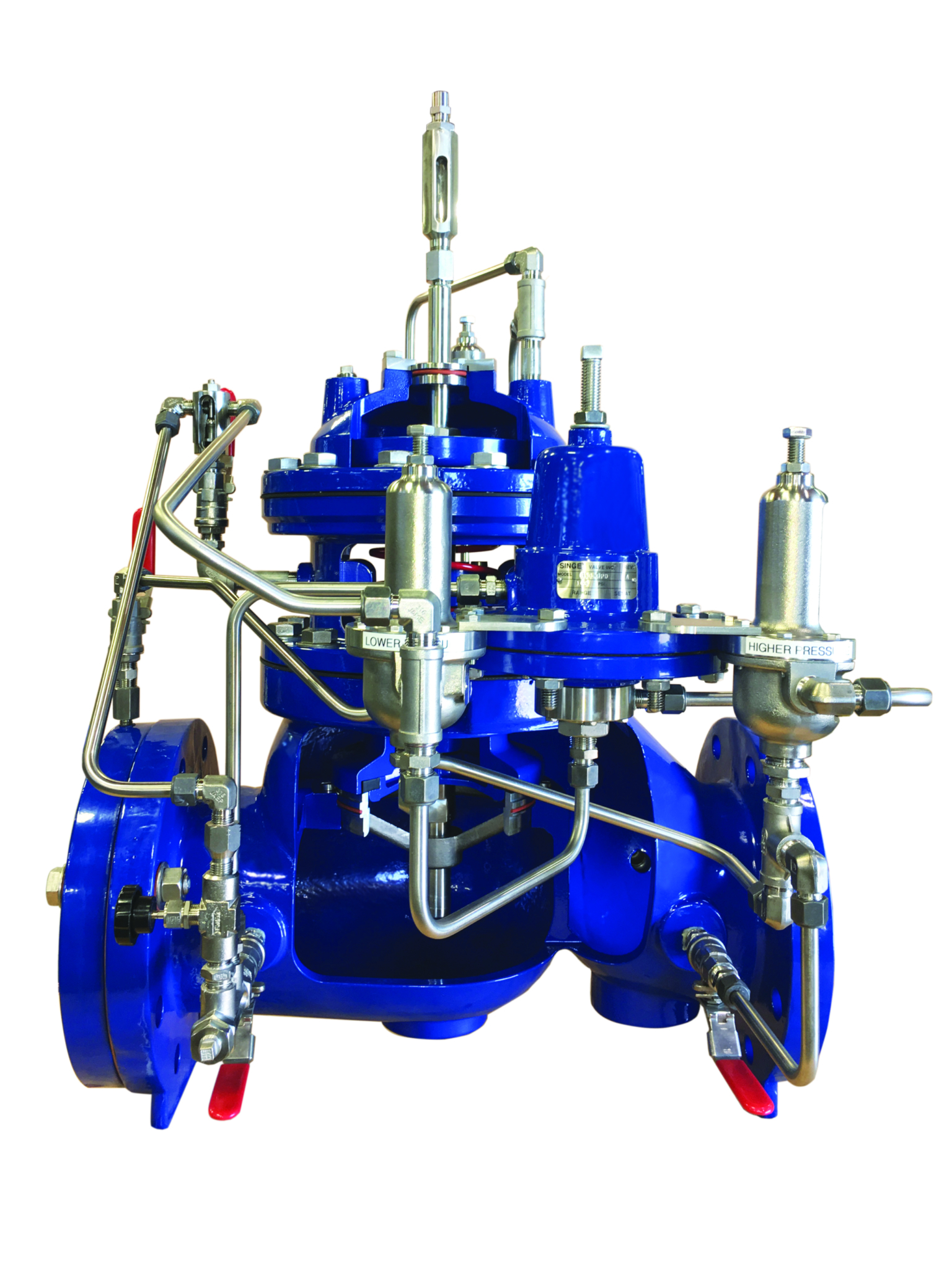

Singer’s 106/206 PGM-2PR-630-SM Pressure Management Valve with integral backup hydraulically manages pressure to reduce water loss, save money and prevent unwanted pressure spikes that contribute to permanent pipe failure.

Singer Pressure Management Valve
Singer’s 106/206 PGM-2PR-630-SM Pressure Management Valve with integral backup hydraulically manages pressure to reduce water loss, save money and prevent unwanted pressure spikes that contribute to permanent pipe failure. Built on the Singer 106-PGM or 206-PGM main valve, a simple field retrofit is possible using the paddle-style orifice plate. The pressure-reducing pilots independently adjust to suit the optimal downstream pressure. The valve requires no electrical power or independent flow signal, as it takes its signal from the orifice plate installed on the valve inlet. It is available in sizes from 4 to 12 inches with a minimum pressure at the valve inlet of 29 psi. 888-764-7858; www.singervalve.com.

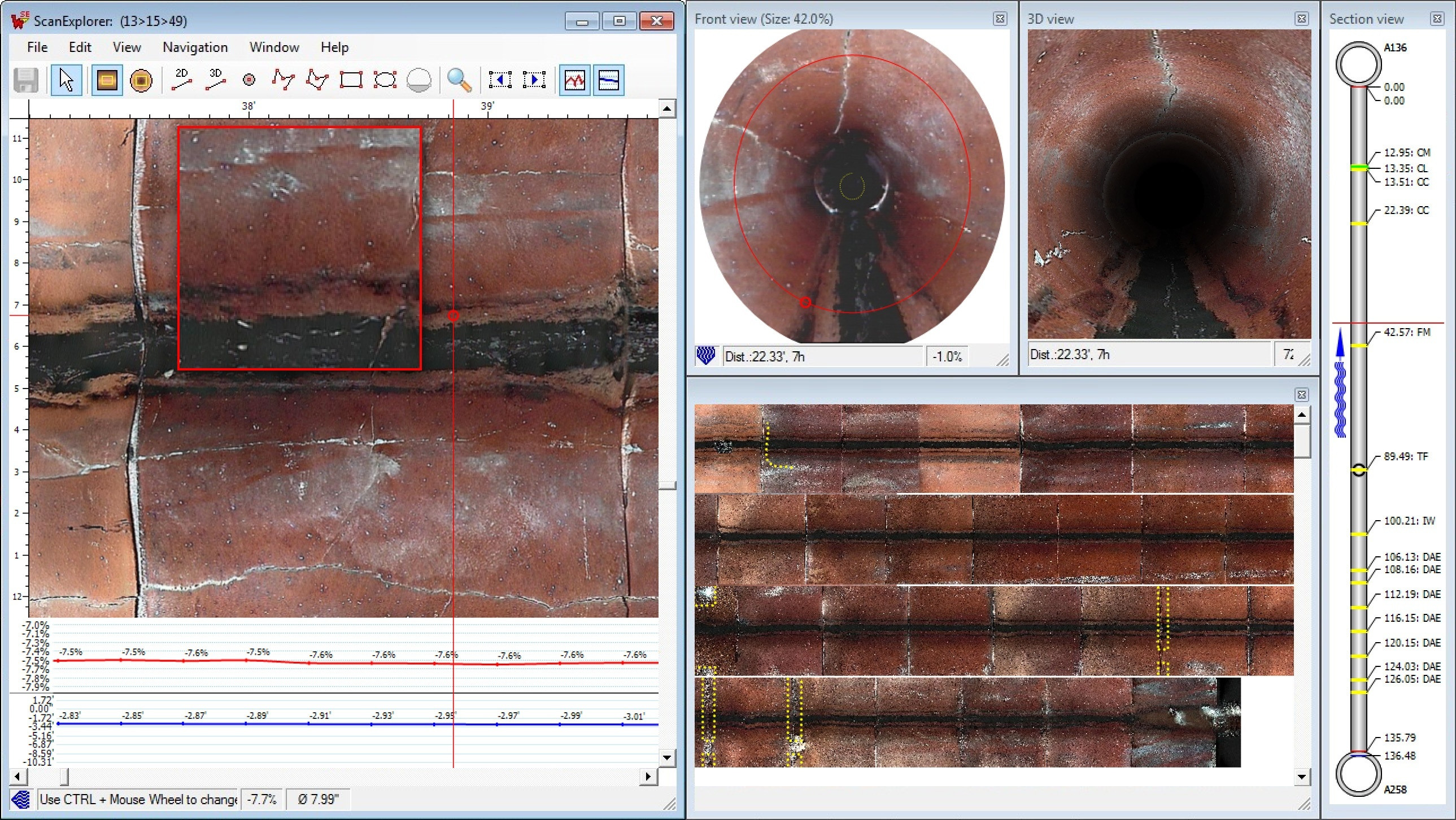

WinCan ScanExplorer software module
ScanExplorer is a new add-on module for WinCan’s VX inspection reporting and management software. It navigates scans for rapid review, measures and annotates defects, and generates reports at the click of a button. Additional data captured during side scanning, such as inclination and temperature, can be plotted alongside the scan. The module allows users to view side scans as virtually rendered environments and can do a virtual pan and tilt of the screen. It can also present laser profile data, to help visualize pipe ovality and geometric features. 877-626-8386; www.wincan.com.

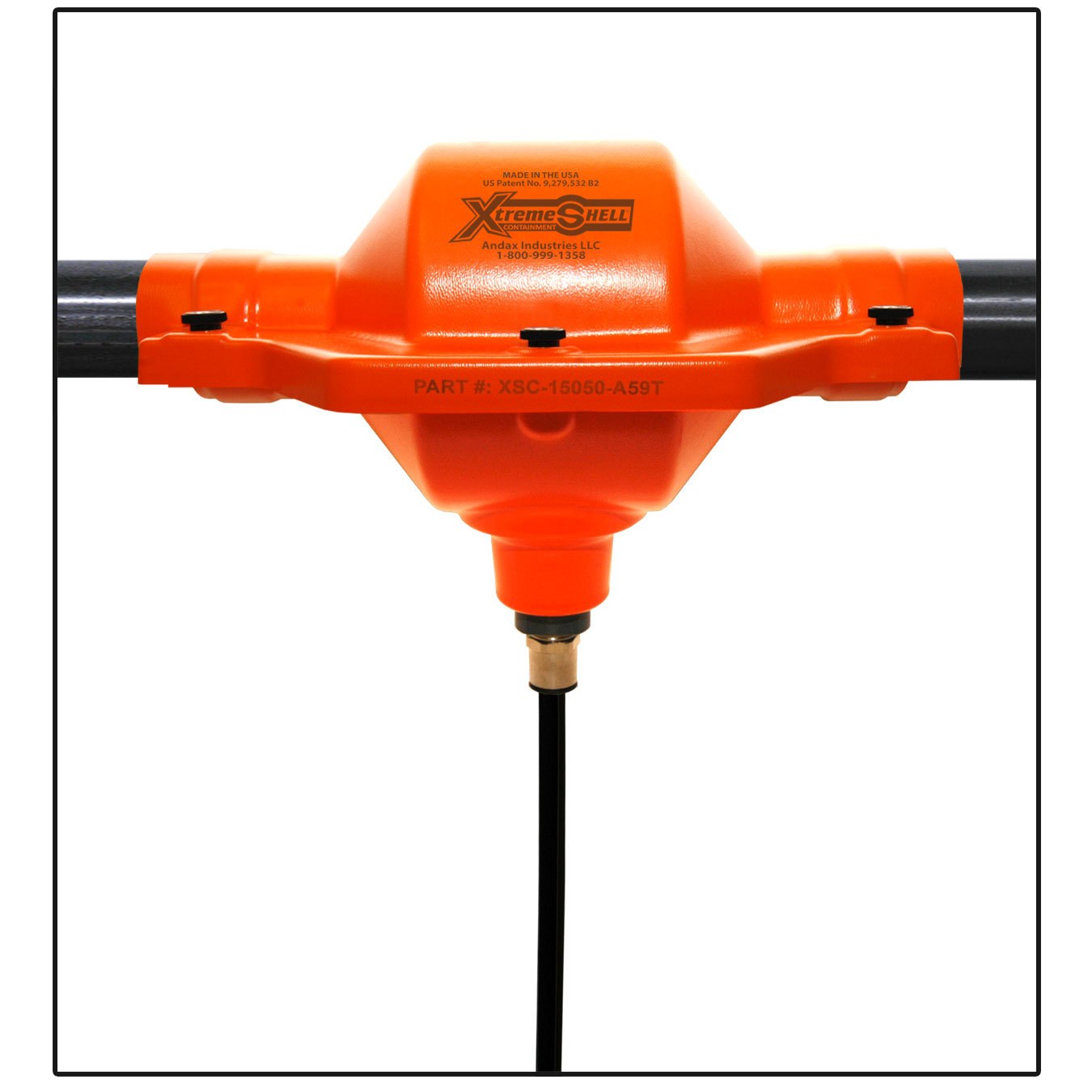

Andax Xtreme Shell pipe flange containment system
The Xtreme Shell from Andax is a rigid, two-piece shell designed to fully encapsulate a leaking flange, valve, manifold or leak point. It diverts the leak via a drain port and discharge line to a secure containment system, allowing for performance of any required maintenance when convenient. It is simple and quick to install, reusable, usable for both indoor and outdoor purposes, UV resistant, impact resistant to minus 20 degrees F, and handles fluid temperatures up to 200 degrees F. It is compatible with oil, petro-chemicals, paint, organic fluids and many other liquids. Leak monitoring can be added for remote locations and can be managed online or on a smartphone. 800-999-1358; www.andax.com.

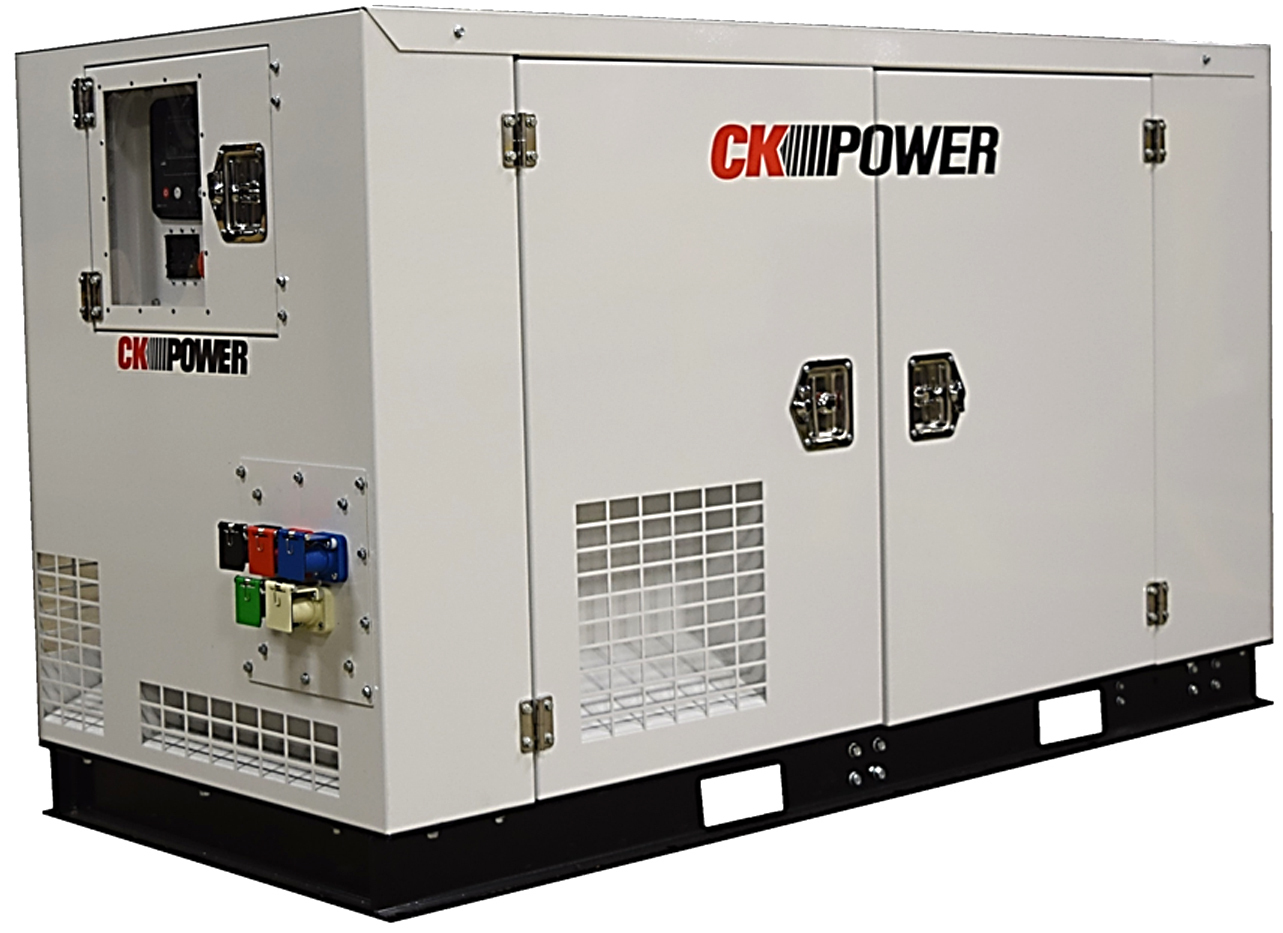

CK Power commercial portable generator sets
The line of diesel and NG/LP commercial portable generator sets from CK Power have a range of 10 to 45 kW. The diesel-fueled units meet Tier 4 Final EPA and CARB certified requirements and the NG/LP-fueled units meet wellhead and pipeline EPA certified requirements. They come standard with multiple voltage configurations, sound enclosures and custom-configurable power distribution to meet application needs. 855-257-6937; www.ckpower.com.

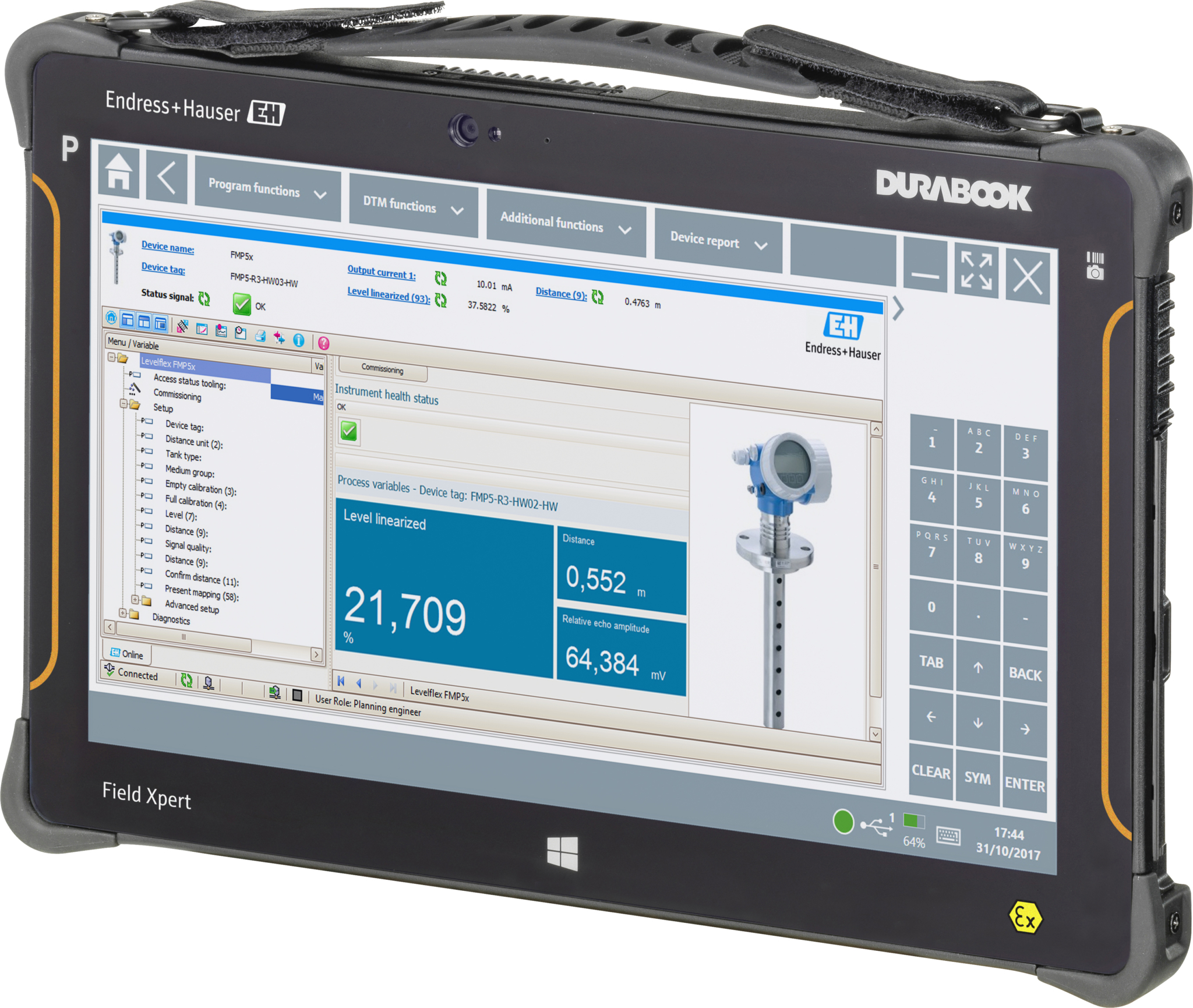

Endress+Hauser Field Xpert SMT70 tablet PC
The Field Xpert SMT70 from Endress+Hauser is a rugged tablet PC for commissioning and maintenance staff to manage field instruments and document work progress. It comes preinstalled with DeviceCare configuration software and library, and the tablet supports HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus, CDI and Endress+Hauser service interfaces. It can connect to field instrumentation devices directly via a USB or Bluetooth wireless modem, a gateway, remote I/O or multiplexer to a bus system with one-click connectivity. It comes with an 11.6-inch Multitouch HD display, a 5 megapixel auto-focus camera, a 2 megapixel front-facing camera, and up to 256 GB storage. 888-363-7377; www.us.endress.com/smt70.

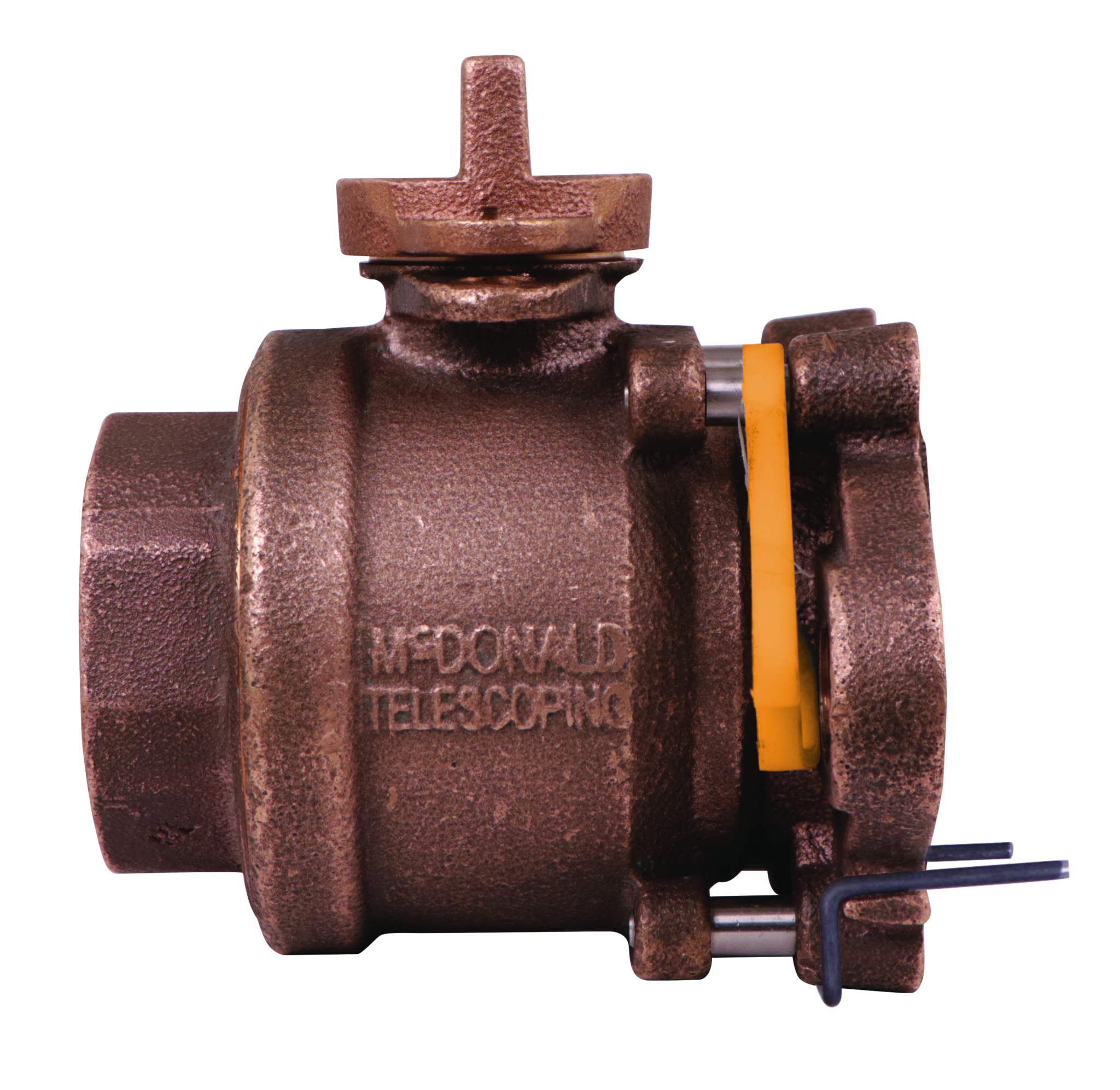

A.Y. McDonald Telescoping Meter Flange
With a retractable flange that allows for an extra 1/4 inch of room, A.Y. McDonald’s Telescoping Meter Flange makes meter installation and replacement easy. Available in 2-inch straight and angle FNPT by Flange ball valves, this product also contains two EPDM O-rings that seal the flange to the valve body, and four 304 stainless steel shoulder screws that contribute to the robust design. 800-292-2737; www.aymcdonald.com.

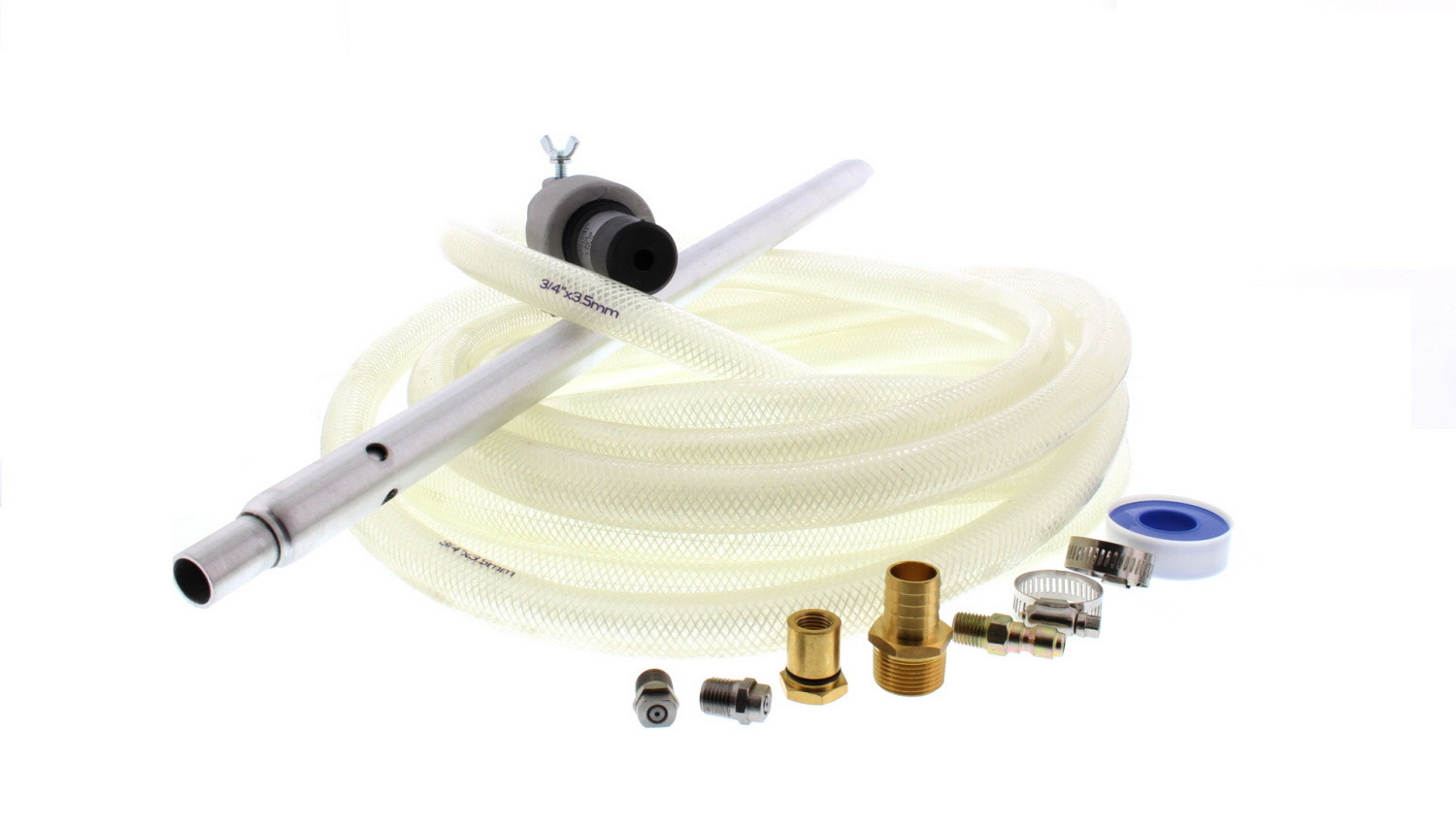

Water Cannon wet sand blasting kit
The wet sand blasting kit from Water Cannon is designed to remove unwanted surface contamination such as rust, scale, loose paint, barnacles and debris. The sand and high-pressure water work together using venturi siphon technology to more safely clean metals, concrete and other similar surfaces. The kit quick-connects to the end of a commercial pressure washer wand and works on 3,000 up to 6,000 psi systems. It automatically draws sand through a 26-foot reinforced, lightweight feed hose using an engineered self-venting pickup tube. The venturi siphon technology eliminates the need for an air feed system or other heavy and bulky equipment. 800-333-9274; www.watercannon.com.
