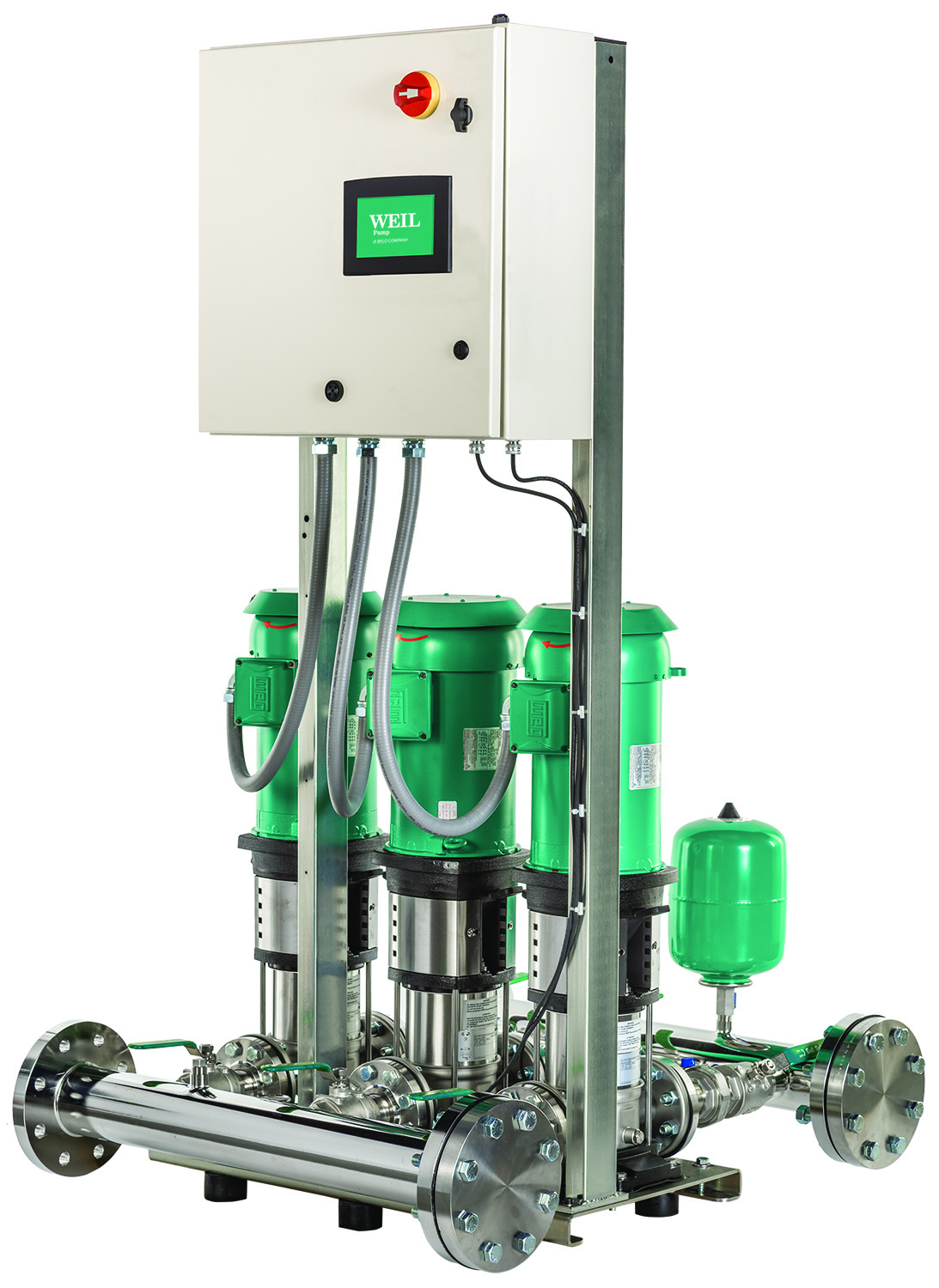

Weil Pump vertical multistage booster pumps and systems
The new booster systems from Weil Pump combine its Programmable Logic Controller panels with Wilo-Helix V pumps and are available in 2, 3 or 4-pump configurations. The multipump systems offer real-time diagnostics and remote monitoring with variable-speed control and balanced run time for each pump. The booster packages are suitable for many applications, including water supply, pressure boosting, agriculture, washing/sprinkling systems, cooling circuits and condensate return. The systems have a maximum head of 780 feet, maximum flow of 550 gpm, rated pressure of 232 psi and a liquid temperature range of 4 degrees below zero to 248 degrees F. The systems are NSF-61 and NSF-372 certified, have full 304 stainless steel construction and feature 300 class ANSI flange connections. 262-377-1399; www.weilpump.com

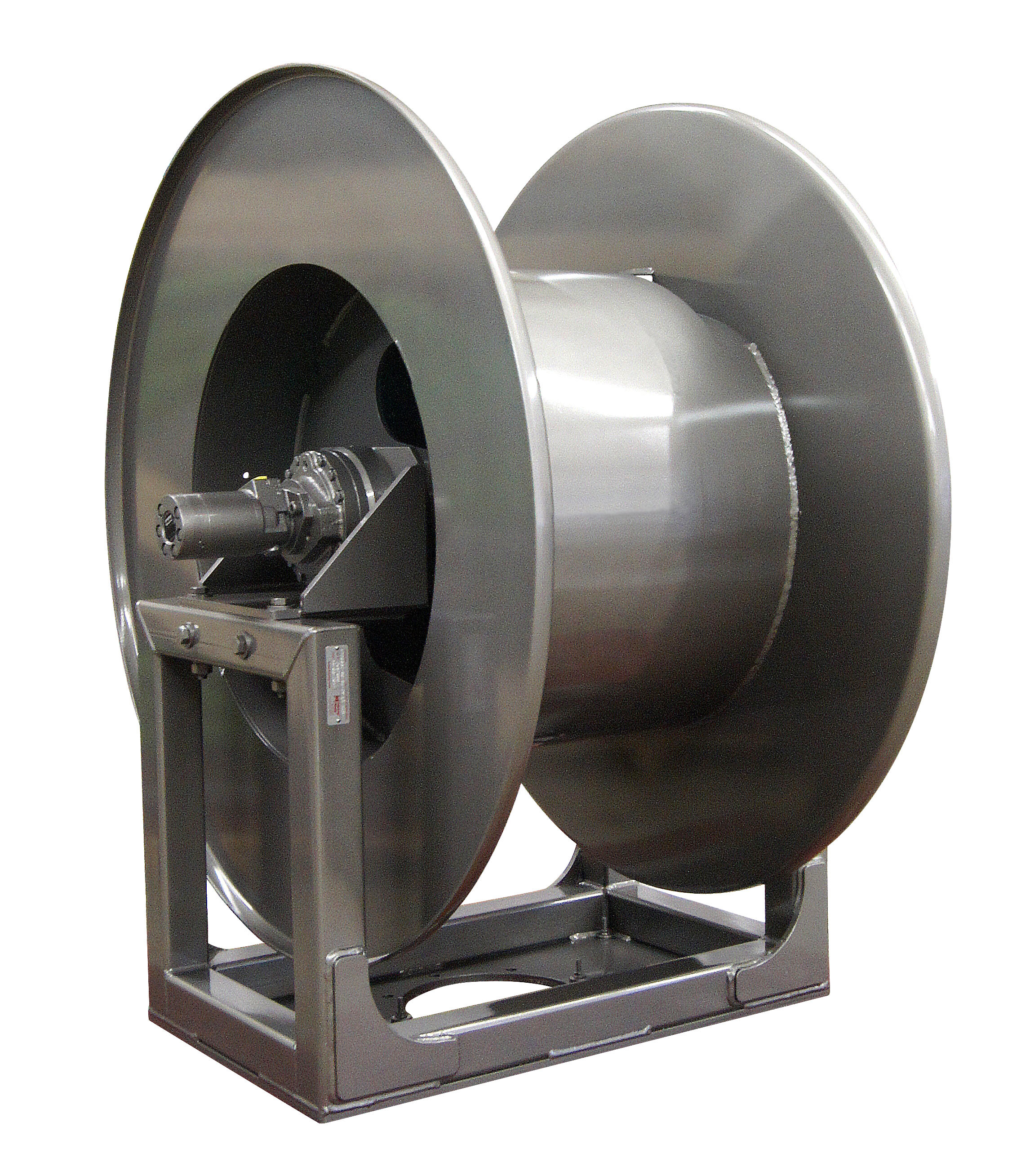

Hannay Reels HDD 6300 series
The HDD 6300 series of reels from Hannay Reels is for high-pressure water spray operations. It is constructed with a heavy-duty spool and frame, along with a direct-drive hydraulic motor that utilizes a planetary gearbox for increased power. It holds up to 1,000 feet of 1-inch-I.D. jetter hose and can withstand outdoor elements for reliable year-round use on the road. The line of reels also has 1/4-inch-thick discs with rolled outer edges for strength and rigidity, and a 3-inch square tubing frame construction for over-road durability. The 6300 series can handle pressures up to 3,000 psi. 877-467-3357; www.hannay.com

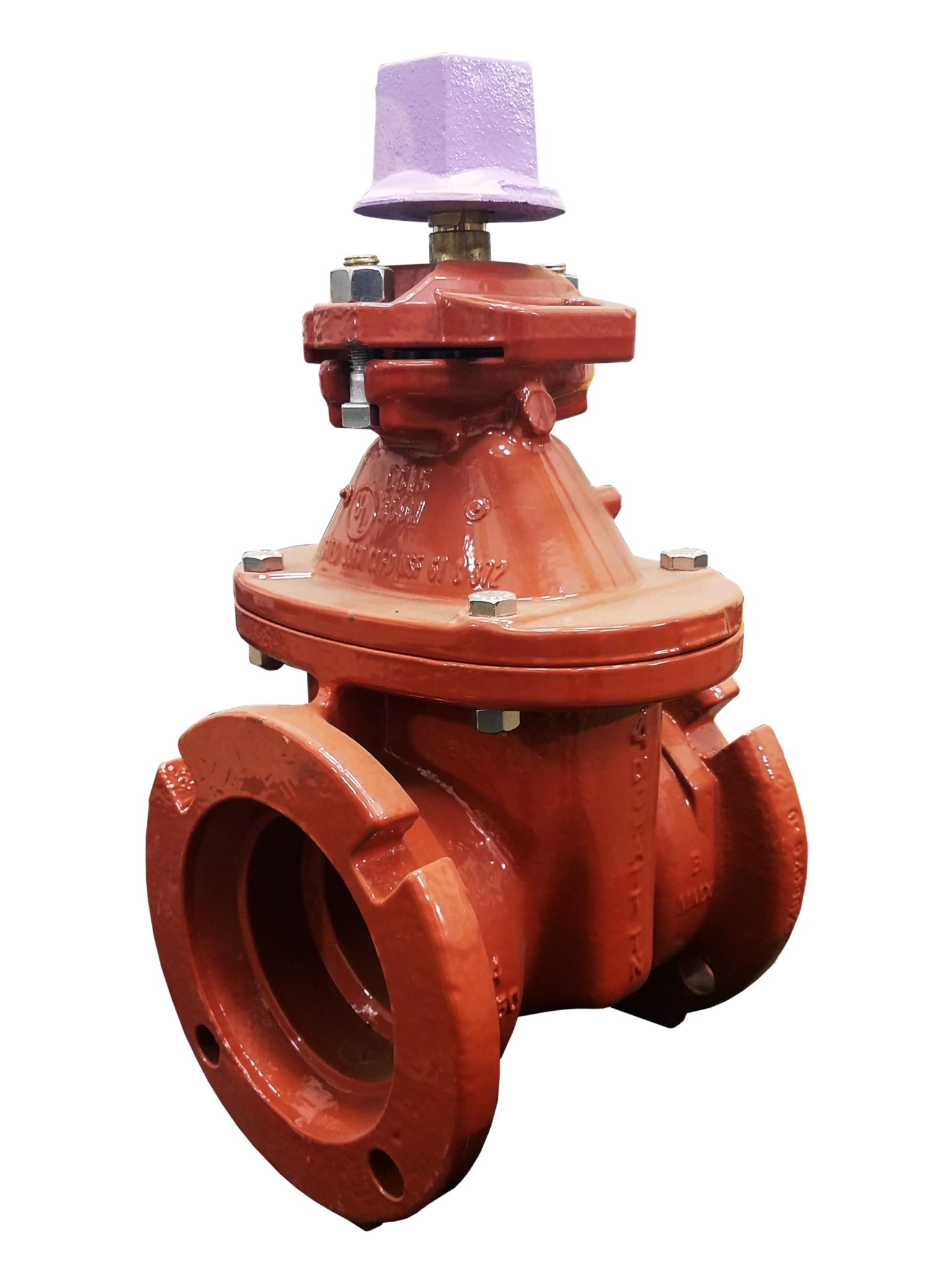

Mueller Water Products reclaimed water wrench nut
Resilient wedge gate valves from Mueller Water Products have an option for a purple pentagon-shaped wrench nut, intended for reclaimed water service installations. This wrench nut introduces two distinguishing features: a unique shape requiring a special key for improved security and a purple finish to quickly identify reclaimed water. Purple is recognized by the American Public Works Association to identify reclaimed waterline components. 800-523-8618; www.muellerwaterproducts.com

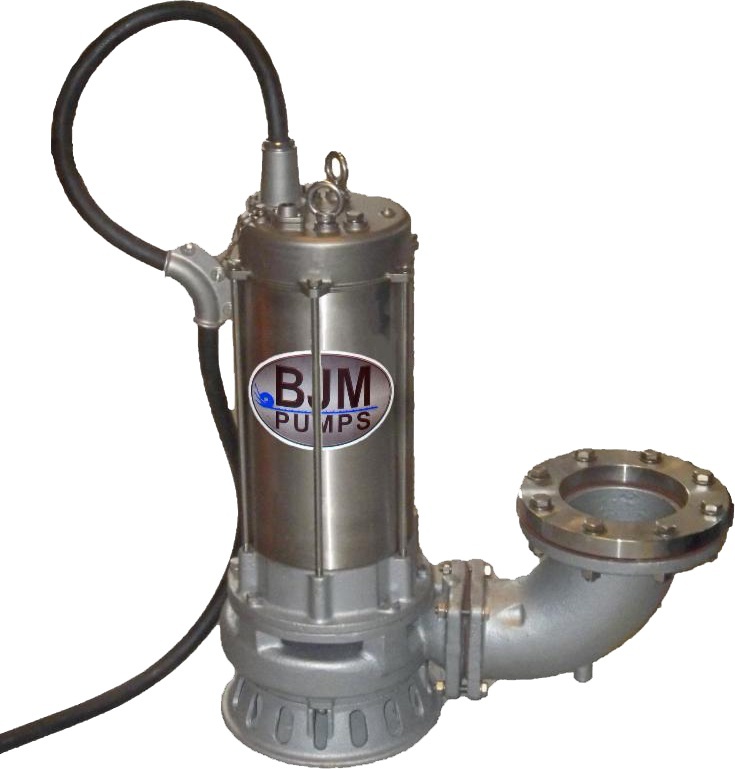

BJM Pumps JX Series submersible pumps
BJM Pumps’ expanded JX Series line of submersible pumps includes the JX150CSS and JX220CSS. These models are designed for applications where caustic or acidic fluids are present, such as those in food, chemical or pharmaceutical processing. All metal parts exposed to pumped liquids are made of 316 stainless steel and a double-mechanical seal design, with separate lip seal that protects the motor. Thermal switches embedded in the motor windings protect the motor if the temperature or amperage rises too high. Seal Minder motor protection is standard. 877-256-7867; www.bjmpumps.com
