Chemical Grouts

Avanti International injection grouts

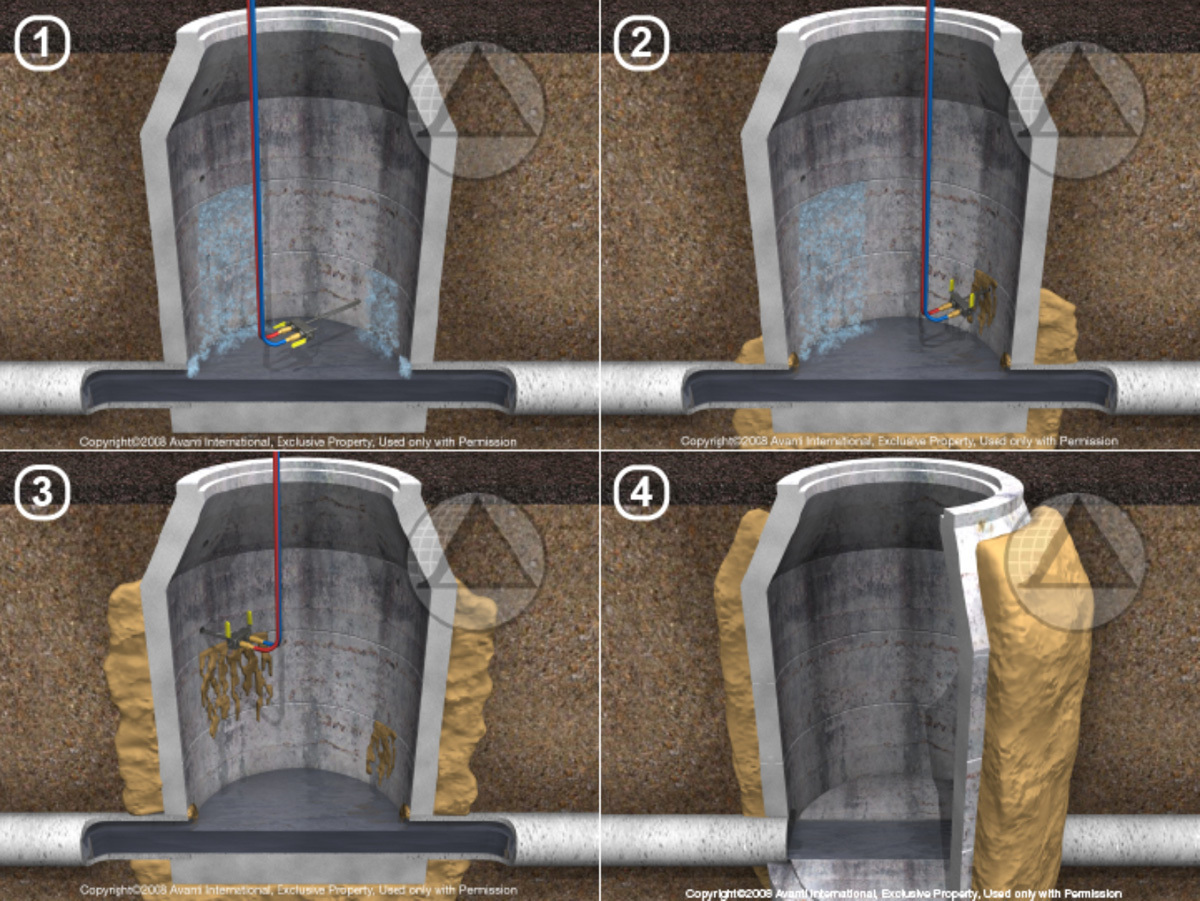

Infiltration enters underground systems every day through defects or faulty joints in manholes, causing system capacity issues, overload at treatment plants and possible injury to the community. Avanti International injection grouts have historically proven to be an economic and long-term solution to combating infiltration entering all areas of a collections system, including manholes. Injection grouts are engineered to stop leaks, stabilize soil and control groundwater, and be used in precast barrel joints, brick and concrete masonry units, pipe penetrations, vertical or horizontal cracks, voids and pinholes. Each technique enables the technician to stop several leaks at once and helps to extend the life of the structure. 800-877-2570; www.avantigrout.com

Prime Resins SoiLok MH

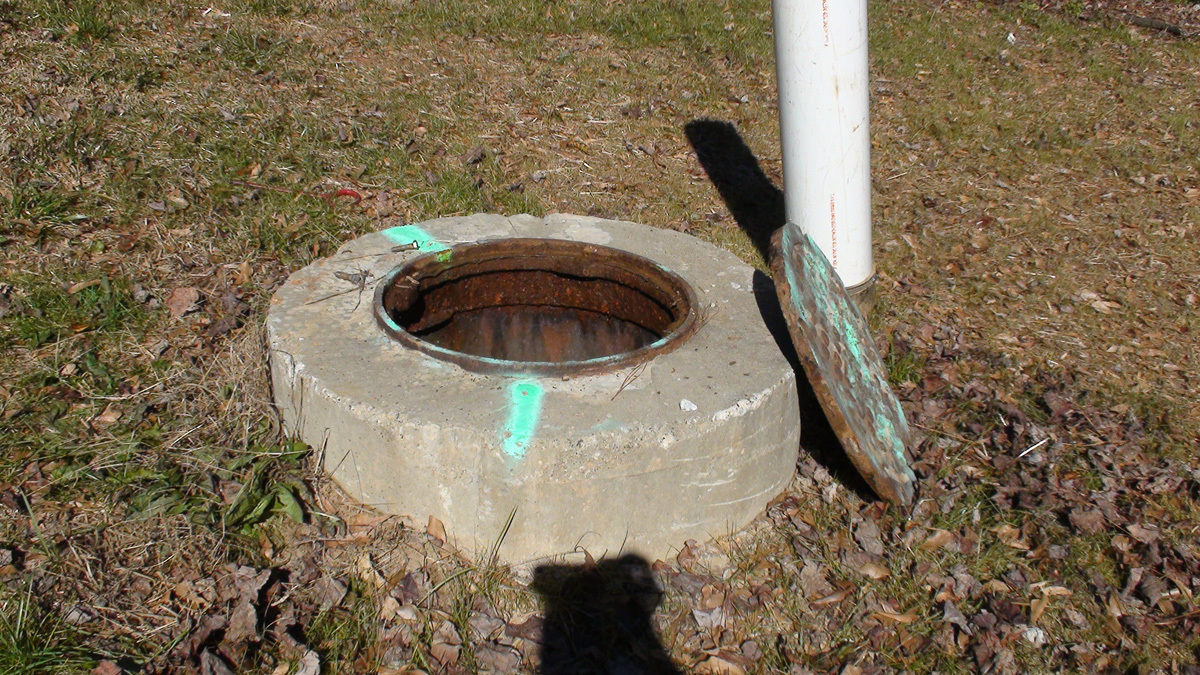

SoiLok MH from Prime Resins is an extremely thin two-component liquid resin designed specifically for manhole applications. It is a soil binding system (a subterranean grout) used to stabilize and bind loose soil or sand, stop underground water flows and seal weeping leaks in manholes and other below-grade structures. It is an easy-to-use pre-measured kit, resulting in predictable set times in noncohesive soils. It has super low viscosity, nearly as thin as water, allowing for thorough permeation. It contains no suspended solids in the blended product, which means no airborne particulates. It has adjustable gel set times for various site conditions. Achievable compressive strengths are site specific and strongly dependent on sand/soil conditions, composition and particle size distribution. 800-321-7212; www.primeresins.com

Epoxies

Epoxytec Mortartec Cladliner

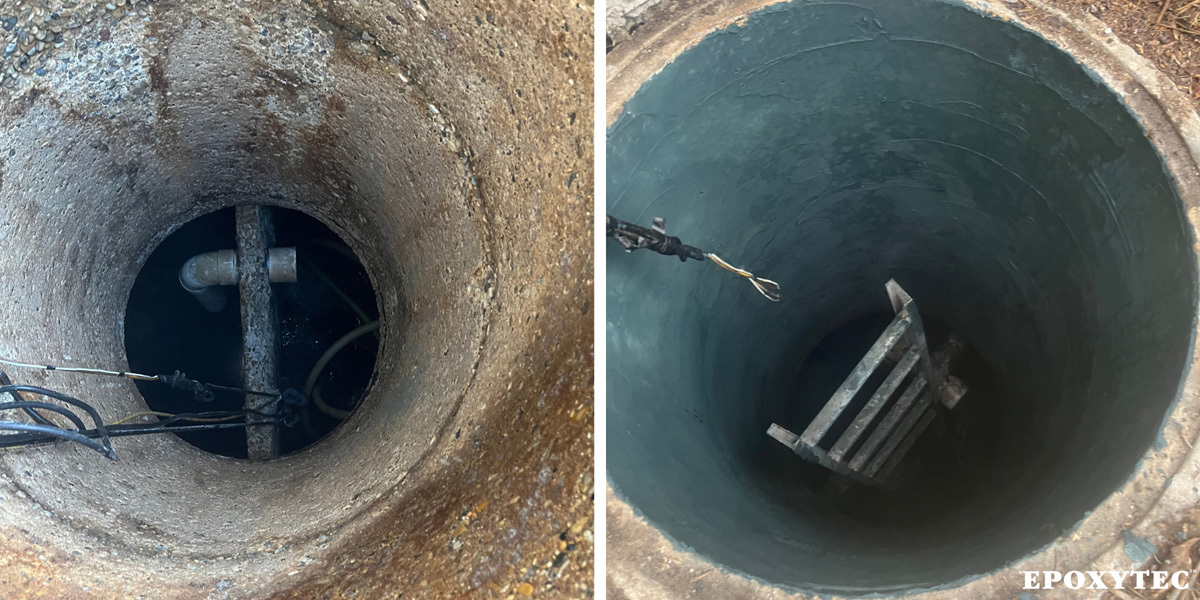

Mortartec Cladliner from Epoxytec is a practical and economical approach to sanitary sewer manhole and other wastewater infrastructure lining by providing ease of application while delivering performance with savings. It is an engineered standalone hybrid epoxy-cement liner combining the simplicity of a cementitious lining with the performance of a high-build epoxy. It offers acid resistance to protect from corrosion derived from mild-to-moderate hydrogen sulfide conditions up to 100 ppm. It is well suited for the protective lining of new structures and the rehabilitation of aging structures, particularly brick or concrete sanitary sewer infrastructure. 877-463-7699; www.epoxytec.com

Infrastructure Repair Systems Infragard

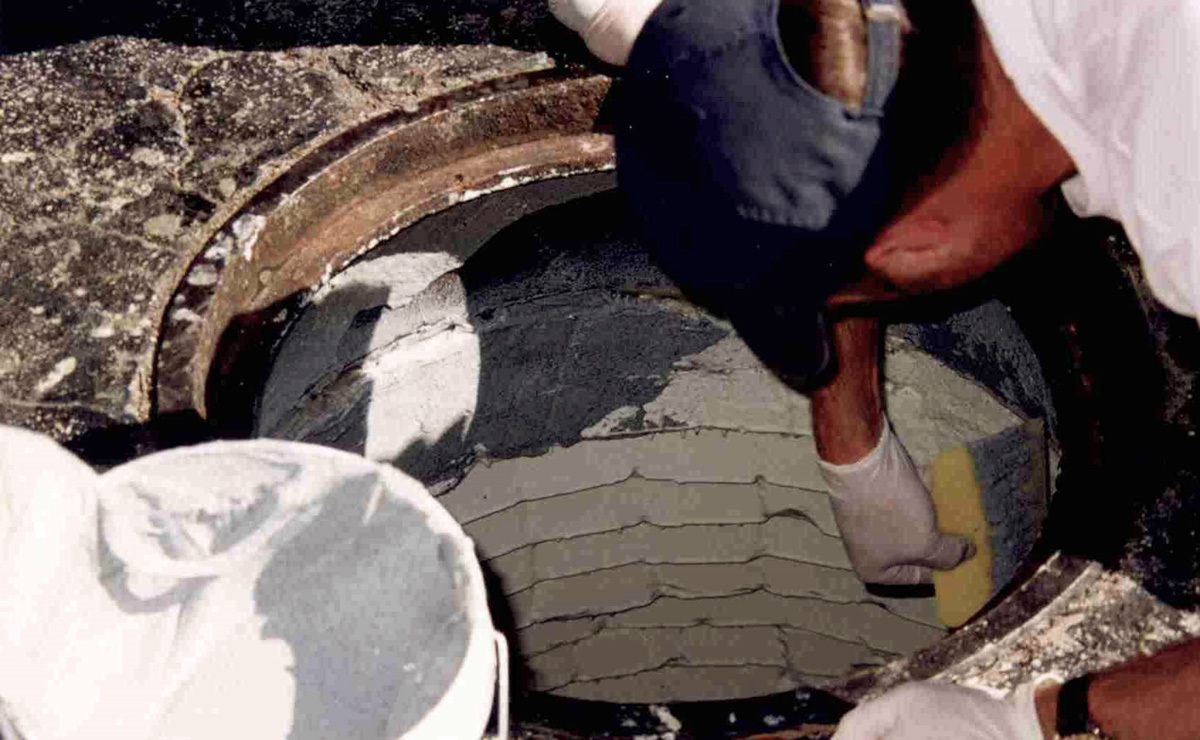

Infragard concrete and manhole rehabilitation products from Infrastructure Repair Systems include Top Coat and Chim-Coat, which are nonhazardous ambient-cure epoxy systems for a small patch, entire manhole or retaining wall. This cost-effective solution requires no expensive equipment as it has an easy trowel-on application. They are corrosion-resistant and high strength with an impermeable structural bond to the substrate or to almost any concrete or metal surface. Chim-Coat is engineered with a flexible feature that maintains adhesion while expanding or contracting with changing temperatures and traffic loads. 877-327-4216; www.irsi.net

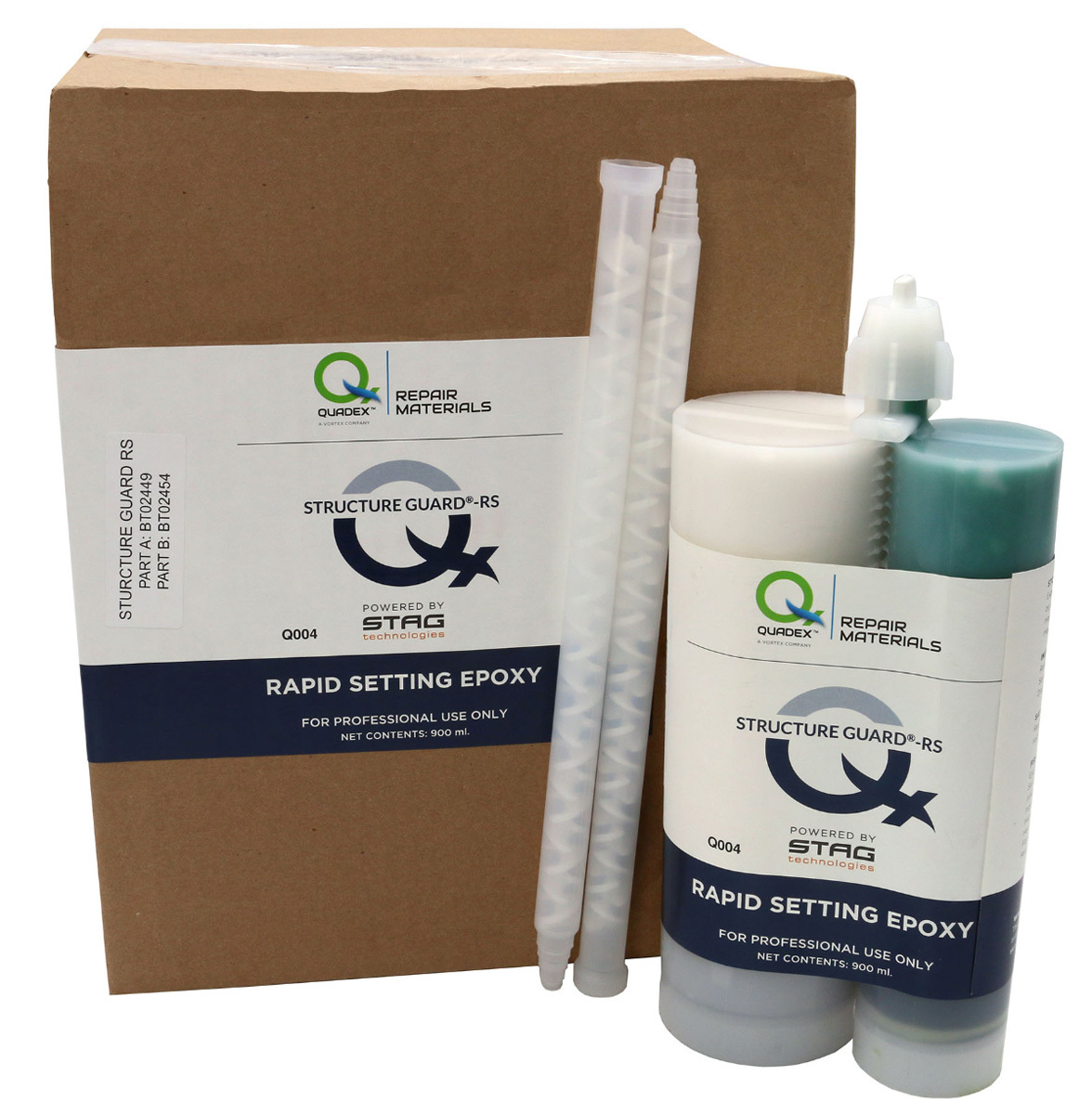

Source One Environmental Quadex Structure Guard

Quadex Structure Guard, distributed by Source One Environmental, is a high-build epoxy coating formulated to provide long-term corrosion protection and structural enhancement for manholes, pump stations, treatment plants or any wastewater infrastructure subject to high levels of corrosion and/or abrasion in both municipal and industrial applications. It is also suitable for invert repairs. It can be trowel- and/or spray-applied, and is a 100% solids material with no VOCs and a fast set time. 877-450-3701; www.s1eonline.com

Grade Ring

Ladtech HDPE manhole riser and catch basin adjusting rings

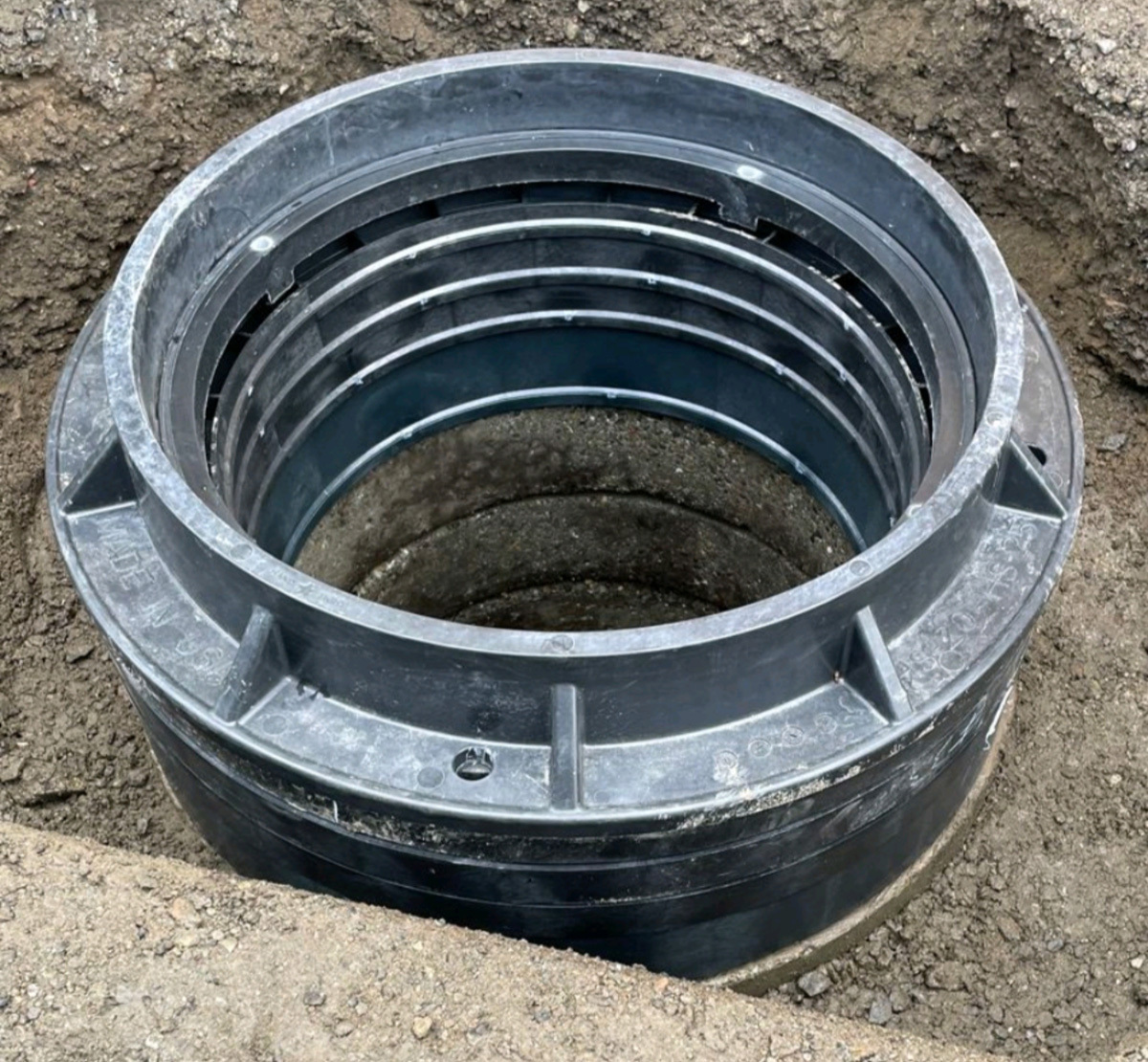

Ladtech HDPE manhole riser and catch basin adjusting rings are an alternative to concrete rings. A full line of round, square and rectangular adjustment rings is available. The product lines also include sloped rings and 1/4-inch-thick spacer rings that simplify grade adjustments, which takes all the trial and error out of matching the finished grade. Once adjustable rings are installed, the number of spacers required for an exact chimney height can be quickly and easily added. 877-235-7464; www.ladtech.com

Insert

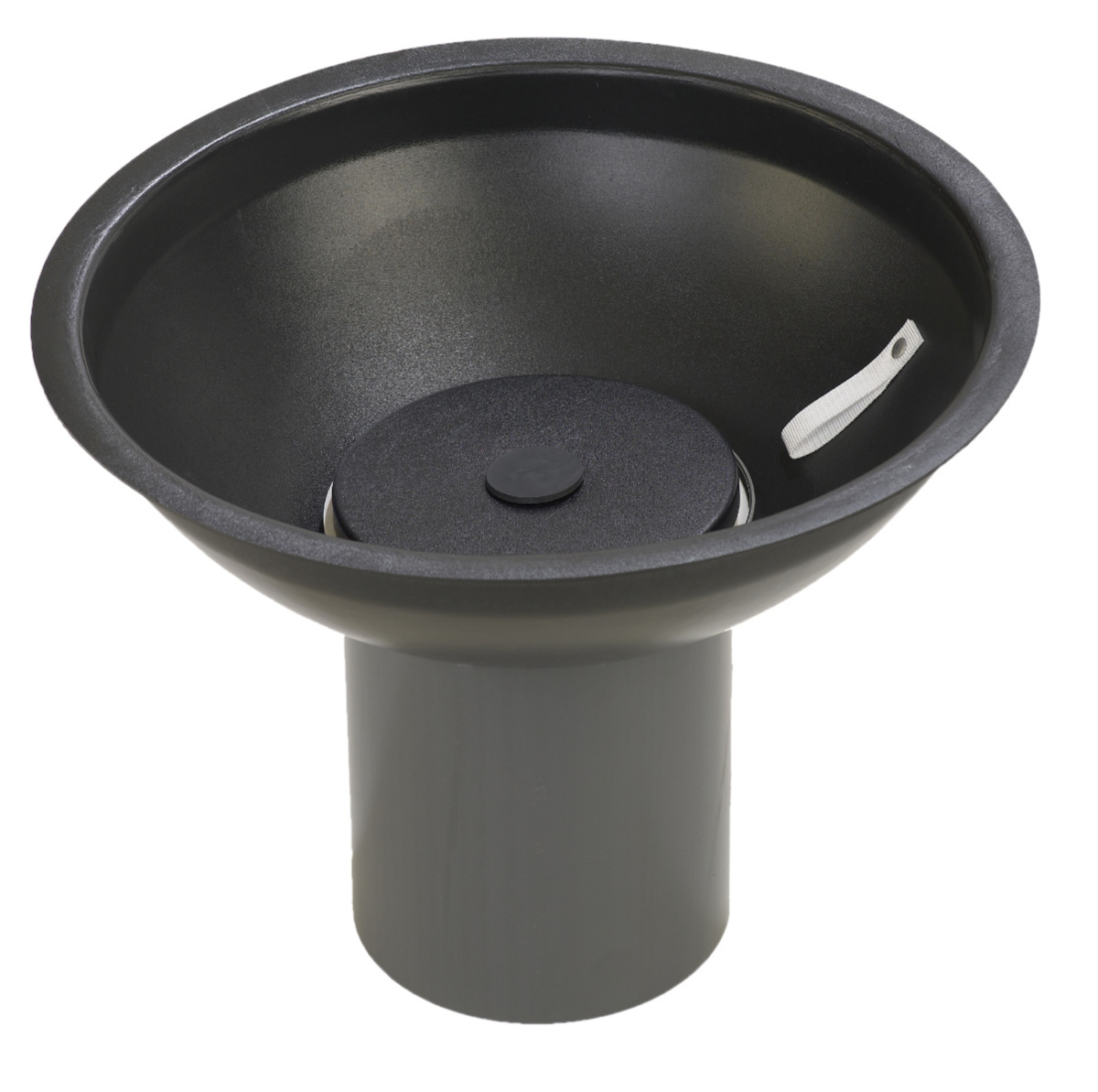

Simple Solutions Distributing Wolverine Brand Manhole Odor Filter Insert

Hydrogen sulfide-based sewer odors emanating from manhole covers are an extreme nuisance for residential homeowners or users of nearby public facilities. Simple Solutions Distributing offers the Wolverine Brand Manhole Odor Filter Insert to combat the issue. Made with durable and corrosion-free high-density polyethylene copolymer, each odor insert is made to order based on specific manhole measurements. The insert sits flush on the rim so it won’t interfere with the installation or removal of the manhole cover. They install easily with no tools necessary. Each insert comes with the initial 20 pounds of H2S SULFUSORB activated carbon and its H2S breakthrough indicator to let the user know when maintenance is required. The insert requires no routine maintenance other than occasional replacement of the carbon, which is easily replaced and does not require removal of the insert from the manhole. 866-667-8465; www.industrialodorcontrol.com

Manhole Liner

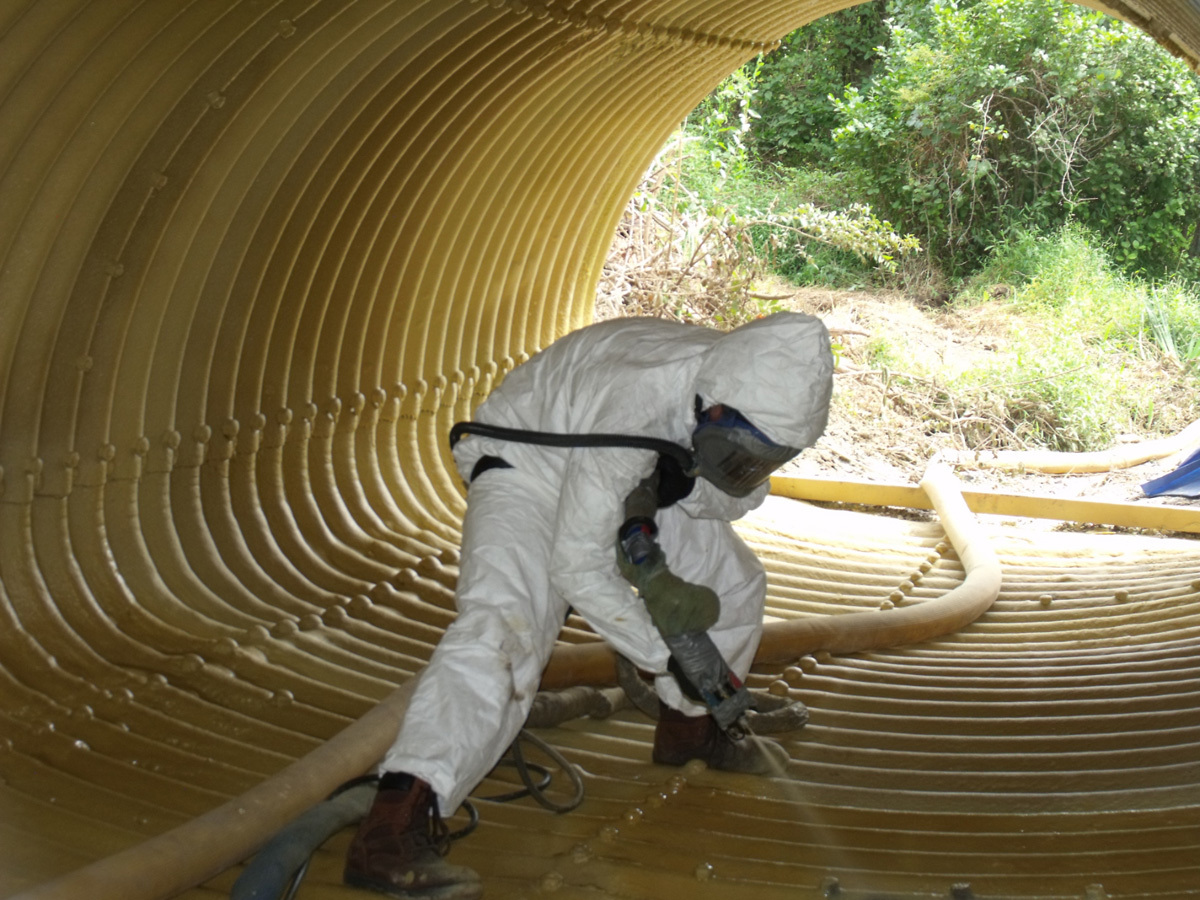

Sprayroq SprayWall

SprayWall from Sprayroq is a rigid polyurethane material that provides structural integrity and infiltration control to underground infrastructure assets. It is a 2-1-ratio product that is applied via a heated, plural component spray system. It begins to gel in about eight seconds and is tack-free after two minutes. Within 30 to 60 minutes, the initial cure is complete and the structure is capable of accepting flow. The benefits include its structural capacity, which provides for protection against multiple load components within an underground asset including water, soil and traffic loads. In addition, it allows an asset owner to return a structure to service quickly, creating a huge savings on bypass cost, as well as decreasing the overall downtime for a given structure. It is also third-party tested and most recently has undergone significant successful evaluations through AASHTO. 205-957-0020; www.sprayroq.com

Manhole Parts and Components

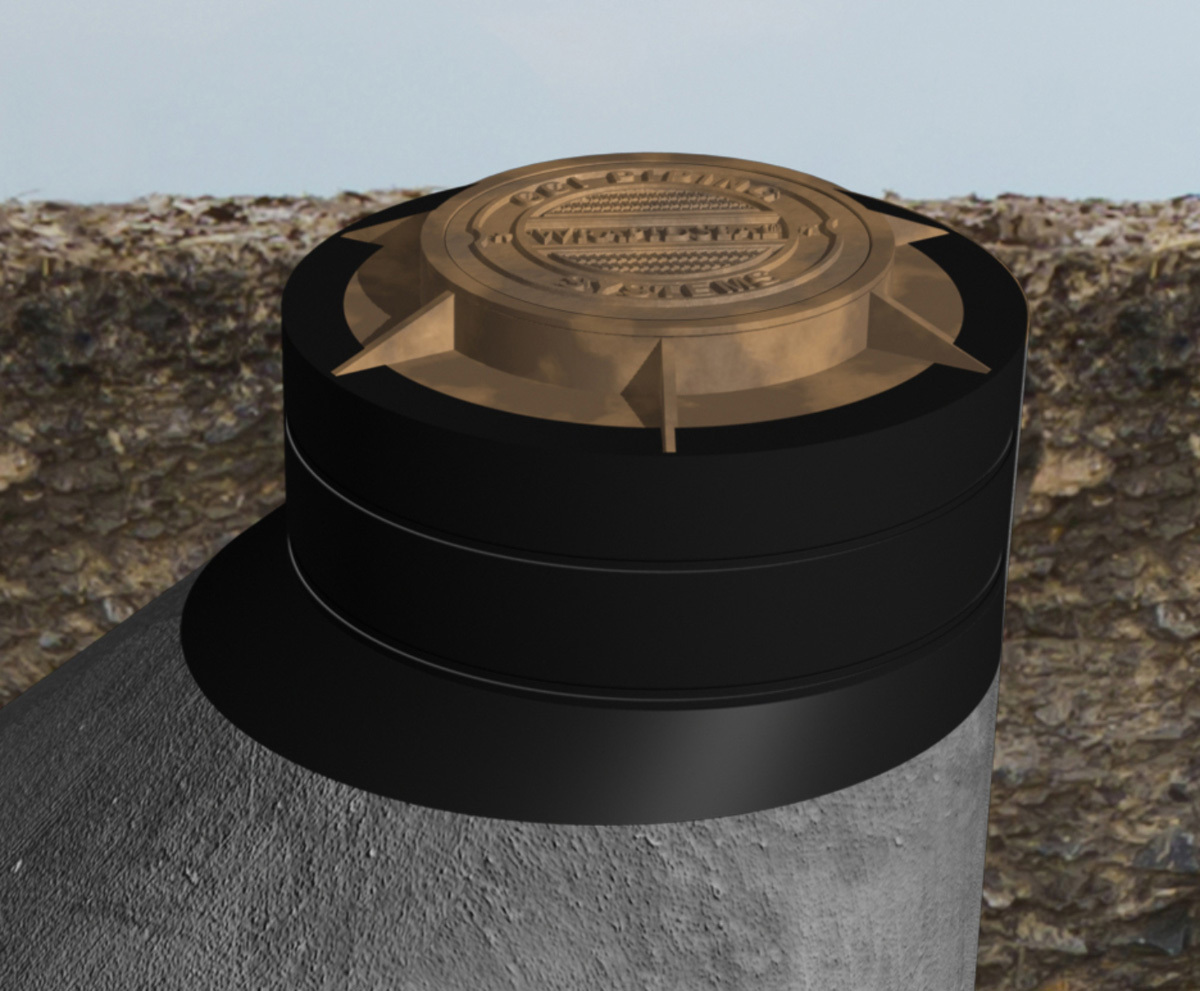

CCI Piping Systems WrapidSeal Manhole Encapsulation System

The WrapidSeal Manhole Encapsulation System from CCI Piping Systems consists of an engineered primer and a wrap-around, heat-shrinkable sleeve designed to seal joints and prevent groundwater from entering a collections system. This material has a high-shrink membrane (70% stretch and 40% recovery) designed to shrink around any manhole profile. In addition, the high-tensile strength accommodates structural movement while the tough backing resists soil stress and provides suitable abrasion resistance. It can be used for new construction or for the rehabilitation of existing manholes to control infiltration through joints and prevent deterioration, thus eliminating costly maintenance repairs and the added expense of treating groundwater. 800-867-2772; www.wrapidseal.com

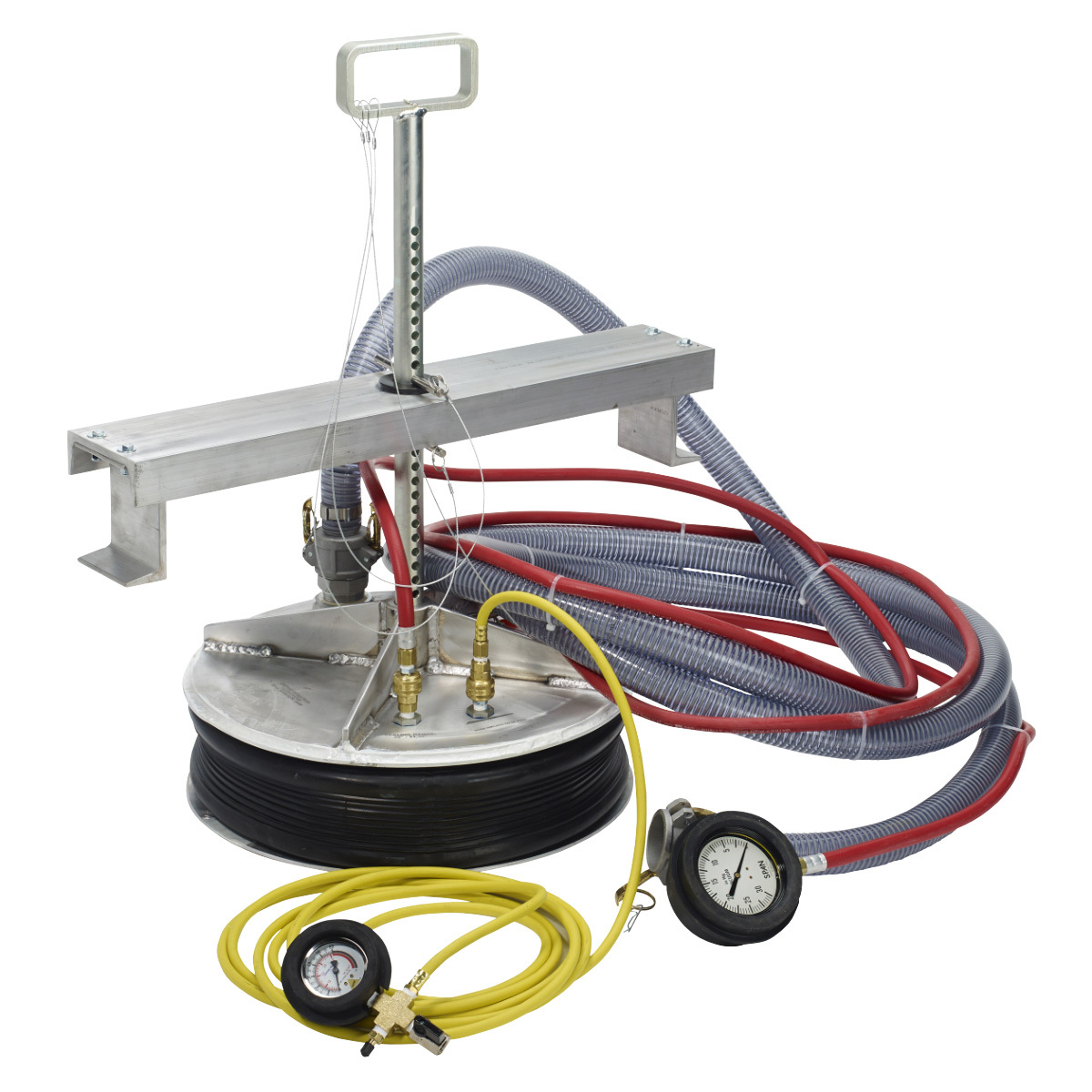

Cherne Air-Loc Bladder Style Manhole Testers

Cherne Air-Loc Bladder Style Manhole Testers provide an efficient, cost-effective method of testing new, existing and rehabilitated manholes, per ASTM C 1244. The testers, supported by an aluminum brace, seal the inside diameter of the manhole at the frame or core. The pushpin rod design enables easy depth adjustment. The remote inflation and monitoring system keeps users away from the danger zone. They are available in 10 variations. 800-321-9532; www.cherneind.com

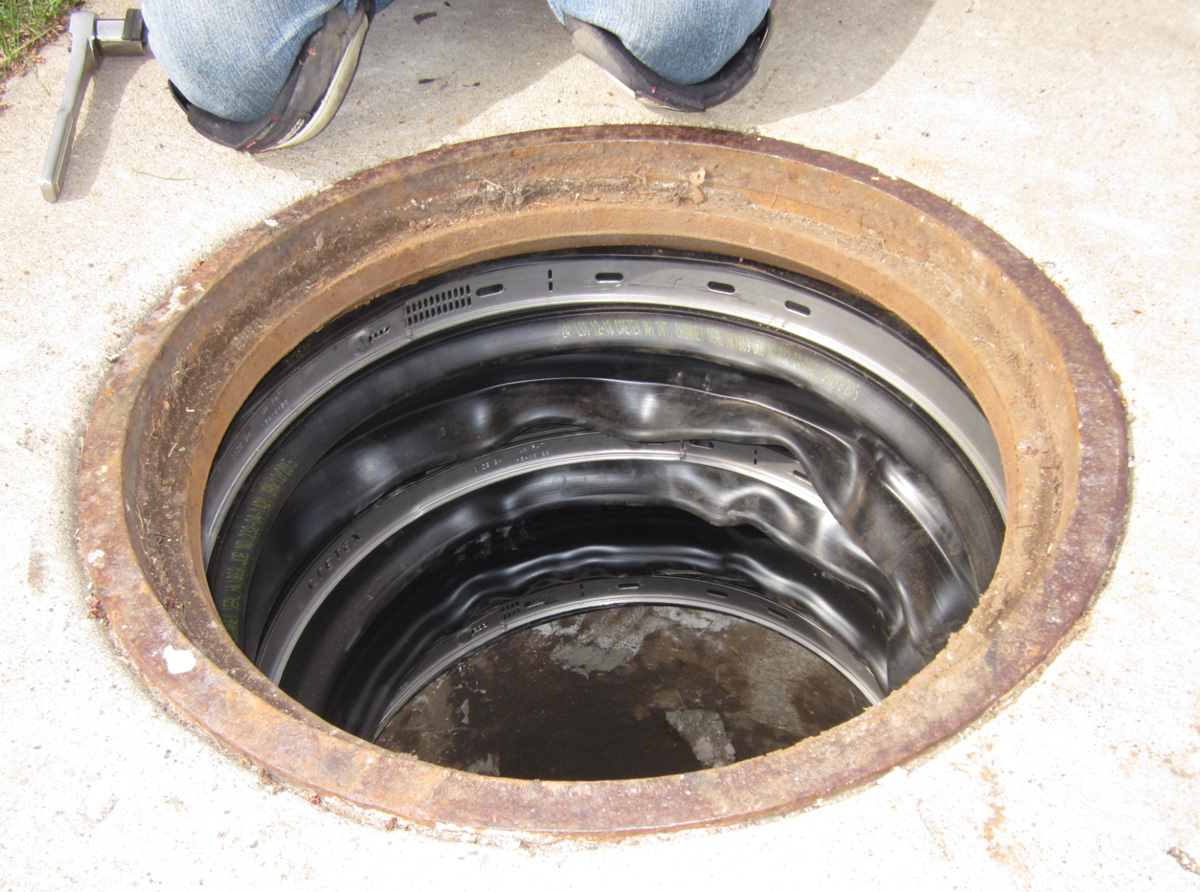

Cretex Specialty Products Internal Chimney Seal

Cretex Specialty Products Internal Chimney Seals are mechanical, so there is no need to worry about surface adhesion or stopping active leaks prior to installation. The seals eliminate and prevent manhole chimney inflow. During wet weather, clear water enters the manhole through deteriorated and broken chimney joints, which may burden the collections system. The chimney seal has a 50-year design life and is available in four widths, allowing complete chimney coverage up to 24 vertical inches with a single seal. 800-345-3764; www.cretexseals.com

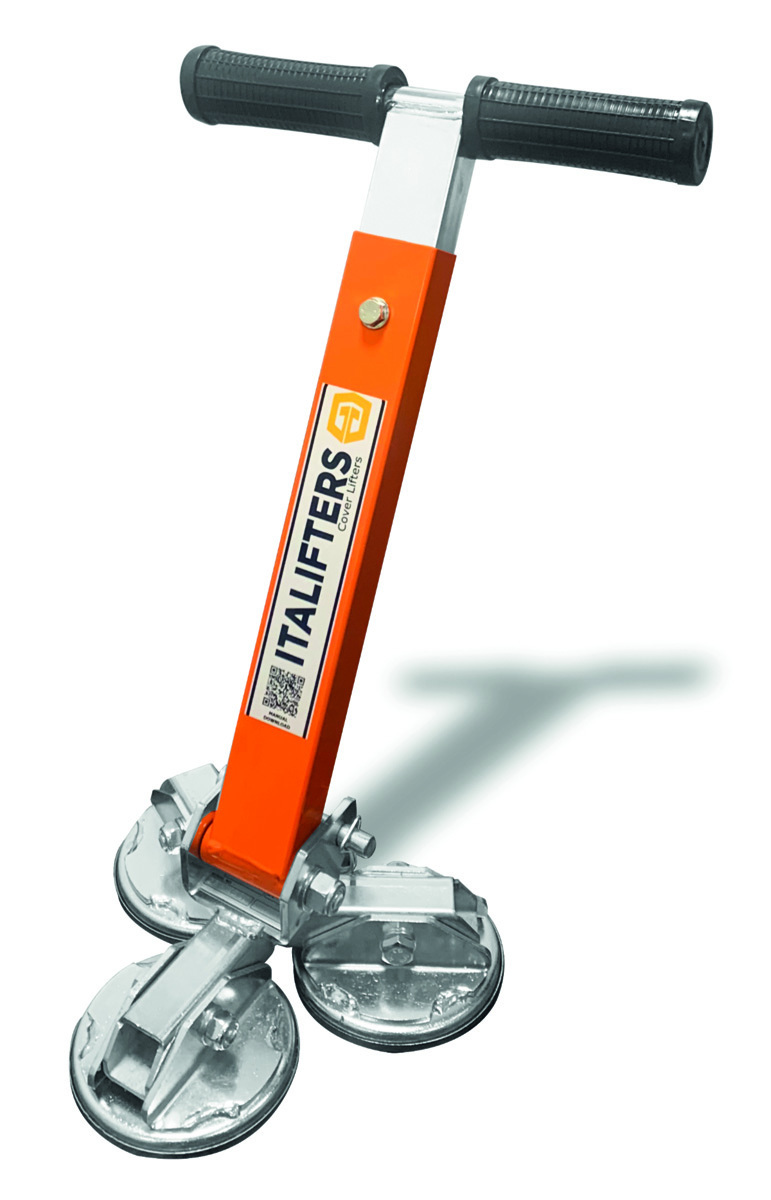

Italifters XT10

The XT10 from Italifters is a universal magnetic manhole cover lifter with triple movable magnetic plate. It is suitable for lifting, moving and repositioning most manhole covers, drains, cast iron grates and ferrous materials. It is specifically ideal for linear, deformed and damaged manholes caused by traffic load. Its triple magnetic plate has a total of 27 neodymium magnetic pads, which grant an optimization of the magnetic contact and a superior adhesive force. Its handle is telescopic, to allow ergonomics and minimal space for transport and stocking. Using the tool is simple, fast and intuitive. www.italifters.com

Mr. Manhole Water Valve Rebuild Package

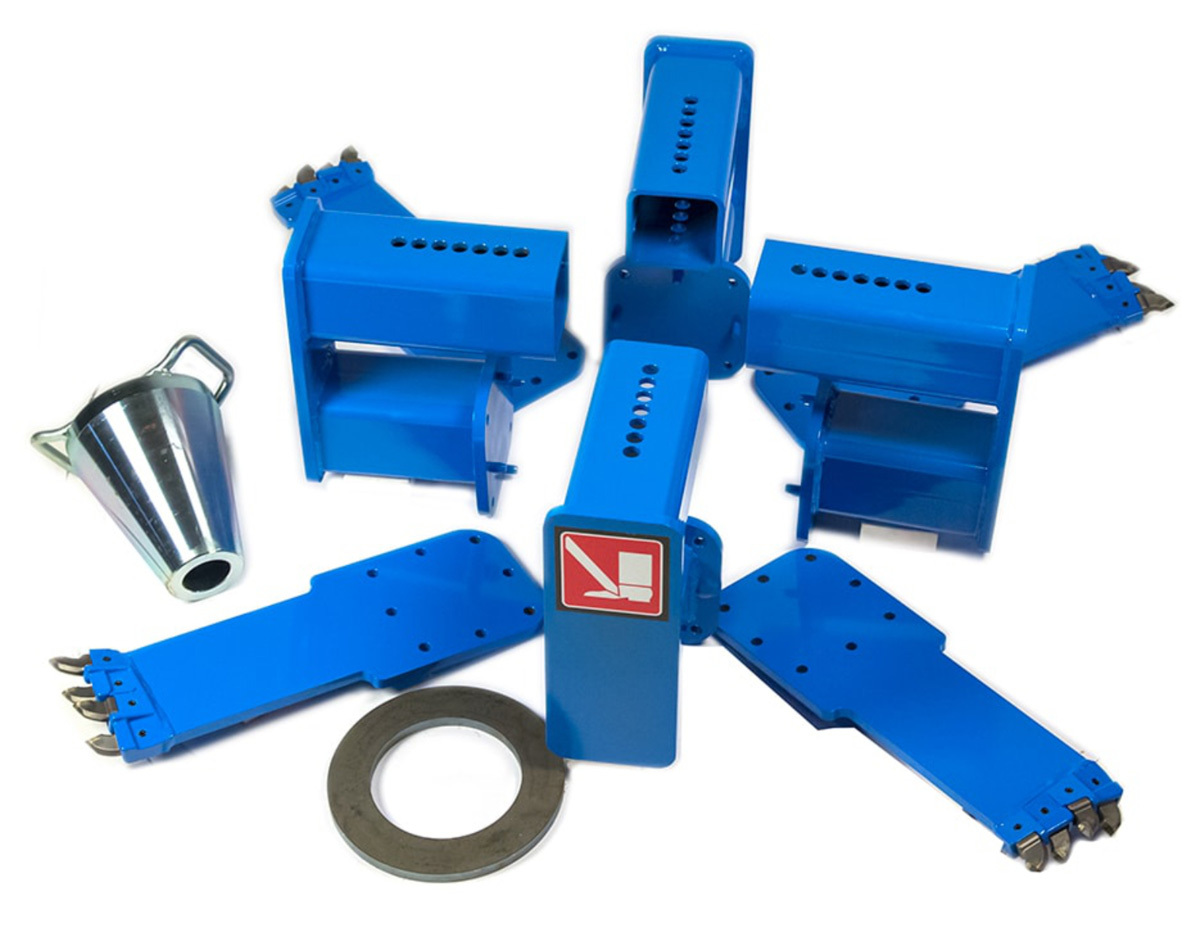

The Mr. Manhole Water Valve Rebuild Package offers an efficient solution for water valve rebuilds, especially after paving operations. It is a rebuild system for water valve boxes in the street, which often go unrepaired after a paving operation simply because people don’t realize they can be easily adjusted using this simple and effective method. The system allows for easy adjustment of water valve boxes, significantly reducing the cost and complexity of rebuilding. It includes an underslung adapter (for the Mr. Manhole cutter) and a reduced-diameter cutting blade designed for precision, capable of cutting diameters from 28 to 38 inches. This adaptability is crucial for different sizes of valve boxes, ensuring a centered and accurate cut every time. 833-242-2221; www.mrmanhole.com

RELINER/Duran Manhole Invert Channel

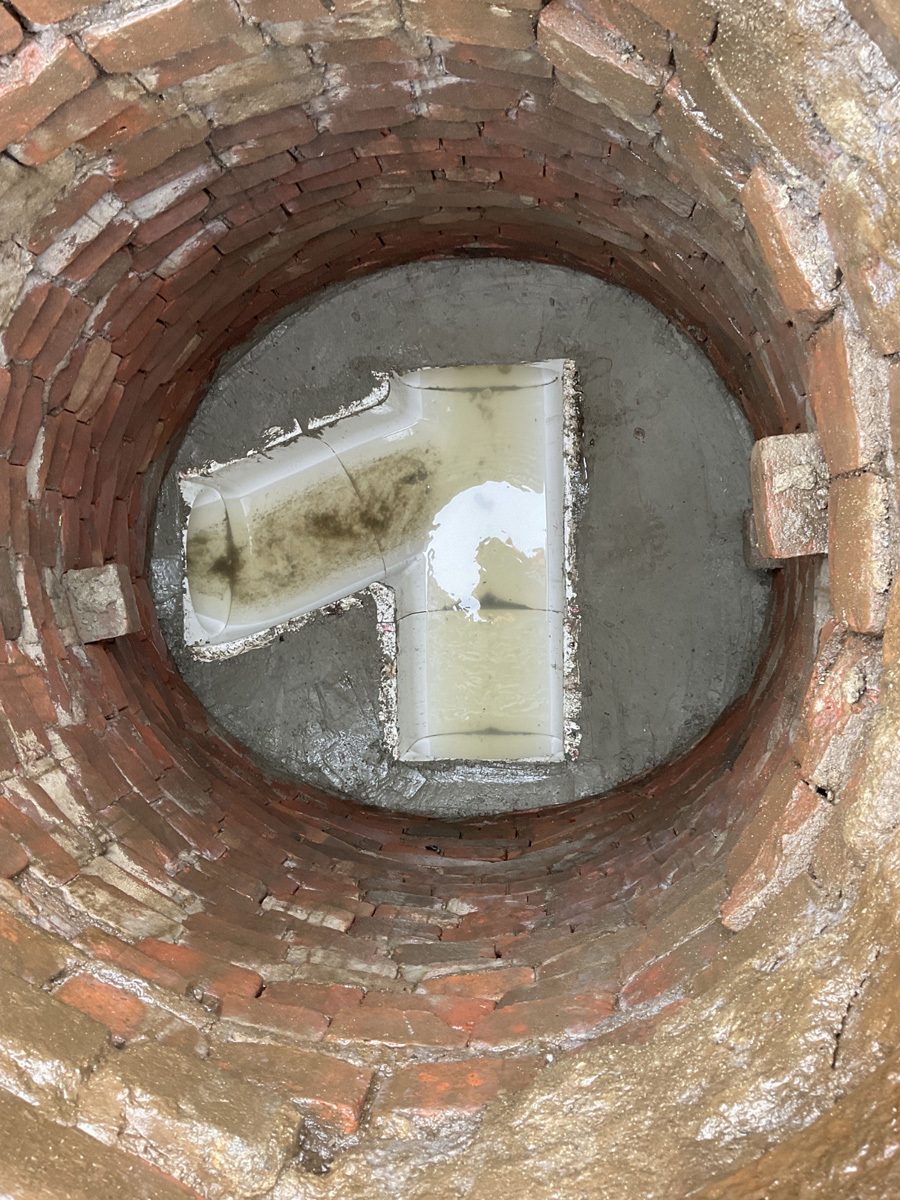

Improve manhole hydraulics with RELINER/Duran Modular Manhole Invert Channels. Molded fiberglass flumes with smooth sewer pipe interfaces are used to rehabilitate inverts without flow interruption and can be used for new construction. The field-installed modular components bolt together inside the manhole and serve as the form for a new concrete bench. The channels eliminate the inconsistencies associated with field-formed concrete channels. The full-depth lined channels are high flow and easy to clean and maintain. Standard 8- and 12-inch-depth channel sections fit through a 24-inch manhole frame and will accommodate 6- through 12-inch pipes. Larger sizes are available. 800-508-6001; www.reliner.com

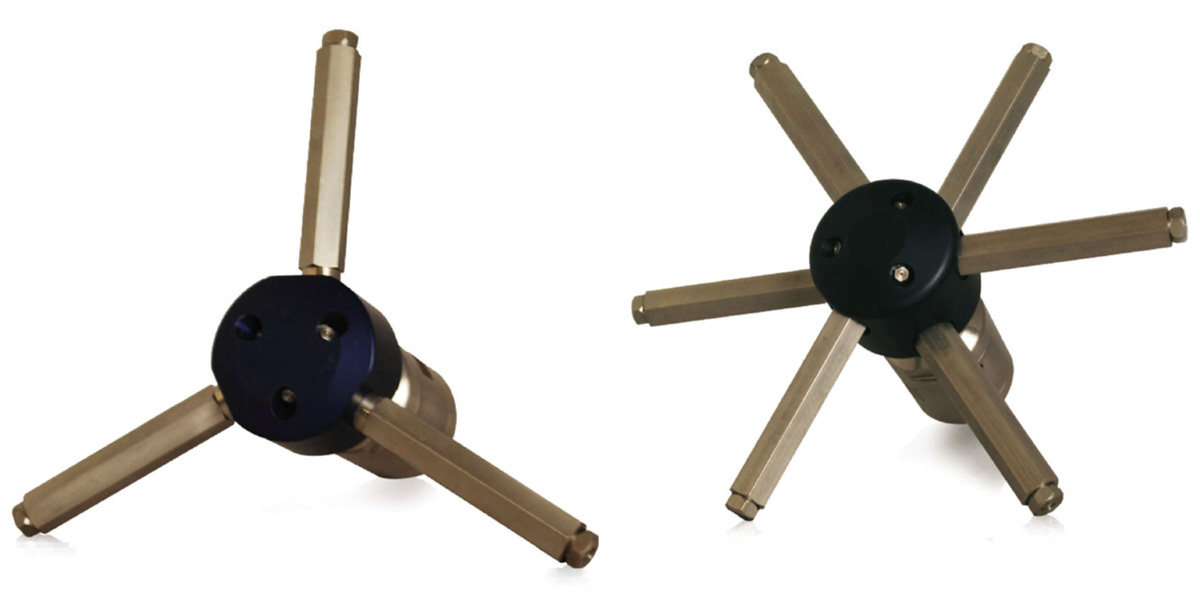

USB-USA Spin-Jet

The Spin-Jet from USB-USA is a self-centering, controlled rotating nozzle that is used for cleaning lift stations, barrels and manholes prior to rehabilitation. Available in two different versions, it has driving nozzles that rotate in a 360-degree horizontal plane only. This action eliminates the need to cover the manhole during operation, allowing for constant viewing of the cleaning process. Front jets thoroughly clean any grease, sludge or mud at the bottom. 844-285-5770; www.usb-usa.com

Safety Equipment

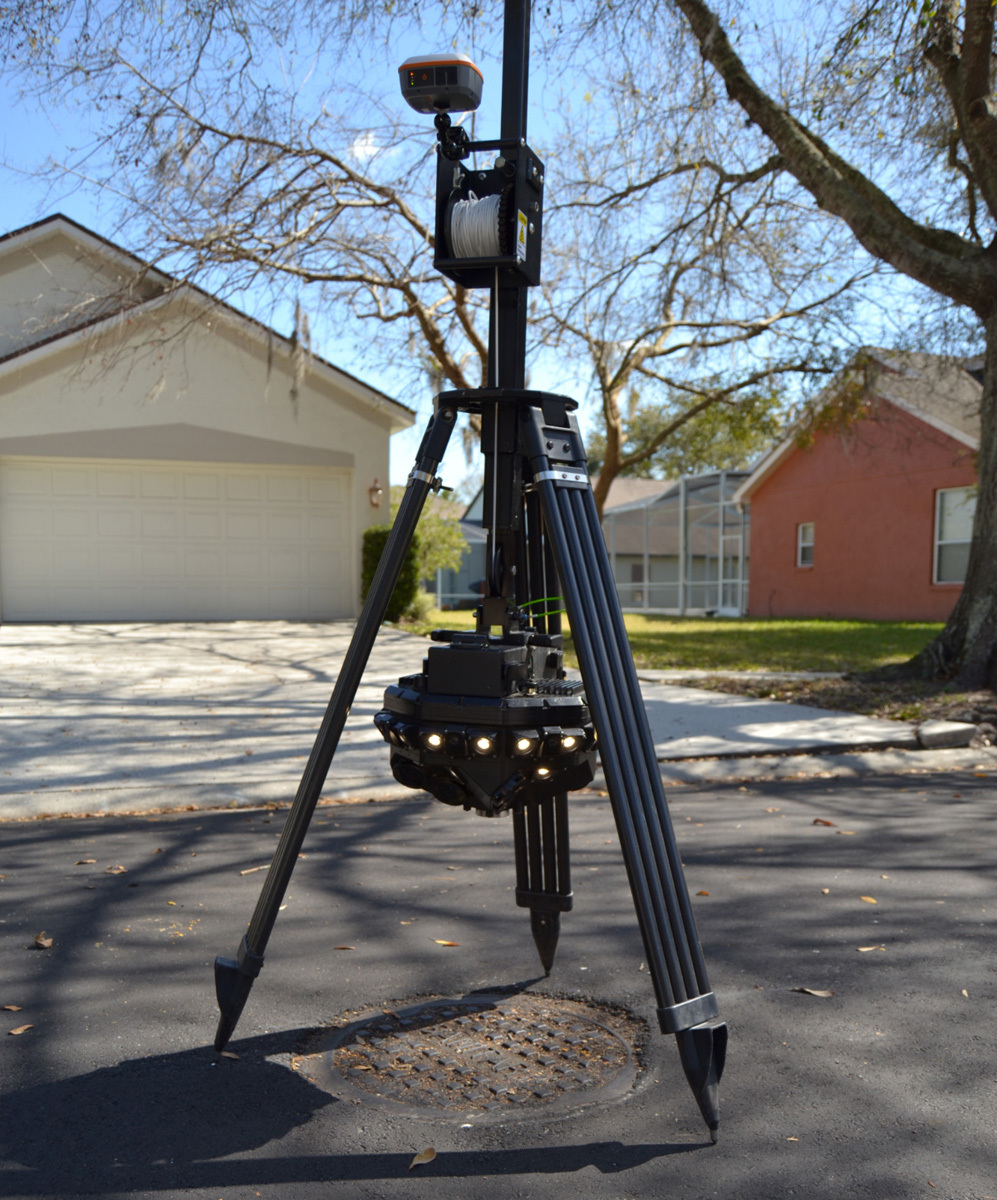

CUES SPiDER

The CUES SPiDER allows technicians to inspect vertical structures in minutes, helping them make reliable repair decisions. It is flexible enough to inspect structures from 15 inches to 15 feet wide and up to 75 feet deep. It allows for a rapid inspection time with a nonstop rate of descent of 5 feet per minute. Its portable design eliminates excess hardware like cables and footage encoders. Its durable and waterproof solid aluminum design has been field-proven in over 250,000 inspections exhibiting minimal maintenance. The easy process can get the technician started inspecting in minutes out of the case. Lenient technology minimizes the rules to inspect and ensures assessments are done right the first time. Quality control tools are available to the field crew and office staff. It features automated data transfer from the field to the office, with accurate results with sub-inch 3D models and embedded GPS. It is compatible with all NASSCO-certified software. 800-327-7791; www.cuesinc.com

Sealants

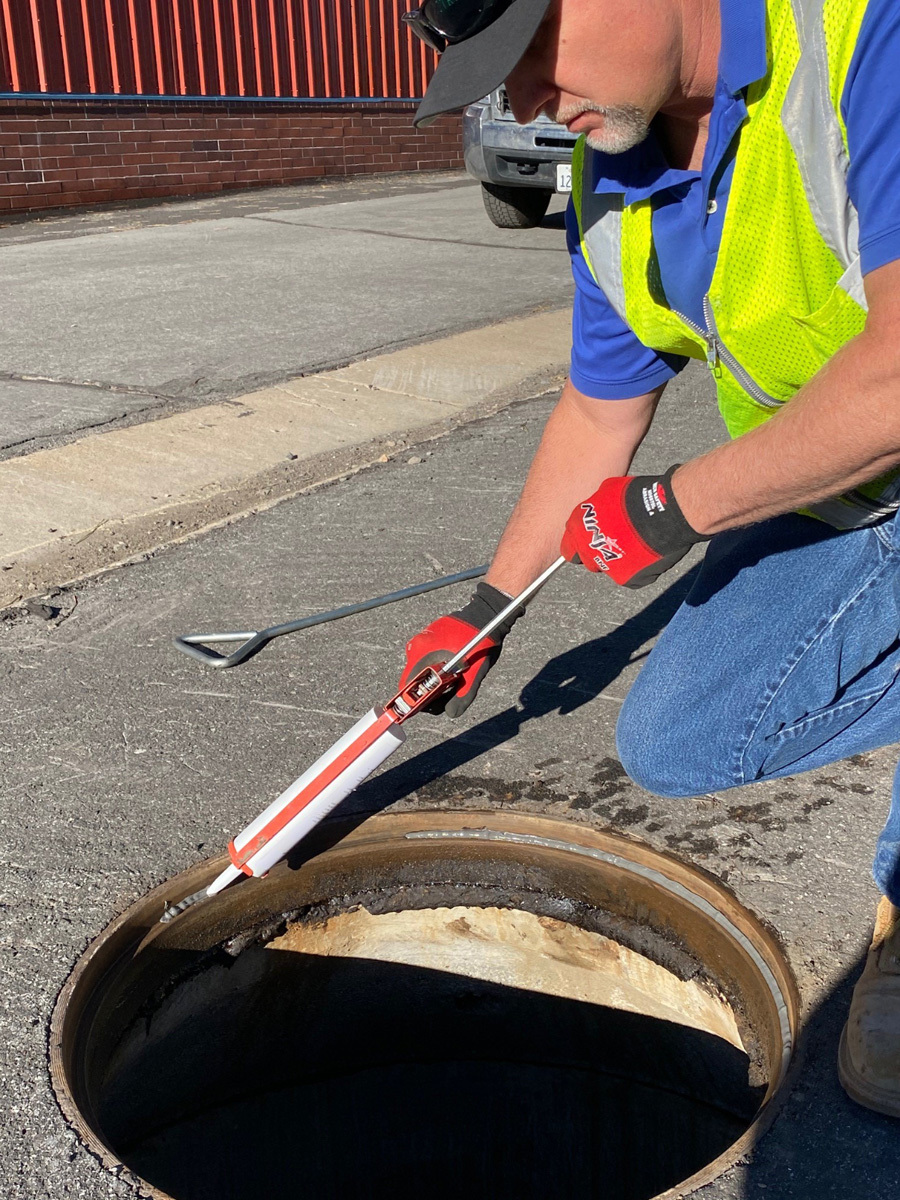

Oatey Hercules Shutout

Hercules Shutout from Oatey seals and lubricates manhole covers to reduce inflow. It is a safe, job site-ready solution compatible with most manhole installations. It is designed to enhance existing seals by filling voids and defects within the manhole cover and seat. It creates a water barrier between surfaces, reducing the likelihood of corrosion and lubricating the manhole cover to allow for easier and safer removal. It is easy to transport and requires no measurements or pre-planning. It can be applied easily with minimal surface preparation. Monitor inflow to reapply as needed. 800-321-9532; www.oatey.com

Sealing Systems Aqua Seal

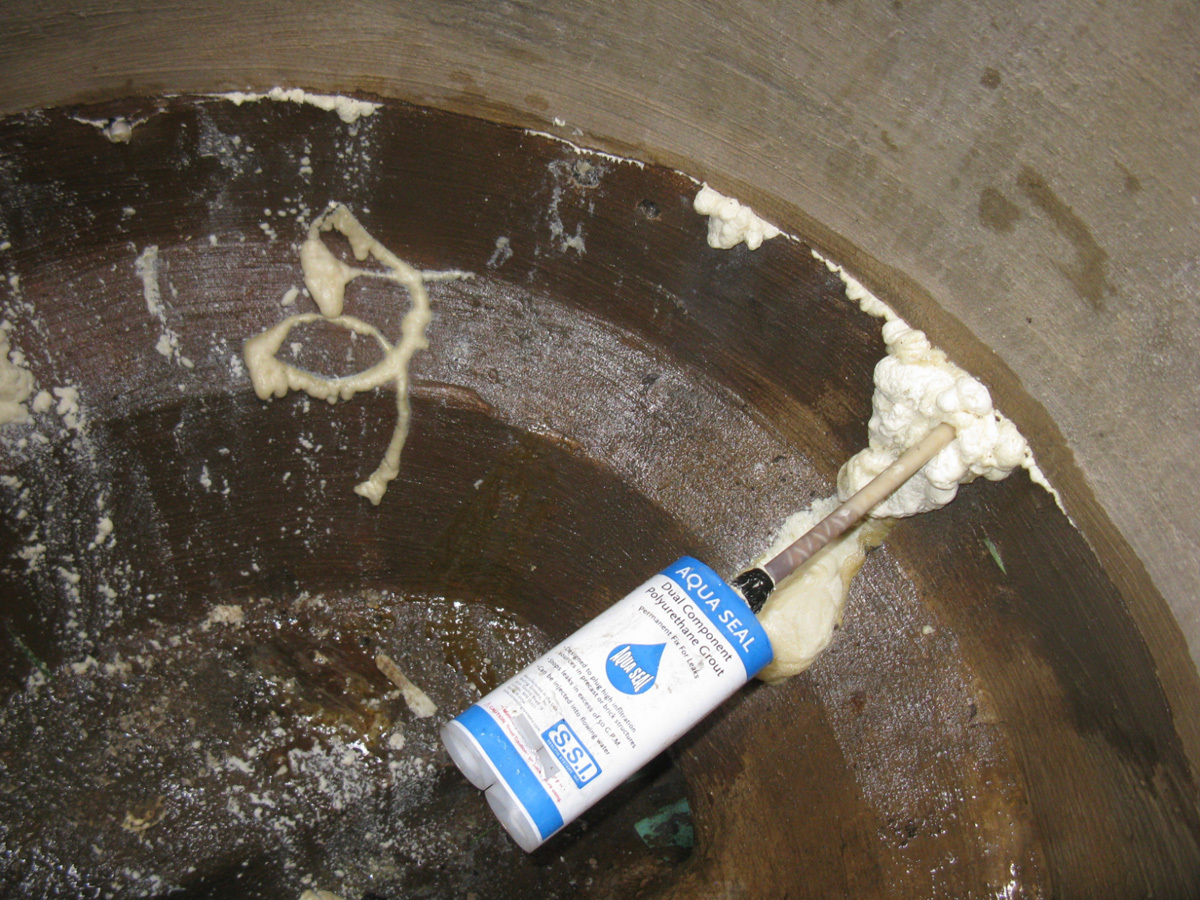

Aqua Seal from Sealing Systems is an extremely reactive two-component hydrophobic polyurethane water stop system that can be injected into flowing water. It is an exceptionally fast reacting (3-5 seconds), quick sealing and high-early-strength grout that is pumped under pressure. It is designed to stop high infiltration sources in precast or brick structures and can stop leaks in excess of 50 gpm. It comes packaged with 12 600 mL dual-component urethane caulk tubes along with 12 static mixers. Since only a heavy-duty dual-component caulking gun is required, cities can easily install it with in-house maintenance crews. A user-friendly pneumatic gun is also available to provide a faster and more efficient installation. 800-478-2054; www.ssisealingsystems.com

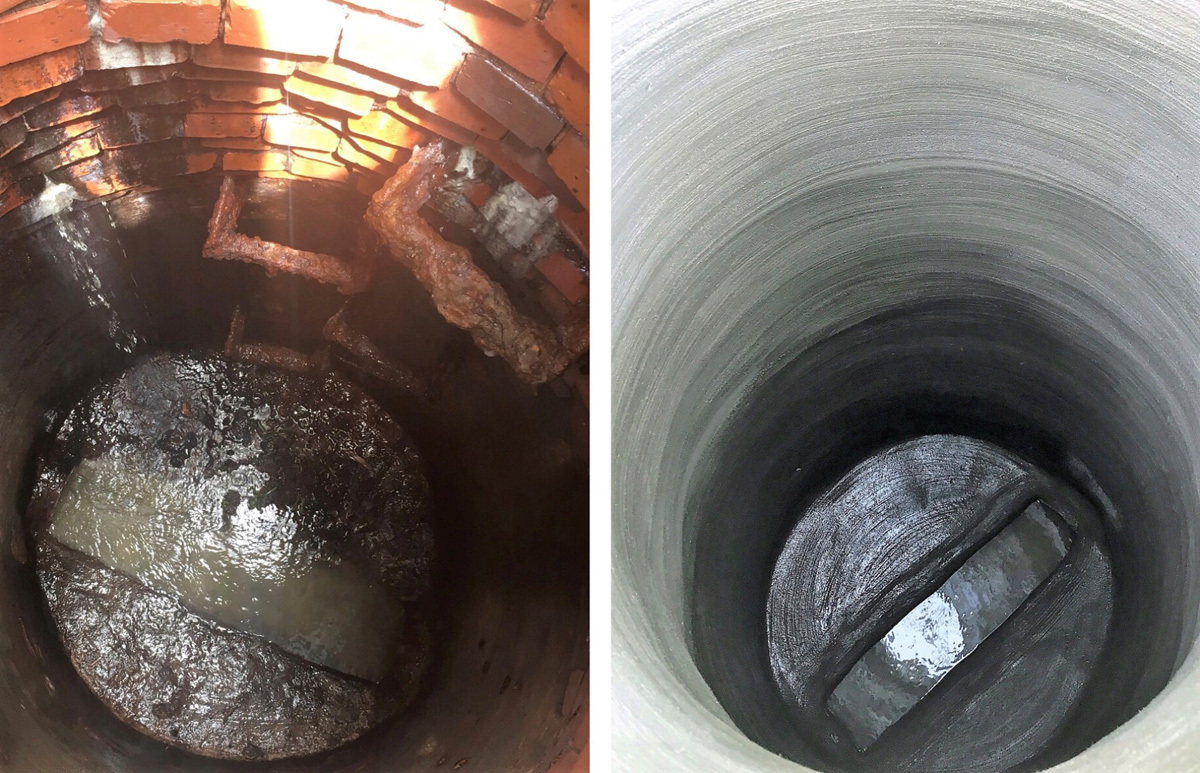

The Strong Company Strong-Seal System

The Strong-Seal System from The Strong Company offers a variety of cost-effective engineered cementitious products designed to rehabilitate municipal concrete and masonry structures and effectively stop inflow, infiltration and exfiltration. When spray-applied to a minimum of 1/2-inch thickness, the cementitious mortars are an impervious monolithic liner with compressive and flexural strengths exceeding that of the original structure. Both MS-2A and MS-2C are fiber-reinforced spray-applied cementitious mortars. Made with Portland cement, MS-2A is the most cost-effective solution for stopping infiltration and restoring structural integrity. MS-2C provides high early strengths and added corrosion protection in mild sulfide environments. High Performance Mix is a pure-fused calcium aluminate mortar that stops infiltration, restores structural integrity, and protects against microbiologically induced corrosion in sanitary sewer systems with harsh sulfide conditions (pH of 1.0 or greater). 800-982-8009; www.strongseal.com
