Data Loggers and Management

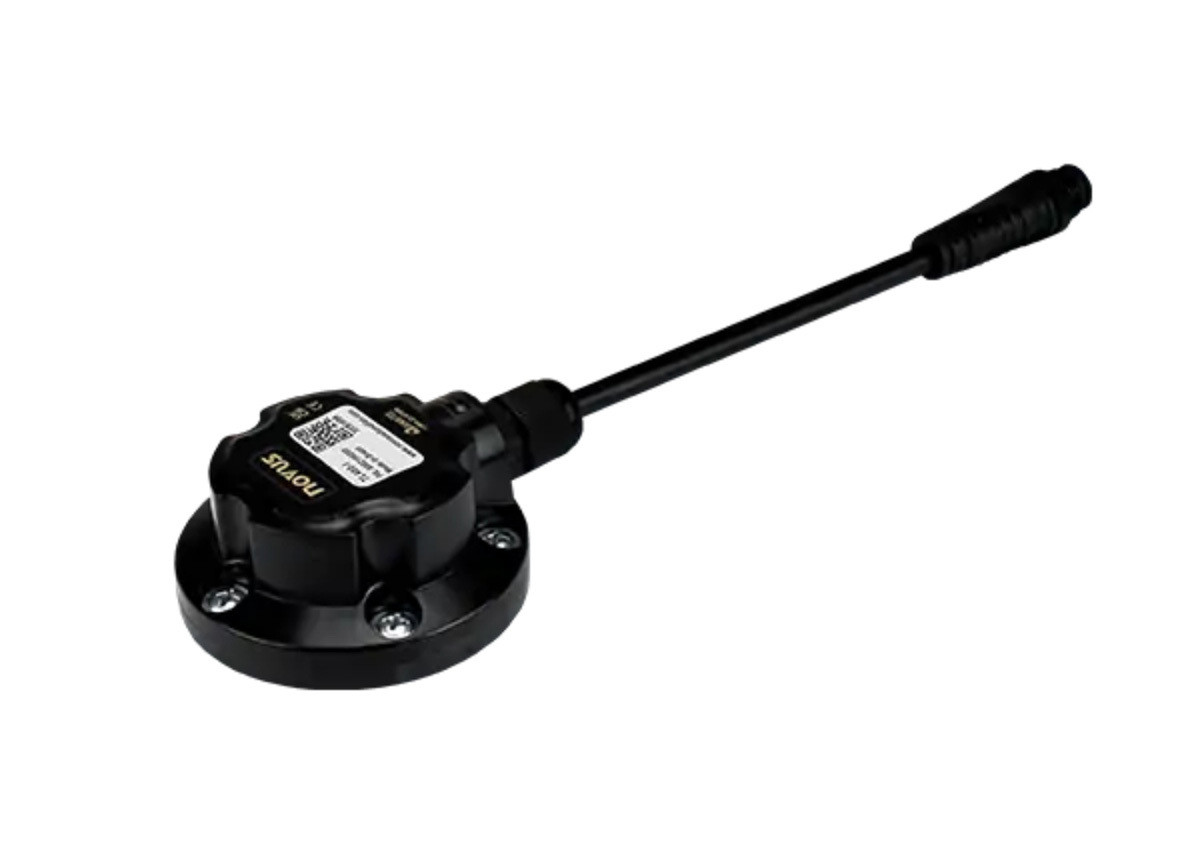

CAS Dataloggers TL400-I
CAS Dataloggers’ TL400-I level transmitter is designed for nonintrusive level and volume measurement in tanks. It utilizes low-power infrared laser time-of-flight measurements to determine the exact distance between the sensor and the surface of the contents of the vessel. It can be used to measure liquids such as water or solids like grains. An onboard processor provides advanced filtering capabilities to accurately measure stirred liquids and the ability to calibrate the output in volume with a 20-point linearization to accommodate irregularly shaped vessels. The TL400 can be easily configured using its Bluetooth interface and the Novus SigNow software for Windows PCs, iOS, and Android devices. 800-956-4437; www.dataloggerinc.com

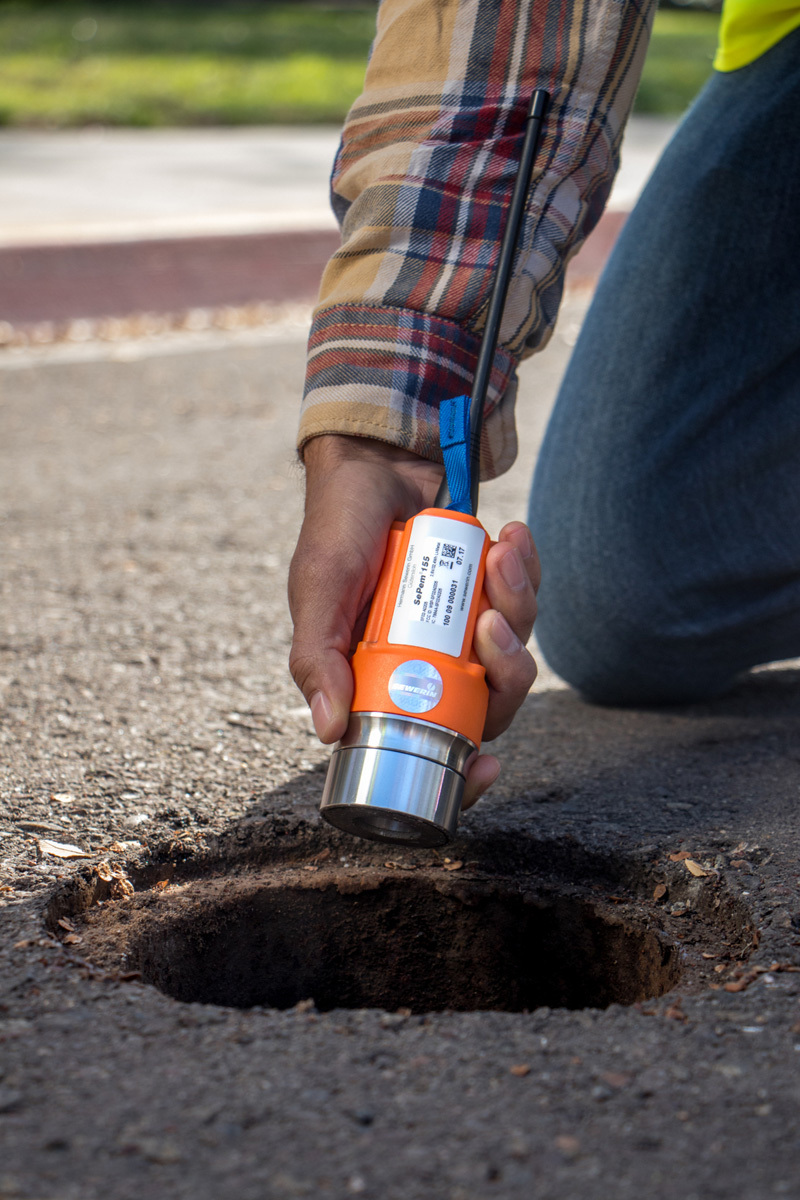

Hermann Sewerin GmbH SePem 155
Systematic monitoring of a water network with SePem 155 data loggers from Hermann Sewerin GmbH helps reliably identify existing leaks and catch new ones much earlier and faster than with conventional methods. In a pipe network, water loss caused by a number of smaller leaks added together is likely to be considerably higher than the loss caused by a few spectacular pipe bursts visible on the surface. Noise loggers are capable of reliably detecting both types of leak site — slowly growing and spontaneously occurring. These data loggers are ideal for mobile use and can also be used for the stationary monitoring of water supply networks. They provide fast and reliable results and can also be reliably operated by less experienced users. The measuring times and periods of radio activity are freely programmable. 888-592-9916; www.sewerin.com
Flow Control/Monitoring Equipment

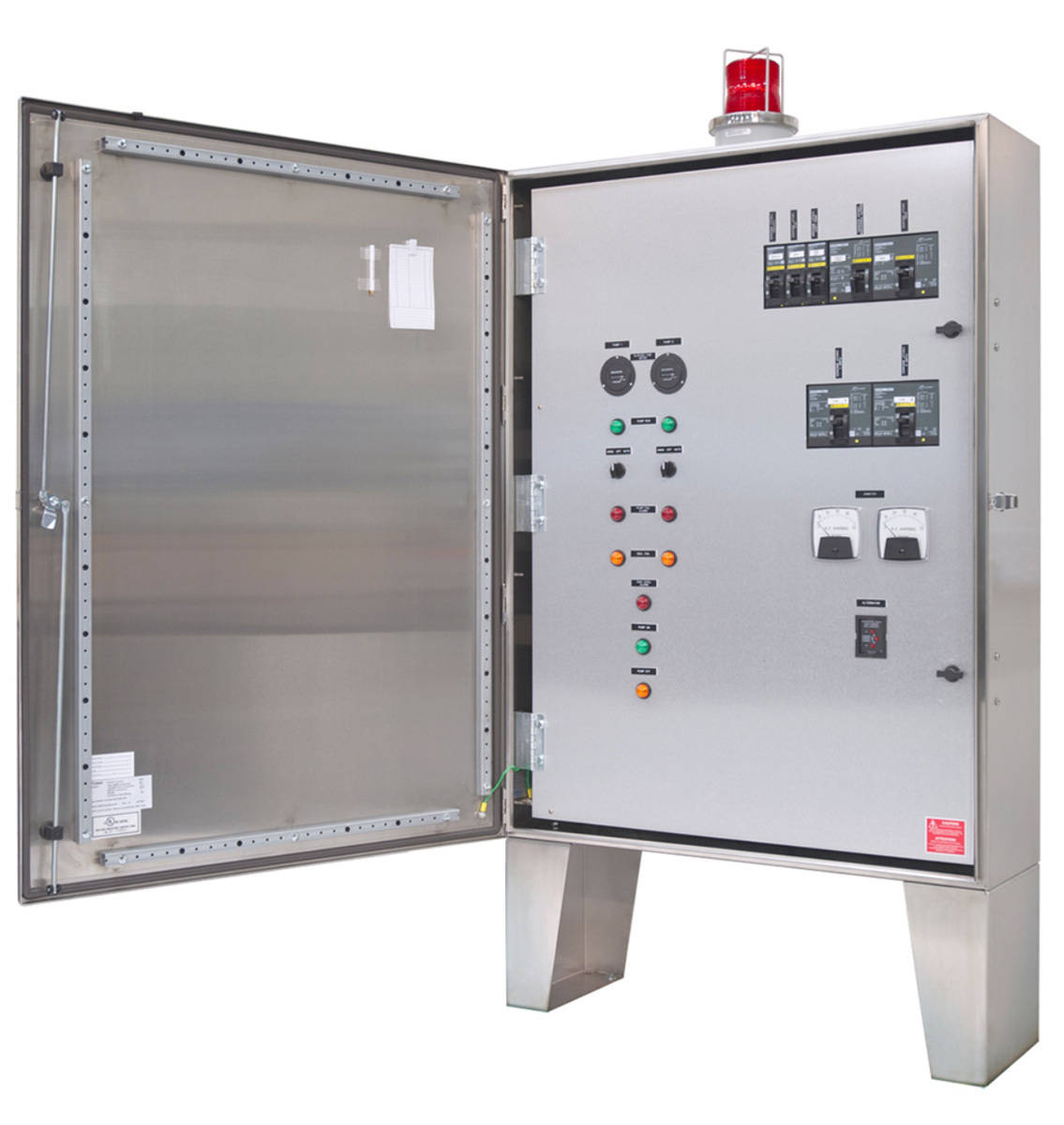

Orenco Systems OLS Control Panels
OLS Control Panels from Orenco Systems are designed and built for an array of municipal pumping applications including wastewater lift stations, stormwater pump stations, dewatering pump control, sludge pumping and freshwater boosting. The panels are available with Orenco Cloud service, which eliminates the need for a separate SCADA system. As another option, the panels can be connected to an existing SCADA system. Parameters can be configured with our user-friendly startup wizard via a remote computer or tablet or using the included touchscreen. Engineers will preprogram user interfaces to the site-specific needs of an installation, making the panel virtually “plug and play.” Maintenance staff can easily adjust settings and monitor the system remotely. The panels are weatherproof and UL 508A listed. They also include service-rated circuit protection, phase and voltage protection, and level controls. 877-257-8712; www.orencocontrols.com

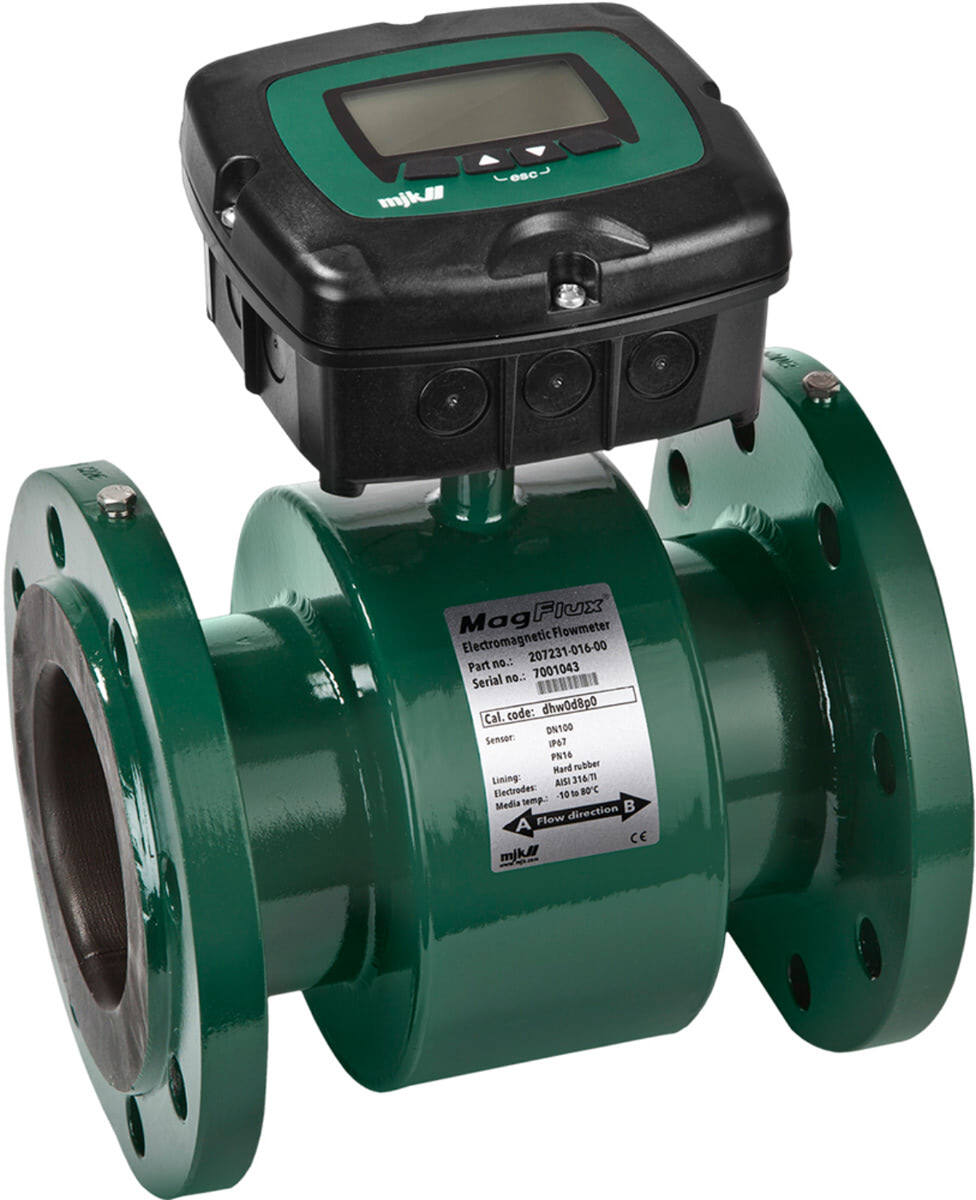

YSI, a Xylem brand MJK MagFlux 7200
The MJK MagFlux 7200 from YSI, a Xylem brand, is an electromagnetic flowmeter designed for optimal performance in drinking water and wastewater applications. Utilizing Faraday’s law, this mag meter ensures precise and reliable flow measurement, enhanced by its automatic self-cleaning function that prolongs electrode cleanliness and operational dependability. Select configurations are NSF-61 approved, allowing for safe deployment in applications that have direct contact with potable water. It delivers high accuracy even at low flow rates, with an accuracy of 0.25% down to 0.6 feet per second. Designed for easy installation in challenging environments, it requires minimal straight pipe of three times the nominal diameter upstream and two times downstream for full accuracy, making it suitable for various complex setups. The system offers flexible configurations for its display, converter and flowmeter. The display unit can control up to four flowmeters and be positioned up to 1,000 meters from the sensor, accommodating a wide range of installation requirements. 937-688-4255; www.ysi.com
Sensors

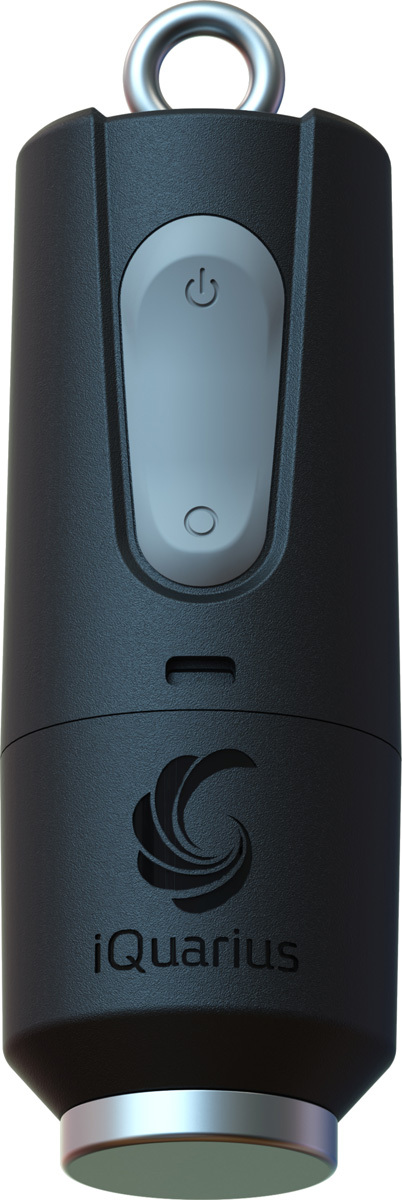

Aquarius Spectrum iQ100B
The iQ100B wireless acoustic sensor from Aquarius Spectrum enables listening to the pipe, performing leak survey and identifying leaks. It seamlessly connects to the cloud via a user-friendly Android or iOS mobile application on your smartphone or tablet. It enables hearing the audio recording in real time using the registered audio speaker (the local speaker or a wireless headset). Collected samples can be uploaded, viewed, and analyzed in a designated module in the AQS-SYS portal. The recorded audio is sent to the cloud for in-depth analysis, which classifies the audio as Leak/No-Leak, reducing dramatically the effort of the back-office man-in-the-loop. It has a robust IP68 rigid plastic enclosure, meeting the safety, radio and environmental standards (UL94, CE/FCC, IP68). The internal rechargeable battery has the capacity to last for five complete survey days between recharging (with an average survey of 8 hours per day). An RGB LED indicator visually indicates states of operation by color and sequence. www.aqs-systems.com

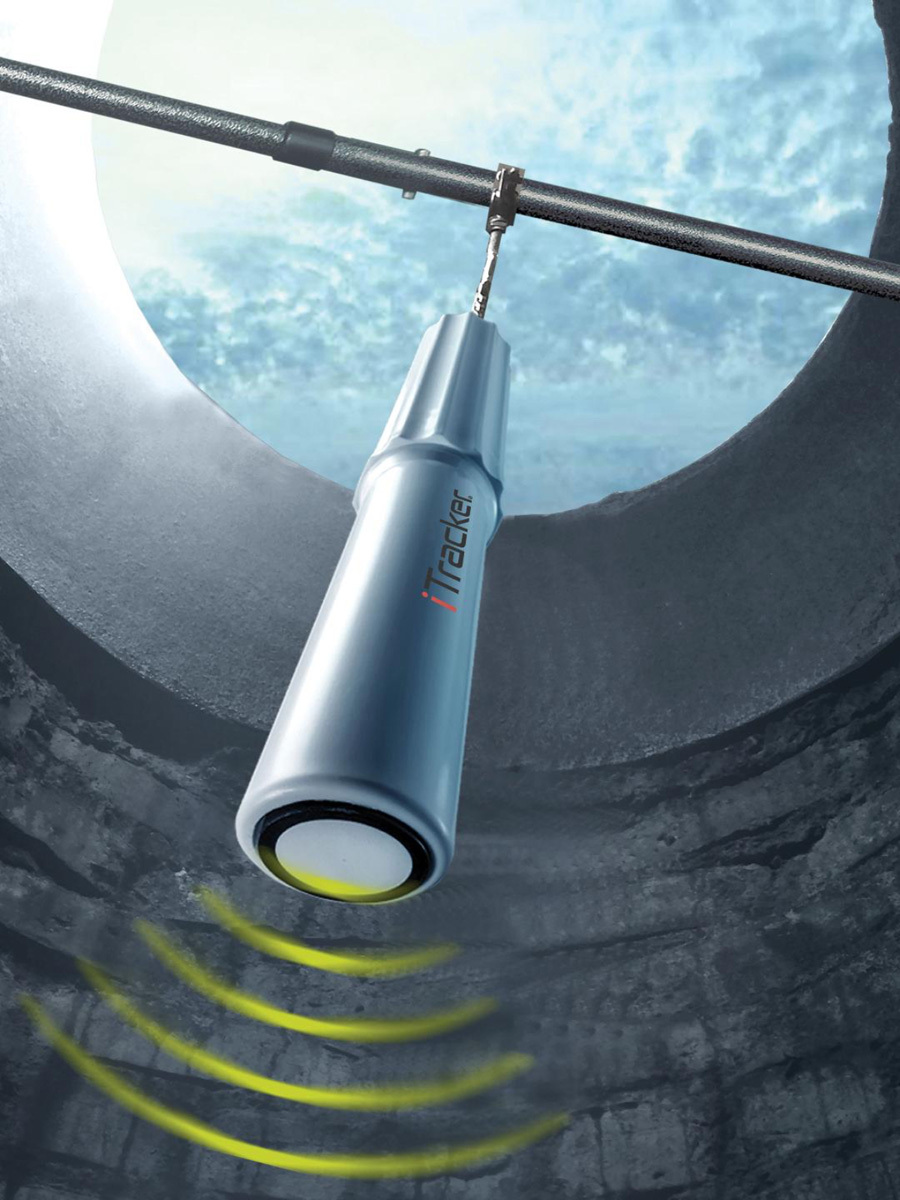

Eastech Flow Controls iTracking
By digitally integrating low-cost smart sensors with high-powered auto-analytical software, iTracking from Eastech Flow Controls delivers precision detection of I&I down to a set of adjacent manholes. Tedious and time-consuming interpretation of data is totally eliminated with its Cloud-based Automatic Analysis and Reporting features. Click a button, and results reports in PDF format are instantly presented along with on-demand animated videos highlighting the exact location of the I&I. At the heart of the system is a smart sensor standardly equipped with both Wi-Fi and cellular capability. iTracker sensors can be deployed in just 20 minutes without the need for confined space entry. Installation becomes so quick that a single two-man crew can install an entire high-resolution network of smart sensors in a single day. Once installed, all recorded data is efficiently managed through the Eastech Cloud, allowing users to quickly upload, analyze and “video” view the performance of their collection network. 800-226-3569; www.smartwastewater.com

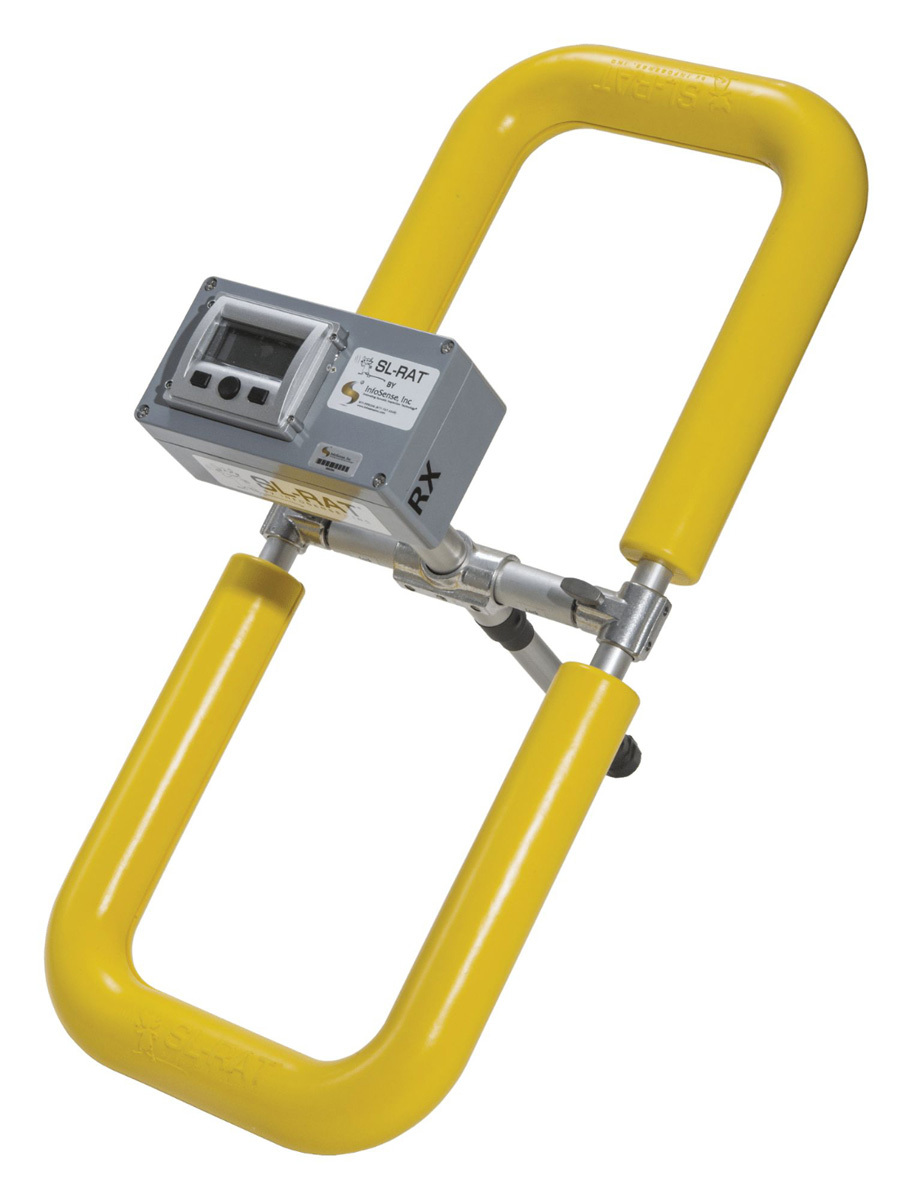

InfoSense SL-RAT
The Sewer Line Rapid Assessment Tool, or SL-RAT, from InfoSense is an acoustic inspection technology used to screen for blockages in small-diameter gravity sewers. It is a highly portable on-site assessment tool that utilizes transmissive acoustics to safely provide a very fast and low-cost understanding of blockage conditions. Hundreds of utilities around the world utilize the SL-RAT to rapidly screen collections systems and better deploy costly cleaning and CCTV resources. This technology offers real-time blockage assessments in 3 minutes or less with no flow contact. 877-747-3245; www.infosense.com
Software

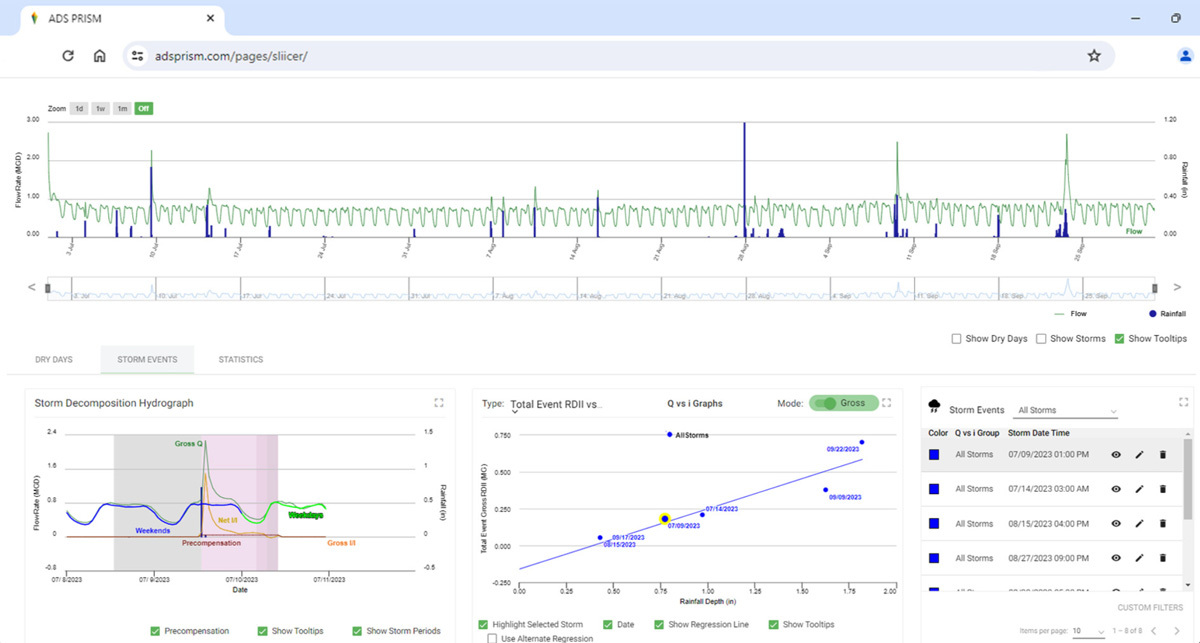

ADS Environmental Services SLiiCER Software
Identifying and managing I&I is a multifaceted issue that requires not only reliable methods for monitoring and capturing flow and rainfall information, but also comprehensive analytics for understanding both the big picture and the specific issues requiring action. The SLiiCER Software suite from ADS Environmental Services seamlessly pulls together all relevant I&I data in one place and gives system wastewater professionals a full set of analysis tools for creating studies, integrating rainfall events in relation to sewer performance, evaluating dry-day versus wet-day performance, mapping diurnal curves, and evaluating capital improvement rehab projects aimed at reducing I&I. Easy navigation between various tabs provides maximum flexibility for isolating and/or combining data, with visualization in a variety of graphical displays, including Dry Day Hydrographs, Storm Event Hydrographs, and Q-vs-i graphs, and the ability to control settings and vary assumptions. 877-237-9585; www.adsenv.com

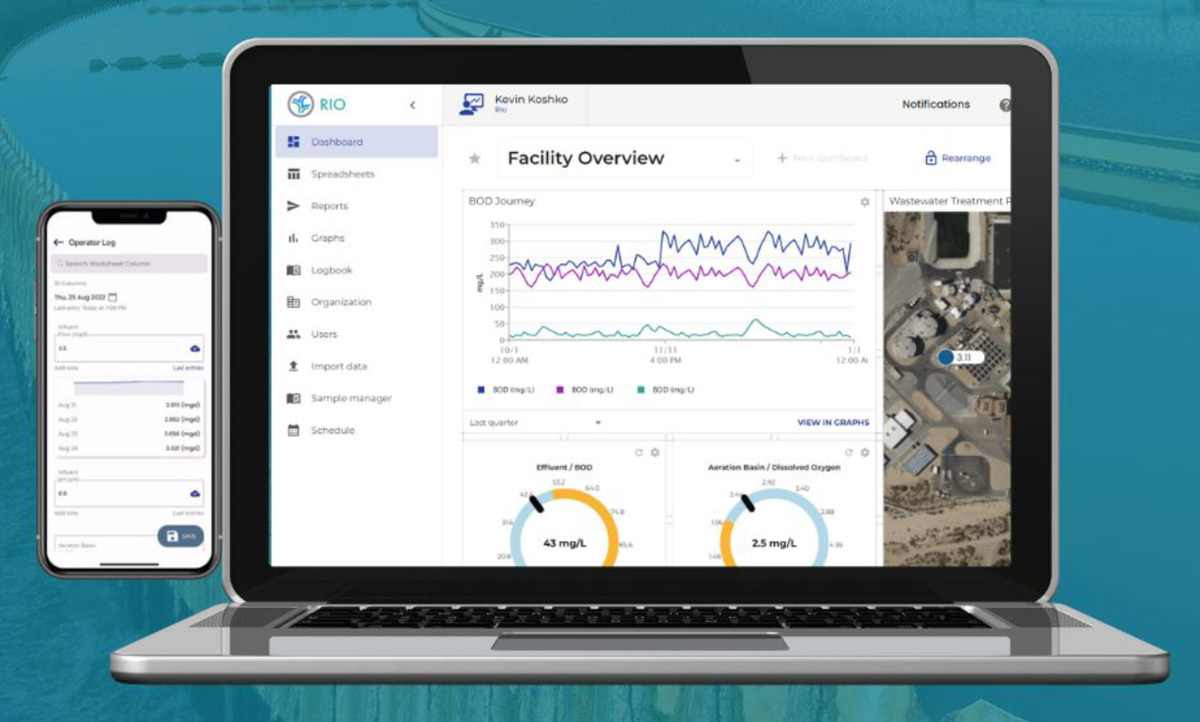

Aquatic Informatics Rio
Rio from Aquatic Informatics is a compliance and operations data management solution for water and wastewater professionals. It helps manage operations, compliance, data and reporting to stay ahead of risk and protect a community’s water supply. It can be used to centralize and organize compliance and operations data in a secure, online platform for a holistic view of the water system — integrated with electronic lab transfers and field data captured through mobile devices. It can also be used to unlock insights with data visualization and dashboards for optimized analysis and empowered decision-making. Its use can help ensure data accuracy with the calculation validation engine to produce reliable, accurate reports for regulatory requirements or internal operations. It also collects data remotely — while connected or offline — for improved visibility without any duplication of effort. It lets utilities achieve efficient, proactive operations by reviewing and analyzing data faster, supporting compliance and more informed decision-making. 877-870-2782; www.aquaticinformatics.com

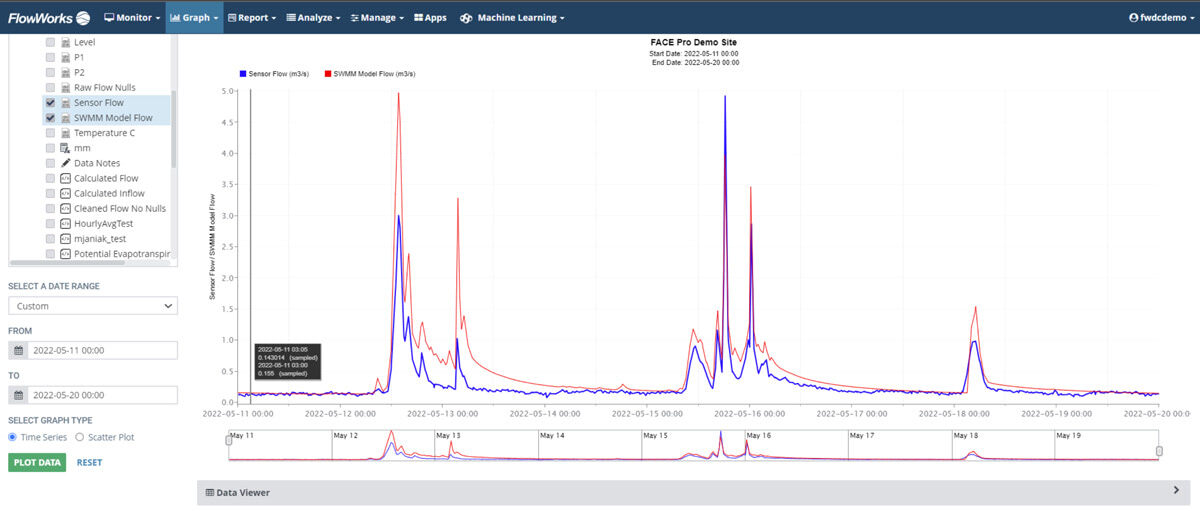

infinitii ai face pro
infinitii ai face pro, with “face” standing for “flowworks advanced calculation engine,” takes advanced calculations and related automation to another level. It has the ability to copy and paste Python, or R scripts and run them in real time against incoming data. This means that complex calculations including machine learning algorithms can run systemwide almost instantly. Use cases for this calculation engine include forecasting, anomaly detection, predictive maintenance and failure prediction. The types of advanced calculations easily performed include Soil and Water Integrated Model calculations that track and predict climate and land use change impacts at a regional scale, and evapotranspiration calculations used to estimate soil-moisture storage based on precipitation deficit and maximum capacity. 778-379-0275; www.infinitii.ai

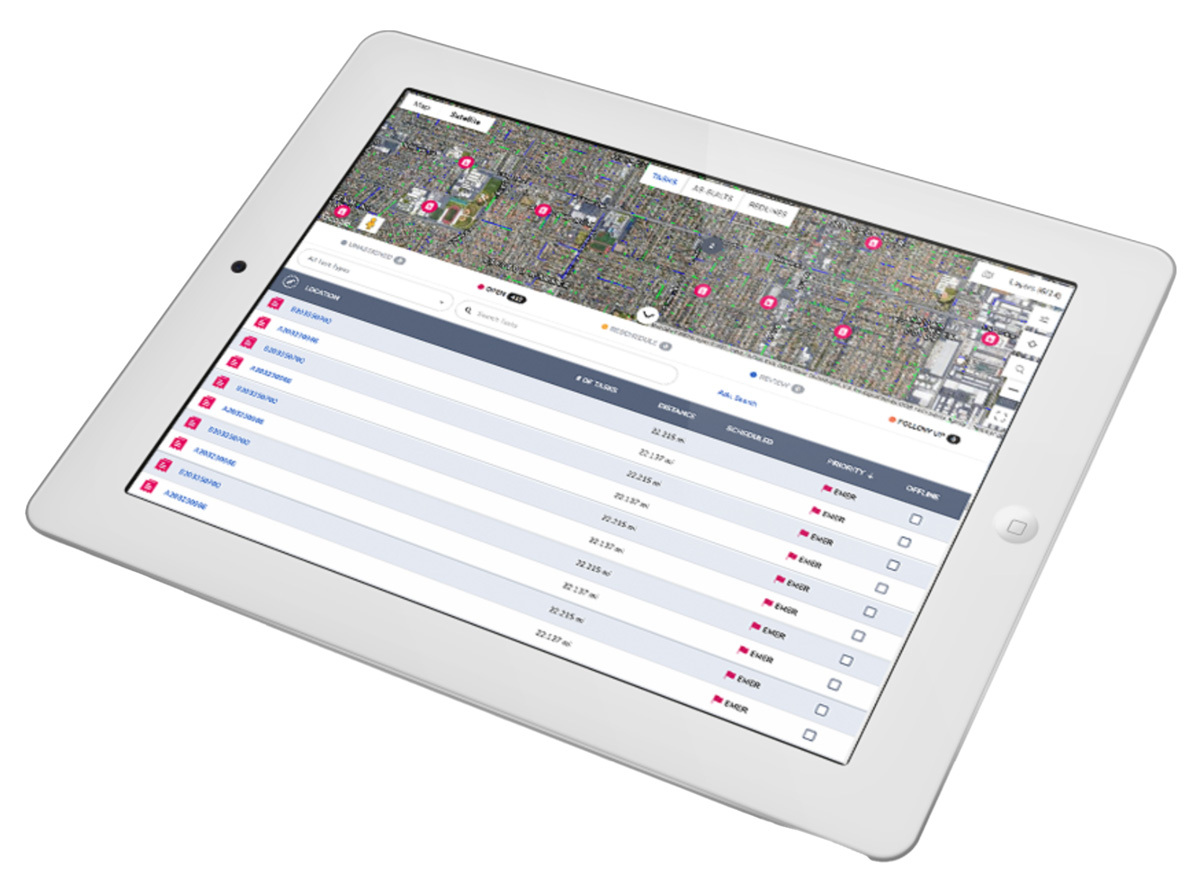

iWater infraMAP Cloud
infraMAP Cloud from iWater is a real-time mobile GIS solution that allows seamless data collection and updates to a utility’s asset management program. It integrates pumps, lift stations, manholes and sewer mains to valves, hydrants, leaks and meters, bringing together field crews, management, GIS and engineering into a commercial off-the-shelf product. Key features include red-lining, reporting, work orders, asset inspection forms and work history records. It connects the office with your field crews and delivers the data they need when they need it. 949-768-4549; www.iwater.org

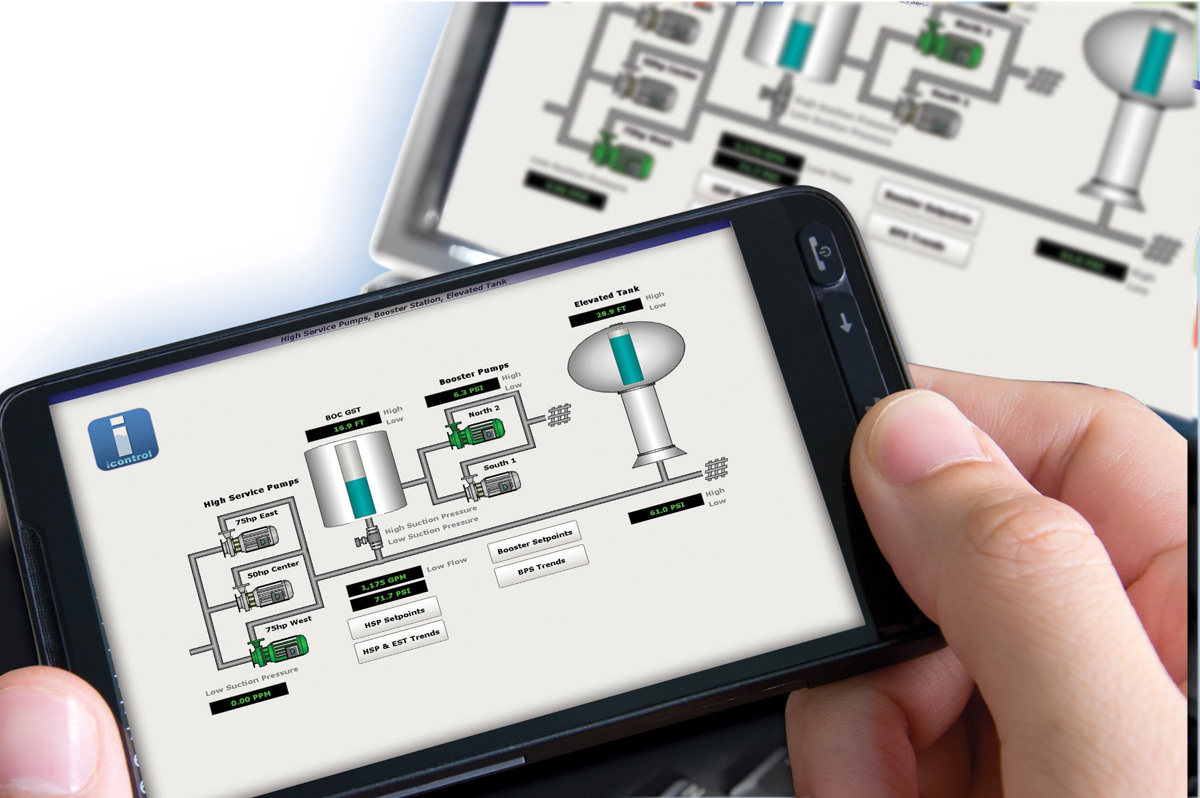

PRIMEX icontrol
PRIMEX’s icontrol is a solution for operators seeking all the benefits of a full automation and control system without the expense and hassle of owning and maintaining these technologies. The cloud-based solution provides full SCADA functionality with secure remote access to an existing control infrastructure through a managed data center. There is no SCADA-related hardware, software or licensing to buy, manage or maintain. It interfaces to an existing local PLC control and telemetry network to offer accessibility, full SCADA/HMI, process control, monitoring and alarming, data and reporting and asset management. Process information is transferred via secure data connection to the data center. Each client then has secure access to its individual system from nearly any internet-enabled device. 844-477-4639; www.primexcontrols.com

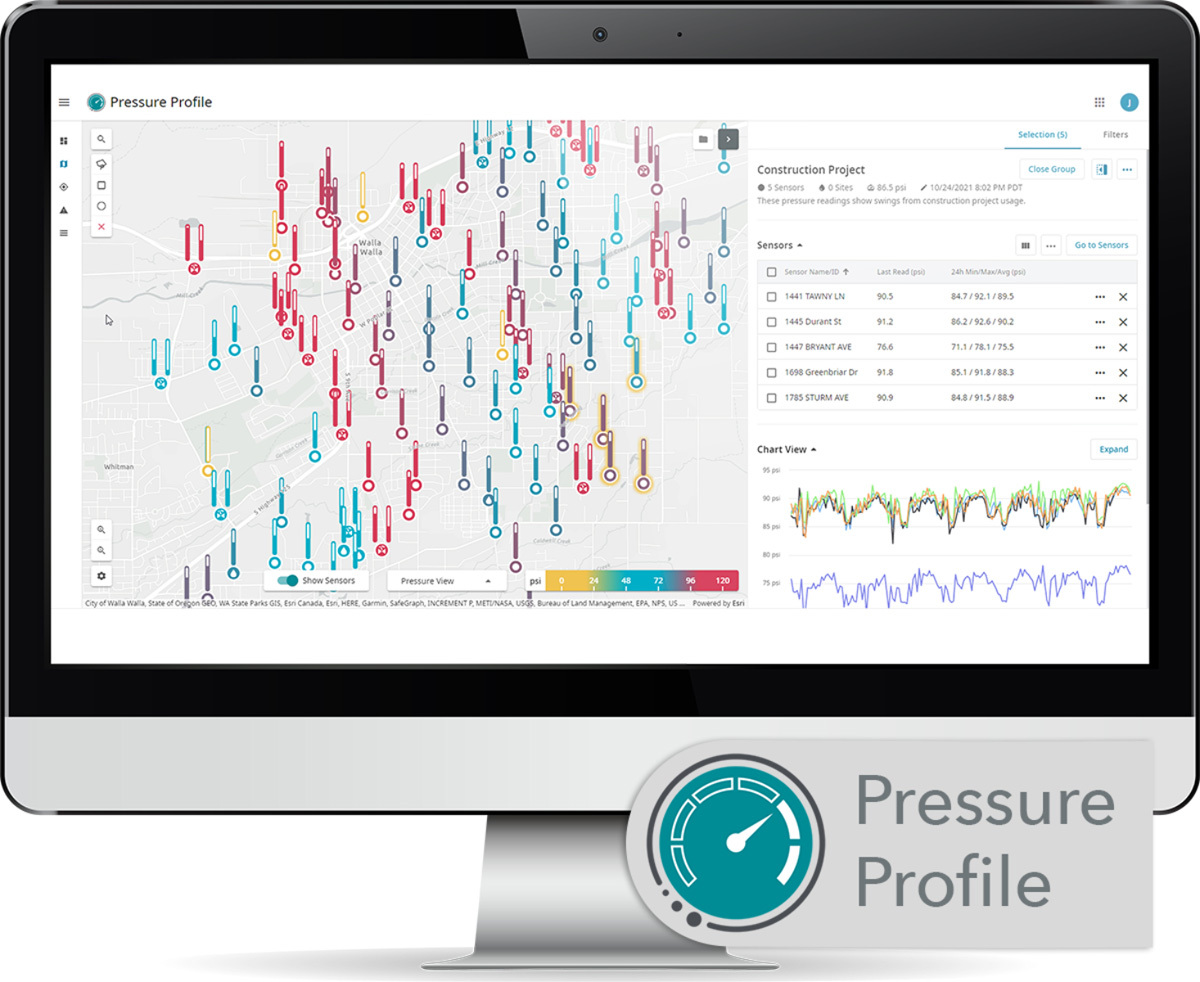

Sensus - a Xylem brand Pressure Profile
Pressure Profile from Sensus - a Xylem brand provides greater system visibility, empowering a utility to proactively manage their water distribution system. It goes beyond the limits of acoustic monitoring for leak detection by offering greater insight, comprehensive data and accessible customer service. It works seamlessly with the Sensus FlexNet communication network and leverages data from Sensus smart meters and sensors as well as other third-party sensors. It provides operational alerts and awareness based on thresholds designated by the utility — optimizing and adapting to operational needs. The ESRI map-based graphical interface allows the user to easily assess the health of the network and respond promptly to adverse conditions. Service crews can quickly investigate and resolve repair problems, often before or without the customer having to contact the utility. Additional features include user-configurable alarms, custom grouping for zone management and three years of data storage. 800-638-3748; www.sensus.com
SmartSights SmartBundle
SmartBundle from SmartSights provides a full-field view of operational conditions from anywhere, allowing users to make real-time decisions. The software offers insights on process data specifically tailored to key roles in organizations, from operators to management to compliance. Benefits include extending reach for mobile access giving users streamlined, focused context to make smart decisions from anywhere; improving productivity with visualization of the data that matters most; increasing uptime with holistic real-time process views; and simplifying rationalization of data to focus on the needed metrics. The software’s SmartFocus feature includes snippets of XLReporter information to monitor critical data without having to search. Users can also manage processes’ performance in real time and compare historical analytics to improve efficiencies. Through customizable widgets that tell the story of the critical data, users can expand their HMI reach. It enables operations teams to monitor and respond to changing process and asset conditions from anywhere. 512-326-1011; www.smartsights.com
