Excavating Equipment

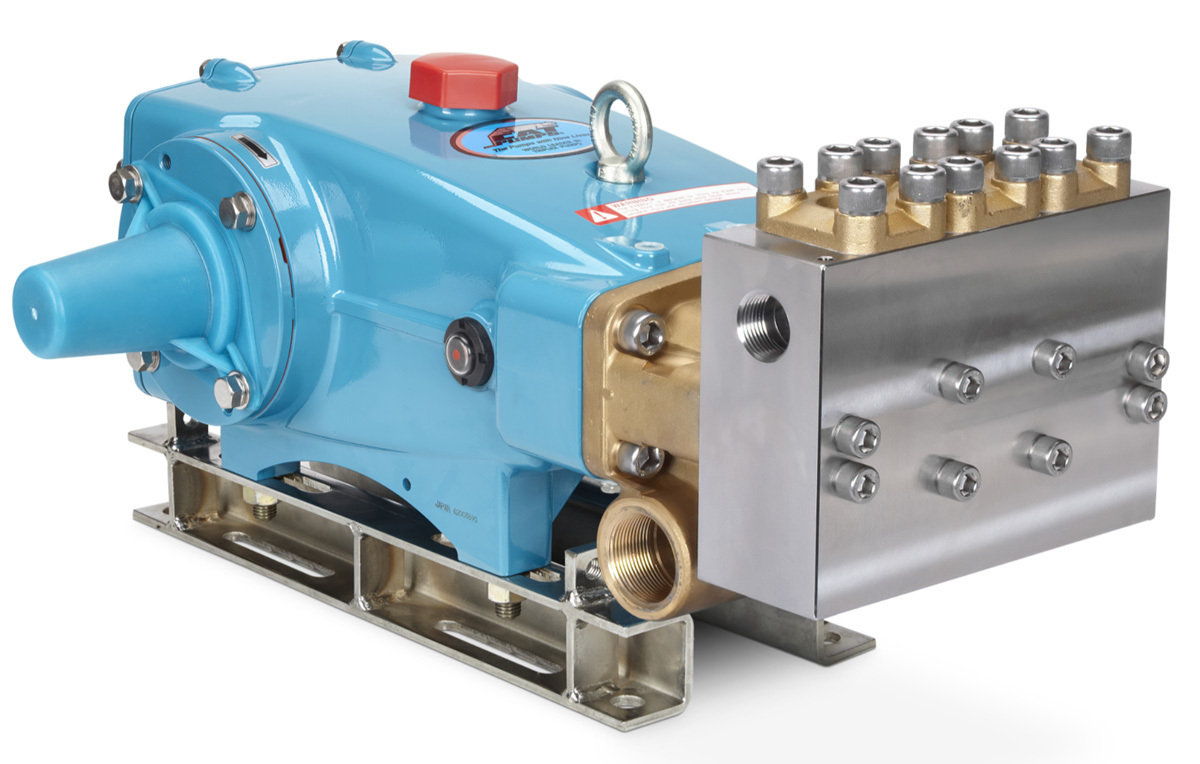

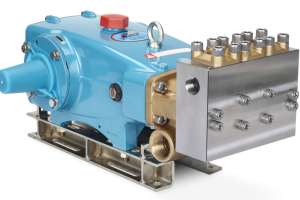

Cat Pumps Model 3560

The Cat Pumps Model 3560 offers enhanced durability, which makes it perfect for mobile and industrial applications including hydroexcavating, jetting and washdown. Every detail has been optimized to produce a reliable pump with excellent service life. The solid block 316 stainless steel discharge manifold safeguards against high-pressure spikes, cavitation and flaking. Components like solid ceramic plungers, higher-quality seals and machined 316 stainless steel valves and seats keep pumps running longer. It is dual-rated for 25 gpm at 3,000 psi or 20 gpm at 4,000 psi and can be driven by a belt, PTO shaft or a hydraulic motor with a bell housing and flexible couple assembly. It is built to keep working under the most demanding conditions. 763-780-5440; www.catpumps.com

Pipes

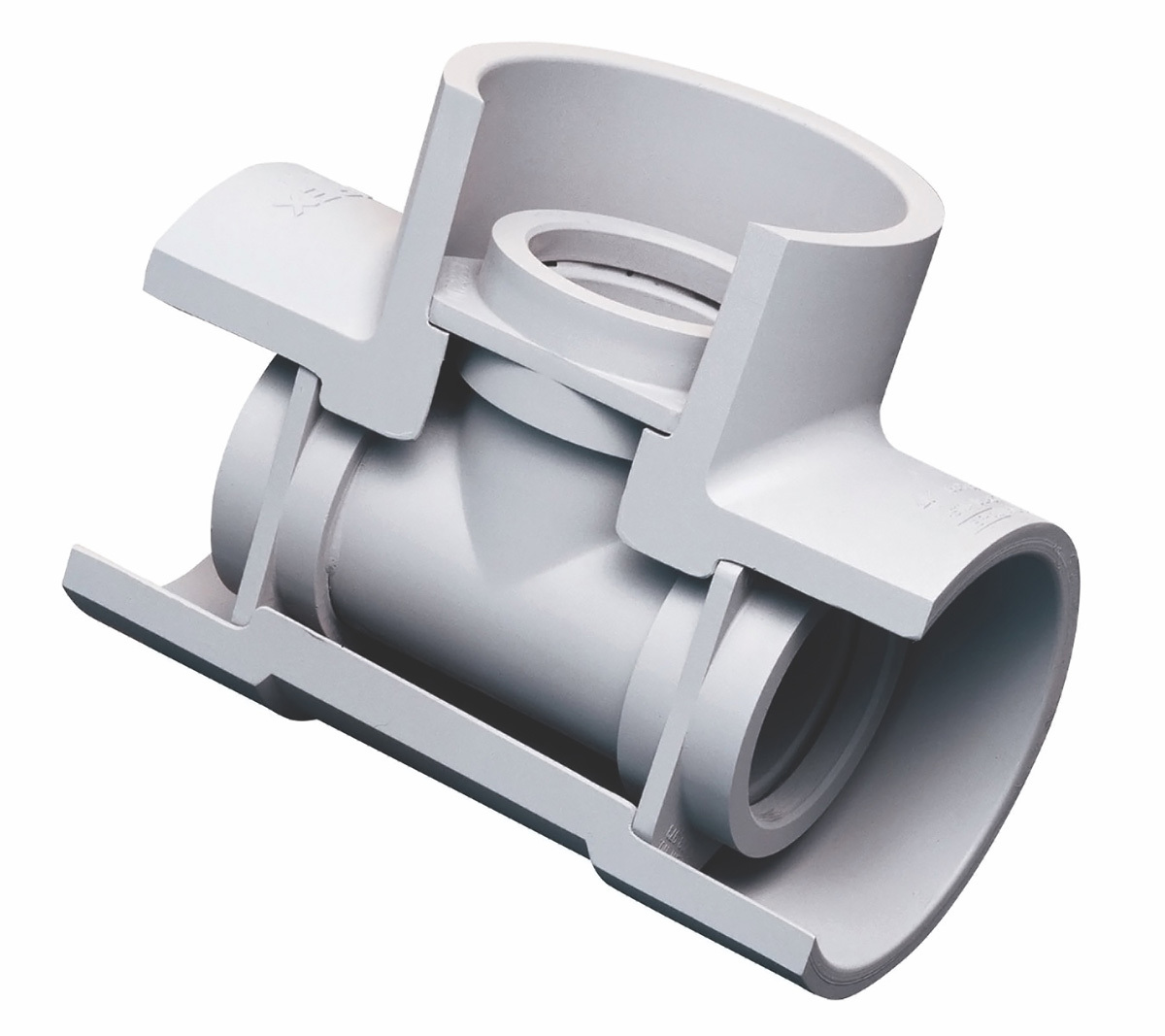

IPEX Guardian

Guardian PVC and CPVC double-containment piping systems from IPEX feature Centra-Lok molded supports designed to significantly reduce the number of joints. This design addresses the common issue of leaks and system failures at pipe joints, thereby lowering maintenance and installation costs. The system is versatile, offering various vinyl pipe combinations for both containment and carrier lines, with diameters ranging from 1/2- to 24 inches. Available materials include industrial-grade Xirtec PVC and high-temperature Xirtec CPVC. Additionally, fittings such as tees and elbows, and optional Drain-Guard system for DWV applications are available. The system can be equipped with Centra-Guard electronic leak detection, ensuring efficient monitoring while minimizing false alarms and overall costs. 289-881-0120; www.ipexna.com

Pipe Parts/Fittings/Tools

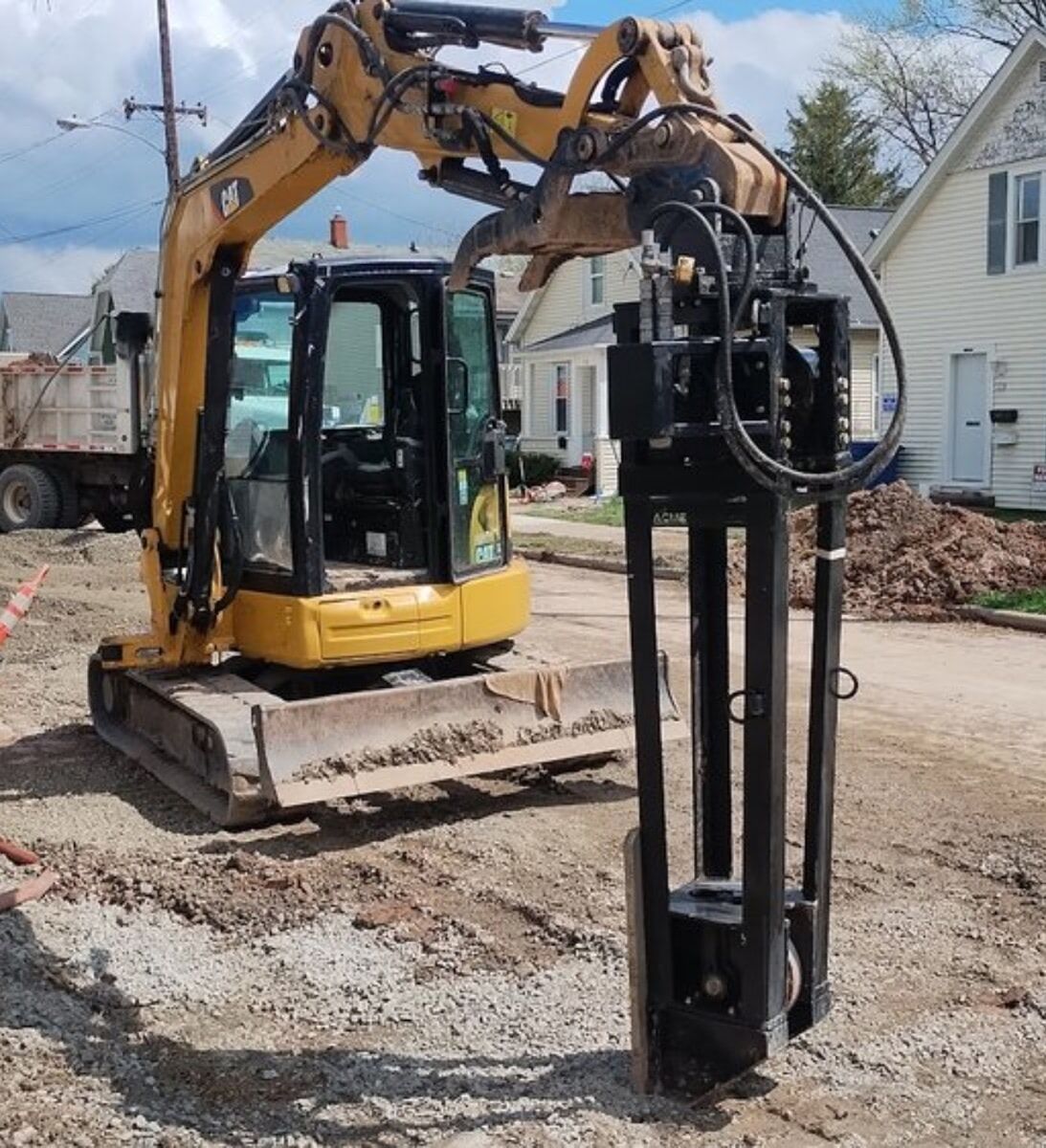

ACME Trenchless Pipe Winch

The ACME Trenchless Pipe Winch makes trenchless pipe pulling quick, routine and easy. It delivers the pulling power needed — 20,000 pounds breakout force — applied to MAX 7/16 pulling cables which have a minimum rated breakpoint of 24,000 pounds. The pulling cables are reusable, and tensioned pulling cable remains inside the confines of the winch frame. It attaches to a compact excavator or backhoe via a quick coupler and will dispatch to the access pit at any approach angle, allowing for the preservation of the original bury depth of the existing waterline. It works with lead, galvanized, copper and plastic piping. 920-376-4222; www.acmetrenchless.com

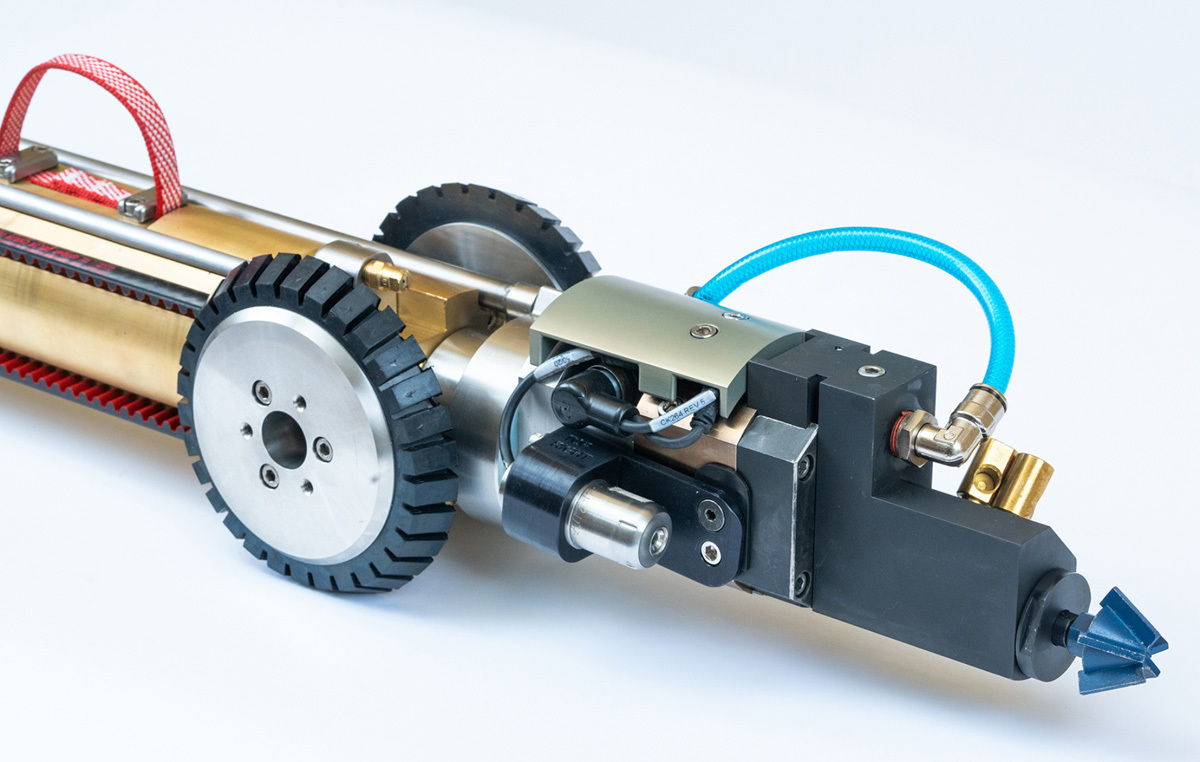

CUES Currahee Cutters

CUES Currahee Cutters provide a number of solutions for pipe inspection and rehabilitation — from clearing blockages, debris, protruding laterals and roots, to reinstating laterals in a CIPP liner. The cutters function in a range of 5.25- to 12-inch pipe, are equally effective in CIPP or fold-and-form liners, and can be installed on a CUES K2 truck-mounted cutter system. The system performs optimally using 1,000 to 1,500 feet of cable and is operated with the CUES gamepad controller. 800-327-7791; www.cuesinc.com

Pipe Fusion

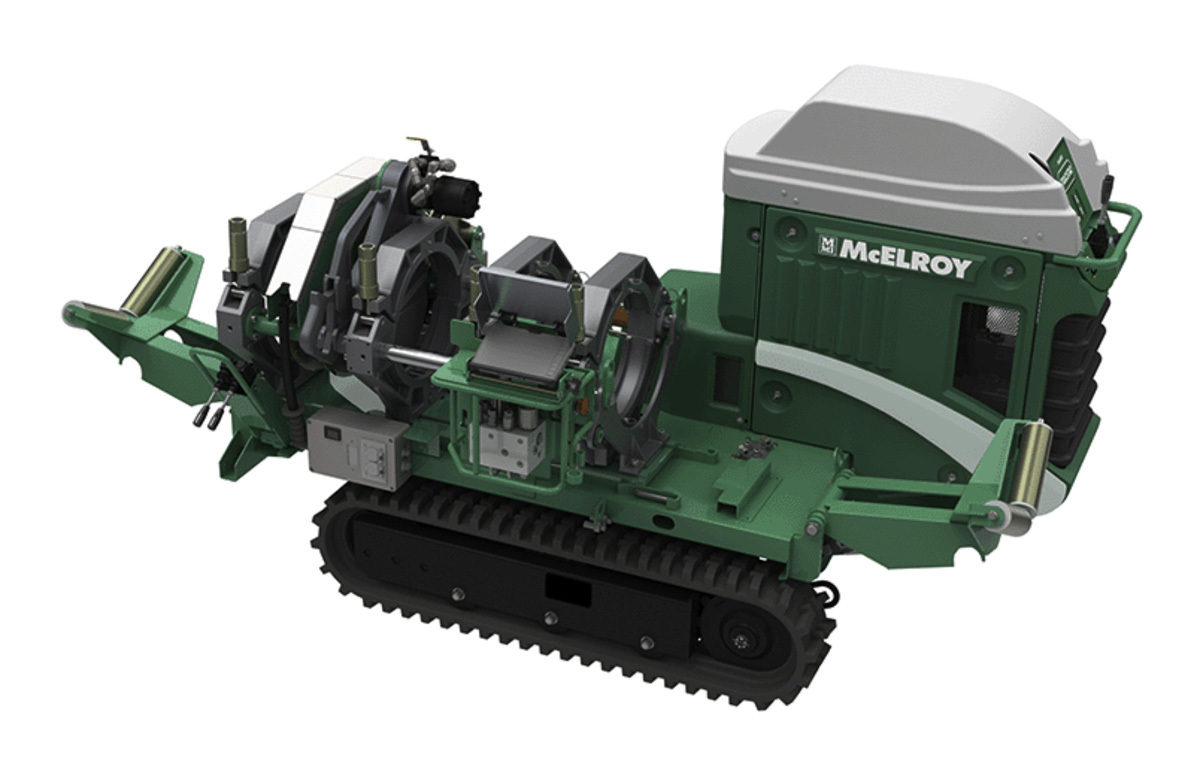

McElroy TracStar 412i

The TracStar 412i from McElroy is designed to fuse pipe sizes from 4 to 12 inches. It incorporates the FusionGuide Control system seen on other TracStar iSeries models, providing operators with three levels of control during the fusion process. Each level has varying degrees of assistance, from manual control to fully automatic fusion. An indexer keeps the heater and facer attached to the four jaw carriage, condensing the heater, facer and jaws into a single unit. It includes a new, larger-volume hydraulic tank that is secured beneath the machine’s dome. In addition to providing additional cooling, the new design also reduces the risk of accidentally adding the wrong fluid to the hydraulic tank. It is controlled via the DataLogger, a ruggedized tablet that records fusion parameters and other pertinent data during the fusion process. 918-831-9236; www.mcelroy.com

Pipe Lining

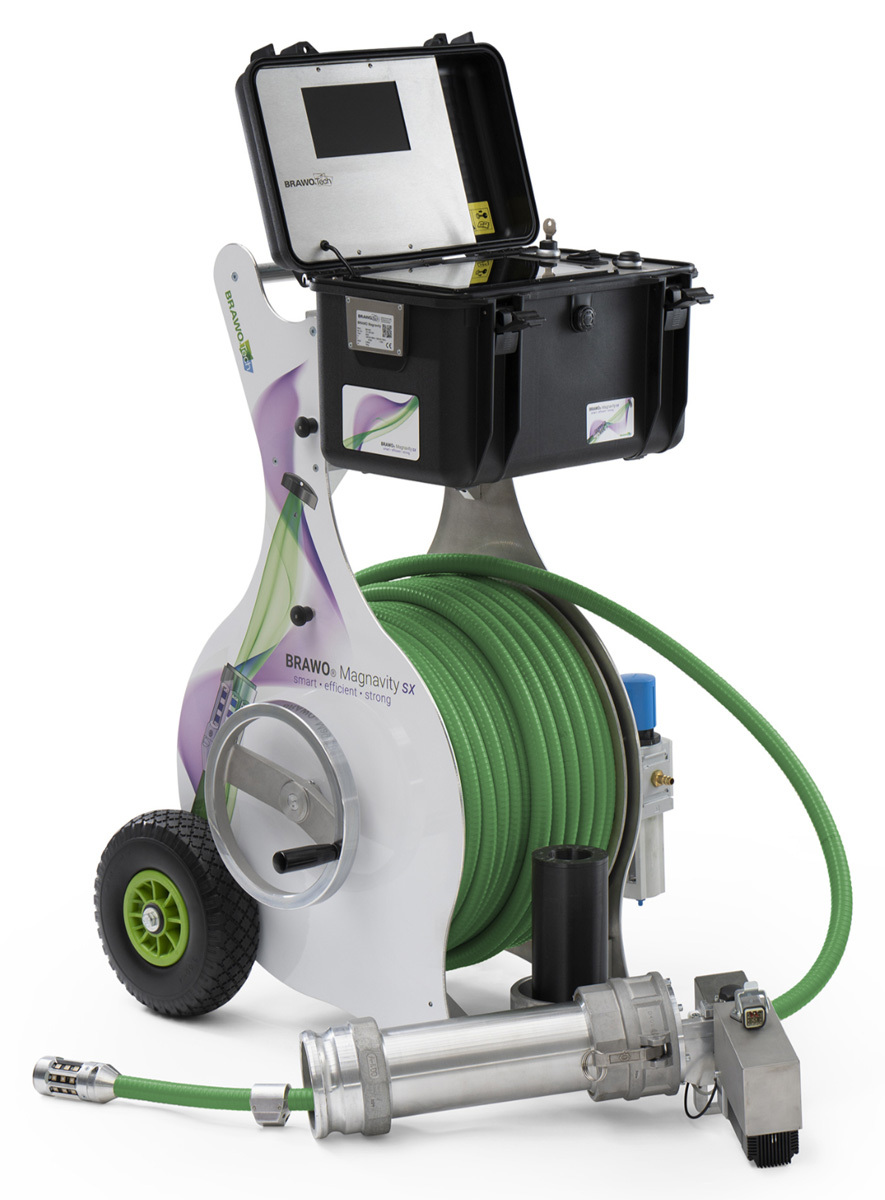

BRAWO Magnavity SX for BRAWOLINER

Magnavity SX from BRAWO SYSTEMS offers safe light curing with NRTL certificate for the U.S. market. The compact system has a range of 197 feet. The two LED heads — Nano and Mega — enable the rehabilitation of diameters from DN 100 to DN 300 using BRAWOLINER and the vinyl ester resin BRAWO LR. The curing process is automated and the entire rehabilitation process is documented. It can rehabilitate longer pipes with bends with only one access point. 240-796-5007; www.brawosystems-usa.com

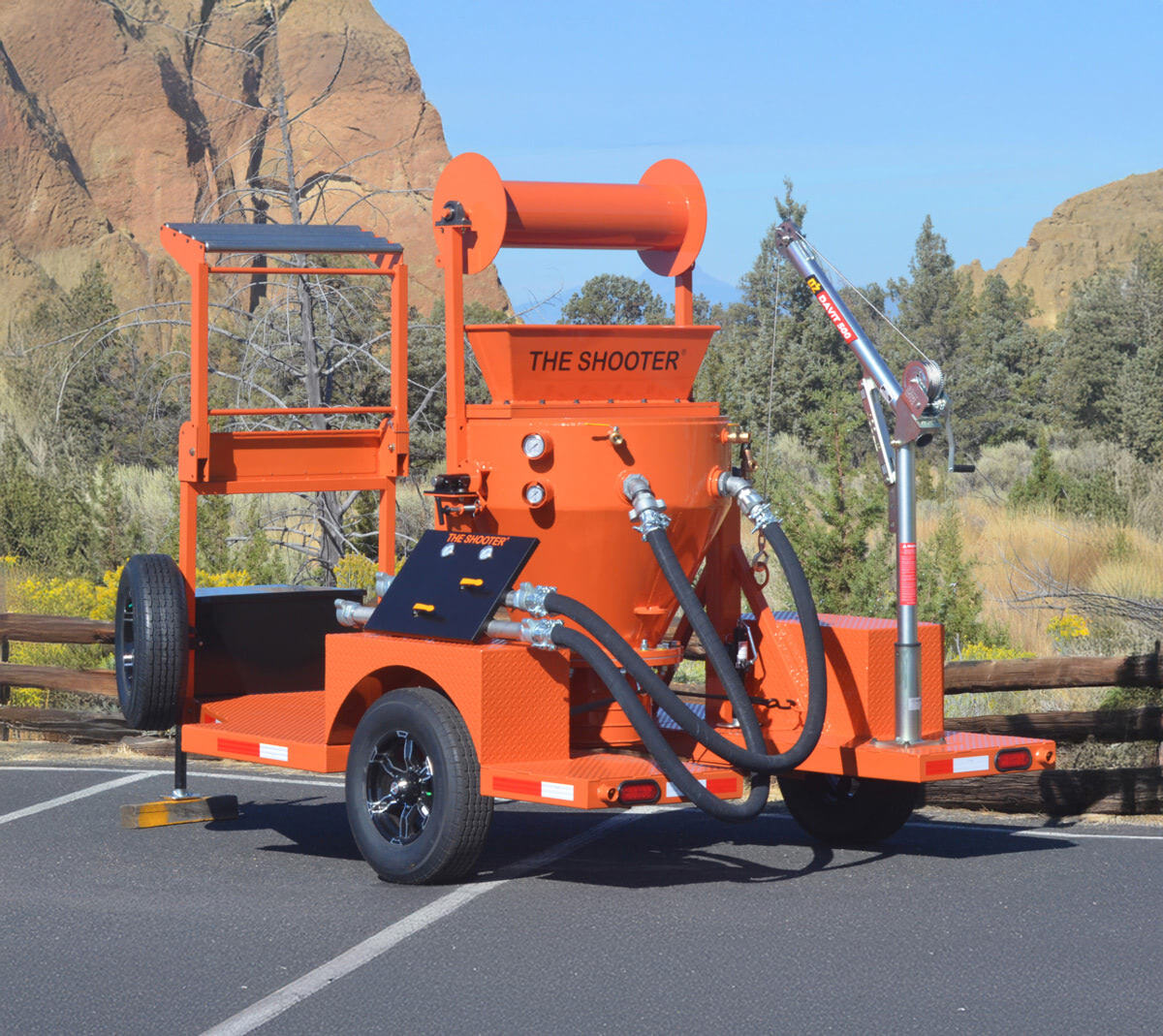

EMAGINEERED SOLUTIONS THE SHOOTER

THE SHOOTER from EMAGINEERED SOLUTIONS is a continuous air-inverter for CIPP. THE SHOOTER 12 has a range of 4 to 12 inches and up to 15 inches with the conversion kit as well as a knife gate for after the liner tail passes. It comes with either the self-lubricating hand truck or basic non-oiler cart. THE SHOOTER 24 for 15 to 24 inches is trailer-mounted and comes with a knife gate and remote operating station on the fender. An optional conversion kit expands its range from 6 to 24 inches. Additional equipment offered includes full steam packages with portable dry steam generators, steam hose, A and B stations, water cure flanges and LED UV Y adapters. 541-504-0416; www.theshootercipp.com

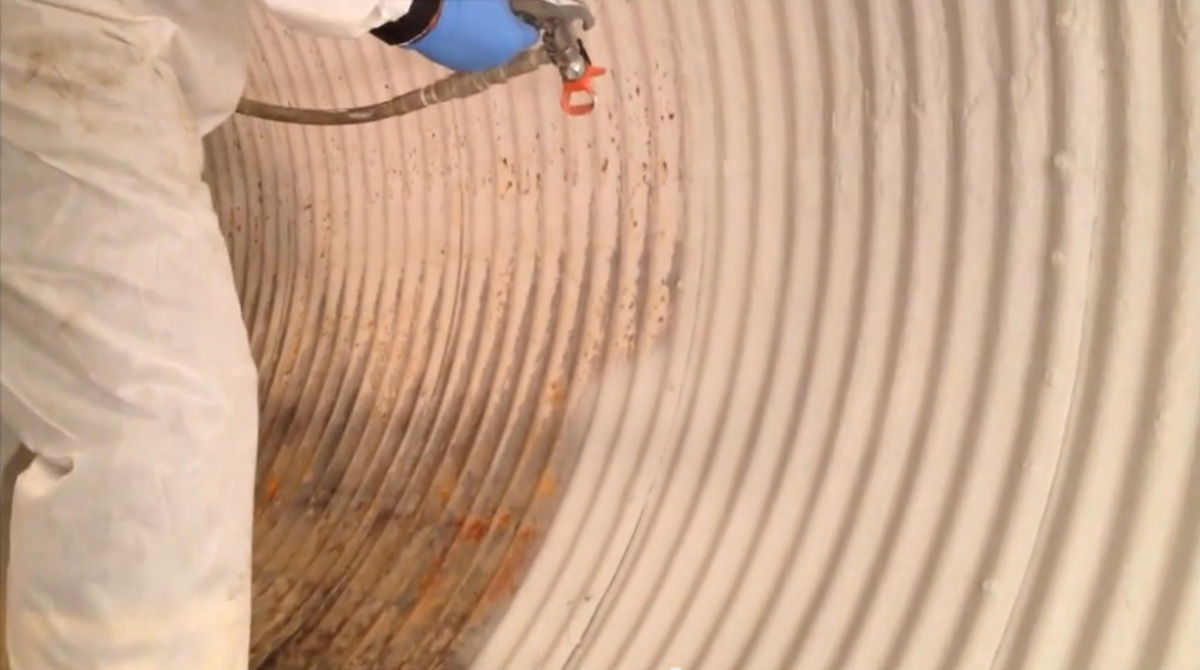

Epoxytec Series 456 CPP Sprayliner

Series 456 CPP Sprayliner from Epoxytec is a highly specialized product designed for water and wastewater environments, including the rehabilitation and lining of culverts. This two-component, 100% solids epoxy coating and lining system can be applied at an ultra-high build of up to 3/8 inch. It has high moisture tolerance and is engineered to protect against hydrogen sulfide corrosion. It also serves as a barrier to protect against I&I. It offers comprehensive defense against the challenges water and wastewater environments pose. 877-463-7699; www.epoxytec.com

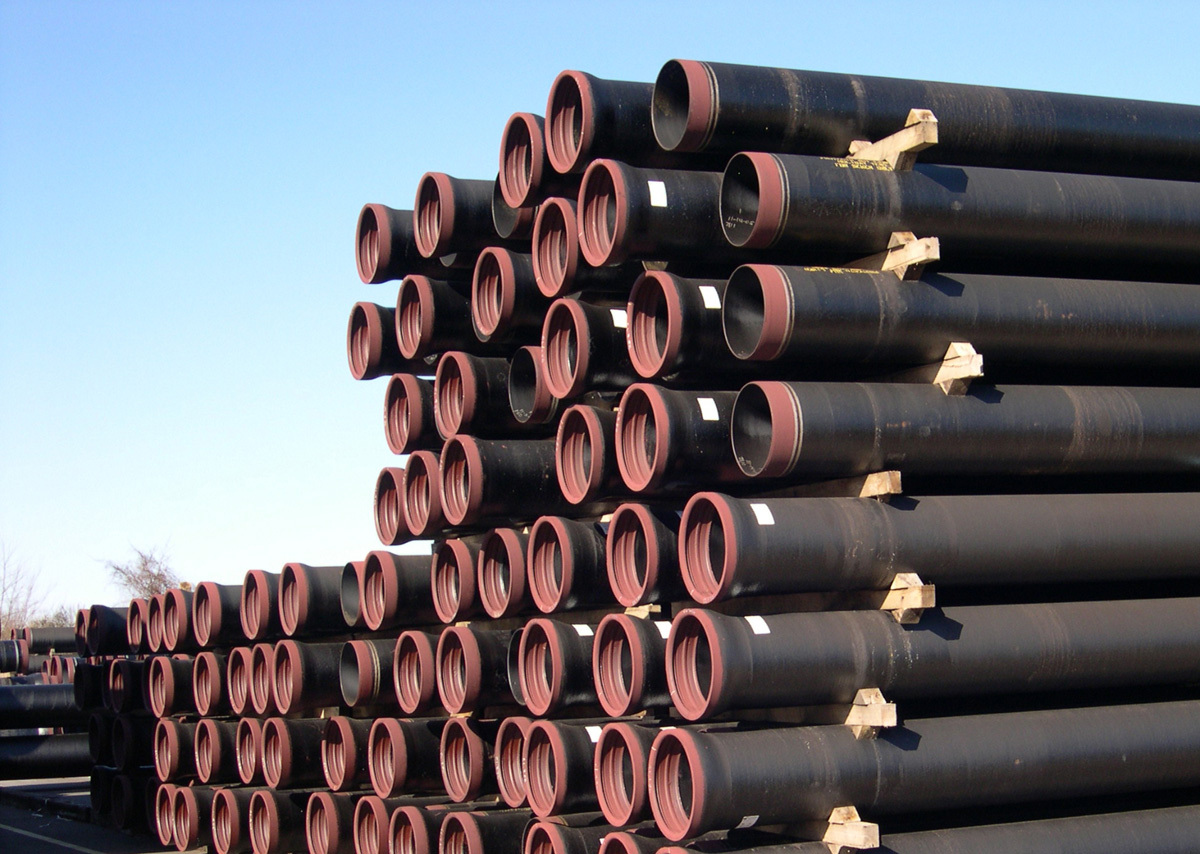

Induron Protective Coatings Protecto 401 Ceramic Epoxy

When it comes to protecting ductile iron sewer pipe and fittings, Induron Protective Coatings Protecto 401 Ceramic Epoxy provides corrosion protection, ease of application and consistent, high-quality performance. The epoxy is engineered for long-lasting protection across various critical infrastructure applications. Each coating provides enhanced surface protection. 800-324-9584; www.induron.com

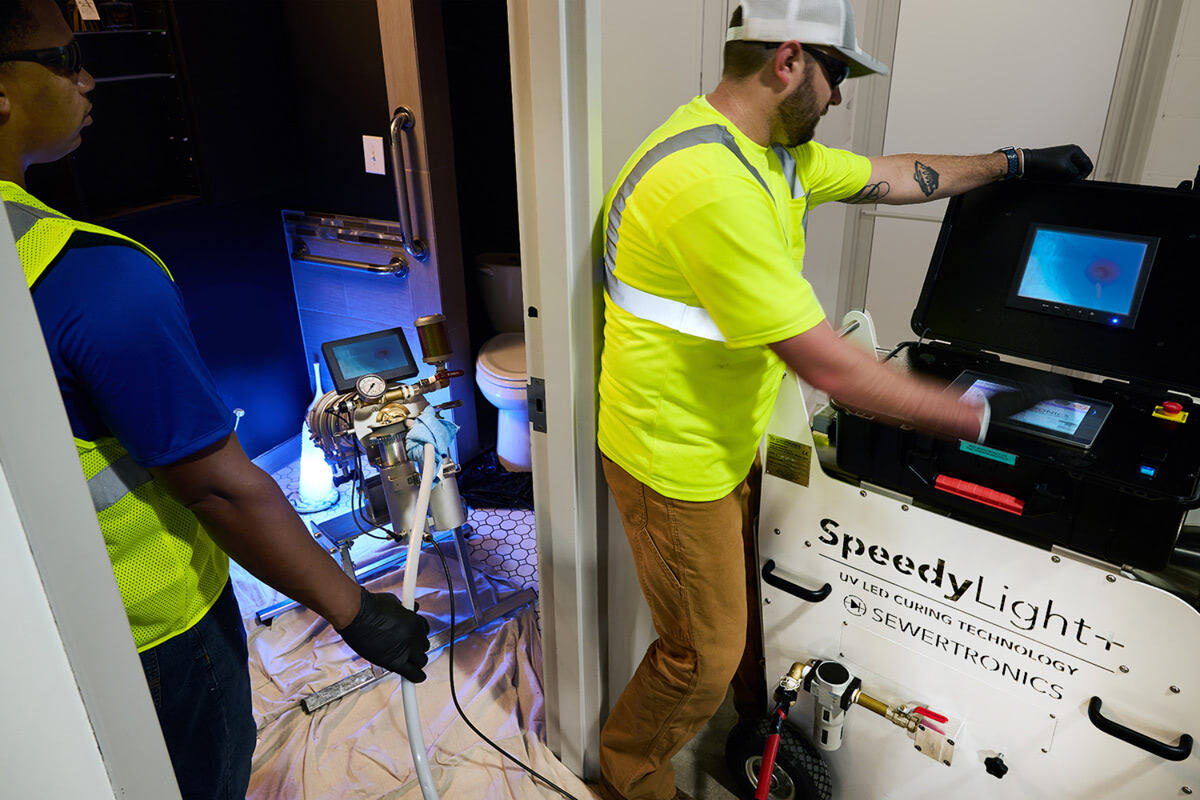

Pipeline Renewal Technologies SpeedyLight+

SpeedyLight+ from Pipeline Renewal Technologies delivers LED-based UV light-curing technology for trenchless pipe rehab. It is fast, results in stronger liner and is less disruptive to communities and businesses. Closures are minimal and work is able to be completed without having to relocate occupants. LED UV cure eliminates safety risks such as the wrong mixing of resins or dealing with boiler systems. There are no working time considerations, as you simply turn the light on and off any time you want to stop or start the cure. Interchangeable cure heads show operators what’s happening underground, giving them the ability to control the speed and accuracy of the cure. It cures felt or GFRP liner and can cure 90-degree bends in lines down to 2 inches as well as transitions and verticals. 866-936-8476;  www.pipelinert.com

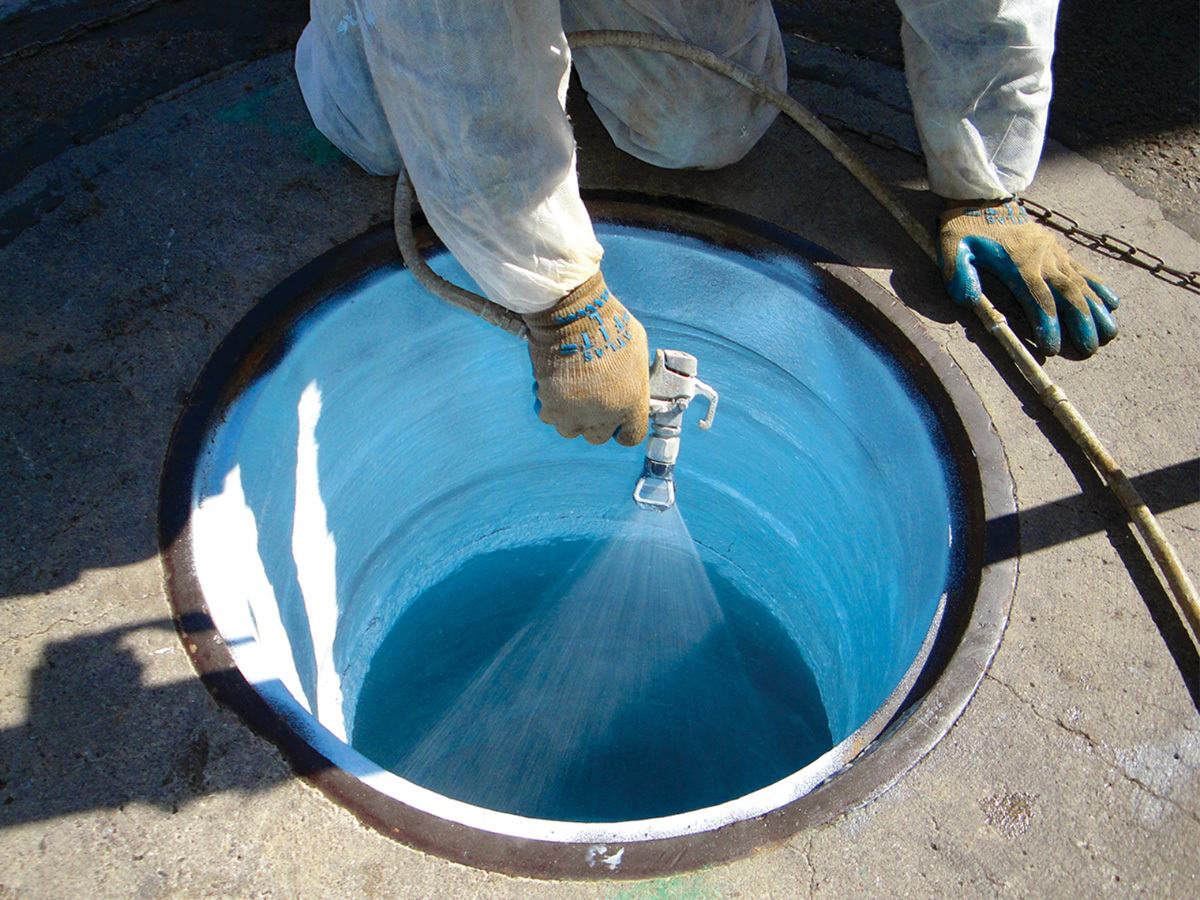

PPG Protective & Marine Coatings Raven 405

Raven 405 from PPG Protective & Marine Coatings is an epoxy coating designed to rehabilitate and protect concrete and steel structures exposed to the most severe wastewater conditions. It provides corrosion resistance in sanitary sewer systems and ensures long-term durability, helping extend the service life of aging infrastructure. Featuring high build capabilities and chemical resistance, it can be applied to structures such as manholes, wet wells, lift stations and pipe linings, preventing further degradation from hydrogen sulfide gases and other corrosive agents. 888-977-4762; www.ppgpmc.com

Pipe Plugs

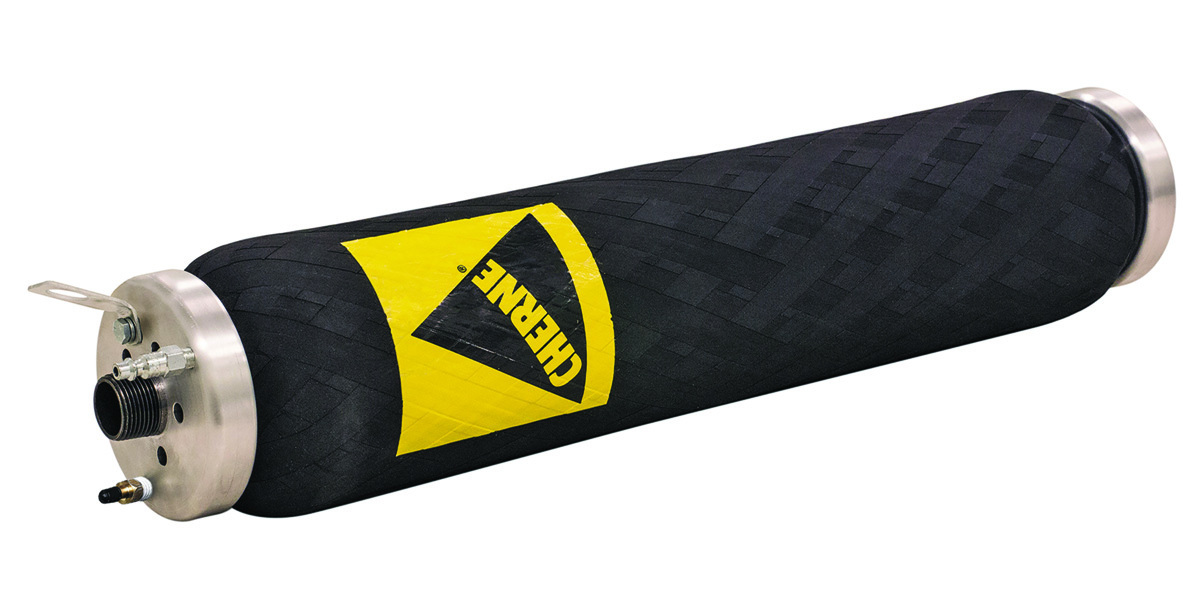

Cherne I-Series Test-Ball Plugs

Cherne I-Series Test-Ball Plugs are lightweight, short and flexible, delivering solutions for blocking and bypassing flow, installing new pipes and junction boxes or repairing old ones and installing or repairing utility holes. Available in eight expansion ranges, from 6 to 24 inches, they meet U.S. and international industrial and municipal needs for engineers and contractors. They feature robotic, mechanical bonding of aluminum end plates to the plugs’ premium natural rubber to eliminate chemical bonding failures. They provide improved performance and safety through optimized design and superior back pressure (maximum: 15 psi; inflation pressure: 45 psi). 800-843-7584; www.cherneind.com

Pumps

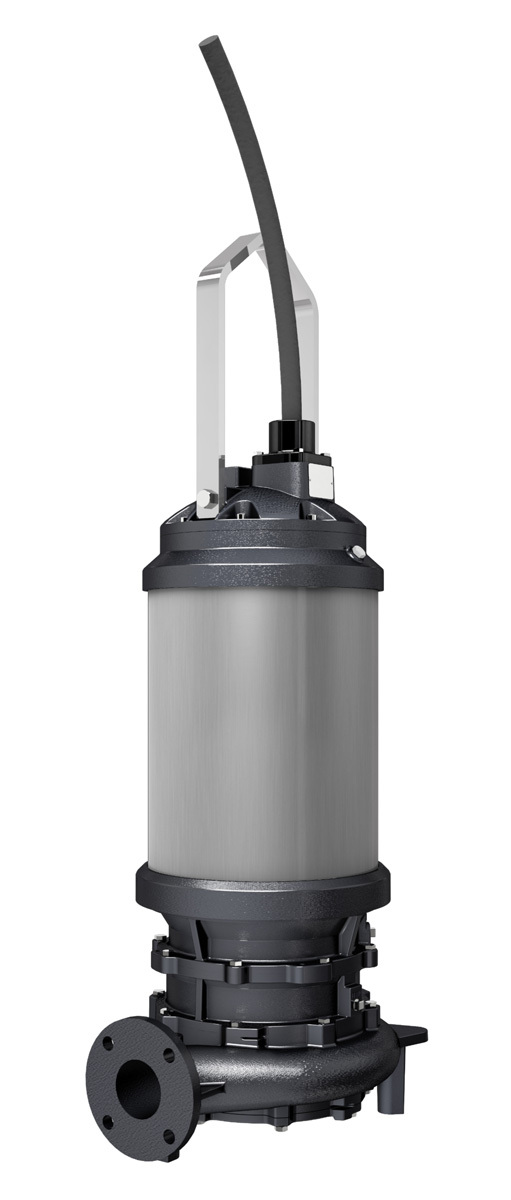

EBARA Pumps Americas DKE(X)U

The DKE(X)U submersible wastewater product line from EBARA Pumps Americas is engineered with improved hydraulics to match anti-clog performance and operating efficiency conditions. Technical features such as semi-open backswept impellers, grooved suction covers, internal cooling system, and IE3 efficiency motors make up a competitive class offering. In addition, these pumps offer discharge sizes 2 to 10 inches, capacities up to 2,800 gpm, and heads to 185 feet. They are available in 2 to 30 hp with FM and FMc explosion-proof options, and will soon be available in 40 to 60 hp dry-pit versions and 6-Pole variants. 803-327-5005; www.pumpsebara.com

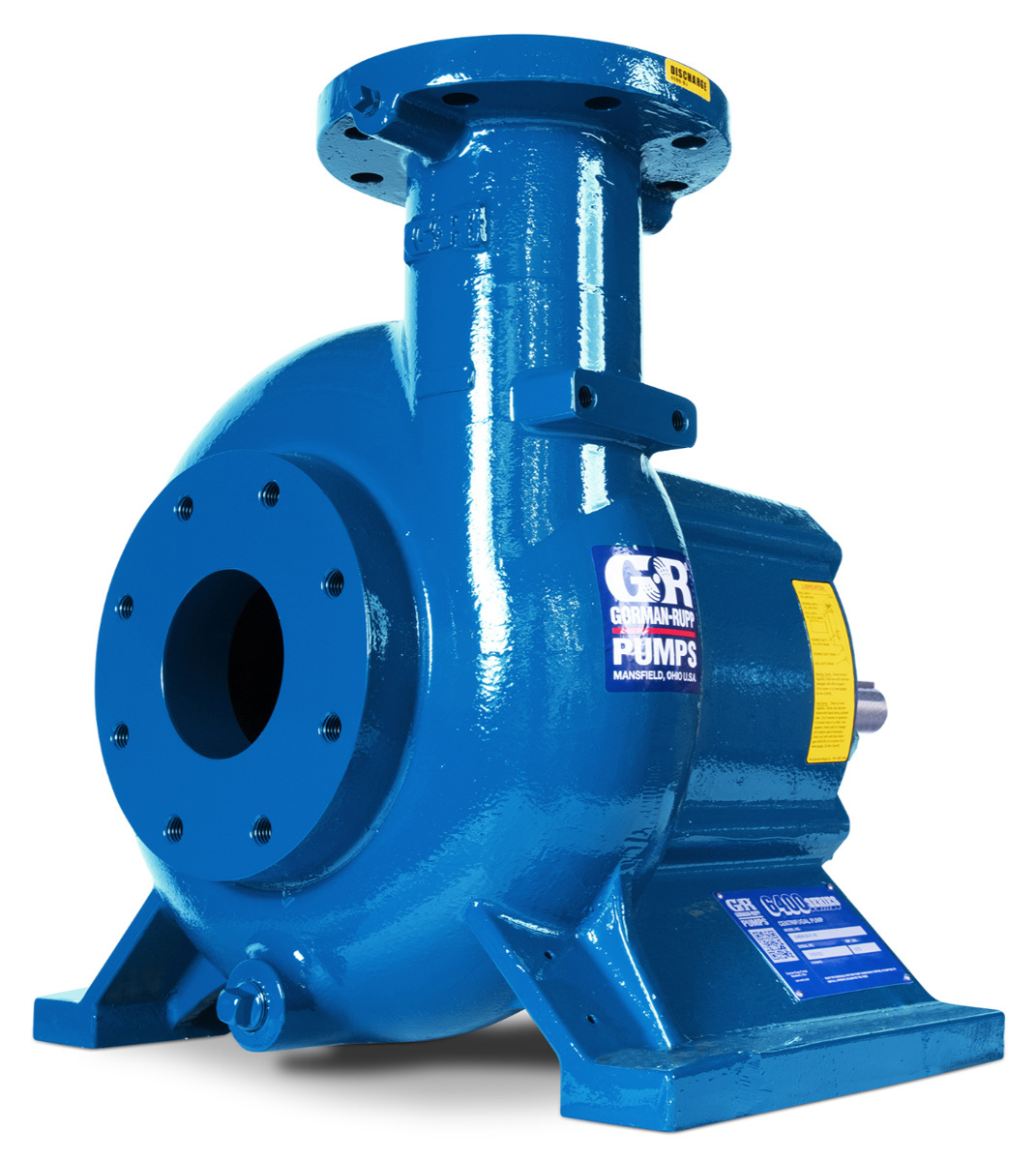

Gorman-Rupp 6400 Series

Gorman-Rupp 6400 Series end suction centrifugal pumps are suitable for handling clean liquids or liquids containing large solids in a variety of municipal, construction, mining, industrial and agricultural applications. Based on Super T Series self-priming centrifugal pump models, 6400 Series models utilize an interchangeable rotating assembly (excluding 3-inch model and vortex impellers), eliminating the need to stock extra spare parts. They also follow the same shaft height and overall footprint, while providing a more efficient alternative for flooded suction applications. Standard models are available in 2-, 3- and 4-inch discharge sizes, with heads up to 140 feet, flows up to 1,050 gpm and a solids-handling capability of up to 3 inches. Impeller options include two-vane, semi-open solids handling, multivane and slimline for higher heads and efficiencies and continuous, single vane for heavy-duty pumping applications. In addition, pumps can be equipped with the Eradicator or Eradicator Plus solids management wearplate for liquids containing tough, stringy solids. 800-755-1011; www.grpumps.com

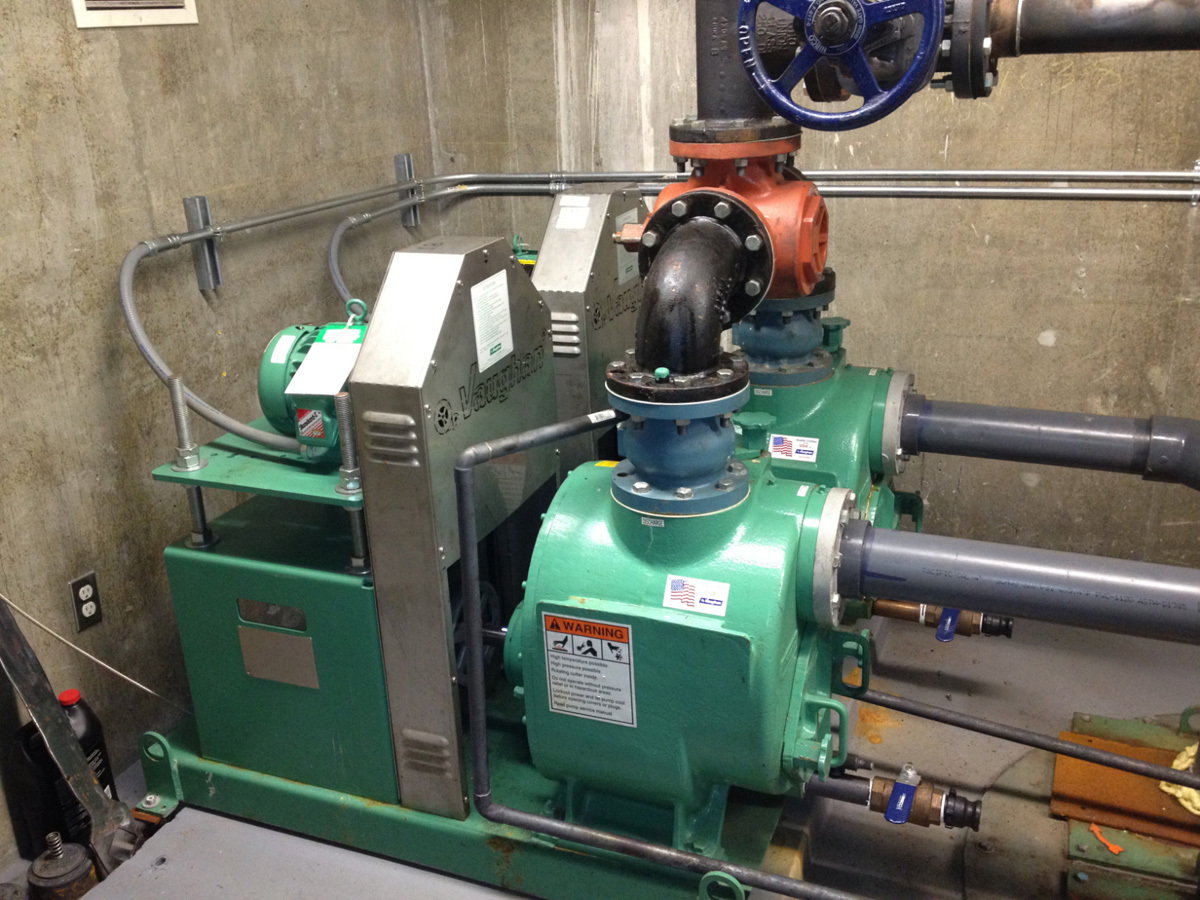

Vaughan Chopper Pump

Self-priming Chopper Pumps from Vaughan are designed to be easily accessed outside of the wet well while pumping waste solids at heavy consistencies without plugging or dewatering of the solids. They eliminate the loss in production and mess, along with making it easy to service the pump to get it back in operation. 888-249-2467; www.chopperpumps.com

Pump Parts/Components

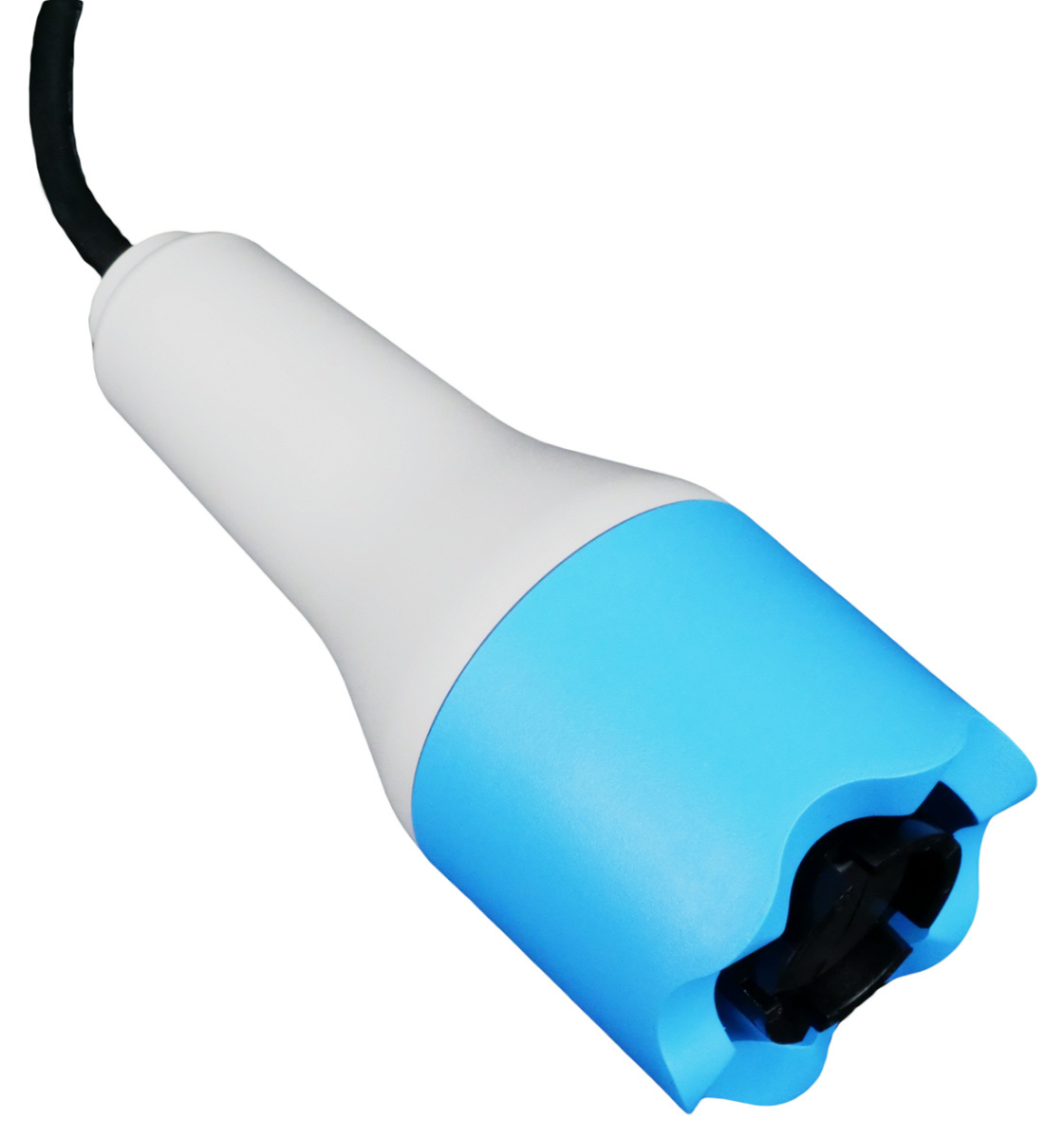

PRIMEX Submersible Level Transmitter

The PRIMEX Submersible Level Transmitter is designed for continuous level monitoring in the harshest environments, including sanitary and stormwater lift stations with suspended solids. The instrument measures the hydrostatic pressure of the liquid above the sensor and outputs a 4-20 mA signal proportional to the level. The robust design of the transmitter provides a reliable and low-maintenance solution for critical level control applications where other level sensors easily foul. It is suitable for operation in Class 1, Div 1, Groups C, D, T4 Hazardous Locations with optional intrinsic safety barrier. It also includes a color-coded 18/2 shielded cable with a vent tube. 844-477-4639; www.primexcontrols.com

Valves

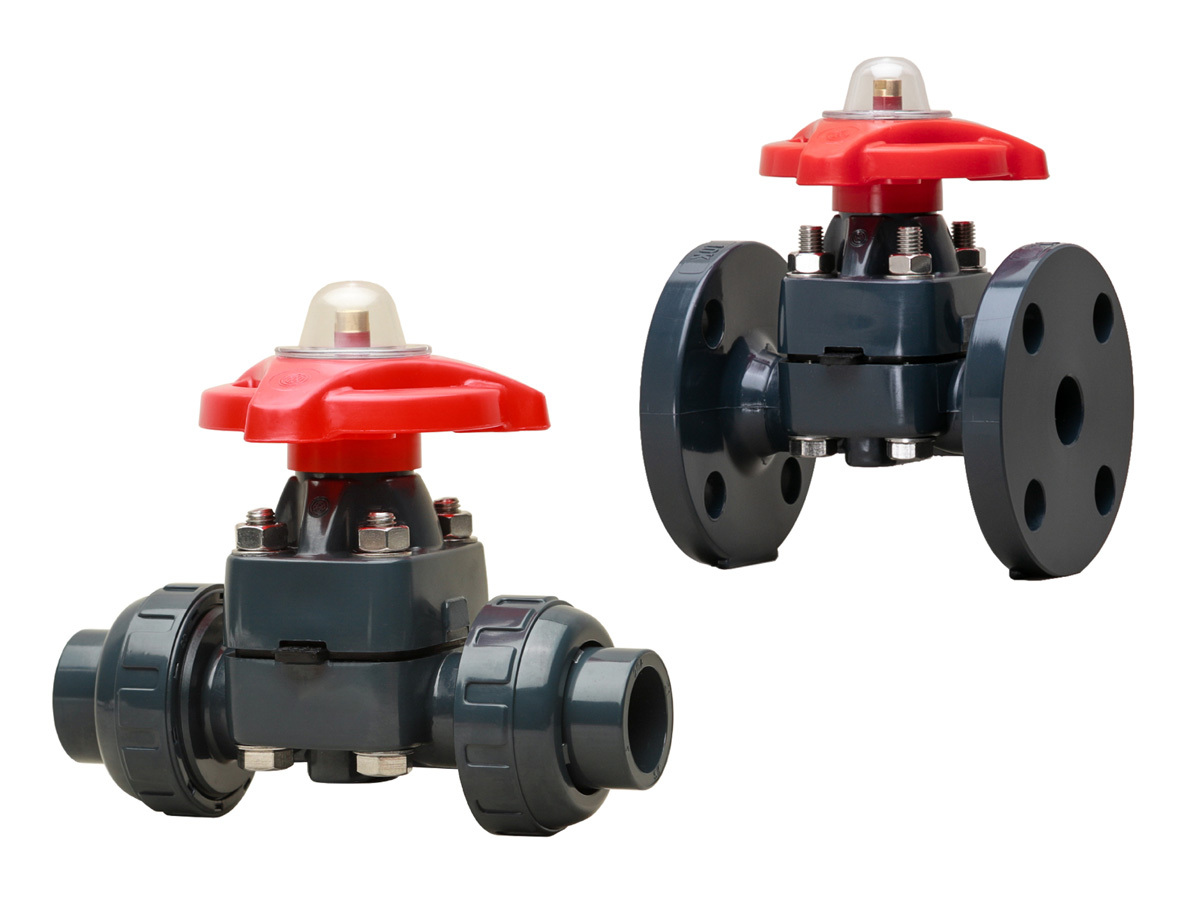

Asahi/America Type-14 Diaphragm Valve

The Asahi/America Type-14 Diaphragm Valve has a body-to-bonnet seal that isolates bonnet components from the media, while high-visibility position indication with built-in travel stop ensures accurate visual confirmation and minimizes diaphragm strain. The ergonomic handle provides smooth operation, and bubble-tight sealing is achieved even in tough applications with suspended particles or slurries. The valve’s internal weir design controls flow by directing fluid over the raised center where the diaphragm meets the body. Only the thermoplastic valve body, diaphragm and O-rings contact the media, ensuring durability and chemical resistance. The three-layer EPDM/PVDF/PTFE diaphragm offers a gas barrier to protect against corrosive chemicals like sodium hypochlorite. The true-union design simplifies installation and maintenance, while matched O-rings ensure chemical compatibility. Constructed from solid thermoplastic materials, the valve delivers corrosion resistance and is available in both pneumatic and electric actuation options. 800-343-3618; www.asahi-america.com
