Automation/Optimization

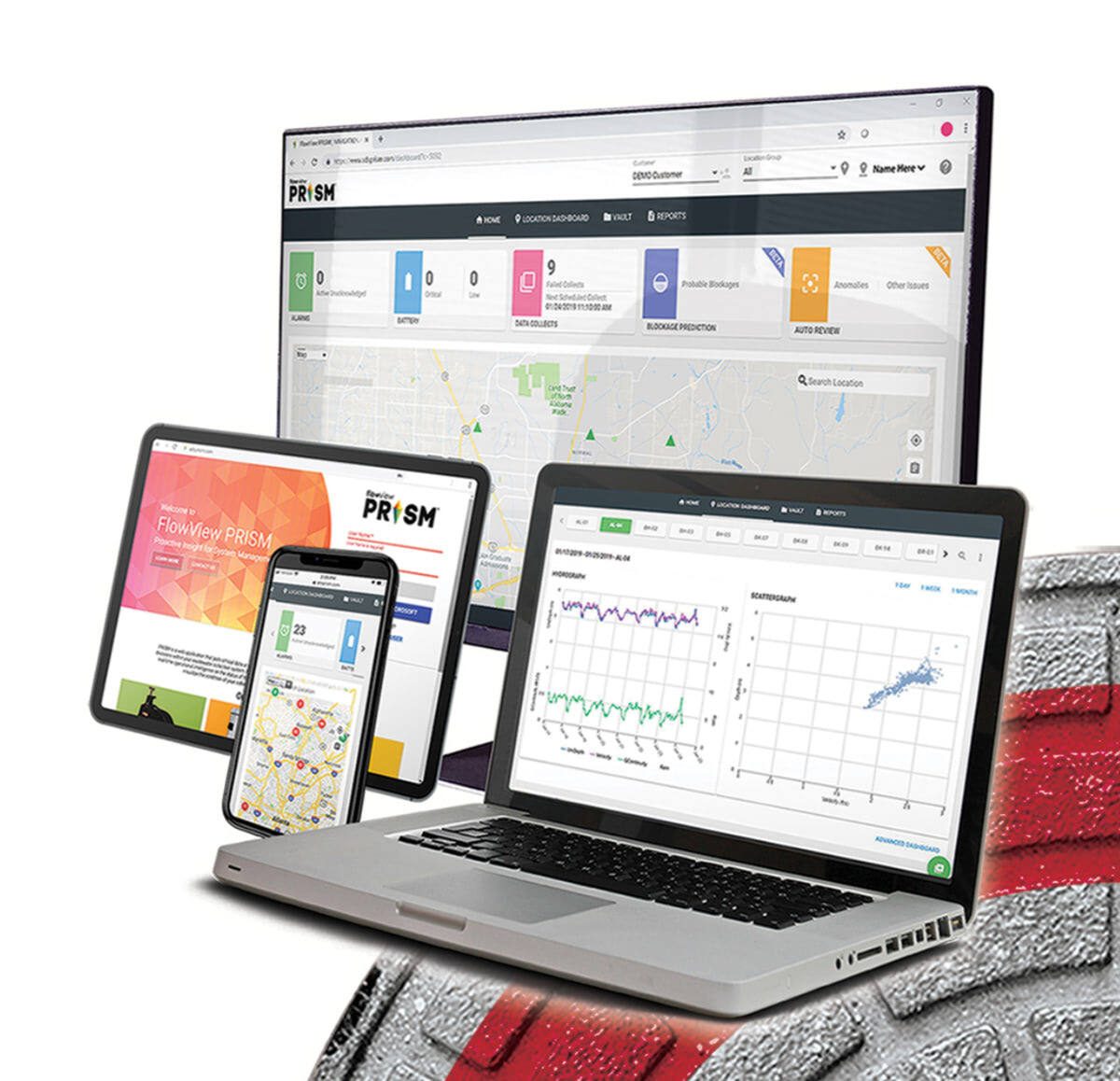

ADS Environmental Services Data as a Service
In the wastewater sector, Data as a Service offerings from ADS Environmental Services can offload operators from juggling all the details of purchasing, deploying and managing the monitoring units and software, enabling them to focus solely on the information they need to manage and optimize their systems. Instead of worrying about budgets, equipment and maintenance issues, operators have 24/7 access to a fully integrated solution for providing accurate and timely measurement within their collection systems, all included at a preset monthly fee. Intelligent alarms provide warnings before an overflow occurs, and reliable data empowers ongoing analysis of collection system performance for planning purposes. By working with an outsourcing partner such as ADS that serves tens of thousands of sites, operators stay at the forefront of best practices and new technology innovations as an integral part of the service. Continuous remote monitoring with advanced visibility assures that cleaning is performed only when needed. 800-633-7246; www.adsenv.com
Flow Control/Monitoring Equipment

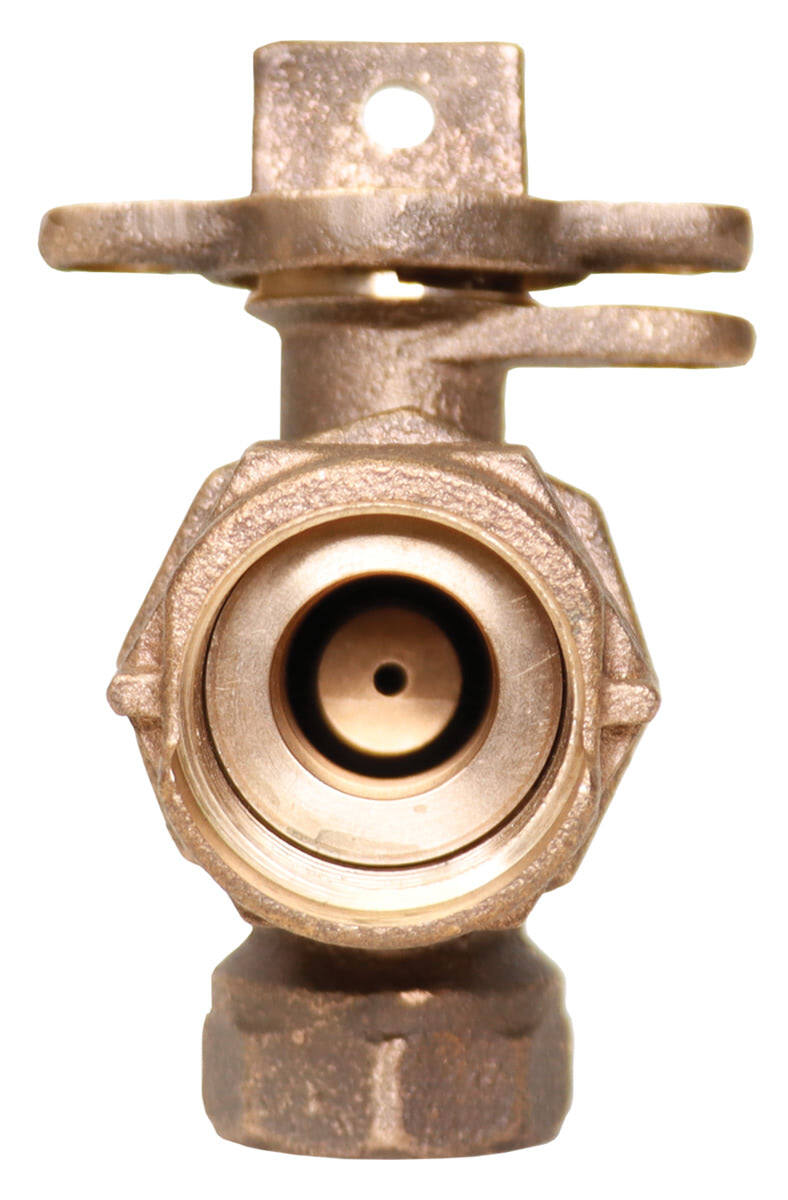

A.Y. McDonald Restricted Flow Ball Valve
A.Y. McDonald’s restricted flow ball valve helps municipalities manage water usage efficiently. Designed for water conservation, cost savings and regulatory compliance, it offers a lockable restricted flow mode in addition to on and off. Made from durable no-lead brass, it withstands high pressure and meets industry standards. The valve is easy to install and retrofit and offers a sustainable solution for water management in residential and commercial settings. It’s an ideal choice for areas facing drought conditions or water restrictions. With consistent performance and a compact design, this valve supports smarter infrastructure planning. The restricted flow ball valve features blowout-proof EPDM port seals, a PTFE-coated brass ball with a 1/8-inch orifice diameter to restrict water flow and is rated for 300 psig — all manufactured to meet ASTM B584, UNS C89833 and ANSI/AWWA C800 standards. 800-292-2737; www.aymcdonald.com

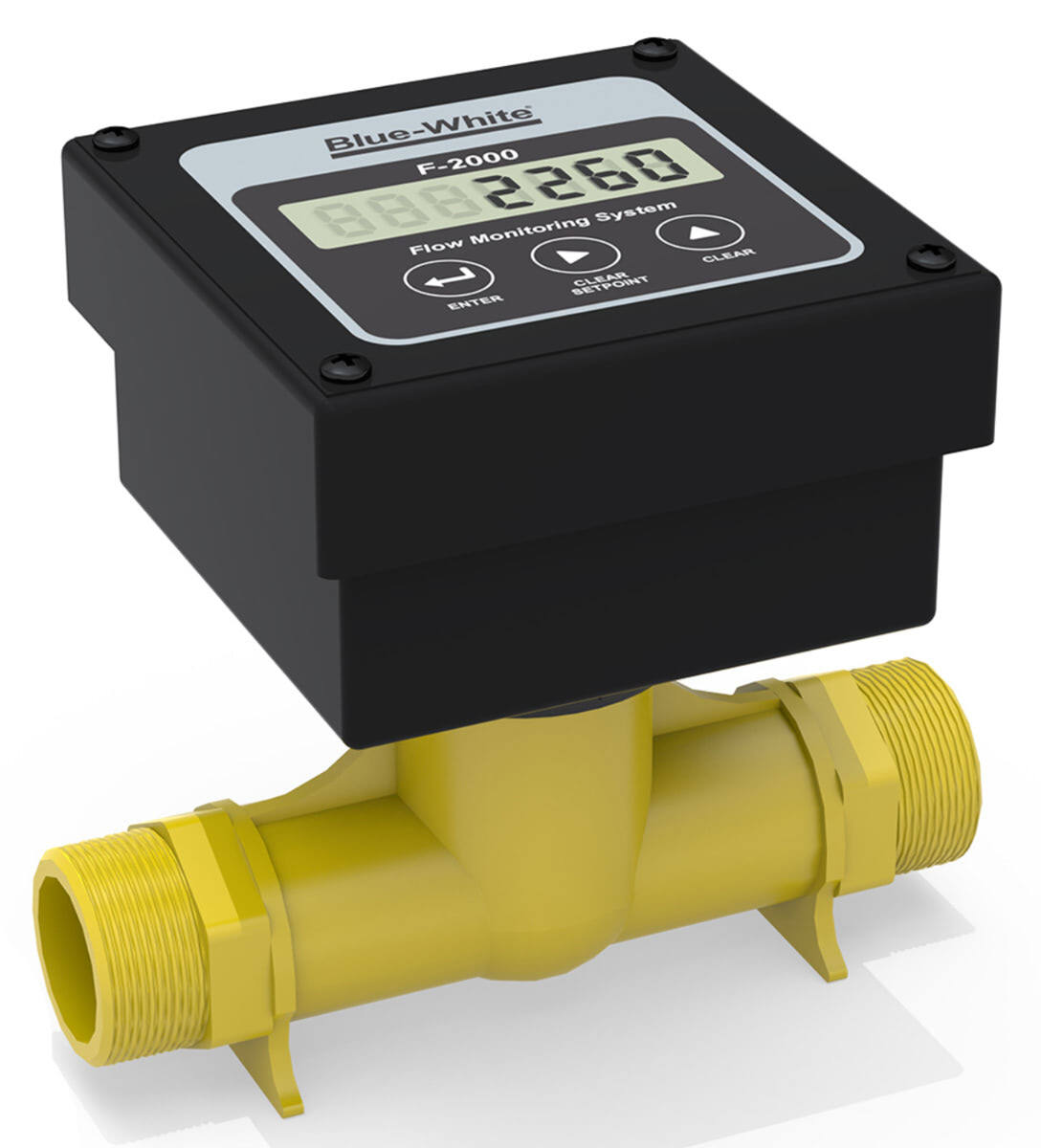

Blue-White DIGI-METER F-2000 Paddlewheel Flow Meter
DIGI-METER F-2000 Paddlewheel Flow Meters from Blue-White feature a digital readout on an LCD screen, displaying flow rate and total flow. Their range is 0.4 to 8000 gpm and they can be mounted on 3/8- to 12-inch pipe sizes. They operate on either an AC/DC transformer or four AA batteries, are quickly installed and the electronic display and communication enclosure can be mounted directly to the sensor or remotely mounted to a pipe or panel. Included is an NPN open collector output for communication with data loggers, SCADA systems and other external devices. Optional 4-20 mA / 0-10 volts DC plug-in circuitry is available for additional communication requirements. Optional batch processing plug-in circuitry includes an 8-amp relay board which adds manual or automatic batch processing capability, or a high/low flow rate alarm output. They are field programmable, and programming mode is easily accessed via three front panel tactile switches. 714-893-8529; www.blue-white.com

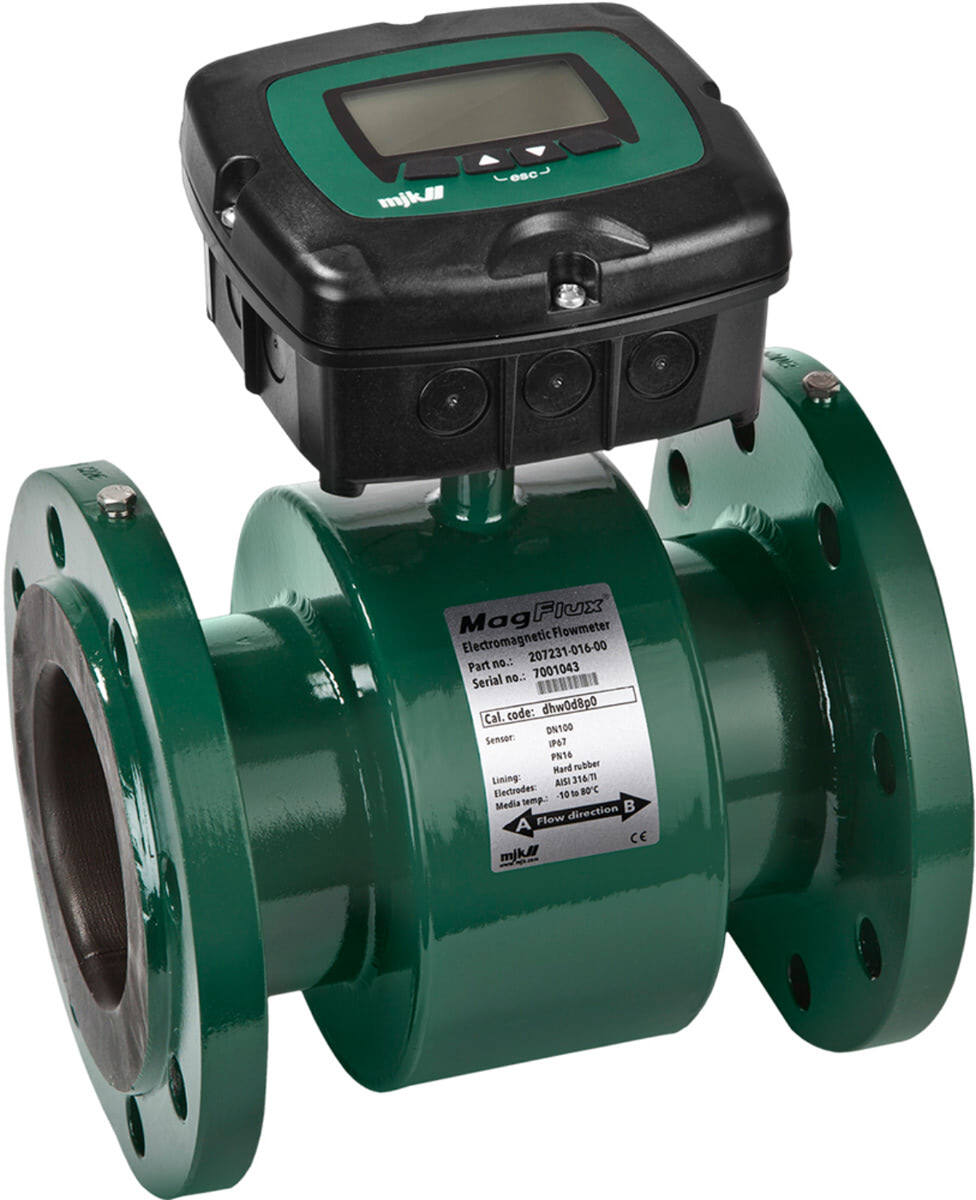

YSI, a Xylem brand MJK MagFlux 7200
The MJK MagFlux 7200 from YSI, a Xylem brand, is an electromagnetic flowmeter designed for optimal performance in drinking water and wastewater applications. Utilizing Faraday’s law, this mag meter ensures precise and reliable flow measurement, enhanced by its automatic self-cleaning function that prolongs electrode cleanliness and operational dependability. Select configurations are NSF 61 approved, allowing for safe deployment in applications that have direct contact with potable water. It delivers high accuracy even at low flow rates, with an accuracy of 0.25% down to 0.6 feet per second. Designed for easy installation in challenging environments, it requires minimal straight pipe of three times the nominal diameter upstream and two times downstream for full accuracy, making it suitable for various complex setups. The system offers flexible configurations for its display, converter and flowmeter. The display unit can control up to four flowmeters and be positioned up to 1,000 meters from the sensor, accommodating a wide range of installation requirements. 937-688-4255; www.ysi.com
Monitoring Equipment

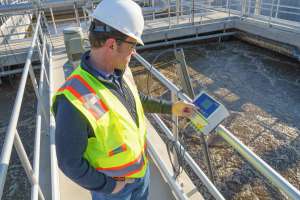

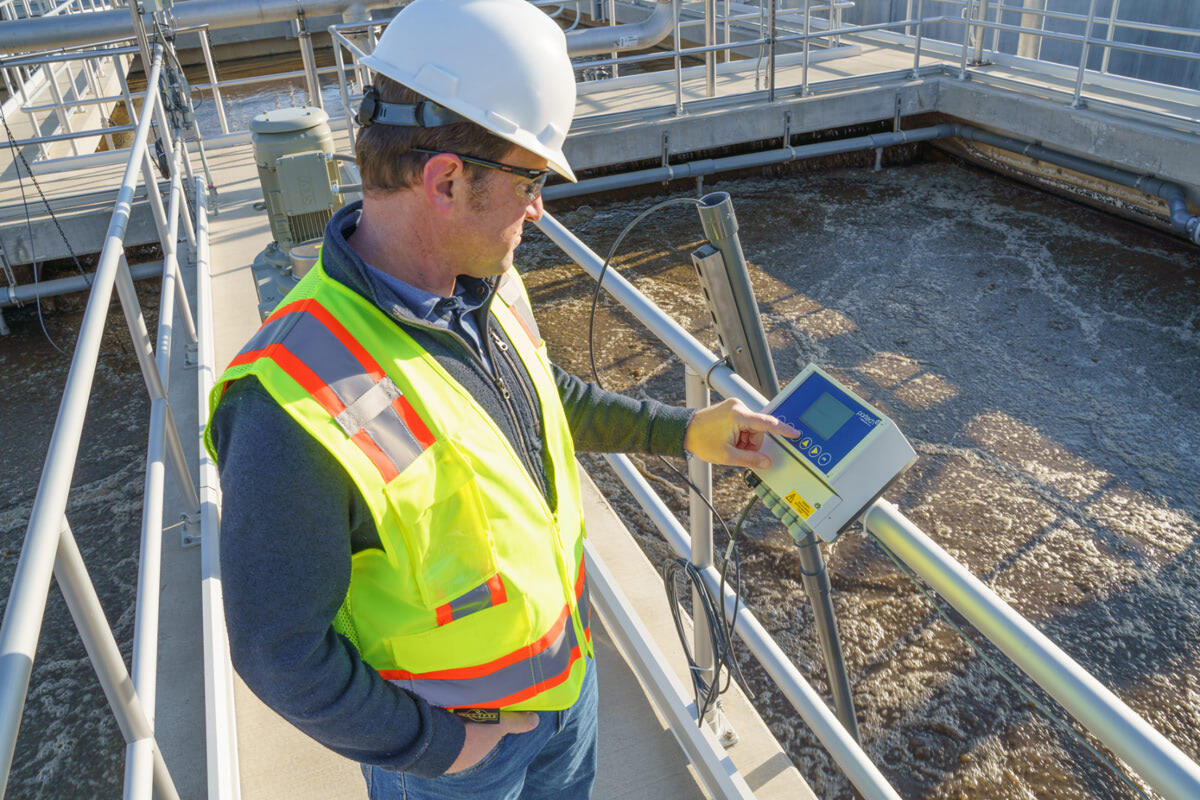

In-Situ 7300 Monitor
The 7300 Monitor from In-Situ continuously monitors up to 16 parameters from a centralized location. This cost-effective solution supports the full range of In-Situ water quality sensors for multiparameter monitoring of total suspended solids, turbidity, temperature, pH/ORP, dissolved oxygen, conductivity, ammonium, pressure, level, salinity, nitrate and chloride. With Modbus or 4-20 mA connections, it easily interfaces with PLC and SCADA systems for automated alarms and process control. A built-in, customer-configurable trending display shows the previous 24 hours of data for any measurement point on an easy-to-navigate graph that can be downloaded for reporting. 800-446-7488; www.in-situ.com

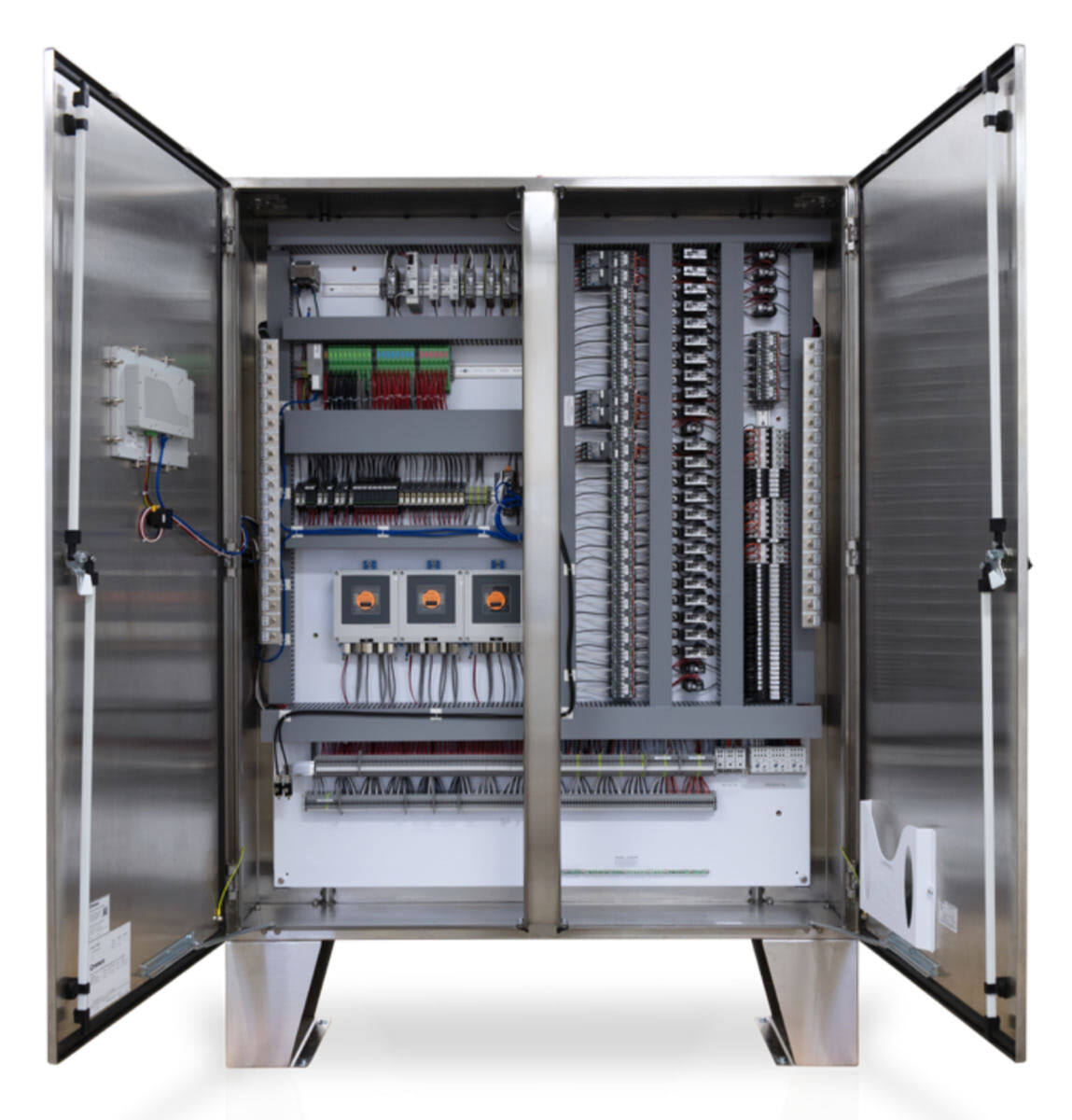

Orenco Controls TCOM-XL Remote Telemetry Control Panel
The TCOM-XL Remote Telemetry Control Panel from Orenco Controls gives operators and technicians remote access to their advanced water and wastewater treatment systems. The controller, which can be customized to the user’s specifications, comes fully programmed for each application and includes user-adjustable parameter settings, a built-in web server for remote and local access with any web-enabled device and a user-friendly configuration interface with an intuitive menu. It allows users to configure pump settings for specific applications, adjust liquid levels, access tank clean-out and pump-down options, monitor pumps for high temperatures, seal failure and overload, see logs of pump and system calculated flow data, export alarm-data logging and management to a spreadsheet file and receive alarm reports via text or email. 800-348-9843; www.orencocontrols.com
Sensors

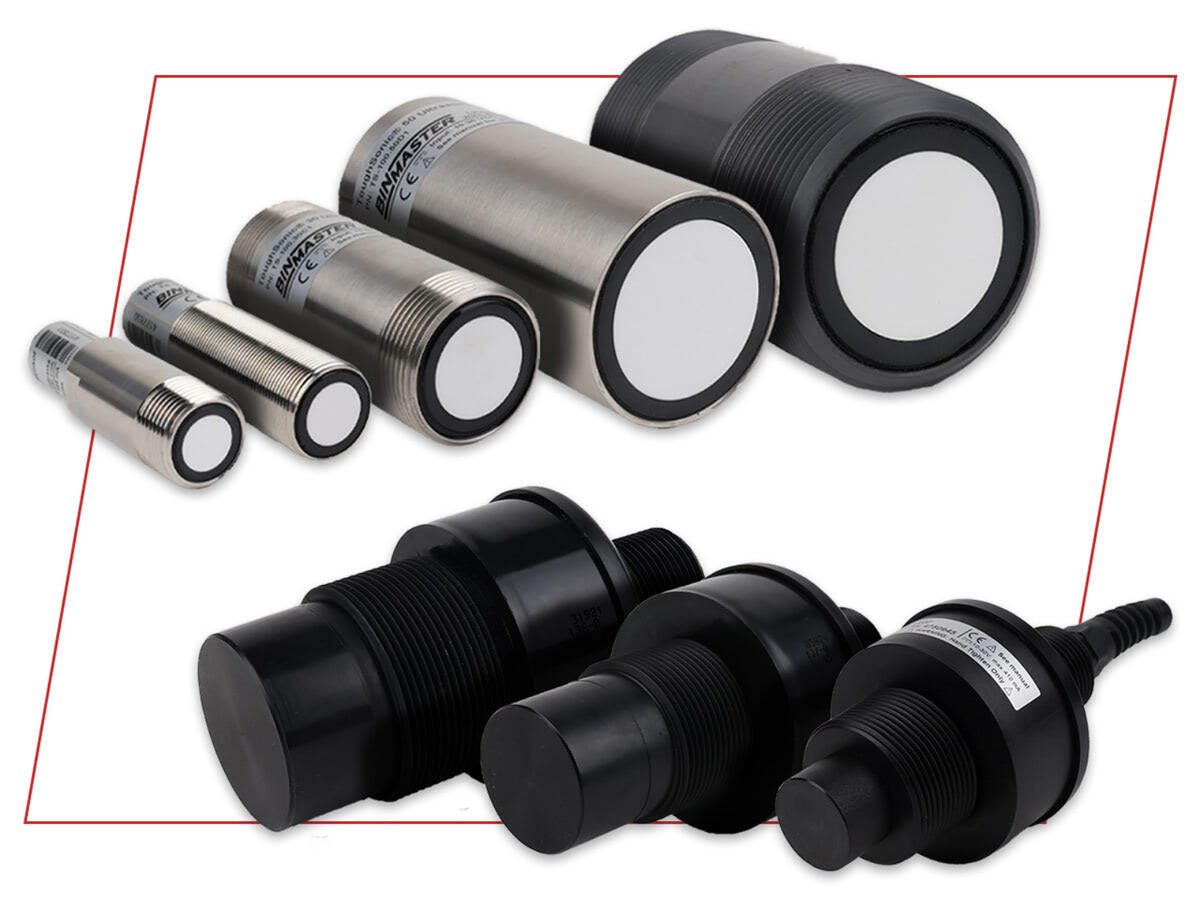

BinMaster ToughSonic
ToughSonic ultrasonic sensors from BinMaster thrive in the harsh indoor and outdoor conditions of industrial and municipal wastewater plants. Water treatment facilities utilize the noncontact ultrasonics for measuring liquid levels in closed or open-air tanks, metering treatment chemicals in holding containers, and monitoring levels of free-flowing water channels where effluent is released. They provide process automation capabilities, including pump, gate and valve control. Sensors are compatible with IoT software — including BinCloud — to further optimize plant operations with real-time measurements and reports. The design features heavy-duty isolated electronics, ruggedized transducers and the user’s choice of stainless steel or Kynar housings. With ranges of up to 50 feet, sensors collect noncontact liquid and distance measurements and are unaffected by optical characteristics, light and noise. 402-434-9102; www.binmaster.com
Software

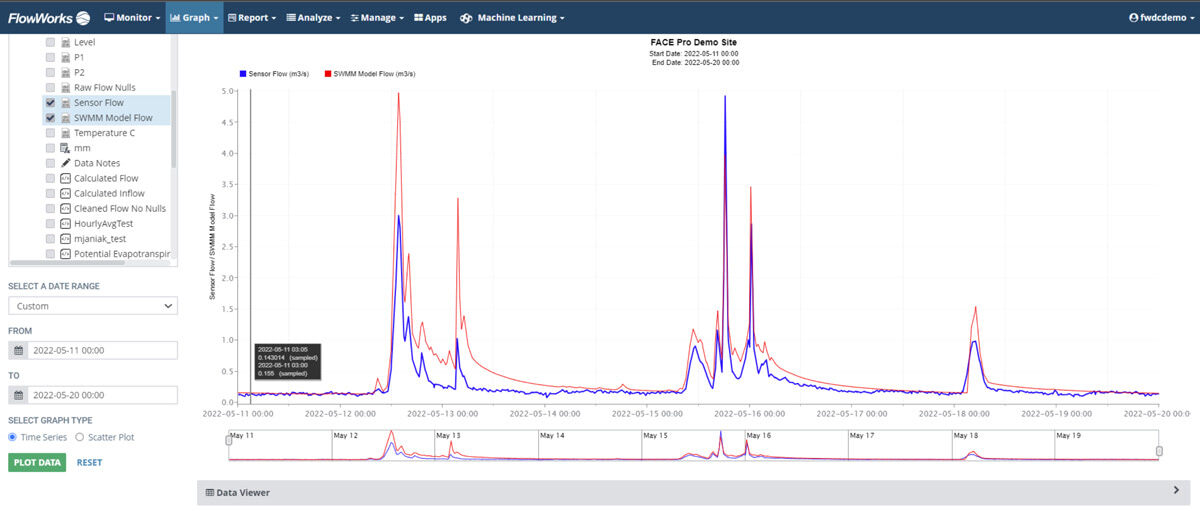

infinitii ai face pro
infinitii ai face pro, with “face” standing for “flowworks advanced calculation engine,” takes advanced calculations and related automation to another level. It has the ability to copy and paste Python, or R scripts and run them in real time against incoming data. This means that complex calculations including machine learning algorithms can run systemwide almost instantly. Use cases for this calculation engine include forecasting, anomaly detection, predictive maintenance and failure prediction. The types of advanced calculations easily performed include Soil and Water Integrated Model calculations that track and predict climate and land-use change impacts at a regional scale and evapotranspiration calculations used to estimate soil-moisture storage based on precipitation deficit and maximum capacity. 778-379-0275; www.infinitii.ai

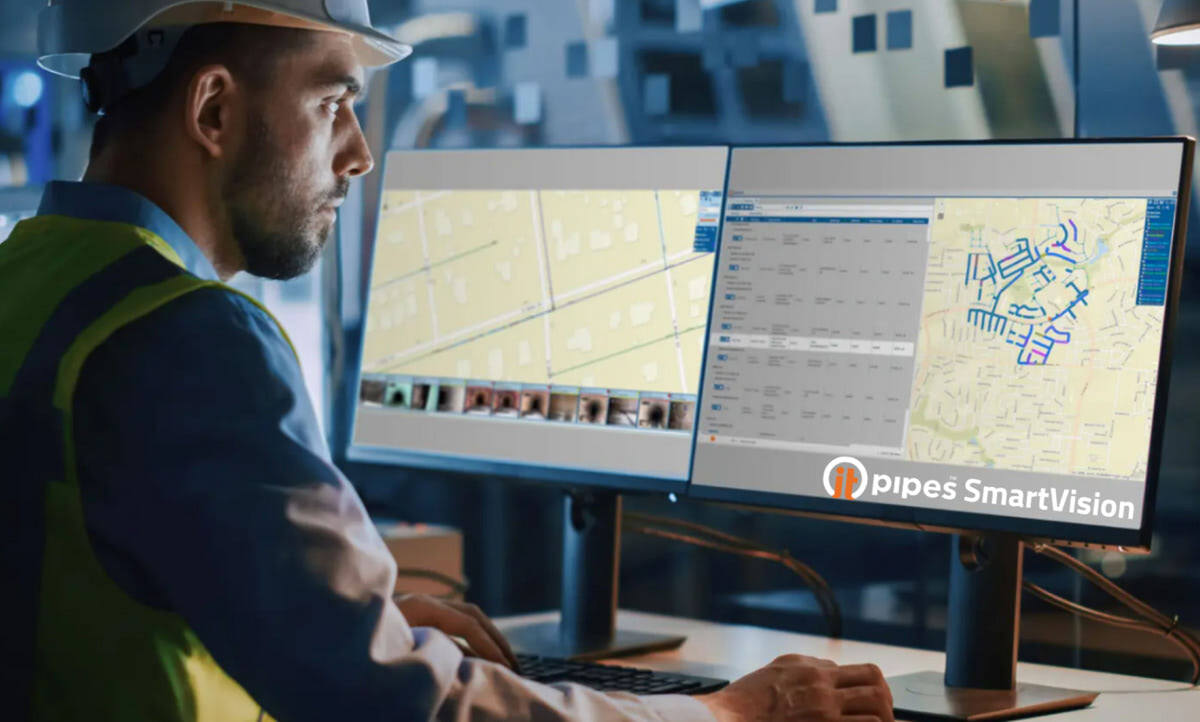

ITpipes SmartVision
SmartVision from ITpipes is a complete solution that seamlessly connects field operations and office workflows for effective pipeline inspection and asset management. Designed to work with all major CCTV inspection hardware, it enables crews in the field to easily capture detailed inspection data, while office teams access real-time updates, interactive mapping and powerful reporting tools. SmartTabs simplify review, QA and planning. It integrates effortlessly with leading asset management systems, including Cityworks, Cartegraph, Tyler Technologies and Infor, enabling smooth work order management and synchronized infrastructure updates. As an Esri Gold Partner solution, it also provides deep GIS integration, leveraging spatial data to drive smarter decisions and long-term planning. 505-355-6829; www.itpipes.com
Sonar Profiling

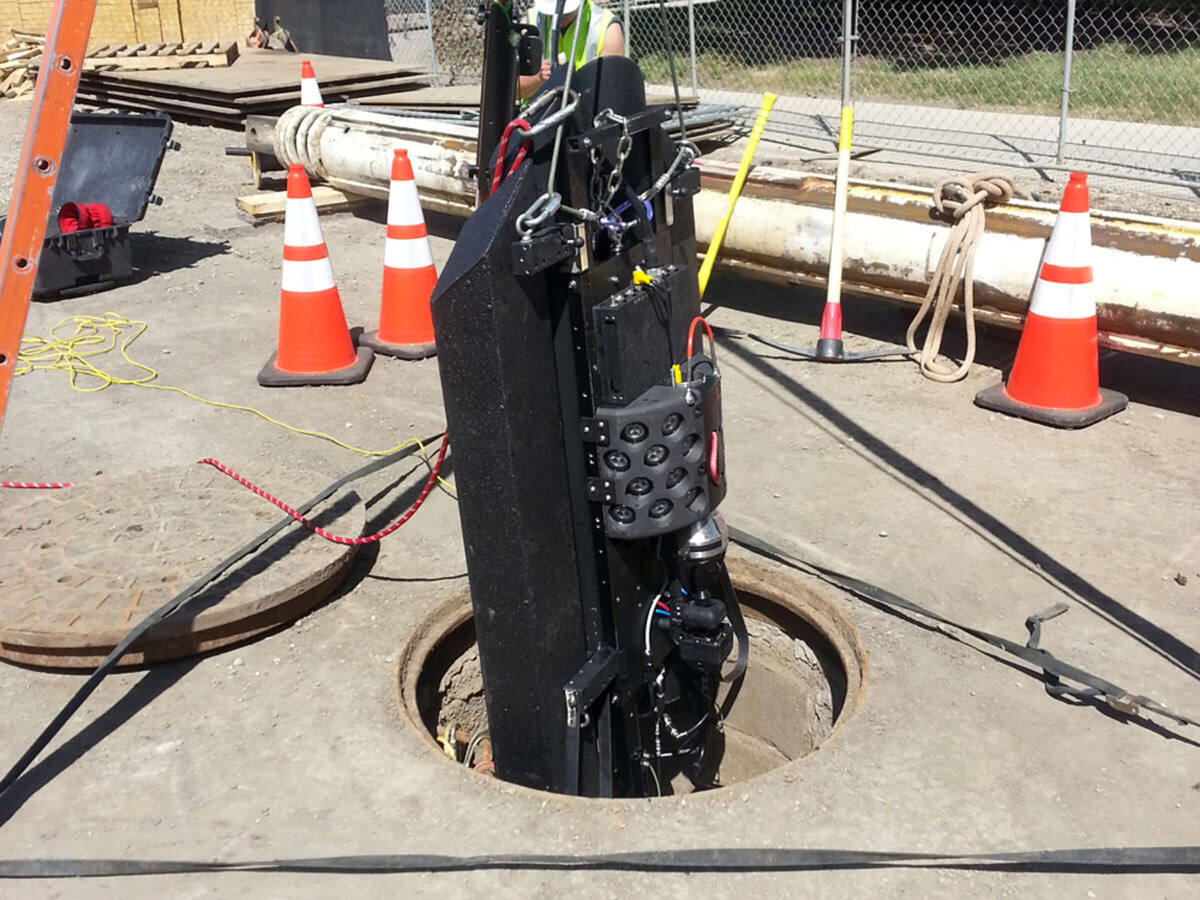

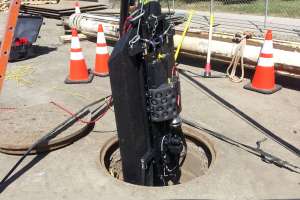

CUES SoLID FX
CUES SoLID FX is a multisensor inspection system for large-diameter pipes. Whether the need is for condition assessment to determine the remaining useful life or rehab planning to obtain accurate dimensions of bends and underground structures, it can be used for both. The standard sensors, including a high-definition digital video camera, 2D-LIDAR and profiling SONAR, can be deployed up to 3,000 feet from a CUES Steerable MudMaster crawler or up to 5,400 feet on a CUES SFX FLOAT. 800-327-7791; www.cuesinc.com
