Communication Equipment

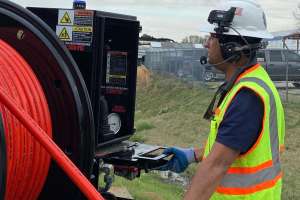

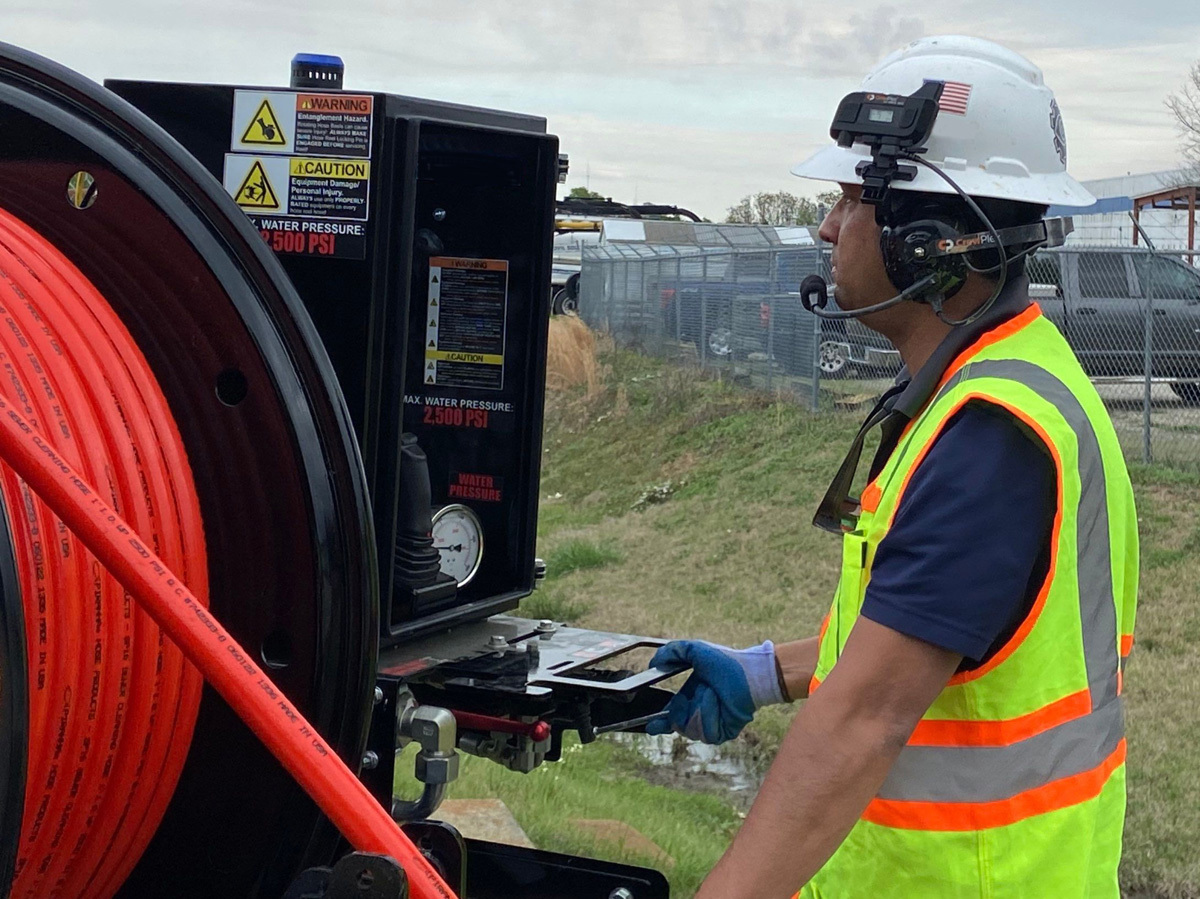

CrewPlex

CrewPlex offers hands-free communication solutions that help crews stay connected, even in challenging environments where noise, distance and task complexity can impact safety and productivity. The entire crew, including supervisors and support staff, can communicate seamlessly with a single system. Users can speak and listen in real-time without delays, voice activation or the need to push a button. High audio quality ensures clear communication in all environments, especially on sites with noise levels exceeding 100 dB. Plus, integration with two-way radio systems keeps everyone connected with supervisors, extending communication across the entire work crew. 334-321-1400; www.crewplex.com

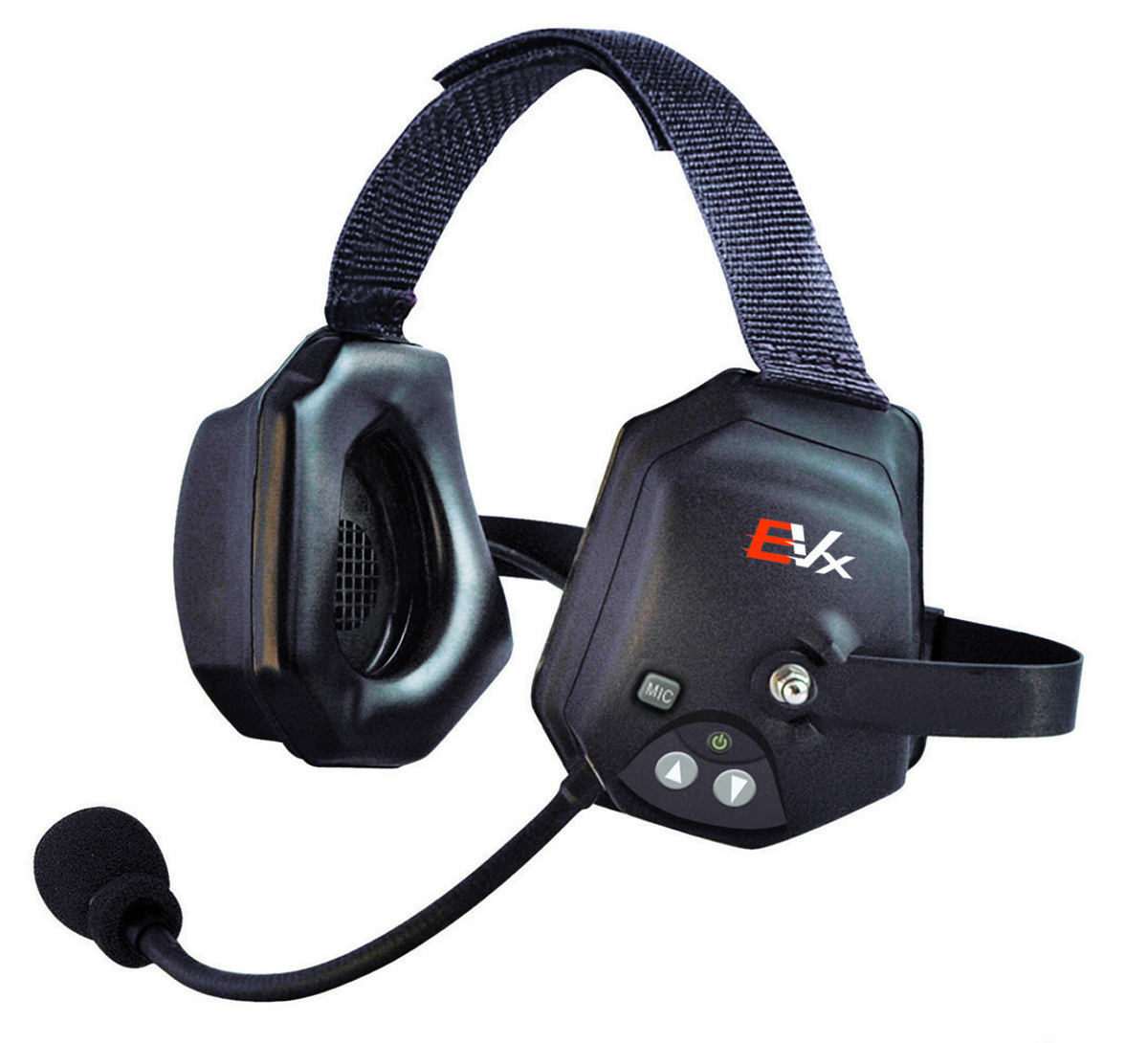

Eartec EVADE XTreme

EVADE XTreme from Eartec are self-contained full-duplex wireless headsets used across a multitude of industrial applications where protective hard hat or bump caps are required. To operate, simply adjust the headband strap for the correct amount of holding tension so your safety cap fits right over as normal. Once you install the battery just turn the headset “ON,” and you are ready to communicate with the rest of your crew in full duplex mode, that is simultaneously and hands free within a half-mile range. 800-399-5994; www.eartec.com

Hydroexcavation Equipment and Supplies

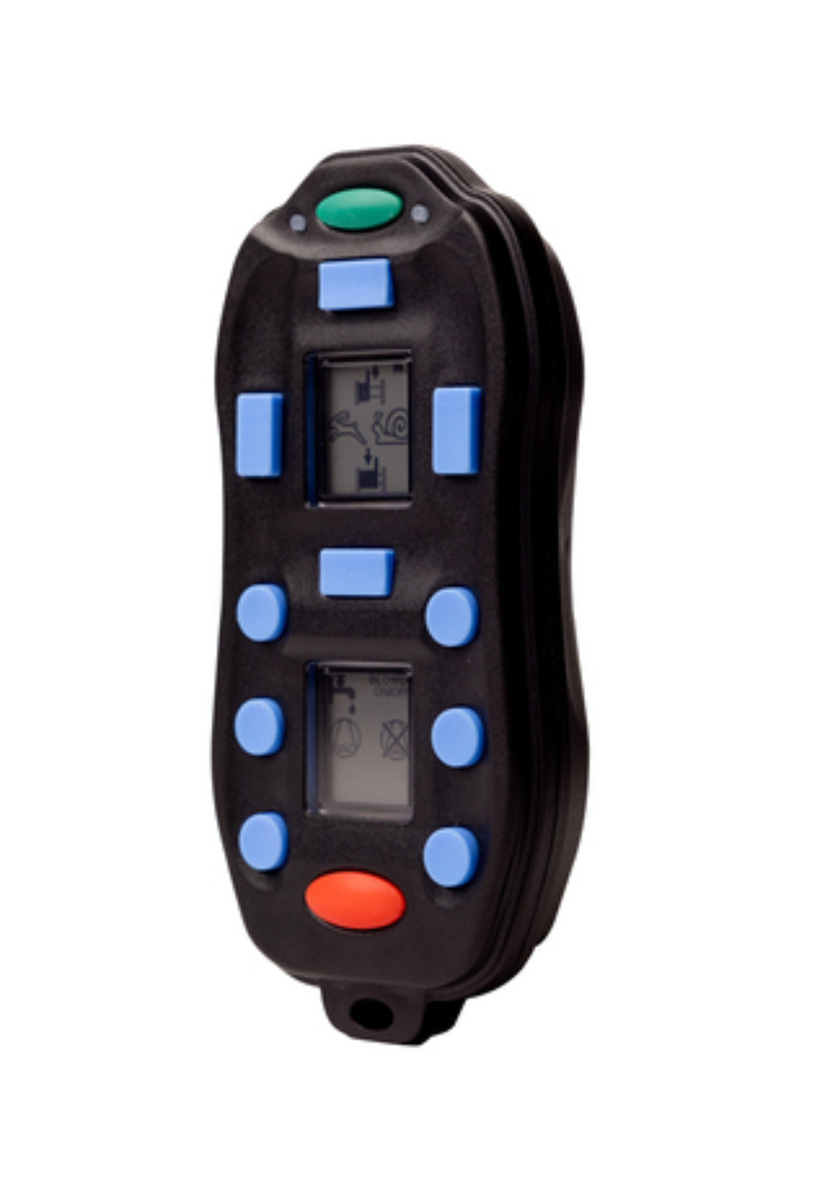

Aarcomm Handheld Remote Control

The Aarcomm Handheld Remote Control delivers performance and proven reliability, no matter what the conditions. With multiple machine types and configuration options available through the firmware, it is also compatible with business needs — just one unit can back up (or spare for) an entire fleet. Advanced radio frequency engineering and signal processing technologies deliver better performance in range, response time and durability. It has guaranteed IP66 and IP67 waterproof rating for both transmitter and receiver. The remote performs to minus 40 degrees F to survive tough job sites. Plug-and-play installation will get it up and running very quickly. 800-604-9218; www.aarcomm.com

Dynablast Pratissoli KFR25

The Pratissoli KFR25 water pump, distributed by Dynablast, offers 19.4 gpm at 3,200 psi at 1,000 rpm. It is available on a coupler-driven hydrovac skid or T14 female spline shaft input and SAE C 2/4 bolt flange for direct mounting to the hydraulic motor. It has run-dry seals, Kevlar graphite rope, a 420 stainless steel manifold for protection from cavitation, stainless steel valve cages for protection from cavitation, a self-lubricating design with no weekly oil lubrication required, a symmetrical crankcase that makes it easy to reverse-shaft the pump, internal fins on its aluminum crank case to provide cooling to lower the oil temperature, a tapered roller bearing for improved lateral loading and two bore ceramic plungers that are thicker ceramic on the water end to prevent thermal shock. 905-867-4642; www.dynablast.ca

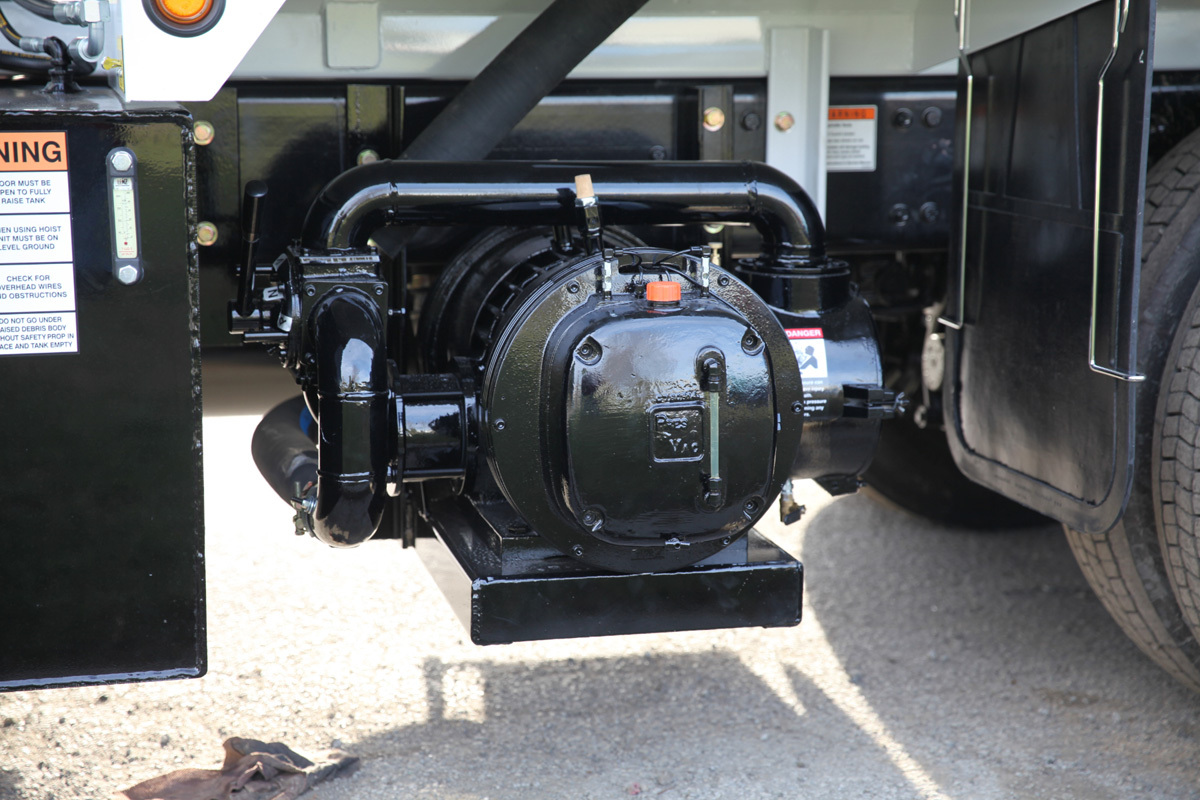

Presvac Systems PV750

The Presvac Systems PV750 rotary vane pump is designed for continuous full-vacuum operation in extreme conditions. It offers 400 cfm at free air, 350 cfm at 15 inches Hg, a maximum vacuum of 27 inches Hg and maximum pressure of 35 psi. Dual fans and twin ballast ports are designed to efficiently cool the pump. The solid housing with deep cooling ribs allows greater heat transfer from the vacuum chamber. Aluminum fans and shrouding work like a heat exchanger. Multiple manifold and drive options are available for truck, trailer or stationary applications. 800-387-7763; www.presvac.com

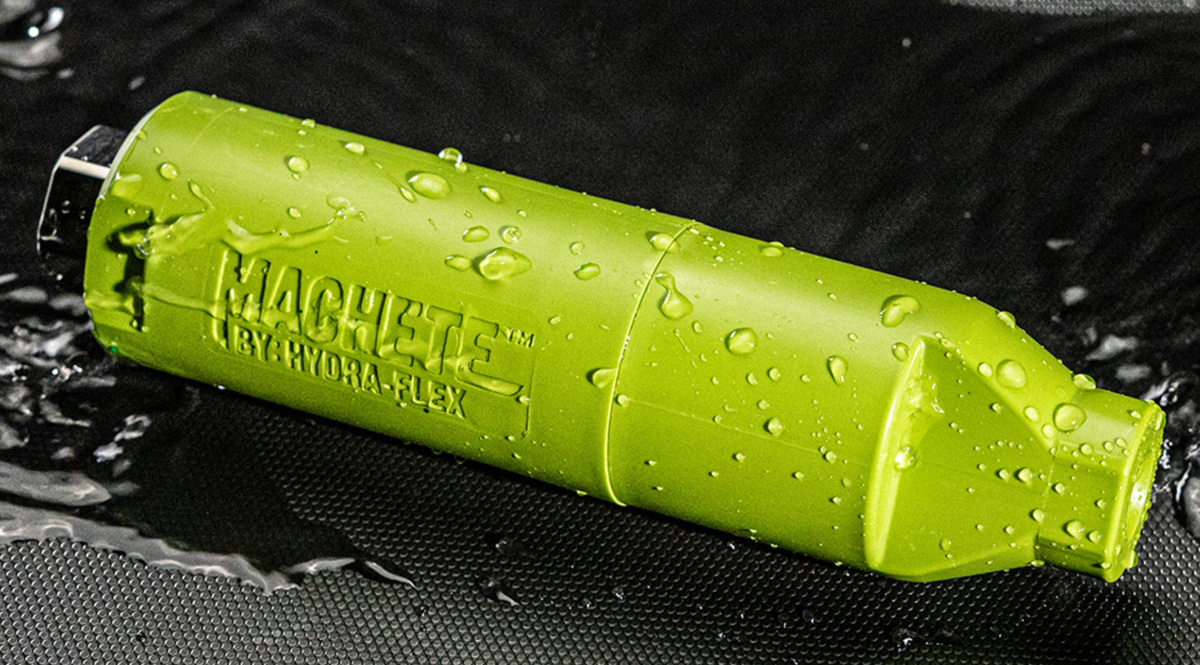

Hydra-Flex Machete

The Machete nozzle from Hydra-Flex offers precision and power for trenching, sloping and bell holing. Its 15-degree linear oscillating stream combines the force of a straight tip with the efficiency of a rotating tip, allowing for faster, deeper digging in compact, rocky soils and caliche. Its continuously moving stream makes it a safer tool to use around underground utilities and reduces the risk of soil collapsing or undermining. Its ergonomic design reduces physical strain on the operator and helps minimize long-term wear and tear on the body. Built with premium, long-lasting materials, this nozzle is designed to be field-repairable, resulting in a longer life span and lower operational costs. 952-808-3640; www.hydraflexinc.com

Hydroexcavation Trucks/Trailers

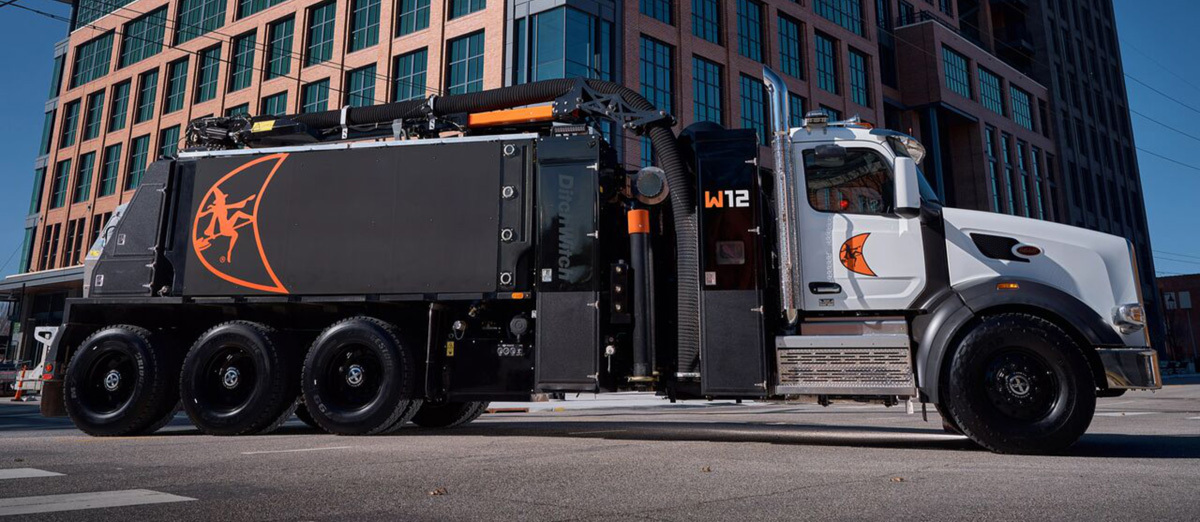

Ditch Witch Warlock W12

The Warlock W12 from Ditch Witch is a PTO-driven vacuum excavator that offers dual 600-gallon saddle tanks and a 12-cubic-yard debris tank, bringing increased capacity and performance to the job site. Dual hose reels, as well as the ability to both hydro and air excavate with the same truck, add to its versatility. Available with a 5,000 cfm blower and 27 inches Hg of vacuum power, it helps operators take on bigger jobs and maximize job site uptime. 580-336-4402; www.ditchwitch.com

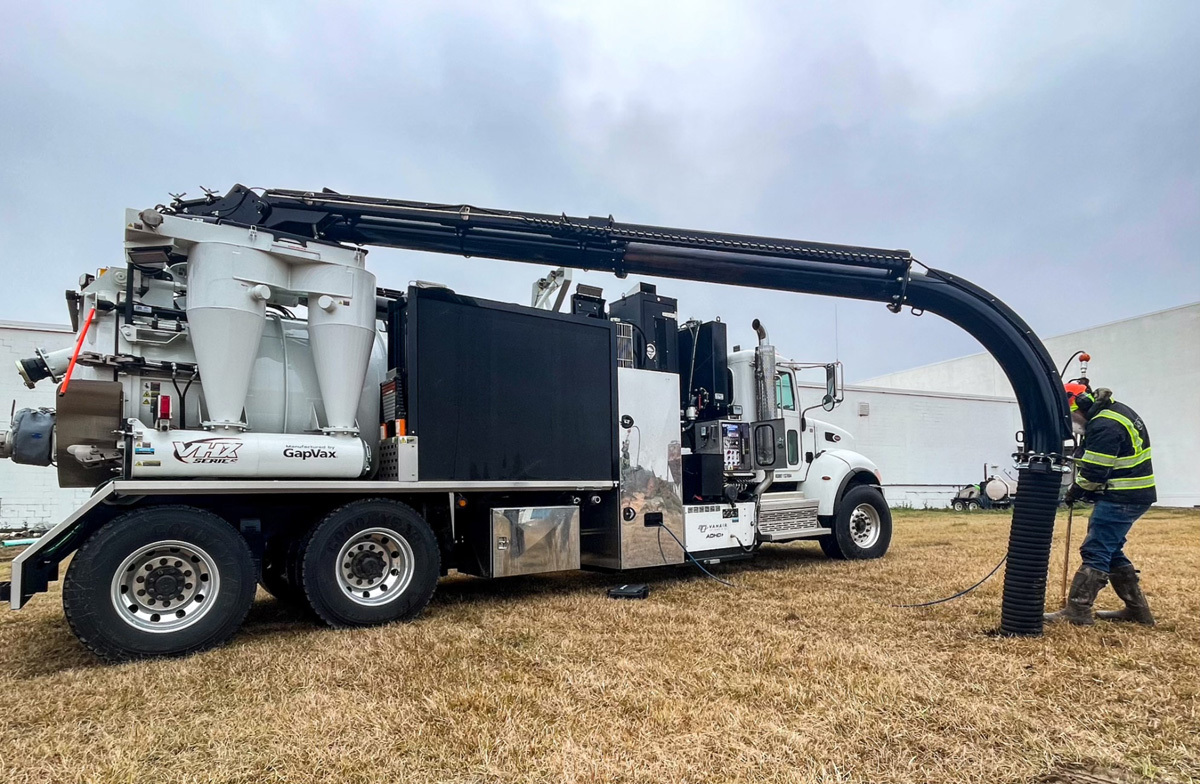

GapVax VHX Series

The GapVax VHX Series hydrovac is designed for optimal weight distribution, improved safety features and improved performance. The debris body is 7.5 cubic yards, offering a 15,000-pound payload. The low profile (12 feet, 2 inches) makes it suitable for all-around hydroexcavation projects. The vacuum system with single mode wet/dry filtration is quiet, reliable and simple, according to the maker. It includes a 4,000 cfm positive displacement blower, 600 hp transfer case with air-shift engagement and ultra-quiet air injection and discharge silencers. This filtration design includes a top-loading debris tank, 14-inch stainless steel float-ball shutoff, efficient centrifugal cyclone separators and long-lasting filter bags. It is equipped with a 12 gpm, 3,000 psi water system with optional 200 cfm air compressor system. A full-tilting debris body, over-45-degree dump angle and full-opening tailgate promote fast unloading and easy cleanout. The 8-inch telescoping VHX boom offers a 22-foot reach with 15-degree downward pivot. 888-442-7829; www.gapvax.com

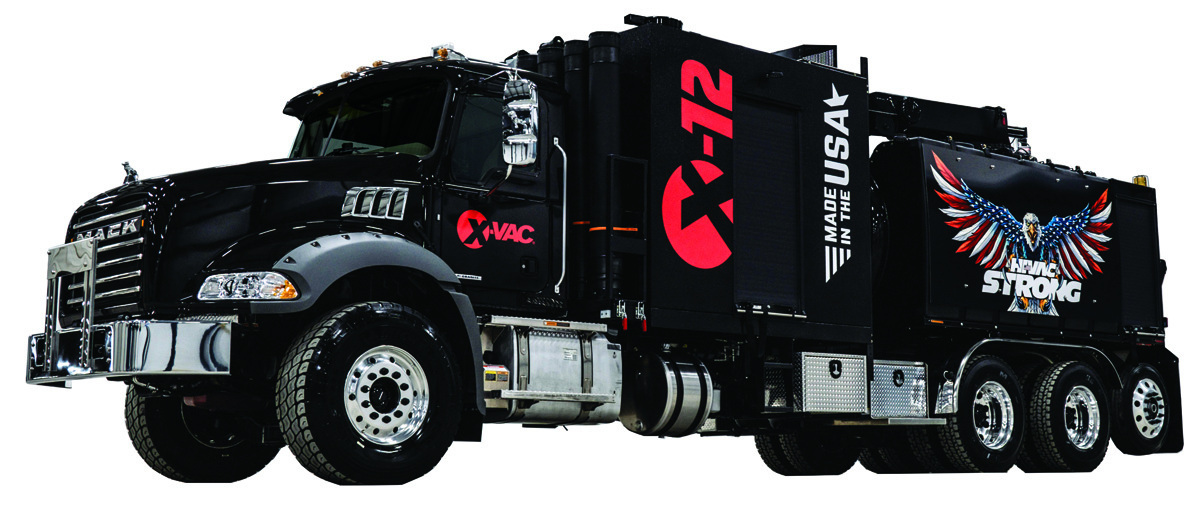

Hi-Vac X-Vac X-12 1450 Hydro Excavator

The X-Vac X-12 1450 Hydro Excavator from Hi-Vac provides the largest freshwater volume in a standard 12-cubic-yard truck platform. With more water, operators can trench, pothole and daylight longer without leaving the job site to refill. It also incorporates a combination of power, capacity and operator protection. The top-mounted, 360-degree rotation boom and simple intuitive controls make setups quick, even in tight spaces. The high-volume hydroexcavating power of a 20 gpm at 3,000 psi pump and debris removal of a 5,775 cfm 27-inch Hg high-performance blower get jobs done faster. It also includes important job site, transit and maintenance safety features such as integrated wired and wireless E-stops, audible-visual boom out-of-stow alarms and standard debris tank and door prop rods. 800-752-2400; www.x-vac.com

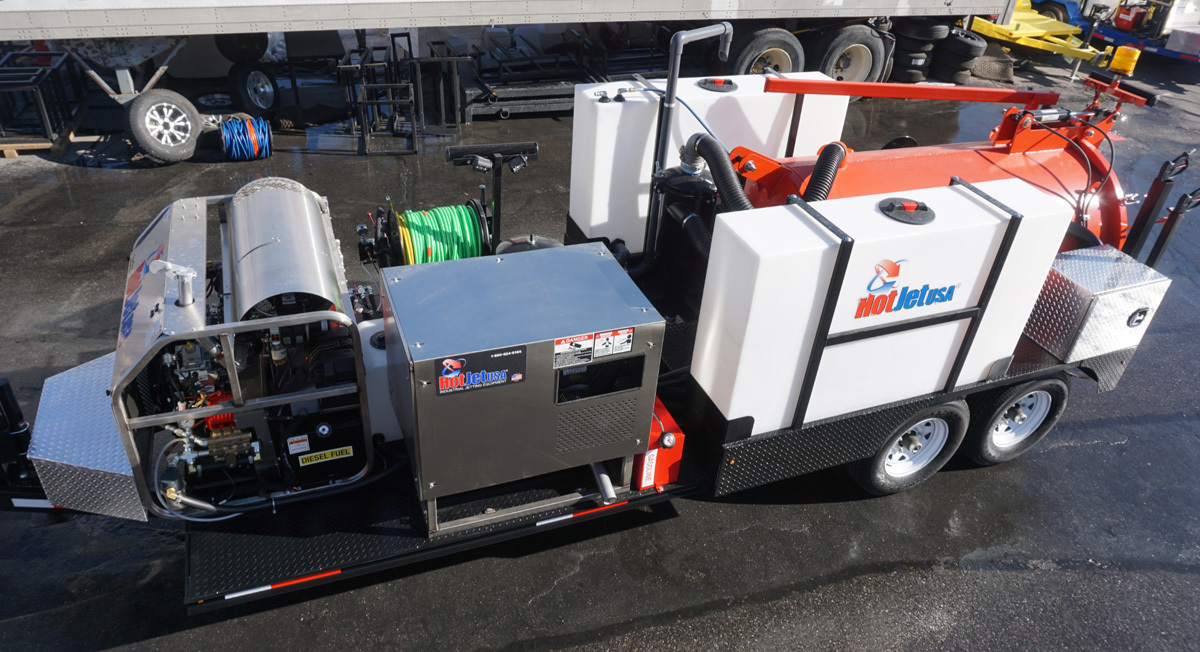

HotJet USA Vac’n Jet Series

The HotJet USA Vac’n Jet Series of vacuum trailer jetters are compact and engineered to haul equipment and the spoils load, perform hydroexcavation and clean valve boxes, storm drains and drain/sewer lines. They feature hot and/or cold water operation with a choice of engines ranging from 23 to 70 hp and gas or diesel. They are equipped with premium triplex pumps, a 500-gallon spoils tank, up to 440-gallon water tanks, Gardner Denver vac/blowers, a 4-ton hydraulic dump and a dual-filter centri-clean filter system. They can also be custom engineered to meet specifications. 800-624-8186; www.hotjetusa.com

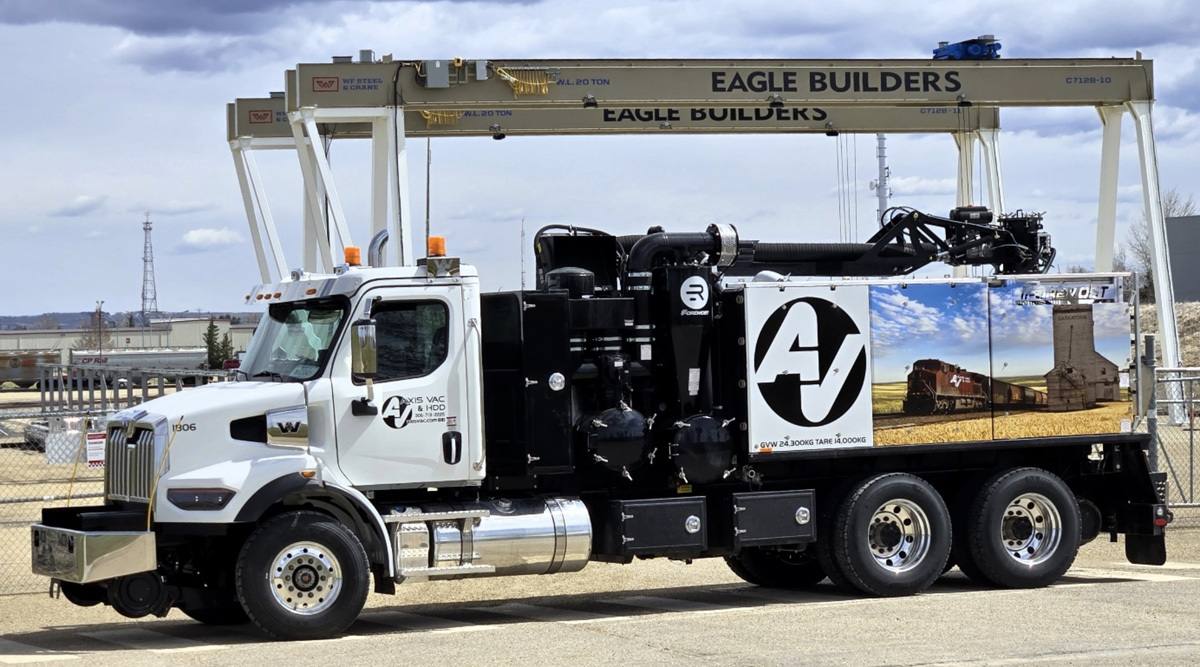

Rival Hydrovac T7 Tandem and T10

The T7 Tandem from Rival Hydrovac was designed primarily to be loaded with debris and driven within legislated road limits with most types of debris on board. The unit comes standard with a scale that reads real-time weights in the cab and on the wireless remote. The T10 is built with the same features and operating system but with larger capacities and components. It is for both utility and industrial work and is available in three chassis layouts to meet weight restrictions in a given area. An air compressor option allows for excavating with air when required, while a truck-mounted coring system allows for removal of hard surfaces prior to nondestructive excavating. 403-550-7997; www.rivalhydrovac.com

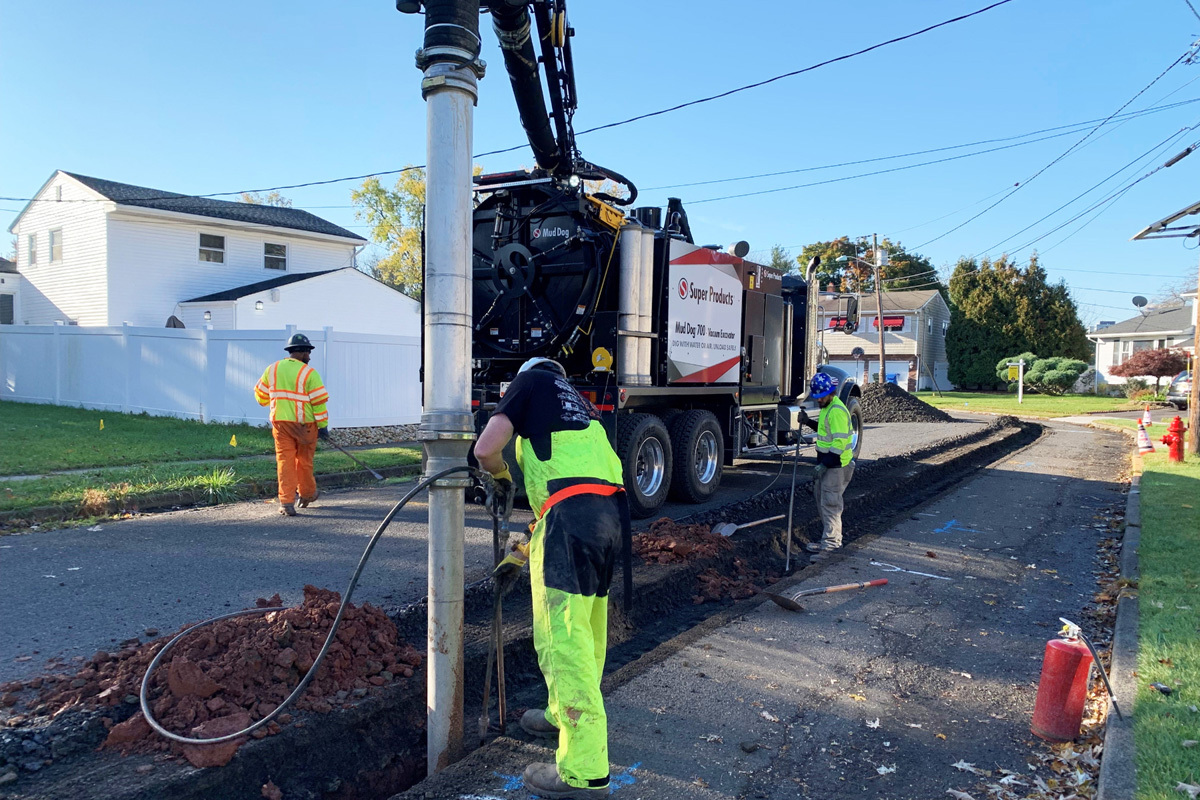

Super Products Mud Dog 700

Mud Dog 700 vacuum excavators from Super Products are designed to meet the challenges of compact urban projects as well as large-scale excavation projects. They offer a compact footprint for excavation in urban environments while maximizing payload and maintaining the power and precision that larger units offer. The unit features a 7-yard debris body and 600-gallon water tank. This model comes standard as a dump body with an electric vibrator offering a 50-degree dump angle with the capability of dumping into a 48-inch container. Additionally, it is equipped with a rear-mounted, extendable, 8-inch-diameter boom that reaches 18 feet, has 270-degree rotation and pivots 10 degrees downward, which minimizes job site restoration and eliminates traffic congestion near roads. 800-837-9711; www.superproducts.com

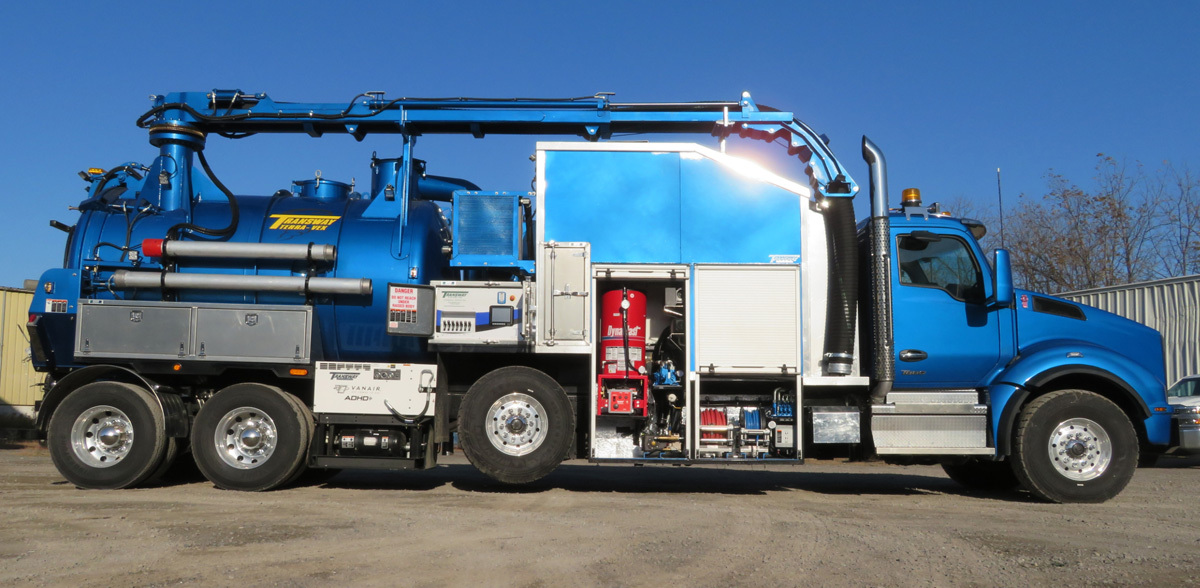

Transway Systems Hydroexcavation Units

Transway Systems Hydroexcavation Units are built to provide reliable, safe and efficient excavation solutions. Featuring an enclosed blower assembly, these units are designed to reduce noise, making them ideal for work in noise-sensitive areas such as urban environments or residential zones. This feature helps create a safer and more comfortable working environment. With rugged durability and all-weather design, they are engineered to withstand tough job sites and harsh conditions. Whether navigating rough terrain, extreme temperatures, or challenging work environments, the units are built to perform consistently. An optional air compressor enables pneumatic soil excavation, allowing for even faster and more efficient soil removal when required for specific projects. Additionally, the units also offer generous tool storage capacity to help keep tools organized and easily accessible, increasing efficiency on the job site. 800-263-4508; www.transwaysystems.com

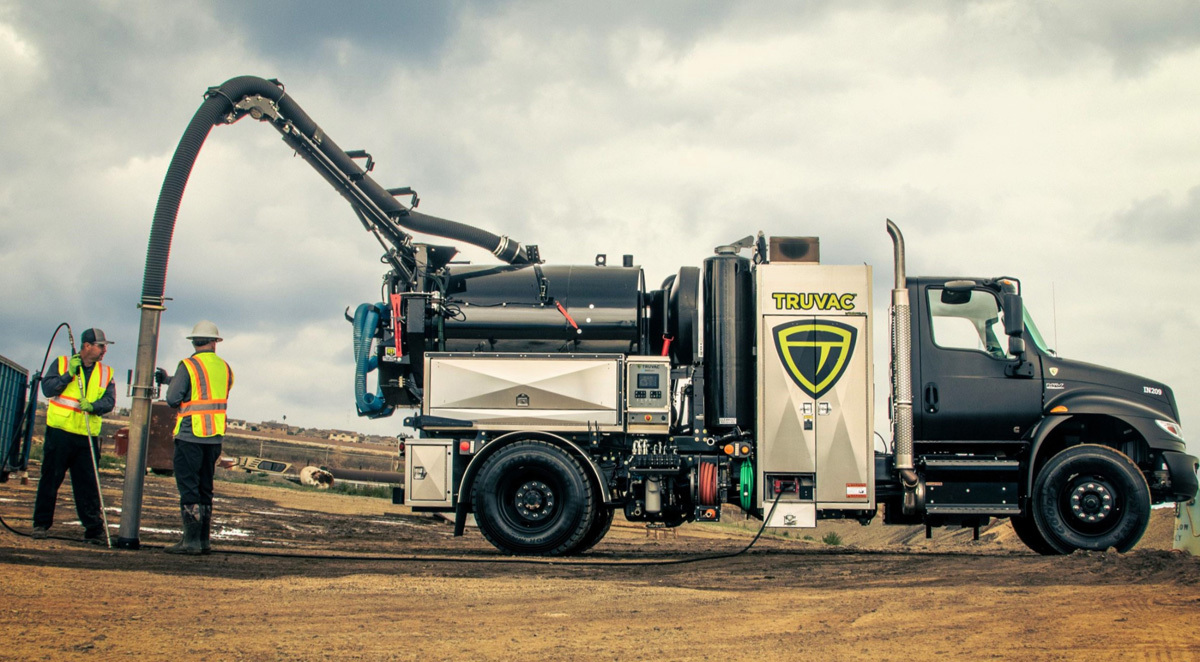

TRUVAC Paradigm

The Paradigm subcompact vacuum excavator from TRUVAC is compact and low-profile, with a tough non-CDL design that allows for easy maneuverability. With its quick setup design, operators can begin operations with just a flip of a switch using the Park-N-Dig feature. 815-672-3171; www.truvac.com

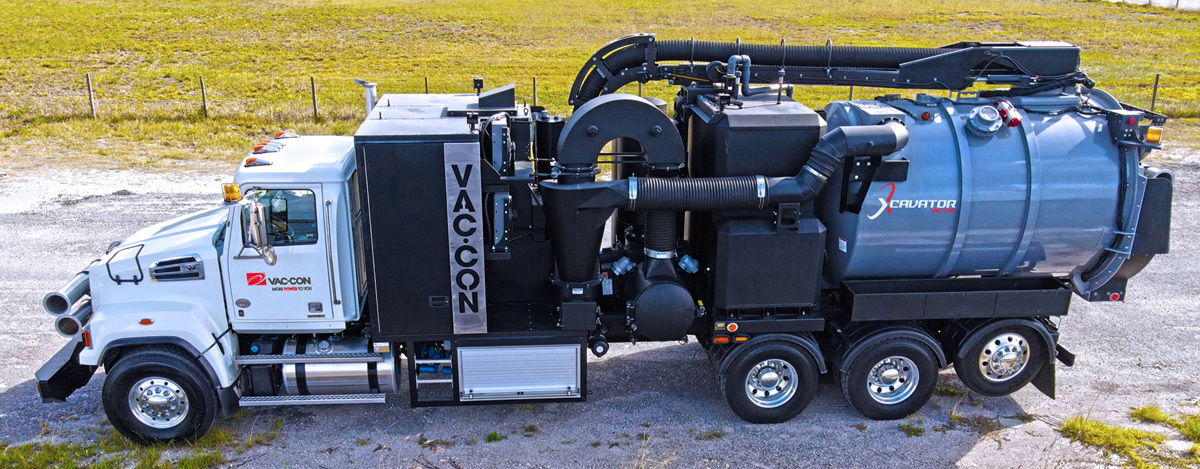

Vac-Con X-Cavator

The X-Cavator hydrovac from Vac-Con includes a cold-weather enclosure for the water systems and control panel as well as an interior area for operator seating and workspace. Unit filtration is based on the Titan combination machine, with a single-cyclone design and final cartridge-style filter. The redesigned boom is lightweight and flexible, rotating 310 degrees around the unit and moving plus 45 degrees and minus 22 degrees vertically. The durable rubber hose material can withstand harsh environments, according to the maker and has a reach of 26 feet. 904-284-4200; www.vac-con.com

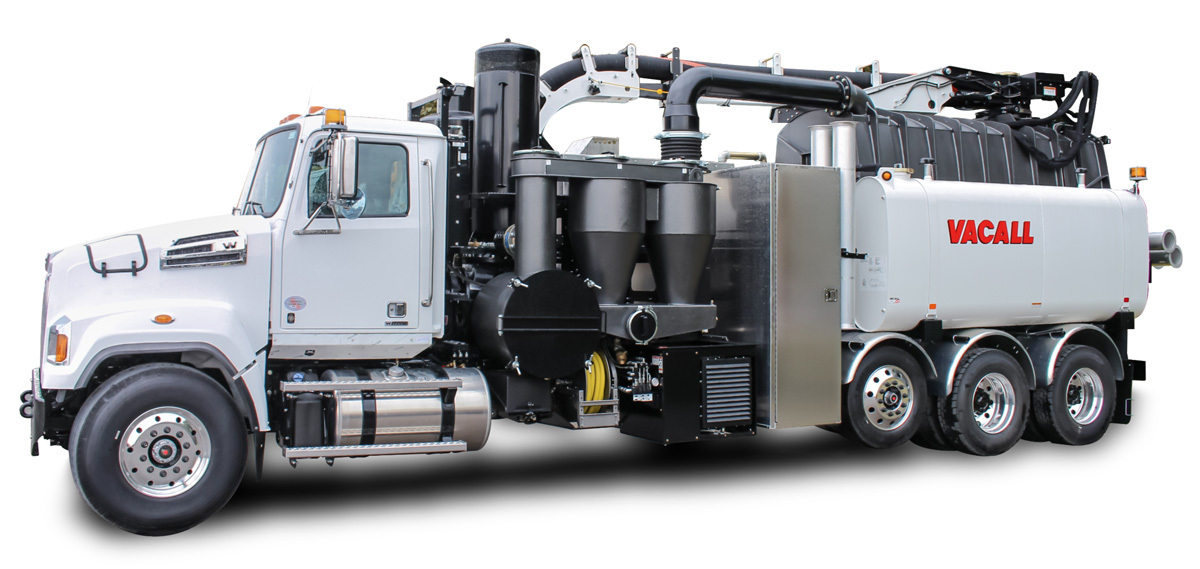

Vacall AllExcavate and AllExcavate2

Vacall AllExcavate and AllExcavate2 machines feature standard intelligent controls and easy startup operation. Both models are designed to efficiently remove dirt around utility lines and foundations. Water pumps generate 24.5 to 120 gpm and pressures to 3,000 psi. The AE2 model adds air excavation at 185 cfm and dual psi of 110 and 150. Water system, wand, control panel, tools and worker apparel are protected in a heated compartment. An AllSmartFlow CANbus control system features a programmable LCD that monitors engine, water flow, air pressure and vacuum performance for precise boom and reel adjustments. Aluminum water tanks with lifetime warranty carry 1,000 to 1,300 gallons. Galvanized debris tanks have a supreme finish and are available with 8-, 10- and 13-cubic-yard capacities. They use one engine to power the chassis and excavation functions, designed to reduce service and operation costs. 800-382-8302; www.vacall.com

Industrial Vacuum Truck

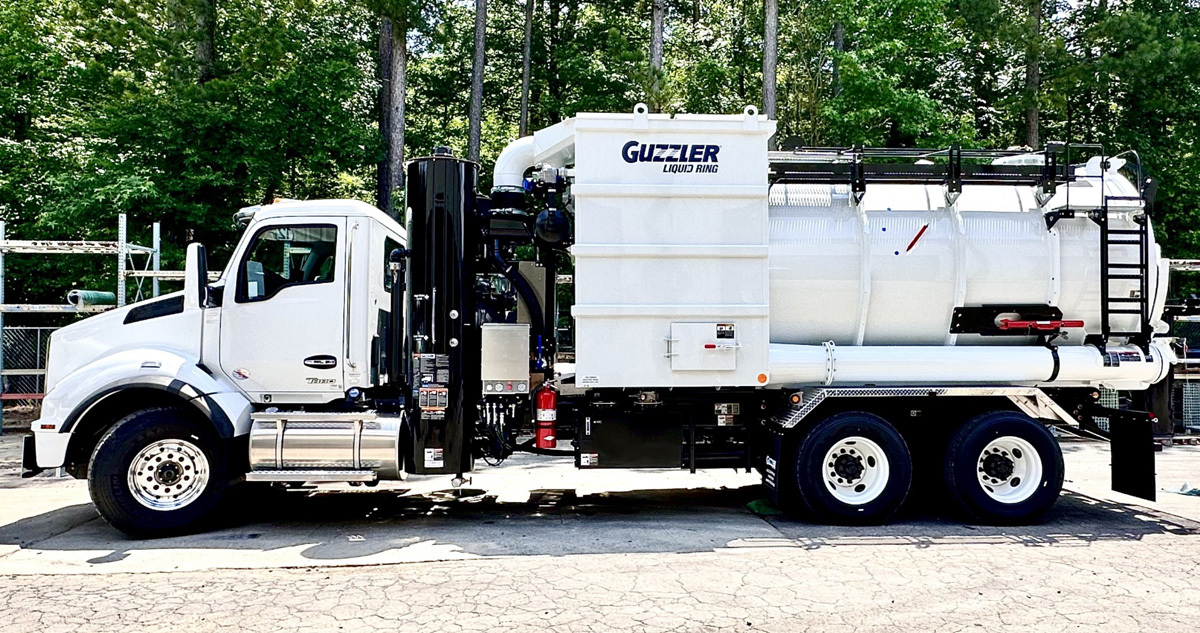

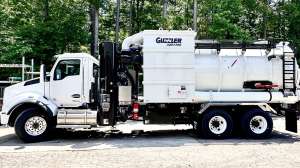

Guzzler Classic Liquid Ring

The Guzzler Classic Liquid Ring has been engineered to ensure maximum productivity. It can effectively vacuum dry material, providing high vacuum power with four-stage filtration and modular filter components for easy maintenance. It includes a quiet, virtually maintenance-free liquid ring pump, bolt-on filtration components which are easier to maintain, replace and refurbish, intuitive, simple controls for easier operation, the power to operate in remote or inaccessible locations more than 1,000 feet away, easy accessibility to major components, simplified maintenance and advanced safety features. 815-672-3171; www.guzzler.com
